-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

What's New for Apollo 4200 Gen9

2U (28 LFF or 54 SFF) Chassis Options

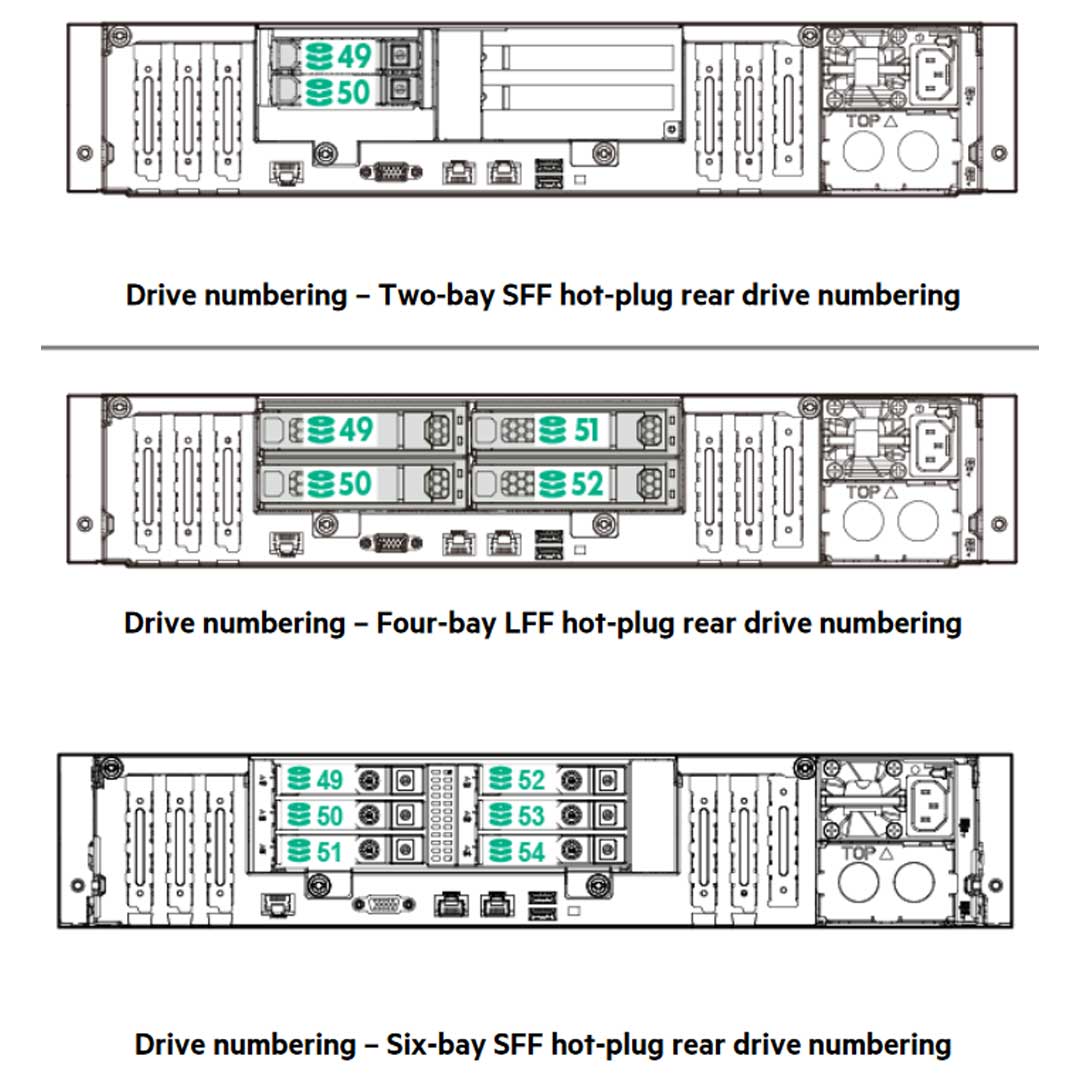

Optional rear drive up to 6 SFF or 4 LFF
(2) Intel Xeon E5-2600 v3 or v4 processors
(16) 2400MT/s DDR4 DIMMs | 8 DIMMs per processor
Supports up to 1.5 TB of DDR4 memory
(7) PCIe 3.0 slots
HPE's Silicon Root of Trust
HPE iLO 4
No NVMe Support
No GPU Supported

Other Versions:

HPE ProLiant Apollo 2000 G9 | G10
HPE ProLiant Apollo 4200 G9 | G10 | G10+
HPE ProLiant Apollo 4500 G9 | ---
HPE ProLiant Apollo 6500 G9 | G10 | G10+
HPE ProLiant Apollo pc40
HPE ProLiant Apollo sx40

(Click to View)

Ideal for:

Big Data Analytics
Cloud Servers
Data Analytics
Video Streaming

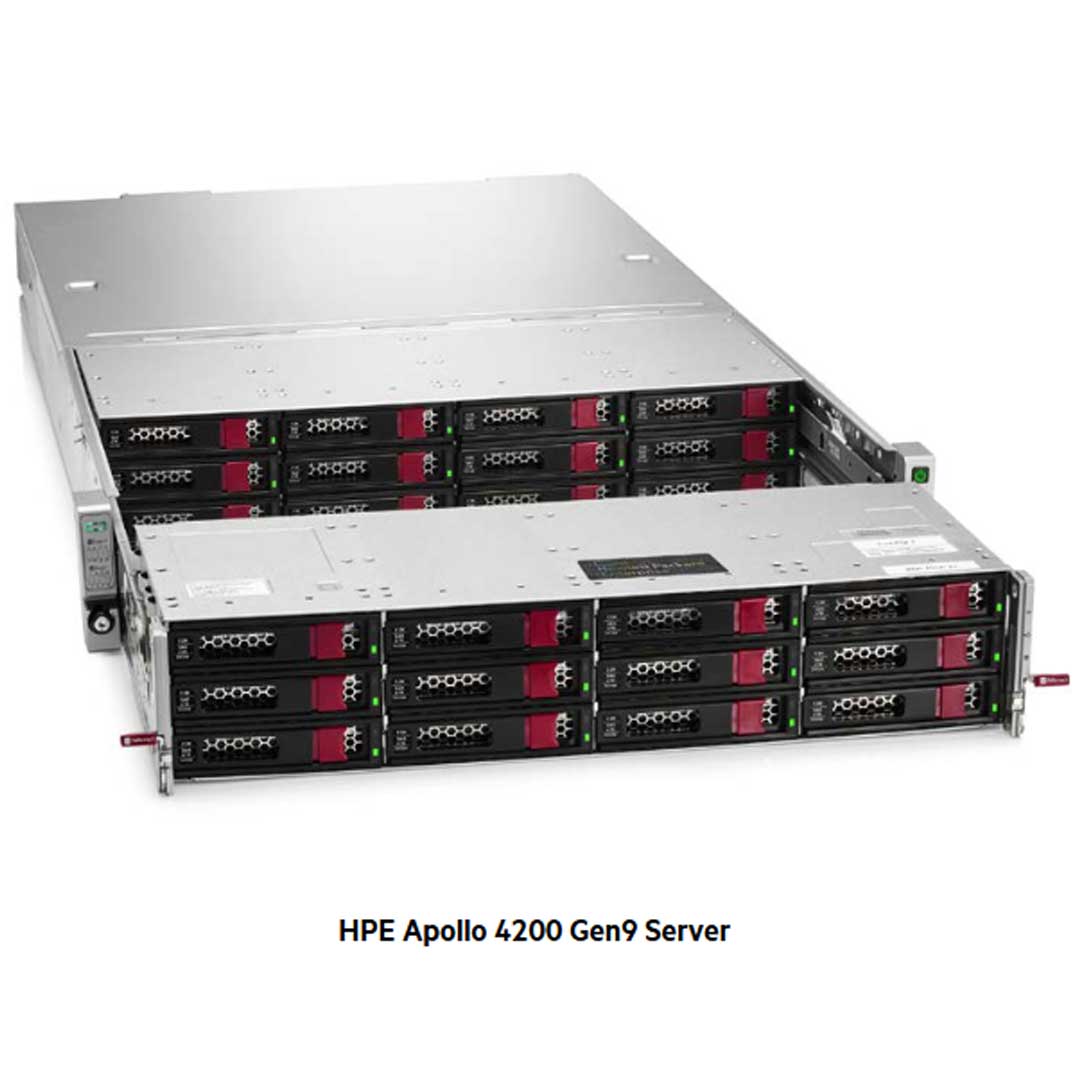

The HPE Apollo 4200 Gen9 Server combines high storage density and robust performance in a 2U form factor. It supports up to 28 LFF or 54 SFF hot-plug drives, providing industry-leading capacity for data-intensive workloads. With the LFF chassis, users can achieve up to 224 TB of storage using 8 TB drives, scaling to over 4.4 PB in a standard 42U rack. For high-performance applications, the SFF chassis supports up to 54 SAS or SSD drives with 12 Gb/s throughput, ideal for Hadoop, content delivery, and object storage workloads. Its efficient design and management features make it a standout solution for modern enterprise storage needs.

The HPE Apollo 4200 Gen9 Server does not natively support GPU accelerators in its standard configuration. It is primarily designed for storage-dense workloads and high-capacity data applications like Hadoop, object storage, and content delivery, rather than compute-intensive tasks that require GPUs.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Product features

Feature

Description

Processor (One of the following depending on model)

Model	CPU frequency	Cores	L3 Cache	Power	QPI	DDR4 Hz
E5-2699v3	2.3 GHz	18	45MB	145 W	9.6 GT/s	2133
E5-2698v3	2.3 GHz	16	40MB	135 W	9.6 GT/s	2133
E5-2697v3	2.6 GHz	14	35MB	145 W	9.6 GT/s	2133
E5-2695v3	2.3 GHz	14	35MB	120 W	9.6 GT/s	2133
E5-2690v3	2.6 GHz	12	30MB	135 W	9.6 GT/s	2133
E5-2683v3	2.0 GHz	14	35MB	120 W	9.6 GT/s	2133
E5-2680v3	2.5 GHz	12	30MB	120 W	9.6 GT/s	2133
E5-2670v3	2.3 GHz	12	30MB	120 W	9.6 GT/s	2133
E5-2667v3	3.2 GHz	8	20MB	135 W	9.6 GT/s	2133
E5-2660v3	2.6 GHz	10	25MB	105 W	9.6 GT/s	2133
E5-2650v3	2.3 GHz	10	25MB	105 W	9.6 GT/s	2133
E5-2650Lv3	1.8 GHz	12	30MB	65 W	9.6 GT/s	2133
E5-2643v3	3.4 GHz	6	20MB	135 W	9.6 GT/s	2133
E5-2640v3	2.6 GHz	8	20MB	90 W	8.0 GT/s	1866
E5-2637v3	3.5 GHz	4	15MB	135 W	9.6 GT/s	2133
E5-2630v3	2.4 GHz	8	20MB	85 W	8.0 GT/s	1866
E5-2630Lv3	1.8 GHz	8	20MB	55 W	8.0 GT/s	1866
E5-2623v3	3.0 GHz	4	10MB	105 W	8.0 GT/s	1866
E5-2620v3	2.4 GHz	6	15MB	85 W	8.0 GT/s	1866
E5-2609v3	1.9 GHz	6	15MB	85 W	6.4 GT/s	1600
E5-2603v3	1.6 GHz	6	15MB	85 W	6.4 GT/s	1600
E5-2699v4	2.2 GHz	22	55MB	145 W	9.6 GT/s	2400
E5-2698v4	2.2 GHz	20	50MB	135 W	9.6 GT/s	2400
E5-2697v4	2.3 GHz	18	45MB	145 W	9.6 GT/s	2400
E5-2697Av4	2.6 GHz	16	40MB	145 W	9.6 GT/s	2400
E5-2695v4	2.1 GHz	18	45MB	120 W	9.6 GT/s	2400
E5-2690v4	2.6 GHz	14	35MB	135 W	9.6 GT/s	2400
E5-2683v4	2.1 GHz	16	40MB	120 W	9.6 GT/s	2400
E5-2680v4	2.4 GHz	14	35MB	120 W	9.6 GT/s	2400
E5-2667v4	3.2 GHz	8	25MB	135 W	9.6 GT/s	2400
E5-2660v4	2.0 GHz	14	35MB	105 W	9.6 GT/s	2400
E5-2650v4	2.2 GHz	12	30MB	105 W	9.6 GT/s	2400
E5-2650Lv4	1.7 GHz	14	35MB	65 W	9.6 GT/s	2400
E5-2643v4	3.4 GHz	6	20MB	135 W	9.6 GT/s	2400
E5-2640v4	2.4 GHz	10	25MB	90 W	8.0 GT/s	2133
E5-2637v4	3.5 GHz	4	15MB	135 W	9.6 GT/s	2400
E5-2630v4	2.2 Ghz	10	25MB	85 W	8.0 GT/s	2133
E5-2630Lv4	1.8 GHz	10	25MB	55 W	8.0 GT/s	2133
E5-2623v4	2.6 GHz	4	10MB	85 W	9.6 GT/s	2133
E5-2620v4	2.1 GHz	8	20MB	85 W	8.0 GT/s	2133
E5-2609v4	1.7 GHz	8	20MB	85 W	6.4 GT/s	1866
E5-2603v4	1.7 GHz	6	15MB	85 W	6.4 GT/s	1866

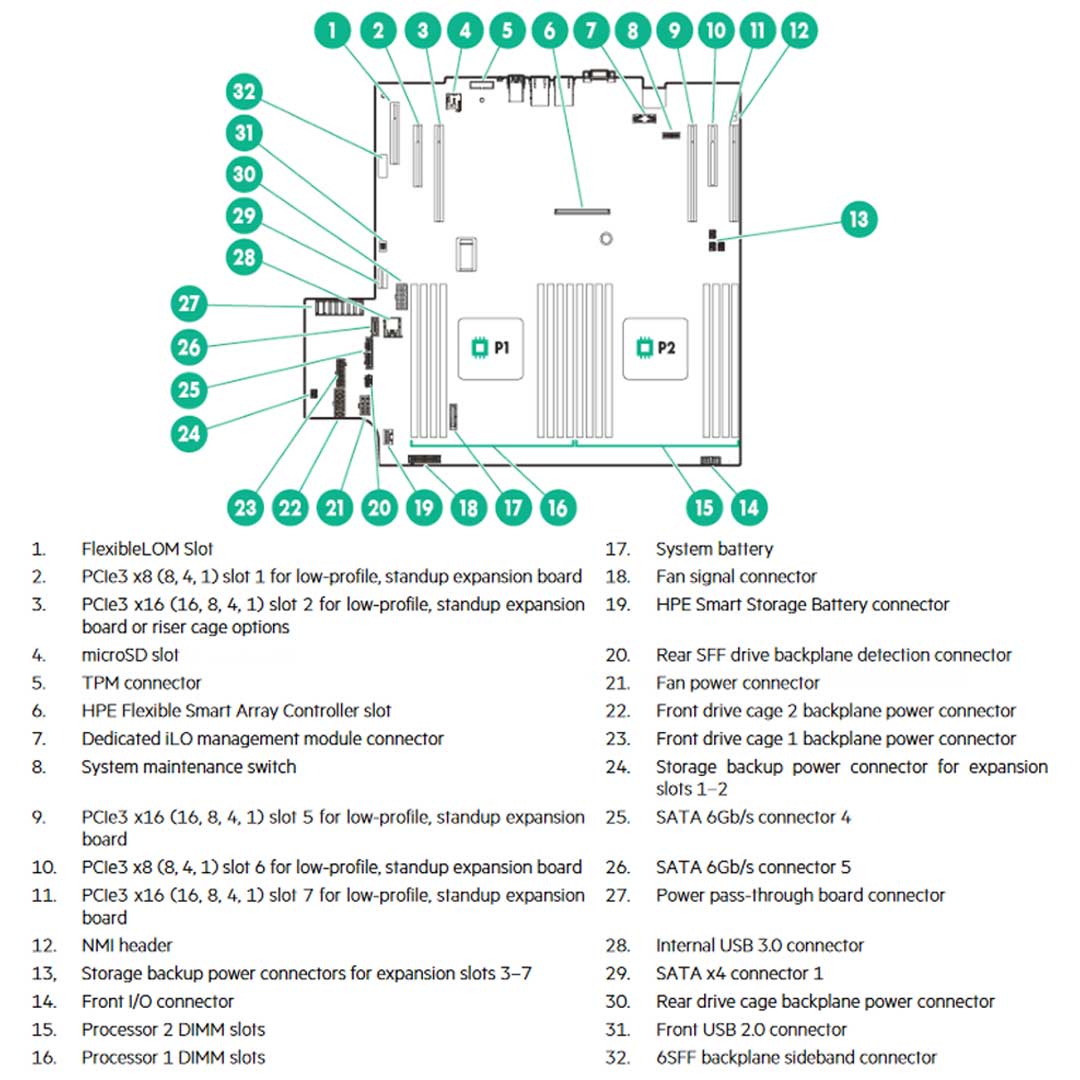

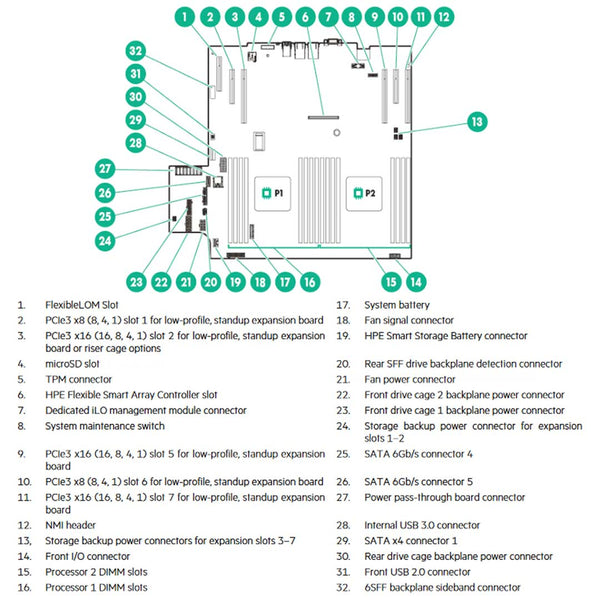

Chipset

Intel C610 series chipset
Intel E5-2600v3 processor family
Intel E5-2600v4 processor family

On system management chipset

HPE Integrated Lights-Out (iLO) (Firmware HPE iLO4 2.0) 2GB NAND

Memory protection

Advanced ECC: Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.
Online spare: Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Storage controller

HPE Flexible Smart Array P840ar/2G FIO Controller
HPE Dynamic Smart Array B140i Controller

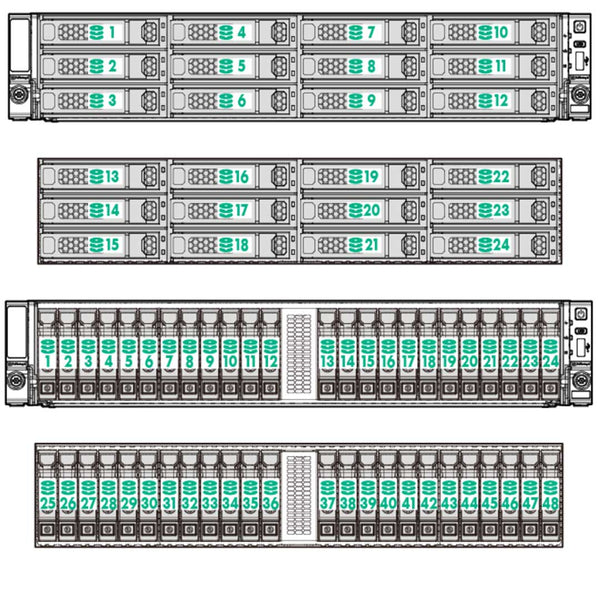

Internal storage devices

48 SFF plus optional 2 SFF drives rear or 6 SFF drivers rear.
24 LFF plus optional 4 LFF drives rear, 2 SFF drives rear, or 6 SFF drivers rear.

Specs 1

CPU1 (Standard)

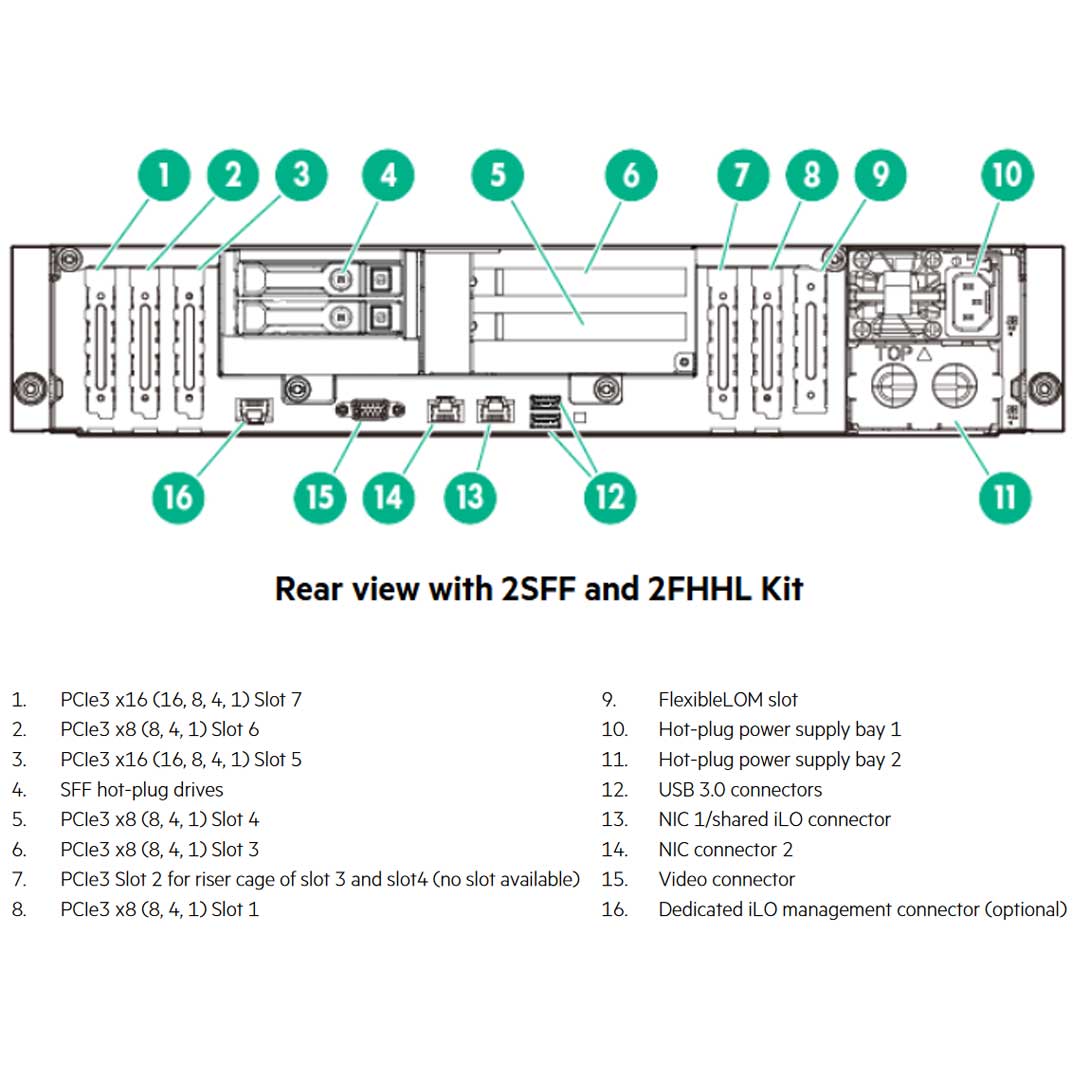

Expansion Slots #	Technology	Bus Width	ConnectorWidth	Form Factor	Notes
1	PCIe 3.0	x8	X8	Low profile	Proc 1
2	PCIe 3.0	x16	x16	Low profile	Proc 1

Slots with 2 PCIe FHHL riser (CPU1)

Expansion Slots #	Technology	Bus Width	ConnectorWidth	Form Factor	Notes
3	PCIe 3.0	x8	x8	Full-Height, Half-Length slot	Proc 1
4	PCIe 3.0	x8	x8	Full-Height, Half-Length slot	Proc 1

CPU 2 (Optional)

Expansion Slots #	Technology	Bus Width	ConnectorWidth	Form Factor	Notes
5	PCIe 3.0	x16	x16	Low profile	Proc 2
6	PCIe 3.0	x8	x8	Low profile	Proc 2
7	PCIe 3.0	x16	x16	Low profile	Proc 2

Power supply

HPE 800 W Flex Slot Platinum Hot Plug Power Supply
HPE 1400 W Flex Slot Platinum Plus Hot Plug Power Supply
HPE 800 W Flex Slot Titanium Hot Plug Power Supply Kit
HPE 800 W Flex Slot Universal Hot Plug Power Supply Kit
HPE 800 W Flex Slot 48 V dc Hot Plug Power Supply Kit

System fans

Configuration	Non-Redundant	Redundant
When 1 Processor is selected	4 Fans	8 Fans
When 2 Processors are selected	5 Fans	10 Fans

Interfaces

Video	1 rear VGA
FlexibleLOM Network ports	2 x 1Gb ports shipping standard with optional FlexibleLOM
HP iLO Remote Management Network port	Shared (Optional 1Gb HPE Apollo 4200 Gen9 dedicated iLO Managementport kit 806565-B21)
Micro SD dual slot	1 Micro SD
USB 2.0	1 Front
USB 3.0	2 Rear, 1 internal

Upgradeability

Upgradeable to two processors (44 Cores)
Up to 16 DIMM slots available for higher Memory capacity
FlexibleLOM connector for 1 Gigabit or 10 Gigabit networking options
HPE Flexible Smart Array or Smart HBA Controllers
Embedded rear 6-Port SATA, B140i as standard
Optional 2 PCIe slot riser (x8, x8)
Optional 4LFF kit in rear, 2SFF+2FHHL PCIe kit, or 6SFF kit
Redundant power supply
HPE Legacy mode (FIO only, 758959-B22)

Industry standard compliance

ACPI 2.0b compliant
PCIe 3.0 compliant
PXE support
WOL support
Microsoft logo certifications
USB 2.0 and 3.0 support
Unified Extensible Firmware Interface Forum (UEFI)
ASHRAE A3
UEFI

Graphics

Integrated Matrox G200eH2 video standard with 16MB of video RAM

1280 x 1024 (32 b/p)
1920 x 1200 (16 b/p)

HP iLO 4 On System Management Memory

16MB Flash
128MB DDR3

HPE Server UEFI/Legacy ROM

UEFI is an industry standard that provides better manageability and more secured configuration while interacting with users server at boot time

UEFI enables numerous new capabilities specific to Hewlett Packard Enterprise servers such as:

Secure boot
Operating system specific functionality
Support for > 2.2TB (Using GPT) boot drives
USB 3.0 stack
Embedded UEFI shell
Mass configuration deployment tool using HPE RESTful API
PXE boot support for IPv6 networks
Boot support for option cards that only support a UEFI option ROM

Form factor

2U Rack form factor
LFF and SFF drive bay versions: 8.75 x 44.8 x 81.28 cm (3.44 x 17.63 x 32 in)

Embedded management

HPE iLO
UEFI
RESTful API
Intelligent Provisioning
Embedded RemoteSupport

Server utilities

Smart update
HPE Systems Insight Manager (HPE SIM)
Scripting tool kit and Windows PowerShell
RESTful interface tool
HPE iLO mobile application
HPE Insight online

Security

Power-On password
Serial interface control
Administrator's password
iLO 4 has 12 customizable user accounts and SSL encryption
UEFI
iLO Can be disabled VIA a global setting
iLO Advanced supports directory services integration
TPM 1.2 or 2.0

top

Specs 3

Software overview

Feature	Description
Operating systems and virtualization software support for ProLiant servers	Microsoft Windows Server Canonical Ubuntu Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware

top

Technical specifications

HPE Dynamic Smart Array B140i Controller
Specification	Description
Number of PCI links	Four (4)
PCI link rate	4 GB/s
Storage protocol support	SATA
SAS/SATA peak data transfer rate	6 GB/s
Number of SAS/SATA links	6 links
SAS/SATA connectivity	1 x 4 connectors; 2 x 1 connectors
Expander support	No
Drives supported (Max)	Up to 6 internal drives
RAID support	0, 1, 10, 5 SATA
Software management	HPE SSA, SMH, SIM
Warranty	Server warranty
HPE Secure Encryption license	Not supported
HPE SmartCache license	Not supported
HPE Smart Storage administrator	Supported

HPE Ethernet 1Gb 2-port 361i Adapter
Specification	Description
Network interface	10Base-T/100Base-TX/1000Base-TX
Compatibility	IEEE 802.3 10Base-T IEEE 802.3ab 1000Base-T IEEE 802.3u 100Base-TX IEEE 1588, IEEE 802.1AS IEEE 802.3az - Energy Efficient Ethernet (EEE)
Data transfer method	PCI Express v 2.0, 5.0 GT/s, two lanes (x2)
Controller	Intel I350 Powerville
Network transfer rate	10Base-T (Half-Duplex): 10 Mb/s per port, 40 Mb/s combined 10Base-T (Full-Duplex): 20 Mb/s per port, 80 Mb/s combined 100Base-TX (Half-Duplex): 100 Mb/s per port, 400 Mb/s combined 100Base-TX (Full-Duplex): 200 Mb/s per port, 800 Mb/s combined 1000Base-TX (Half and Full-Duplex): 1000 Mb/s per port, 4000 Mb/s combined
Connector	Two RJ-45
Cable support	10 Base-T: Categories 3, 4 or 5 UTP; up to 328 ft (100 m) 10/100/1000 Base-TX: Category 5 or higher UTP; up to 328 ft (100 m)

top

Physical specifications

Specification

Description

Dimensions (H x W x D) (Without bezel):

8.75 x 44.8 x 81.28 cm (3.44 x 17.63 x 32 in)

Weight (Approximate):

24LFF	48SFF
Minimum - 23.2 kg (51.04 lb)	Minimum - 21.2 kg (46.64 lb)
Maximum - 40.6 kg (89.32 lb)	Maximum - 35 kg (77 lb)

top

Electrical specifications

Specification	Description
Rated linevoltage	100 to 120 V ac 200 to 240 V ac
Maximum BTU rating	For 800 W Power Supply: 3207 BTU/hr (At 100 V ac), 3071 BTU/hr (At 200 V ac), 3112 BTU/hr (At 240 V ac) for China only
Rated Steady-State power	For 1400 W power supply: 1400 W (At 100 V ac), 1400 W (At 240 V ac), 1400 W (at 240 V ac) For 800 W power supply: 800 W (At 100 V ac), 800 W (At 240 V ac), 800 W (At 240 V ac) input for China only
Maximum peak power	For 1400 W power supply: 1400 W (At 100 to 127 V ac), 1400 W (At 200 to 240 V ac), 1400 W (At 240 V ac) input for China only For 800 W power supply: 800 W (At 100 to 127 V ac), 800 W (At 200 to 240 V ac), 800 W (At 240 V ac) input for China only

top

Environmental specifications

Specification

Description

Operating temperature

10° to 35° C (50° to 95° F)

Non-operating temperature

-30° to 60° C (-22° to 140° F)

Extended ambient operating support

Minimum: 5° to 10° C (41° to 50° F)

Maximum: 35° to 40° C (95° to 104° F)

Operating relative humidity

8% to 90% non-condensing

Non-operating relative humidity

5% to 95% non-condensing

Operating altitude

3048 m (10,000 ft)

Non-operating altitude

9144 m (30,000 ft)

Acoustic noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment

	Idle	Operating
L WAd	4.5 B Entry LFF	4.5 B Entry LFF
	4.3 B Entry SFF	4.3 B Entry SFF
	4.8 B Typical LFF	4.8 B Typical LFF
	4.8 B Typical SFF	4.9 B Typical SFF
	4.8 B Performance LFF	4.9 B Performance LFF
	4.9 B Performance SFF	5.4 B Performance SFF
L pAm	4.5 B Entry LFF	30 dBA Entry LFF
	4.3 B Entry SFF	27 dBA Entry SFF
	4.8 B Typical LFF	33 dBA Typical LFF
	4.9 B Typical SFF	33 dBA Typical SFF
	4.9 B Performance LFF	35 dBA Performance LFF
	5.4 B Performance SFF	37 dBA Performance SFF

top

Safety certifications

Specification	Description
FCC rating	Class A
Normative standards	CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
