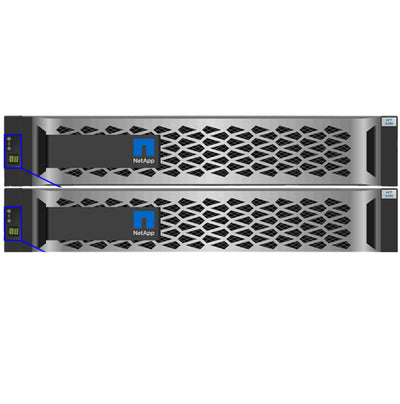

-*Image may differ from actaul product

NetApp FAS500f 4-Node MetroCluster IP Filer Head (4N-MetroClusterIP)

NetApp FAS500f 4-Node MetroCluster IP Filer Head (FAS500f-4N-MC)

NetApp FAS500f 4-Node MetroCluster IP Filer Head (4N-MetroClusterIP)

Price: Request a Quote

Brand:

NetApp

MPN:

FAS500f-4NMCIP

Type:

Filer Head

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp FAS500f 4-Node MetroCluster IP Filer Head (4N-MetroClusterIP)

The NetApp FAS500f is a 2U, dual-chassis storage system designed with a 4-node MetroCluster IP configuration for high availability. It features four 64-bit, 12-core 2.10GHz processors and 256GB of memory, providing resilient performance for critical workloads. RAID 4, RAID-DP, or RAID-TEC can be used to safeguard data, ensuring robust protection in demanding environments.

Connectivity includes eight 10Gb RJ45 Ethernet ports, and each chassis offers two PCIe expansion slots, totaling eight across the entire setup. Fibre Channel, UTA2, and SAS ports are not available, but remote management capabilities simplify monitoring and maintenance. With support for a maximum of two controllers per chassis, the FAS500f allows seamless scaling within the MetroCluster IP framework.

Supporting up to 96 total drives and a maximum raw capacity of 1,468TB (1.48PB), the system works with NS224 disk shelves (both standard and NSM100B versions). The chassis measures 3.43 inches (8.7 cm) in height, 17.6 inches (44.7 cm) in width, and 21.38 inches (54.3 cm) in depth, weighing up to 54.3 lb (24.6 kg). Designed around NVMe SSD technology, the FAS500f delivers a compact yet scalable solution for enterprises seeking a robust MetroCluster IP deployment.

System Config

Model: NetApp FAS500f
Chassis: Dual Chassis
Total Rack Height: 2U
Controllers: 4-Node MetroCluster IP Dual Controller (HA)
Memory (HA): 256GB
Processor Model: 4x 64-bit 12-core 2.10 Ghz
Ethernet Ports: 8 x RJ45 (10Gb)
Fibre Channel Ports: N/A
PCIe Expansion Slots: 8 x PCIe
Max Drives (total): 96
Max Capacity (Cluster): 1,468TB (1.48PB)
Disk Shelves: NS224, NS224 w/ NSM100B
Filer Heads: N/A

Dimensions & Weight

Chassis Rack Height: 2U
Chassis Heights: 3.43" (8.7 cm)
Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
Chassis Depth w/ Cable Mgmt: 21.38" (54.3 cm)
Chassis Weight: up to 54.3 lb (24.6 kg)

Controller Specs

Max Controllers: 2 (Per Chassis)
PCI Slot (per): 2 x PCIe
Ethernet Ports (per): 2 x RJ45 (10Gb)
Fibre Channel Ports (per): N/A
UTA2 Ports (per): N/A
SAS Ports (per): N/A
Remote Management: Yes
Processor Model (per): 1x 64-bit 1-core 2.80 Ghz
Memory (Single/HA): 64GB/128GB
NVRAM (Single/HA): 8GB/16GB

Storage

Max Number of Internal Drives: 48
Max Number Drives (total): 96
Max Capacity: 1,468TB (1.48PB)
Max # of Flash NVMe SSD: 96
Drive Interface: NVMe SSD
RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
Max # of NS224 Shelves: 2 internal + 2 external
Max # of NS224 w/ NSM100B Shelves: 2 external

FAS500f Parts Lists

View Drives

View Adapters

View Transceiver(s

View Data Cables

View Power Cables

View Rail Kits

Ask about our NetApp Disk Shelves!
We can create custom Turn-Key configurations based on your needs!
Click here to view NetApp Disk Shelves

This Product Is Compatible With The Following Systems:

NetApp FAS500f

Storage Limits

Max # of Drives (Total)	Max # of Internal Drives	Max # of Capacity Flash NVMe SSD Drives	Max # of NS224 Shelves
96	24	96	2 internal + 2 external

Capacity Limits

Marketing Maximum Raw Capacity - Node	HA Pair	Cluster	Effective Capacity - Node	HA Pair	Cluster
N/A	N/A	1468800	N/A	N/A	6519268.8

Core Cluster Limits

Max SVM's	Max LIF's - NAS	Max Connections - NAS	Max Flexible Volumes - NAS	Max Lock Manager Locked Objects	Max Intercluster LIFs - Node	Min Root Aggregate (MiB) - Node	Min Root Volume (GiB) - Node	Max IPsec Policies	Max Auditing-Enabled SVMs - Cluster
Node:32 HA Pair:64 Cluster:64	Node:256 HA Pair:256 Cluster:N/A	Node:25000 HA Pair(Non-Scalable):25000	Aggregate (Single data Agg. per Node):250 Aggregate (Multiple data Agg. per Node):200 Node:250 HA Pair:500 Cluster:N/A	Node:700000 HA Pair:1024000 Cluster:N/A	8	191488	150	SVM:N/A Cluster:N/A	25

System Maximums and Limits

Max Nodes per Cluster (NAS / SAN)	Max FabricPool Size	Max Infinite Volume Data Constituent Size	Max FlexGroup Data Constituent Size	Min Root Volume Size	NetApp Volume Encryption
44594	16800 TiB	Not Supported		150 GiB	Supported

Processor

Processor Model	Processor Architecture	Processor Speed	Processor Count (Per Node)	Processor Count (Per Config)	Processor Cores (Per CPU)	Processor Cores (Per Node)	Processor Cores (Per Config)
64-bit 12-core 2.10 Ghz	64 bit	2.10 Ghz	1	4	12	12	48

Memory

Detailed Memory Matrix	NVME (Per Node)	NVME (Per Config)	RAM (Per Node)	RAM (Per Config)
Platform Memory Specifications	8 GB	32 GB	64 GB	256 GB

Onboard Ports

Full Onboard Ports Matrix	Ethernet Ports	Fibre Channel	Ports UTA2 Ports	Expansion Slots	SAS Ports
Onboard Ports & Cables	4 x RJ45 (10Gb)	-	Not Supported	4 x PCIe3	-

Physical Characteristics

Rack Units	Chassis Height	Chassis Width with Mounting Flanges	Chassis Width without Mounting Flanges	Chassis Depth with Cable Mgmt	Chassis Depth without Cable Mgmt	Chassis Weight
4	3.43" (8.7 cm)	19.02" (48.3 cm)	17.6" (44.7 cm)	-	21.38" (54.3 cm)	See Weights by configuration

System Clearance Dimensions

Front Clearance (Cooling)	Front Clearance (Maintenance)	Rear Clearance (Cooling)	Rear Clearance (Maintenance)
6.03" (15.3 cm)	24.03" (61 cm)	6.03" (15.3 cm)	36.01" (91.4 cm)

Environmental Requirements

Operating	Storage	Transit	Acoustic Noise	Input Power Voltage
Tempature: 50 to 95 deg F - 10 to 35 deg C Humidity: 8 to 80 % Altitude: Up to 10000.0 ft - Up to 3048.0 m	Tempature: -40 to 158 deg F - -40 to 70 deg C Humidity: 10 to 95 % Altitude: Up to 40000.0 ft - Up to 12192.0 m	Tempature: -40 to 158 deg F - -40 to 70 deg C Humidity: 10 to 95 % Altitude: Up to 39989.8 ft - Up to 12192 m	Sound Power: 7.2 bels Sound Pressure: 69.1 dBA	200 to 240

Storage OS Requirements

Full OS Matrix	Recommended Version	Minimum OS	Maximum OS
View Full OS Report Below	9.11.1	9.11.1RC1	9.11.1

Storage and Firmware

Full Firmware Matrix	BIOS	BMC
Full Firmware Report Below	-	15.5P1

Product Standards Compliance

Full Compliance and Certificates Report	Cert. EMC/EMI	Cert. Safety	Cert. Safety/EMC/EMI	Cert. Safety/EMC/EMI/RoHS	Standard Safety/EMC/EMI	Standard Safety
Compliance and Certificates Report Below	AMCA, FCC, ICES, KC, Morocco, VCCI	BIS, CB, CSA, G_K_U-SoR, IRAM, NOM, NRCS, SONCAP, TBS	EAC, UKRSEPRO	BSMI, CE DoC, UKCA DoC	BS-EN-55024, BS-EN55035, CISPR 32, EN55022, EN55024, EN55032, EN55035, EN61000-3-2, EN61000-3-3, FCC Part 15 Class A, IC more...	ANSI/UL60950-1, ANSI/UL62368-1, BS-EN62368-1, CAN/CSA C22.2 No. 60950-1, CAN/CSA C22.2 No. 62368-1, CNS 14336, EN60825-1 more...

NFS Cluster Limits

Max Export Policies - Cluster	Max Export Rules - Cluster	Max NFSv4 Access Control Entries	Max Client Objects	Max pNFS objects
6000	35000	512	Node:102400 HA Pair:102400	Node:1024000 HA Pair:1024000 Cluster:N/A

WAFL Cluster Limits - All Maximums

Size 64-bit Aggregate (TiB)	Size 64-bit Volume (TiB)	File size 64-bit Volume (TiB)	Volume Snapshot Copies	Character length for Snapshot copy names	Hard links - File	inodes/files - Volume	Number of qtrees	Concurrent DataMotion for Volumes ops
800	100	16	Volume:255 Node:63750 HA Pair:127500	255	100000	2000000000	Volume:4995 Node:15000 HA Pair:30000 Cluster:N/A	Node:16 HA Pair:16

Quality of Service Cluster Limits

Max Policy Groups - Cluster	Max QoS User Workloads - Cluster
6000	20000

SAN Cluster Limits - All Maximums

# of storage virtual machines (SVMs) - SAN	# of flexible volumes - SAN	# of LUNs	LUN mappings	LUN size (TiB) - LUN	FC queue depth available	# of SAN Hosts (ITNs)	# of LIFS - iSCSI	# of LIFS - FCP	# of igroups	# of Initiators	# of Portsets	# of iSCSI sessions
Node:32 HA Pair:64 Cluster:64	Single data Aggregate:250 Multiple data Aggregates:200 Node:250 HA Pair:500 Cluster:500	Valume:1024 Node:4096 HA Pair:8192 Cluster:8192	Node:4096 HA Pair:8192 Cluster:8192	16	2048	Port:256 Node:2048 HA Pair:4096 Cluster:4096	Port:16 Portset:32 Node:128 HA Pair:256 Cluster:256	Port:16 Portset:32 Node:128 HA Pair:256 Cluster:256	Node:1024 HA Pair:2048 Cluster:2048	igroup:256 Node:1024 HA Pair:2048 Cluster:2048	Node:1024 HA Pair:2048 Cluster:2048	Node:2048 HA Pair:4096 Cluster:4096

CIFS Cluster Limits - All Maximums

# of Connected Shares	# of Regular Shares	# of Open files	# of Local users - Cluster	# of Local groups - Cluster	# of Local group members - Cluster
Node:400000 HA Pair:400000	Node:150000 HA Pair:150000 Cluster:N/A	HA Pair:350000 Node:350000 HA Pair:350000	17500	160000	320000

Data Protection Cluster Limits - All Maximums

NDMP Sessions	Data Protection Mirrors	Load Sharing Mirrors - NAS SVM	Concurrent Snap Mirror / SnapVault transfers - Node	DP Mirror fan-out - Volume	LS Mirror fan-out - NAS SVM	# of Clusters that can be peered - Cluster	Volumes, SnapMirror relationship	SnapMirror Synchronous relationships	Flexible Volumes in SVM DR	SVM Disaster recovery - Cluster
Node:36 HA Pair (Non-Scalable):36	Volume:1 Node:250 HA Pair:500 Cluster:N/A	2	100	8	2	8	FlexGroup:N/A FlexGroup-Node:N/A HA Pair (Non-Scalable):N/A Cluster:N/A	Volume:N/A Node:N/A HA Pair (Non-Scalable):N/A	Node:300 HA Pair:1000	128

NVMe/oF Cluster Limits - All Maximums

# of Storage virtual machines (SVMs), NVMe/oF - Cluster	# of Flexible volumes, NVMe/oF	# of Namespaces	# of Subsystems	# of Namespace Mappings	Namespace Size	I/O queue depth available - NVMe/FC - Queue	I/O queue count available - NVMe/FC - Controller	Hosts - Subsystem	LIFS, NVMe/oF	# of Controllers - NVMe/FC - Port	I/O Queue Count, NVMe/TCP - Controller	I/O Queue Depth - NVMe/TCP	Controllers, NVMe/TCP - Node
N/A	Node:N/A HA Pair:N/A Cluster:N/A	Volume:N/A Node:N/A HA Pair:N/A Cluster:N/A	Node:N/A Node:N/A	Subsystem:N/A Node:N/A HA Pair:N/A Cluster:N/A	N/A	N/A	N/A	N/A	Port:N/A SVM:N/A Node:N/A HA Pair:N/A Cluster:N/A	N/A	N/A	N/A	N/A

FlexCache Cluster Limits - All Maximums Cache

Degree of fan-out - Origin	Origin Volumes	Constituent Volumes	Volumes	Origin ConstituentVolumes
N/A	Node:N/A HA Pair:N/A	Node:N/A HA Pair:N/A	Node:N/A HA Pair:N/A	Node:N/A HA Pair:N/A

S3 Cluster Limits -

Max # of Buckets	Max # of Objects - Bucket	Max # of Users	Max Size of the Bucket (PB) - Vserver
Vserver:N/A Cluster:N/A	N/A	Vserver:N/A Cluster:N/A	N/A

Consistency Groups - All Maximums

Number of Consistency Groups - Cluster	Consistency Groups and Parents Consistency Groups - Cluster	Number of Parent Consistency Groups - Cluster	Child Consistency Groups in a Parent Consistency Groups - Parent Group	Flexible Volumes in a Consistency Group	Flexible Volumes for Child Consistency Groups under a Parent Group	Flexible Volumes in a Child Consistency Group
N/A	N/A	N/A	N/A	N/A	N/A	N/A

Platform LED for FAS500f 4-Node MetroCluster IP

LED Label	LED Name	Type	Status Indicator	Description
Front View
1	Chassis Power Config	-	On Green	At least one of the two PSUs is delivering power to the system.
-	-	-	Off	Neither PSU is delivering power to the system.
2	Chassis Attention LED, front	-	On Amber	The system halted or a fault occurred in the chassis.
-	-	-	Off	The system is operating normally.
3	Location LED on chassis front	-	On or flashing blue	The LED has been manually activated to aid in physically locating equipment
-	-	-	Off	The LED has not been manually activated to aid in physically locating equipment
Back View
LED Label	LED Name	Type	Status Indicator	Description
e0a	Ethernet On/Off	Port Activity	Blinking green	Traffic is present on the active link
-	-	-	Off	Off
-	-	Port Link	Solid green	On
-	-	-	Off	No link established
e0b	Ethernet On/Off	Port Activity	Blinking green	Traffic is present on the active link
-	-	-	Off	Off
-	-	Port Link	Solid green	On
-	-	-	Off	No link established
e0c	Ethernet On/Off Separate LEDs	Activity	Blinking green	Traffic is flowing over the connection
-	-	-	Off	Off
-	-	Link	Solid green	Link up
-	-	-	Off	Link is down
e0d	Ethernet On/Off Separate LEDs	Activity	Blinking green	Traffic is flowing over the connection
-	-	-	Off	Off
-	-	Link	Solid green	Link up
-	-	-	Off	Link is down
e0m/BMC	Ethernet On/Off	Port Activity	Blinking green	Traffic is present on the active link
-	-	-	Off	Off
-	-	Port Link	Solid green	On
-	-	-	Off	No link established

Supported Shelves Drives for FAS500f 4-Node MetroCluster IP

Part No.	Capacity	RPM	Drive Type	Encryption	Root-Data Partitioning	Root-Data-Data Partitioning	Storage Pool Partitioning	Max Drive Count	FlexArray
FAS500fA Internal Drives
N/A	N/AGB	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A

Supported RAID Configurations - FAS500f 4-Node MetroCluster IP

Drive Type	Drive Capacity Min	Drive Capacity Max	Minimum	Default	Maximum
Data Aggregate
RAID4
Capacity Flash NVMe SSD	0 TB	15.3 TB	3	8	14
RAID-DP
Capacity Flash NVMe SSD	0 TB	15.3 TB	5	24	28
RAID-TEC
Capacity Flash NVMe SSD	0 TB	15.3 TB	7	25	29
Root Aggregate
RAID4
Capacity Flash NVMe SSD	0 TB	15.3 TB	2	-	14
RAID-DP
Capacity Flash NVMe SSD	0 TB	15.3 TB	3	-	28
RAID-TEC
Capacity Flash NVMe SSD	0 TB	15.3 TB	7	-	29

Supported Adapter Cards - FAS500f 4-Node MetroCluster IP

Priority	Category	Bus Type	Mktg Part No.	Description	Plug Type	Optical Module Included?	Cables	Supported Protocol(s)	Min ONTAP	Max Qty [1]	Priority Slot Assignment
1	NVMe Storage	PCIe3	X1153	View	111-04588	2p 100GbE RoCE QSFP28	QSFP28	No	View	Ethernet 100Gb	9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
2	Block Access (Target)	PCIe3	X1154 [2]	View	111-04630	4p 32Gb FC SFP+ Op (Target Only)	SFP+	Yes	View	Fibre Channel 8/16/32 Gb	9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
3	Networking	PCIe3	X1152	View	111-04587	4p 25GbE RoCE SFP28	SFP28	No	View	Ethernet 10/25Gb	9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
Footnote:
[1] Values shown for max quantity are per controller. HA configurations will support 2x the values shown.
] Target mode adapter only. Foreign LUN import (FLI) requires initiator mode.

Supported Connections for FAS500f 4-Node MetroCluster IP

Configuration Type	Port Configuration	Image	Cluster Ports per Node	Switch Ports per Node
Cluster Interconnect
Switched 25GbE Cluster/HA	Supported	View Image Above	2	2
Switched 100GbE Cluster/HA (4 x 25GbE breakout)	Supported	View Image Above	2	1
Switched 100GbE Cluster/HA (4 x 25GbE breakout)	Supported	View Image Above	2	1
Storage Connection
Configuration Type	Port Configuration	View Image Above	Controller Ports	Ports on Connected Appliance (Shelf or Switch)
Switchless Storage InterConnect	1 shelf configuration, Single NIC	View Image Above	2	2
Metro Cluster-over-IP Connection
Configuration Type	Port Configuration	View Image Above	Controller Ports	Ports on Connected Appliance (Shelf or Switch)
Switched 25GbE	Shared MetroCluster/Cluster/HA 25GbE	View Image Above	2	2
Switched 100GbE (4x25GbE breakout)	Shared MetroCluster/Cluster/HA 25GbE	View Image Above	2	2

Platform Mixing Rules - FAS500f 4-Node MetroCluster IP

Platform Configuration Type	Maximum Nodes (NAS) [1]	Maximum Nodes (SAN) [1]	Min ONTAP Version for Platform Mixing
FAS - Current Configuration(s)
FAS500f-4NMCIP	2 Nodes	2 Nodes	9.8RC1
Footnote:
1Maximum number of nodes within a cluster is determined by platform which supports the fewest number of nodes

Product Standard Compliance - FAS500f 4-Node MetroCluster IP

Standard	Description
Certifications EMC/EMI
AMCA	Australia and New Zealand (EMC covered by ACMA DoC)
FCC	Federal Communications Commission (EMI Declaration of Conformity covering United States and Canada)
ICES	ICES
KC	Korea Communications Commission (EMC certificate for South Korea)
Morocco	Morocco Declaration of Conformity
VCCI	EMI Certificate for Japan
Certifications safety
BIS	Bureau of Indian Standard (Safety cert for India)
CB	Certificate Body issued safety certificate covering International
CSA	Canadian Standards Association issued Safety certificate covering North America
G_K_U-SoR	Safety certificate for Gabon, Kenya and Uganda
IRAM	Instituto Argentino de Normalización y Certificación (safety certificate for Argentina)
NOM	Norma Oficial Mexicana (Safety cert for Mexico)
NRCS	National Regulator for Compulsory Specifications (Safety cert for South Africa)
SONCAP	Standards Organisation of Nigeria Conformity Assessment Programme (Safety cert for Nigeria)
TBS	Tanzanian Bureau of Standards (Safety certificate for Tanzania)
Certifications Safety/EMC/EMI
EAC	Euro Asia Conformity (EMC and Safety Cert) covering (Russia, Kazakhstan, Belarus, Armenia, Kyrgyzstan Countries)
UKRSEPRO	EMC/Safety certificate for Ukraine
Certifications Safety/EMC/EMI/RoHS
BSMI	Certificate for Taiwan
CE DoC	European Union Declaration of Conformity
UKCA DoC	UK Declaration of Conformity
Standards EMC/EMI
BS-EN-55024	EMC standard for Great Britain
BS-EN55035	EMC standard for Great Britain
CISPR 32	EMI
EN55022	EMC Standard fo European Union
EN55024	EMC Standard fo European Union
EN55032	EMI Standard fo European Union
EN55035	EMC Standard for European Union
EN61000-3-2	EMC Standard for European Union
EN61000-3-3	EMC Standard for European Union
FCC Part 15 Class A	EMI standard for United States
ICES-003	EMI Standard for Canada
KS C 9832	EMI Standard for South Korea
KS C 9835	EMC Standard for South Korea
Standards Safety
ANSI/UL60950-1	Safety standard for United States
ANSI/UL62368-1	Safety standard for United States
BS-EN62368-1	Safety standard for Great Britain
CAN/CSA C22.2 No. 60950-1	Safety Standard for Canada
CAN/CSA C22.2 No. 62368-1	Safety Standard for Canada
CNS 14336	Safety Standard for Taiwan
EN60825-1	Laser Safety standard for European Union
EN62368-1	Safety standard for European Union
IEC 62368-1	Safety Standard for International
IEC60950-1	Safety standard for International
IS 13252(part 1)	Safety Standard for India

Supported OS Version - FAS500f 4-Node MetroCluster IP

OS Major Version	Supported OS Version	Supported Milestones	Recommend Version
Currently Supported OS
ONTAP 9.11.1	9.11.1, 9.11.1RC1	End of Full Support: 31-Jul-2025 End of Limited Support: 31-Jul-2027 End of Self-Service Support: 31-Jul-2030	9.11.1
ONTAP 9.10.1	9.10.1P5, 9.10.1P6, 9.10.1P4, 9.10.1P3, 9.10.1P2, 9.10.1P1, 9.10.1, 9.10.1RC1	End of Full Support: 31-Jan-2025 End of Limited Support: 31-Jan-2027 End of Self-Service Support: 31-Jan-2030	9.10.1P6
ONTAP 9.9.1	9.9.1P10, 9.9.1P9, 9.9.1P8, 9.9.1P7, 9.9.1P6, 9.9.1P5, 9.9.1P4, 9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC1	End of Full Support: 30-Jun-2024 End of Limited Support: 30-Jun-2026 End of Self-Service Support: 30-Jun-2029	9.9.1P10, 9.9.1P9
Definitions:
[1]End of Full Support: The date marking the end of Full Support for a particular feature version of a NetApp system software and the beginning of Limited Support. Abbreviated as EOES.
[2]End of Limited Support: The date marking the end of Limited Support for a particular feature version of a product and transition to Self-Service Support. Abbreviated as EOVS.
[3]End of Self-Service Support: NetApp does not provide support for a version of a software product, but related documentation is still available on the NetApp Support Site. NetApp customers are expected to utilize documentation to resolve issues.

Supported Power Cords for FAS500f 4-Node MetroCluster IP

Marketing Part No.	End 1 / End 2	Length	Description
Non-Cabinet Power Cords
X-50617-00	IEC60320-C20 / IEC60320-C13	2.00 m	Power Cords,In-Cabinet,2m,C20-C13,E-Series
X800B-R6	CEE 7/7 (Schuko) / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V
X800C-R6	BS1363 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V
X800D-R6	JIS-C-8303 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/125V
X800E-R6	NEMA 5-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/125V
X800F-R6	AS/NZS 3112 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V
X800G-R6	SEV 1011 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Switzerland,10A/250V
X800H-R6	IRAM 2073 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Argentina,10A/250V
X800I-R6	GB2099 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,China,10A/250V
X800J-R6	DHCR107-2-D1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Demark,10A/250V
X800K-R6	SANS 164-1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V
X800L-R6	SI32 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Israel,10A/250V
X800M-R6	CEI 23-16 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Italy,10A/250V
X800N	EL208 / IEC60320-C13	2.50 m	Pwr Cord,10A,250V,2.5m,India
X800P-R6	NEMA 6-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/250V
X800T-R6	CNS 10917-3 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Taiwan,BSMI,15A/125V
X800VB-R6	NBR14136 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Brazil,10A/250V
X800W-R6	CNS10917/CNS690 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Taiwan,10A/250V
X800Y-R6	JIS-C-830 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/250V
In-Cabinet Power Cords
X1558A-R6	IEC60320-C14 / IEC60320-C13	1.20 m	Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V
X800-42U-35	IEC60320-C14 / IEC60320-C13	0.89 m	Pwr Cord,In-Cabinet,C13-C14,35-inch
X800-42U-43	IEC60320-C14 / IEC60320-C13	1.09 m	Pwr Cord,In-Cabinet,C13-C14,43-inch
X800-42U-64	IEC60320-C14 / IEC60320-C13	1.63 m	Pwr Cord,In-Cabinet,C13-C14,64-inch
X800-42U-R6	IEC60320-C14 / IEC60320-C13	0.68 m	Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V

Onboard Ports Configuration: FAS500f Single Chassis HA Pair

Port Address	Description	Supported Protocols	Port Icon	Port Type
e0a	Ethernet	Ethernet 10GBase-T	Ethernet	RJ45
e0b	Ethernet	Ethernet 10GBase-T	Ethernet	RJ45
e0c	Cluster/HA Interconnect	Ethernet 25Gb	Ethernet	SFP28
e0d	Cluster/HA Interconnect	Ethernet 25Gb	Ethernet	SFP28
e0m/BMC	Management	Ethernet 10/100/1000 Mb	Wrench	RJ45
-	Storage Host Port	USB 2.0	USB 3.0	USB Type A
Serial Interface	Micro USB	RS-232 115200bps	USB 3.0	USB 2.0 Micro-B
Serial Interface Icon	Serial Console	RS-232 115200bps	Serial Interface	RJ45

Supported Platform Configurations - FAS500f 4-Node MetroCluster IP

Platform Configuration	Description	Chassis Configuration	Chassis Count	Controller Count (per chassis)	IOXM Count (per chassis)	Rack Units (Per System)	Weight (Per Chassis)	Min ONTAP
HA Pair
FAS500fA	FAS500f Single Chassis HA Pair	CC	1	2	0	2	-	9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
MetroCluster
FAS500f-4NMCIP	FAS500f 4-Node MetroCluster IP	CC-CC	2	2	0	4	-	9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1

Platform Memory Specifications - FAS500f 4-Node MetroCluster IP

Part Number	Description	Mfg Part Number	Non-Volatile	Qty	Capacity (GB)	NVRAM/NVMEM Used Capacity (GB)	RAM Used Capacity (GB)
X93144A	32GB RDIMM	107-00215	no	4	32	16	128

Supported Rail Kit for FAS500f 4-Node MetroCluster IP

Marketing Part No.	Manufacturing Part No.	Description
NetApp System Cabinet Rail Kits
X87881A	113-00255	Rail Kit 5,Cabinet
Third-Party Cabinet Rail Kits
X-02654-00	111-02852	Kit,2-Post, Thin
X5532A	113-00251	Rail,4-Post,Thin,Rnd/Sq-Hole,Sm,Adj,24-32

Field Replacement Unit Parts - FAS500f 4-Node MetroCluster IP

Marketing Part No.	Manufacturing Part No.	Description
Adapter Card
X1152	111-04587	MEZZANINE 4-Port 25GbE
X1152-N-C	111-04587	MEZZANINE 4-Port 25GbE,-C
X1153	111-04588	MEZZANINE 2-Port 100GbE
X1153-N-C	111-04588	MEZZANINE 2-Port 100GbE,-C
X1154 [1]	111-04630	MEZZANINE 4-Port 32G FC
X1154-N-C [1]	111-04630	MEZZANINE 4-Port 32G FC,-C
Battery
X-00062-00	111-04317	NVRAM Battery
X1847	271-01847	Lithium System Battery CR2032
X1847-R6	271-01847	Lithium System Battery CR2032,R6
Bezel
X80119A		Bezel,FAS500f
X80119A-C		Bezel,FAS500f,-C
Boot Media
X3324A		M.2,SATA,FLASH,480GB
Chassis
X318001A		Chassis,No PSU,No NSM,NS224
Data Cable
X-QSFP-4SFP25G-CU2M	112-00619	Cable,Dir Attach CU 100G QSFP/4x25G SFP,2m
X-QSFP-4SFP25G-CU2M-C	112-00619	Cable,Dir Attach CU 100G QSFP/4x25G SFP,2m,-C
X-QSFP-4SFP25G-CU2M-N-C	112-00619	Cable,Dir Attach CU 100G QSFP/4x25G SFP,2m,-C
X-QSFP-4SFP25G-CU5M	112-00667	Cable,Dir Attach CU 100G QSFP/4x25G SFP,5m
X6536-R6	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op
X6536-R6-C	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6536-R6-N-C	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6537-R6	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op
X6537-R6-C	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X6537-R6-N-C	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X6546-R6	112-00074	Cable,Cntlr-Shelf/Switch,30m,LC/SC,Op
X6547-R6	112-00073	Cable,Cntlr-Shelf/Switch,5m,LC/SC,Op
X6553-R6	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op
X6553-R6-C	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6553-R6-N-C	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6554-R6	112-00189	Cable,Cntlr-Shelf/Switch,15m,LC/LC,Op
X6554-R6-C	112-00189	Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6
X6554-R6-N-C	112-00189	Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6,-C
X6560-R6	112-00194	Cable,Ethernet,0.5m RJ45 CAT6
X6560-R6-C	112-00194	Cable,Ethernet,0.5m RJ45 CAT6,-C
X6560-R6-N-C	112-00194	Cable,Ethernet,0.5m RJ45 CAT6
X6561-R6	112-00195	Cable,Ethernet,2m RJ45 CAT6
X6561-R6-C	112-00195	Cable,Ethernet,2m RJ45 CAT6,-C
X6561-R6-N-C	112-00195	Cable,Ethernet,2m RJ45 CAT6,-C
X6562-R6	112-00196	Cable,Ethernet,5m RJ45 CAT6
X6562-R6-C	112-00196	Cable,Ethernet,5m RJ45 CAT6,-C
X6562-R6-N-C	112-00196	Cable,Ethernet,5m RJ45 CAT6,-C
X6566B-05-N-C	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-05-R6	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M
X6566B-05-R6-C	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-2-N-C	112-00299	Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-2-R6	112-00299	Cable,Direct Attach CU SFP+ 10G,2M
X6566B-2-R6-C	112-00299	Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-3-N-C	112-00300	Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-3-R6	112-00300	Cable,Direct Attach CU SFP+ 10G,3M
X6566B-3-R6-C	112-00300	Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-5-N-C	112-00301	Cable,Direct Attach CU SFP+ 10G,5M,-C
X6566B-5-R6	112-00301	Cable,Direct Attach CU SFP+ 10G,5M
X6566B-5-R6-C	112-00301	Cable,Direct Attach CU SFP+ 10G,5M,-C
X6577-R6	112-00238	Cable,Ethernet,30m RJ45 CAT6
X6577-R6-C	112-00238	Cable,Ethernet,30m RJ45 CAT6,-C
X6577-R6-N-C	112-00238	Cable,Ethernet,30m RJ45 CAT6,-C
X6584-R6	112-00290	Cable,Ethernet,1m RJ45 CAT6
X6584-R6-C	112-00290	Cable,Ethernet,1m RJ45 CAT6,-C
X6584-R6-N-C	112-00290	Cable,Ethernet,1m RJ45 CAT6,-C
X6585-R6	112-00291	Cable,Ethernet,3m RJ45 CAT6
X6585-R6-C	112-00291	Cable,Ethernet,3m RJ45 CAT6,-C
X6585-R6-N-C	112-00291	Cable,Ethernet,3m RJ45 CAT6,-C
X6592-R6	112-00246	Cable,Ethernet,10m RJ45 CAT6
X6592-R6-N-C	112-00246	Cable,Ethernet,10m RJ45 CAT6,-C
X6593-R6	112-00247	Cable,Ethernet,20m RJ45 CAT6
X6593-R6-C	112-00247	Cable,Ethernet,20m RJ45 CAT6,-C
X6593-R6-N-C	112-00247	Cable,Ethernet,20m RJ45 CAT6,-C
X66200-15	112-00330	Cable,Cntlr-Switch OM4,MPO/MPO,15m
X66200-15-C	112-00330	Cable,Cntlr-Switch OM4,MPO/MPO,15m,-C
X66200-15-N-C	112-00330	Cable,Cntlr-Switch OM4,MPO/MPO,15m,-C
X66200-2	112-00326	Cable,Cntlr-Switch OM4,MPO/MPO,2m
X66200-2-C	112-00326	Cable,Cntlr-Switch OM4,MPO/MPO,2m,-C
X66200-2-N-C	112-00326	Cable,Cntlr-Switch OM4,MPO/MPO,2m,-C
X66200-30	112-00331	Cable,Cntlr-Switch OM4,MPO/MPO,30m
X66200-30-C	112-00331	Cable,Cntlr-Switch OM4,MPO/MPO,30m,-C
X66200-30-N-C	112-00331	Cable,Cntlr-Switch OM4,MPO/MPO,30m,-C
X66200-5	112-00328	Cable,Cntlr-Switch OM4,MPO/MPO,5m
X66200-5-C	112-00328	Cable,Cntlr-Switch OM4,MPO/MPO,5m,-C
X66200-5-N-C	112-00328	Cable,Cntlr-Switch OM4,MPO/MPO,5m,-C
X66205-30	112-00261	Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m
X66205-30-C	112-00261	Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C
X66205-30-N-C	112-00261	Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C
X66205-5	112-00260	Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m
X66205-5-C	112-00260	Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C
X66205-5-N-C	112-00260	Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C
X66211A-05	112-00595	Cable,100GbE,QSFP28-QSFP28,Cu,0.5m
X66211A-05-C	112-00595	Cable,100GbE,QSFP28-QSFP28,Cu,0.5m,-C
X66211A-05-K-N	112-00595	Cable,100GbE,QSFP28-QSFP28,Cu,0.5m
X66211A-05-N	112-00595	Cable,100GbE,QSFP28-QSFP28,Cu,0.5m
X66211A-05-N-C	112-00595	Cable,100GbE,QSFP28-QSFP28,Cu,0.5m,-C
X66211A-1	112-00573	Cable,100GbE,QSFP28-QSFP28,Cu,1m
X66211A-1-K-N	112-00573	Cable,100GbE,QSFP28-QSFP28,Cu,1m
X66211A-1-N	112-00573	Cable,100GbE,QSFP28-QSFP28,Cu,1m
X66211A-2	112-00574	Cable,100GbE,QSFP28-QSFP28,Cu,2m
X66211A-2-K-N	112-00574	Cable,100GbE,QSFP28-QSFP28,Cu,2m
X66211A-2-N	112-00574	Cable,100GbE,QSFP28-QSFP28,Cu,2m
X66211A-5	112-00576	Cable,100GbE,QSFP28-QSFP28,Cu,5m
X66211A-5-K-N	112-00576	Cable,100GbE,QSFP28-QSFP28,Cu,5m
X66211A-5-N	112-00576	Cable,100GbE,QSFP28-QSFP28,Cu,5m
X66211B-1-C	112-00573	Cable,100GbE,QSFP28-QSFP28,Cu,1m,-C
X66211B-1-N-C	112-00573	Cable,100GbE,QSFP28-QSFP28,Cu,1m,-C
X66211B-2-C	112-00574	Cable,100GbE,QSFP28-QSFP28,Cu,2m,-C
X66211B-2-N-C	112-00574	Cable,100GbE,QSFP28-QSFP28,Cu,2m,-C
X66211B-5-C	112-00576	Cable,100GbE,QSFP28-QSFP28,Cu,5m,-C
X66211B-5-N-C	112-00576	Cable,100GbE,QSFP28-QSFP28,Cu,5m,-C
X66240A-05	1111455002	Cable,25GbE,SFP28-SFP28,Cu,0.5m
X66240A-05-N-C	1111455002	Cable,25GbE,SFP28-SFP28,Cu,0.5m,-C
X66240A-2	1111455000	Cable,25GbE,SFP28-SFP28,Cu,2m
X66240A-2-N-C	1111455000	Cable,25GbE,SFP28-SFP28,Cu,2m,-C
X66240A-5	1111455001	Cable,25GbE,SFP28-SFP28,Cu,5m
X66240A-5-N-C	1111455001	Cable,25GbE,SFP28-SFP28,Cu,5m,-C
X66250-15	112-00346	Cable,LC-LC,OM4,15m
X66250-15-C	112-00346	Cable,LC-LC,OM4,15m,-C
X66250-15-N-C	112-00346	Cable,LC-LC,OM4,15m,-C
X66250-2	112-00342	Cable,LC-LC,OM4,2m
X66250-2-C	112-00342	Cable,LC-LC,OM4,2m,-C
X66250-2-N-C	112-00342	Cable,LC-LC,OM4,2m,-C
X66250-30	112-00347	Cable,LC-LC,OM4,30m
X66250-30-C	112-00347	Cable,LC-LC,OM4,30m,-C
X66250-30-N-C	112-00347	Cable,LC-LC,OM4,30m,-C
X66250-5	112-00344	Cable,LC-LC,OM4,5m
X66250-5-C	112-00344	Cable,LC-LC,OM4,5m,-C
X66250-5-N-C	112-00344	Cable,LC-LC,OM4,5m,-C
X66260-30	112-00354	Cable,LC-LC,OPT,OS2,30M
X66260-30-C	112-00354	Cable,LC-LC,OPT,OS2,30M,-C
X66260-30-N-C	112-00354	Cable,LC-LC,OPT,OS2,30M,-C
X66260-5	112-00353	Cable,LC-LC,OPT,OS2,5M
X66260-5-C	112-00353	Cable,LC-LC,OPT,OS2,5M,-C
X66260-5-N-C	112-00353	Cable,LC-LC,OPT,OS2,5M,-C
Disk Drive Blank-Filler
X93108A	111-03907	BLANK,DSK DRV FILLER,AFF-A800,EF600,EF300
X93108A-C	111-03907	BLANK,DSK DRV FILLER,AFF-A800,-C
Drive
X4020A	108-00902	SSD,15.3TB,NVMe,SED,QLC
Fan
X5243A	441-00073	Fan, NS224,NE224
HIC Blank Faceplate
X56039-C	111-04209	Blank Faceplate,-C
Memory Module
X93144A	107-00215	DIMM,32GB, AFF-A800
Power Cord
X-50617-00		Jumper Crd,In-Cab,2m,C20-C13,E-Series
X-50617-00-0E-C		Jumper Crd,In-Cab,2m,C20-C13,E-Series,0E,-C
X1558A-R6		Jumper Crd,In-Cab,48-IN,C13-C14
X1558A-R6-C		Jumper Crd,In-Cab,48-IN,C13-C14-C
X800-42U-35		Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-C		Jumper Crd,In-Cab,C13-C14,35-inch,-C
X800-42U-35-K-N		Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-N		Power Cable,In-Cabinet,C13-C14,35-inch
X800-42U-43		Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-C		Jumper Crd,In-Cab,C13-C14,43-inch,-C
X800-42U-43-K-N		Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-N		Power Cable,In-Cabinet,C13-C14,43-inch
X800-42U-64		Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-C		Jumper Crd,In-Cab,C13-C14,64-inch,-C
X800-42U-64-K-N		Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-N		Power Cable,In-Cabinet,C13-C14,64-inch
X800-42U-R6		Jumper Crd,In-Cab,C13-C14
X800-42U-R6-C		Jumper Crd,In-Cab,C13-C14,-C
X800B-R6		Power Cable,Continental Europe,R6
X800B-R6-C		Power Cable,Continental Europe,-C,R6
X800C-R6		Power Cable,UK and Ireland,R6
X800C-R6-C		Power Cable,UK and Ireland,-C,R6
X800D-R6		Power Cable,Japan,R6
X800D-R6-C		Power Cable,Japan,-C,R6
X800E-R6		Power Cable,North America,R6
X800E-R6-C		Power Cable,North America,-C,R6
X800F-R6		Power Cable,Australia/New Zealand,R6
X800F-R6-C		Power Cable,Australia/New Zealand,-C,R6
X800G-R6		Power Cable,Switzerland,R6
X800G-R6-C		Power Cable,Switzerland,-C,R6
X800H-R6		Power Cable,Argentina,R6
X800H-R6-C		Power Cable,Argentina,-C,R6
X800I-R6		Power Cable,China,R6
X800I-R6-C		Power Cable,China,-C,R6
X800J-R6		Power Cable,Denmark,R6
X800J-R6-C		Power Cable,Denmark,-C,R6
X800K-R6		Power Cable,India,South Africa,R6
X800K-R6-C		Power Cable,India,South Africa,-C,R6
X800L-R6		Power Cable,Israel,R6
X800L-R6-C		Power Cable,Israel,-C,R6
X800M-R6		Power Cable,Italy,R6
X800M-R6-C		Power Cable,Italy,-C,R6
X800N		POWER CABLE,INDIA BIS
X800N-C		Power Cable,India BIS,-C
X800P-R6		Power Cable,North America,250V,R6
X800P-R6-C		Power Cable,North America,250V,-C,R6
X800T-R6		Power Cable,Taiwan,BSMI,R6
X800T-R6-C		Power Cable,Taiwan,BSMI,-C,R6
X800VB-R6		Power Cable,Brazil,IEC-60906-1-Plug
X800W-R6		Power Cable,Taiwan,250V,BSMI,R6
X800W-R6-C		Power Cable,Taiwan,250V,BSMI,-C
X800Y-R6		Power Cable,Japan,250V/15A
X800Y-R6-C		Power Cable,Japan,250V/15A,-C
Power Supply Unit
X737A	114-00208	PSU,AFF A700s,A800,EF600,EF300
Processor Controller Module (PCM)
X3224A	111-04784	Controller,12 CORE,No MEM,A250
Transceiver
X65402	332-00389	QSFP,Opt,40Gb,Shortwave
X65402-C	332-00389	QSFP,Opt,40Gb,Shortwave,-C
X65402-N-C	332-00389	QSFP,Opt,40Gb,Shortwave,-C
X65404	332-00436	SFP28,25GbE,SR
X65404-C	332-00436	SFP28,25GbE,SR,-C
X65404-N-C	332-00436	SFP28,25GbE,SR,-C
X65405	332-00440	QSFP28,100GbE,SR
X65405-C	332-00440	QSFP28,100GbE,SR,-C
X65405-N-C	332-00440	QSFP28,100GbE,SR,-C
X6589-N-C	332-00279R6	SFP+Optical 10Gb Shortwave,-C
X6589-R6	332-00279R6	SFP+Optical 10Gb Shortwave
X6589-R6-C	332-00279R6	SFP+ Optical 10Gb Shortwave,-C
X6599A-N-C	332-00363	SFP+ Optical 10Gb Shortwave,-C
X6599A-R6	332-00363	SFP+ Optical 10Gb Shortwave
X6599A-R6-C	332-00363	SFP+ Optical 10Gb Shortwave,-C
X6604A	332-00405	SFP+ Optical,UTA,10GbE LongReach
X6604A-C	332-00405	SFP+ Optical,UTA,10GbE LongReach,-C
X6604A-N-C	332-00405	SFP+ Optical,UTA,10GbE LongReach,-C
X6607A	332-00488	SFP+ Optical,Broadcom 32Gb FC Shortwave
X6608A	332-00489	SFP+ Optical,Broadcom 32Gb FC Longwave
Footnote:
[1] Target mode adapter only. Foreign LUN import (FLI) requires initiator mode.

Supported Firmware Matrix - FAS500f 4-Node MetroCluster IP

Major OS Version	OS Version	Firmeware
BIOS
ONTAP 9.11.1	9.11.1RC1	17.7*
ONTAP 9.10.1	9.10.1P5-P6	17.7*
ONTAP 9.10.1	9.10.1P3-P4, 9.10.1P2, 9.10.1P1	17.7, 17.6*
ONTAP 9.10.1	9.10.1, 9.10.1RC1	17.7, 17.6, 17.4*
ONTAP 9.9.1	9.9.1P10, 9.9.1P8-P9, 9.9.1P7	17.7, 17.6*
ONTAP 9.9.1	9.9.1P4-P6	17.7, 17.6, 17.4*
ONTAP 9.9.1	9.9.1P3, 9.9.1P2	17.7, 17.6, 17.4, 17.3*
ONTAP 9.9.1	9.9.1P1, 9.9.1, 9.9.1RC1	17.7, 17.6, 17.4, 17.3, 17.2*
ONTAP 9.8	9.8P13	17.7*
ONTAP 9.8	9.8P11-P12, 9.8P10, 9.8P9, 9.8P8	17.7, 17.6, 17.4*
ONTAP 9.8	9.8P7	17.7, 17.6, 17.4, 17.3*
ONTAP 9.8	9.8P6, 9.8P5, 9.8P4	17.7, 17.6, 17.4, 17.3, 17.2*
ONTAP 9.8	9.8P3, 9.8P2, 9.8P1, 9.8, 9.8RC1	17.7, 17.6, 17.4, 17.3, 17.2, 17.1*
BMC
ONTAP 9.11.1	9.11.1	15.5P1
ONTAP 9.11.1	9.11.1RC1	15.5P1, 15.5*
ONTAP 9.10.1	9.10.1P5-P6, 9.10.1P3-P4, 9.10.1P2, 9.10.1P1	15.5P1, 15.5, 15.4*
ONTAP 9.10.1	9.10.1, 9.10.1RC1	15.5P1, 15.5, 15.4, 15.3*
ONTAP 9.9.1	9.9.1P10, 9.9.1P8-P9, 9.9.1P7	15.5P1, 15.5, 15.4*
ONTAP 9.9.1	9.9.1P4-P6	15.5P1, 15.5, 15.4, 15.3*
ONTAP 9.9.1	9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC1	15.5P1, 15.5, 15.4, 15.3, 15.2*
ONTAP 9.8	9.8P13, 9.8P11-P12	15.5P1, 15.5, 15.4*
ONTAP 9.8	9.8P10, 9.8P9	15.5P1, 15.5, 15.4, 15.3*
ONTAP 9.8	9.8P8, 9.8P7, 9.8P6, 9.8P5, 9.8P4	15.5P1, 15.5, 15.4, 15.3, 15.2*
ONTAP 9.8	9.8P3, 9.8P2, 9.8P1, 9.8, 9.8RC1	15.5P1, 15.5, 15.4, 15.3, 15.2, 15.1P1*
Footnote:
[1]* Indicates that firmware is bundled with Storage OS Version

Product Certificates - FAS500f 4-Node MetroCluster IP

Certificate Name	Geo / Region / Country	Associated Products
Battery Pack safety reports
Lithium Battery Safety Doc-Section II/Section IB Shipments,Inventus Power Product Model#NTP2S1P-3AWB	Global	Platforms : AFF A250, EF300, EF600, FAS500f
EMI and Safety certificates
Lithium Battery Safety Doc-Section II/Section IB Shipments,Inventus Power Product Model#NTP2S1P-3AWB	Global	Platforms : AFF A250, EF300, EF600, FAS500f
NAJ-1801 G-K-U-SoR	Gabon,Kenya,SaudiArabia,Uganda	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
NAJ-1801 DoC CE	CE - European Union DoC	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
NAJ-1801 60950-CB	CB - International	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
Declaraion of Similarity NAJ-1801	Global	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
NAJ-1801 (FXN Taiwan) BIS	BIS - India	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
NAJ-1801 (Jabil Mexico) BIS	BIS - India	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
NAJ-1801 (Jabil Singapore) BIS	BIS - India	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
NAJ-1801 62368-CB	CB - International	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
NAJ-1801 ACMA	ACMA - Australia, New Zealand	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
NAJ-1801 BSMI	BSMI - Taiwan	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
NAJ-1801 CSA	CSA - United States, Canada	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
NAJ-1801 EAC	EAC - Armenia, Belarus, Kazakhstan, Kyrgyzstan, Russia	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
NAJ-1801 FCC	FCC - United States	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
NAJ-1801 IRAM	IRAM - Argentina	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
NAJ-1801 KC	KC - South Korea	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
NAJ-1801 Morocco	Morocco	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
NAJ-1801 NOM	NOM - Mexico	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
NAJ-1801 NRCS	NRCS - South Africa (Safety)	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
NAJ-1801 SONCAP	SONCAP - Nigeria	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
NAJ-1801 TBS	TBS - Tanzania	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
NAJ-1801 UKRSep	Global	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
NAJ-1801 VCCI	VCCI - Japan	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
NAJ-1801 UKCA DOC	CE - European Union DoC	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
PSU 80+ Platinum Certificates
NAJ-1801 UKCA DOC	CE - European Union DoC	Platforms : AFF A250, ASA AFF A250, EF300, EF600, FAS500f
DPS-1600AB-18 B Energy Star Report	Global	PSU : X735A, X736A, X737A
PS-2162-8F Energy Star Report	Global	PSU : X735A, X736A, X737A
Voluntary Product Accessibility Template
PS-2162-8F Energy Star Report	Global	PSU : X735A, X736A, X737A

Size, Weight, Acoustic, Power FAS500f 4-Node MetroCluster IP

Associated Part No.	Configuration	Rack Units	Weight	Sound Power	Sound Pressure	Line Voltage Actual (Min to Max)	Amps Typical	Amps Worst	Watts Typical	Watts Worst	BTU / Hr Typical	BTU / Hr Worst
Embedded Drive Config (Full)
FAS500F-101-C	FAS500f 2 PCM 24x15.3TB SED	2	54.3 lb (24.6 kg)	7.2 Bels	69.1 dBA	200 (200 to 240)	4.27	5.5	851.52	1098.92	2906.15	3750.5

Category: 4u, 8-pcie-slots, bus-pci-e, controller_amount_quad, drive-capacity-1-4pb, drive-count-24, drive-count-96, FAS500, fas500f, interface-type-nvme, memory-256gb, metrocluster, netapp, protocol-ethernet, speed-10gb

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground
- Shipping time: 2-7 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-10 business days
- Excludes weekends, holidays or weather delays.
3 Business Days
- Shipping time: 3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 3-6 business days
- Excludes weekends, holidays or weather delays.
2 Business Days
- Shipping time: 2 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-5 business days
- Excludes weekends, holidays or weather delays.
Overnight / Next Business Day
- Shipping time: 1 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 1-4 business days
- Excludes weekends, holidays or weather delays.

International Shipments

International Economy
- Shipping time: 4-6 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 5-9 business days
- Excludes weekends, holidays or weather delays.
International Priority
- Shipping time: 1-3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-6 business days
- Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

Leave a Message

NetApp FAS500f 4-Node MetroCluster IP Filer Head (4N-MetroClusterIP)

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp FAS500f 4-Node MetroCluster IP Filer Head (4N-MetroClusterIP)

Product Specs

Storage Limits

Capacity Limits

Core Cluster Limits

System Maximums and Limits

Processor

Memory

Onboard Ports

Physical Characteristics

System Clearance Dimensions

Environmental Requirements

Storage OS Requirements

Storage and Firmware

Product Standards Compliance

NFS Cluster Limits

WAFL Cluster Limits - All Maximums

Quality of Service Cluster Limits

SAN Cluster Limits - All Maximums

CIFS Cluster Limits - All Maximums

Data Protection Cluster Limits - All Maximums

NVMe/oF Cluster Limits - All Maximums

FlexCache Cluster Limits - All Maximums Cache

S3 Cluster Limits -

Consistency Groups - All Maximums

Platform LED for FAS500f 4-Node MetroCluster IP

Supported Shelves Drives for FAS500f 4-Node MetroCluster IP

Supported RAID Configurations - FAS500f 4-Node MetroCluster IP

Supported Adapter Cards - FAS500f 4-Node MetroCluster IP

Supported Connections for FAS500f 4-Node MetroCluster IP

Platform Mixing Rules - FAS500f 4-Node MetroCluster IP

Product Standard Compliance - FAS500f 4-Node MetroCluster IP

Supported OS Version - FAS500f 4-Node MetroCluster IP

Supported Power Cords for FAS500f 4-Node MetroCluster IP

Onboard Ports Configuration: FAS500f Single Chassis HA Pair

Supported Platform Configurations - FAS500f 4-Node MetroCluster IP

Platform Memory Specifications - FAS500f 4-Node MetroCluster IP

Supported Rail Kit for FAS500f 4-Node MetroCluster IP

Field Replacement Unit Parts - FAS500f 4-Node MetroCluster IP

Supported Firmware Matrix - FAS500f 4-Node MetroCluster IP

Product Certificates - FAS500f 4-Node MetroCluster IP

Size, Weight, Acoustic, Power FAS500f 4-Node MetroCluster IP

Shipping Information

ECS Warranty Information

About Express Computer Systems

Related Items

Your Recently Viewed Items

Subscribe

Shop with Confidence
