Home / 1TB / Dell PowerEdge R650xs Rack Server Chassis (8x 2.5")
SKU: DPE-R650XS-8X2.5

Dell PowerEdge R650xs Rack Server Chassis (8x 2.5")

Dell CTO

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

CTO Item

This part is strictly for configuring Dell servers. If you have landed on this page and you're looking for a specific part number. Please send us a "Request a Quote" with the part number you need.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

FeatureTechnical Specification
ProcessorUp to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores
Memory
  • 16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s
  • Supports registered ECC DDR4 DIMMs only
Storage controllers
  • Internal controllers: PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150
  • Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSSS1): HWRAID 2 x M.2 SSDs, USB
  • External PERC (RAID): PERC H840, HBA355e

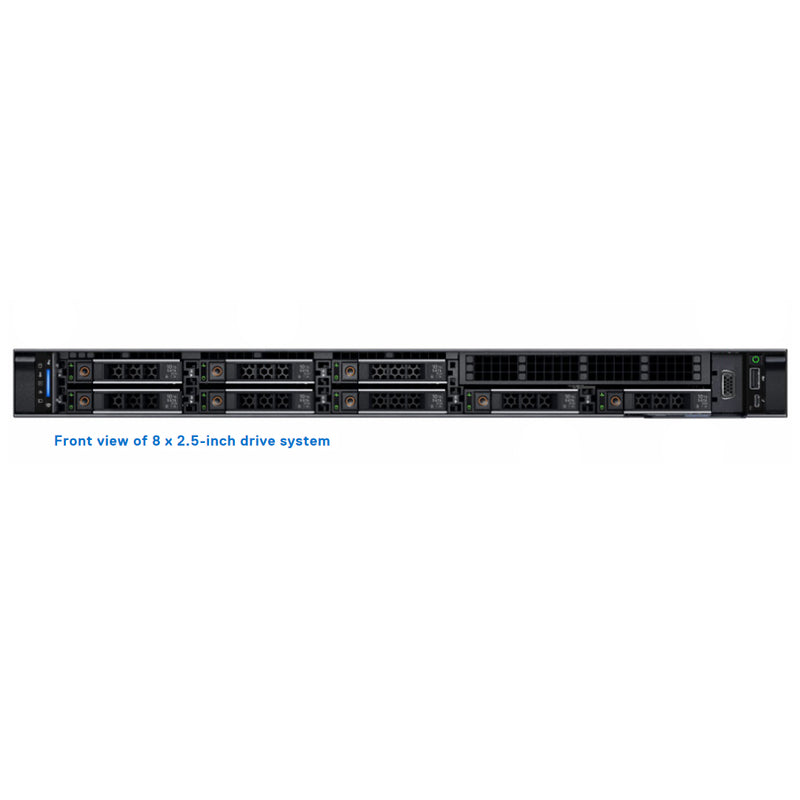

Drive baysFront bays:
  • 0 drive bay
  • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
  • Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 76.8 TB
Rear bays:
  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
Power supplies
  • 600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
  • 700W Titanium Mixed Mode (200-240Vac or 240Vdc) hot swap redundant
  • 800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
  • 1100W Titanium Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
  • 1400W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
  • 1100W -48Vdc hot swap redundant (CAUTION: only works with -48Vdc to -60Vdc power input)
  • 1800W Titanium Mixed Mode (200-240Vac or 240Vdc) hot swap redundant
Cooling optionsAir cooling
Fans
  • Standard fan/High performance SLVR fan/High performance GOLD fan
  • Up to seven cabled fans
DimensionsHeight – 42.8 mm (1.68 inches)
Width – 482 mm (18.97 inches)
Depth – 734.95 mm (28.92 inches) – without bezel
748.79 mm (29.47 inches) – with bezel
Form Factor1U rack server
Embedded mgmt
  • iDRAC9
  • iDRAC Service Module
  • iDRAC Direct
  • Quick Sync 2 wireless module
BezelOptional LCD bezel or security bezel
OpenManage™ Software
  • OpenManage Enterprise
  • OpenManage Power Manager plugin
  • OpenManage SupportAssist plugin
  • OpenManage Update Manager plugin
MobilityOpenManage Mobile
Integrations and ConnectionsOpenManage Integrations
  • BMC Truesight
  • Microsoft System Center
  • Red Hat Ansible Modules
  • VMware vCenter and vRealize Operations Manager
OpenManage Connections
  • IBM Tivoli Netcool/OMNIbus
  • IBM Tivoli Network Manager IP Edition
  • Micro Focus Operations Manager
  • Nagios Core
  • Nagios XI
Security
  • Cryptographically signed firmware
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC2 x 1 GbE LOM
Network Options1 x OCP 3.0
GPU OptionsNot Supported
PortsFront Ports:
  • 1 x USB 2.0
  • 1 x VGA
  • 1 x iDRAC Direct (Micro-AB USB) port
  • Internal Ports
  • 1 x USB 3.0 (optional)

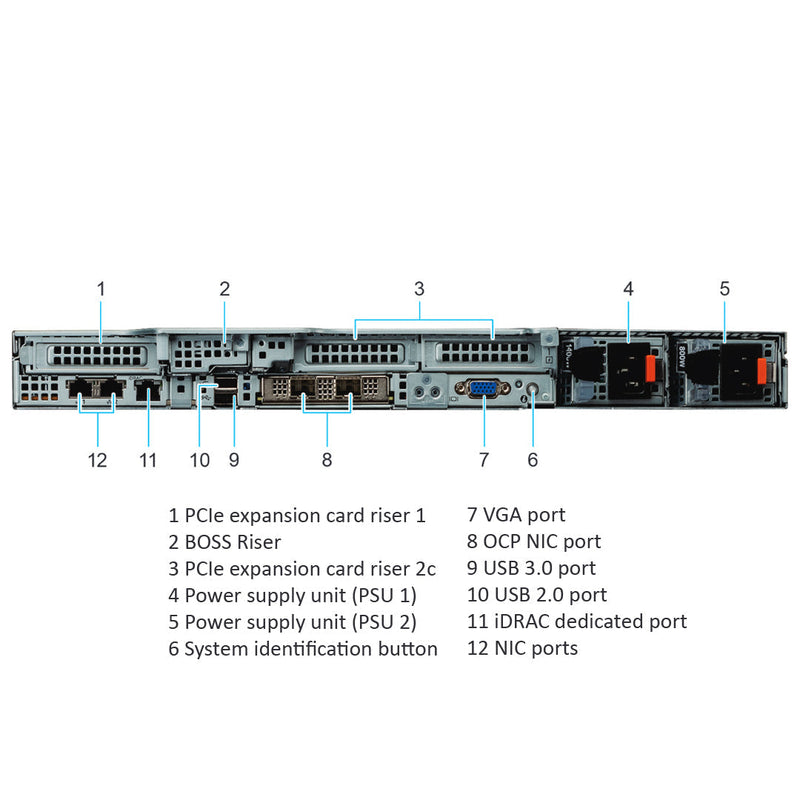

Rear Ports
  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x VGA
  • 1 x Serial port (Optional)
  • 2 x Ethernet
PCIeUp to 3 x PCIe Gen4 slots
Operating System and Hypervisors
  • Canonical Ubuntu Server LTS
  • Citrix Hypervisor
  • Microsoft Windows Server with Hyper-V
  • SUSE Linux Enterprise Server
  • Red Hat Enterprise Linux
  • VMware ESXi
