Quick Specs
Form Factor:
1U rack server
Processor | Max: 8 Cores1 x Intel Xeon
Memory | Max: 192GB6 DDR4 RDIMM 2933Mhz with RAS
Storage | Max: 12TB8 SFF or 4 LFF SAS/SATA (HDD/SSD)
PCIe Slots:2x PCIe 3.0 & 2.0
One x8 PCIe slot with x4 bandwidth, half-length, half-height
One x16 PCIe slot with x16 bandwidth, half-length, full-height
None
RAID Controllers:PERC S110 (SW RAID)
H310, H710, H810, 6Gbps SAS HBA
Basic management (default)

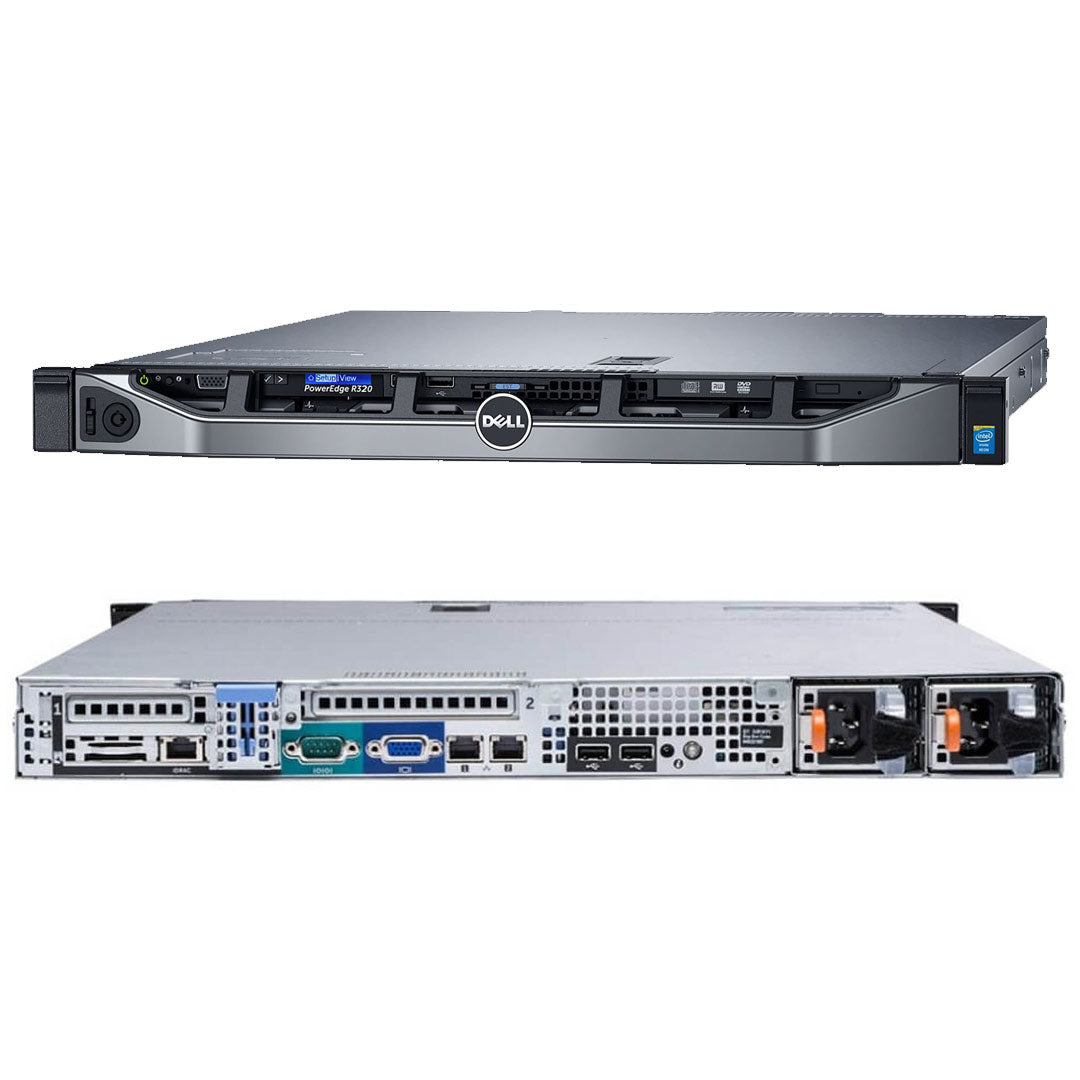

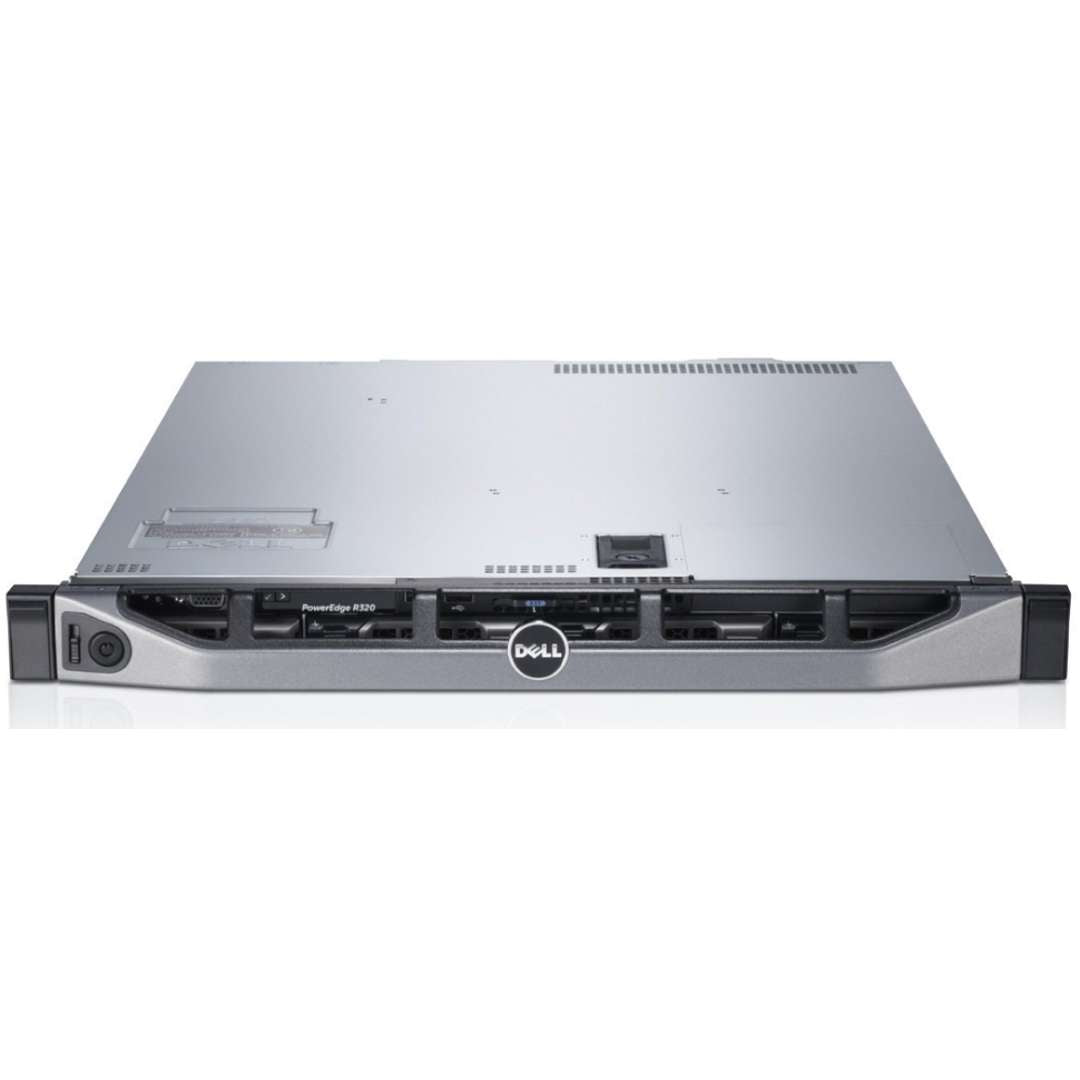

An enterprise-class, 1-socket server, the Intel-powered Dell PowerEdge R320 has the right computing power, scalability and value in a dense chassis.
The Dell PowerEdge R320 is an enterprise-class, 1-socket, 1U rack-mount server designed to deliver the right combination of performance, redundancy and value in a dense chassis. This rack server caters to the growing need for virtualization by offering scalable processor performance, a large memory footprint and the capacity for up to eight hard drives. The performance per cost, along with configuration flexibility, storage connectivity and straightforward systems management make the R320 highly appealing to hosting providers. Consistent worldwide support makes the R320 highly appealing to multinational businesses and organizations.
Enterprise features, scalable expandability and value in a dense chassis
The R320 features the scalable performance of the Intel Xeon E5-2400 processors with essential Intel memory RAS features. This server complements its processors with six DIMMs and two PCI Express (PCIe) slots, providing a substantial memory footprint and wide I/O bandwidth to support both memory-sensitive applications and databases. These combined technology features enable the R320 to support consolidated and virtualized environments.
To protect your virtualized workloads, the R320 offers dual SD cards making your hypervisors redundant and failsafe. Other reliability and availability features include up to four 3.5-inch or eight 2.5-inch hot-plug hard drives, both hardware and software RAID options and redundant, hot-plug power supplies.
Ideal for your applications
The R320 is an excellent fit for web, file and print serving as well as smaller scale hosting and e-commerce, retail server, workgroup server and smaller scale virtualization in space-constrained, small-medium business locations and departmental and remote sites of large businesses and public organizations.
Powerful processing
Experience high-level productivity with the option-packed PowerEdge R320 —powered by the latest Intel Xeon processor E5-2400 and E5-2400 v2 product families and paired with six dual in-line memory modules (DIMMs) and extensive reliability, availability and serviceability (RAS) features, the R320 is ideal for keeping core business applications up and running.
Versatile storage options
Configure your storage options to suit your needs. The PowerEdge R320 enables you to tailor your system with up to eight internal drives — 100 percent more hard drives than the previous Dell generation — two PCIe expansion slots and either hardware or software RAID options for data protection.
Enterprise-class network options
As a 1-socket rack server, the R320 has very aggressive advanced network options, carrying multiple third-party brands and adapter types with 10GbE NIC, 10GbE FCoE and Fiber Channel 8Gb HBA.
Strong performance and density
Deliver the right combination of performance, availability and power efficiency in a dense, 1-socket, 1U chassis with the next-generation PowerEdge R320.
Impressive I/O capabilities
Help improve the performance of your business applications and virtualized environments using the scalable I/O (input/output) bandwidth of the PowerEdge R320 with its PCI Express (PCIe) 3.0-enabled expansion slots.
Hard-drive backplane options
Internal storage
R320 has three chassis to support up to three different drive-bay options.
- 4 x 3.5" drive option (base configuration, cabled tray)
- 4 x 3.5" drive option (volume configuration, hot-plug tray 2.5" hybrid kit available for 2.5" drives)
- 8 x 2.5" drive option (maximum drive support in 1U, hot-plug tray)
| Backplane options | Controller | Drive types |
|---|---|---|
| 4 x 3.5” cabled chassis | PERC S110, H310, H710 | 3.5” SATA 3.5” Nearline SAS 3.5” SAS |
| 4 x 3.5” or 2.5” hot-plug | PERC S110, H310, H710 | 3.5” SATA 3.5” Nearline SAS 3.5” SAS 2.5” SAS 2.5” SSD |
| 8 x 2.5" hot-plug | PERC H310, H710 | 2.5” SATA 2.5” Nearline SAS 2.5” SAS 2.5” SSD |
Supported RAID Controllers
| Controller | Description | Features | RAID modes supported | Form factor | Usage model |
|---|---|---|---|---|---|
| PERC H810 External | Eight-port, external and 6Gp/s PCIe RAID controller | Includes 1GB NV DDR3 cache, premium performance and feature set, security SED/EKMS, and SSD as cache | 0, 1, 10, 5, 50, 6, 60 | Adapter | Premium performance |
| PERC H710 Internal | Eight-port, internal 6Gb/s PCIe RAID controller | Includes 512MB NV DDR3 cache, advanced feature set, security SED/EKMS | 0, 1, 10, 5, 50, 6, 60 | Integrated mini-type | Performance |
| PERC H310 Internal | Eight-port, internal 6Gb/s PCIe RAID | Supports hot-plug drives, expansion, passthrough | 0, 1, 10, 5, 50 | Integrated mini-type | Value |
| PERC S110 Software RAID | 3Gb/s SATA software RAID controller that supports up to 4 physical disks or 8 virtual disks | Supports up to four hot-plug SATA drives, no expansion, Microsoft Windows only | 0, 1, 5, 10 | System board-embedded SATA | Entry-level |
Networking and PCIe
The Dell PowerEdge R320 offers balanced, scalable I/O capabilities, including integrated PCIe 3.0 capable expansion slots. The R320 supports up to 2 PCIe slots
Embedded NIC controller
The R320 system board has one embedded NIC controller. The Broadcom 5720 Gigabit NIC chip is connected to the platform controller hub through a PCIe 2.0 x2 link.
PCIe expansion
The R320 provides expanded PCIe slot capability over the previous servers. This is made possible by the 40 PCIe lanes available from each processor in the system. Dell designed the R320 to be PCIe 3.0-compliant in order to take full advantage of the processor's capabilities.
| PCIe slot configurations | |
|---|---|
| PCIe slot 1 | PCIe x8 connector with x4 bandwidth; half-length, half-height, 2.0 |
| PCIe slot 2 | PCIe x16 connector with x16 bandwidth; half-length, full-height, 3.0 |
| Storage slot | Storage slot for PERCs H310 or H710 |
Power & Dimensions
Power Supply Units
- Hot-Swap Redundant 550W 100-240VAC 50/60Hz
- Hot-Swap Redundant 350W 100-240VAC 50/60Hz
- Cabled Non-Redundant 350W 100-240VAC 50/60Hz
Dimensions
- Depth: 642.3mm (25.28")
- Width: 517.4mm (20.37")
- Height: 42.8mm (1.68")
- Weight: 19.3 kg (42.55 lb)
