Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
What's New for ML30 Gen10 Plus
- (1) Intel Xeon E-2100/2200, up to 8 cores 95W
- (4) 3200 MT/s HPE DDR4 UDIMM | Max 128GB
- (4) PCIe expansion slots
- PCIe Slot 1 is Gen 4.0 x16
- Embedded Broadcom BCM5720 Ethernet 1Gb 2-port BASE-T Adapter
- Embedded Intel Virtual RAID on CPU (Intel VROC)
- MegaRAID Support
- Onboard M.2 NVMe/SATA SSD support.
- Dedicated HPE iLO port and serial port kit
- NO GPU SUPPORT
Other Versions:
(Click to View)
Ideal for:
- Cloud Servers
- Corporate IT
- Database

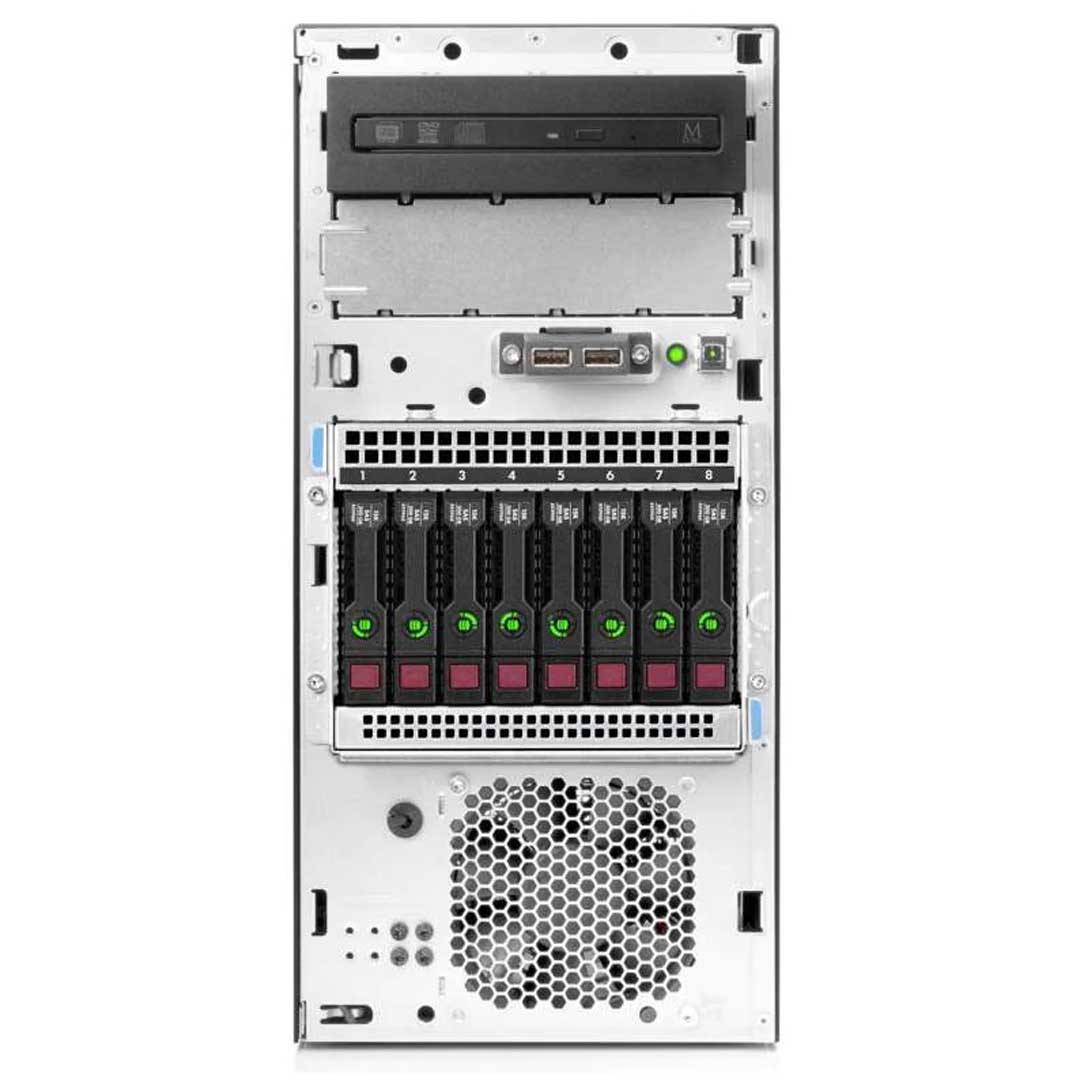

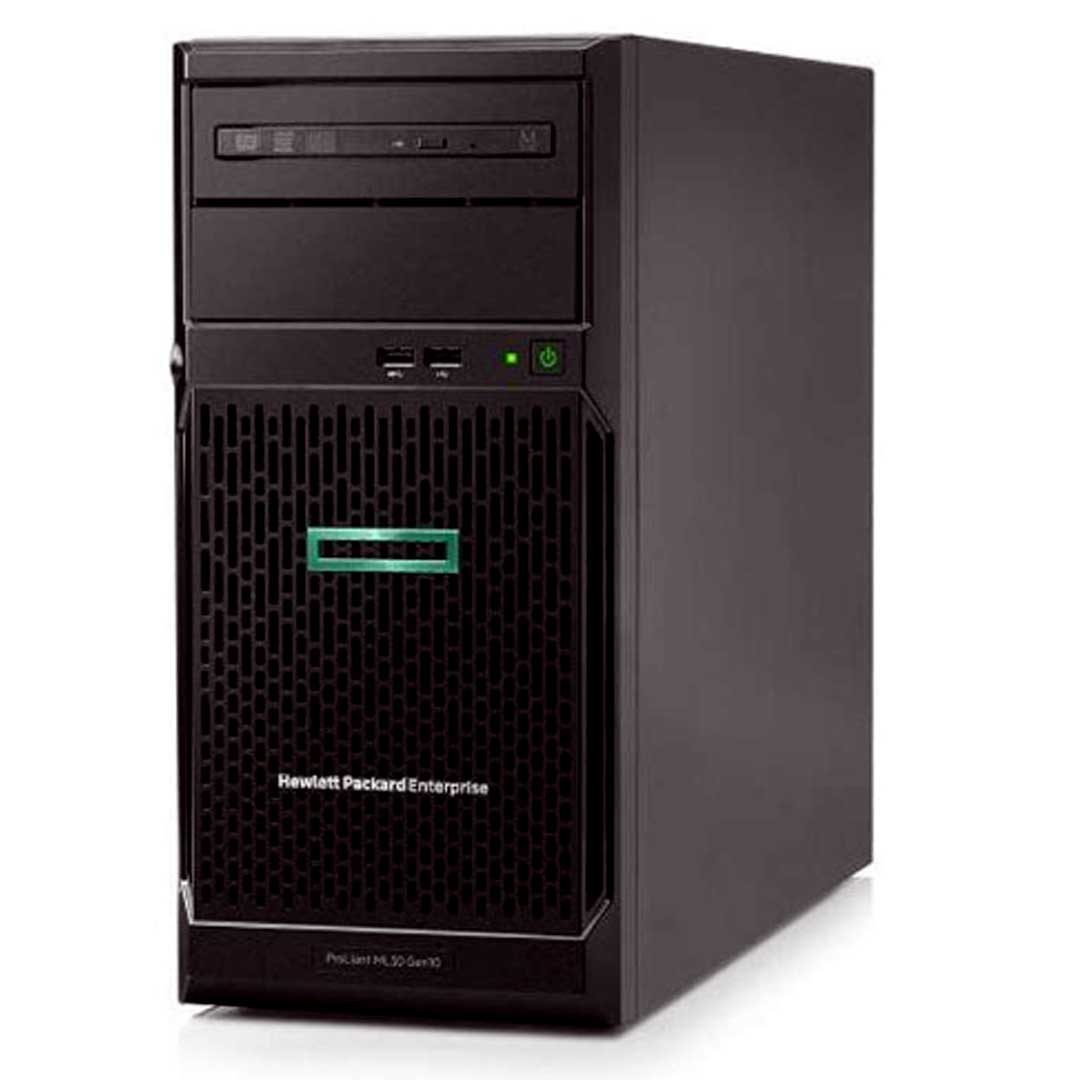

The HPE ProLiant ML30 Gen10 Plus server is a powerful yet affordable tower server designed for small offices, remote and branch offices to run on-premises and hybrid cloud solutions, delivering enterprise-class performance, security, reliability, and expandability at a low cost.

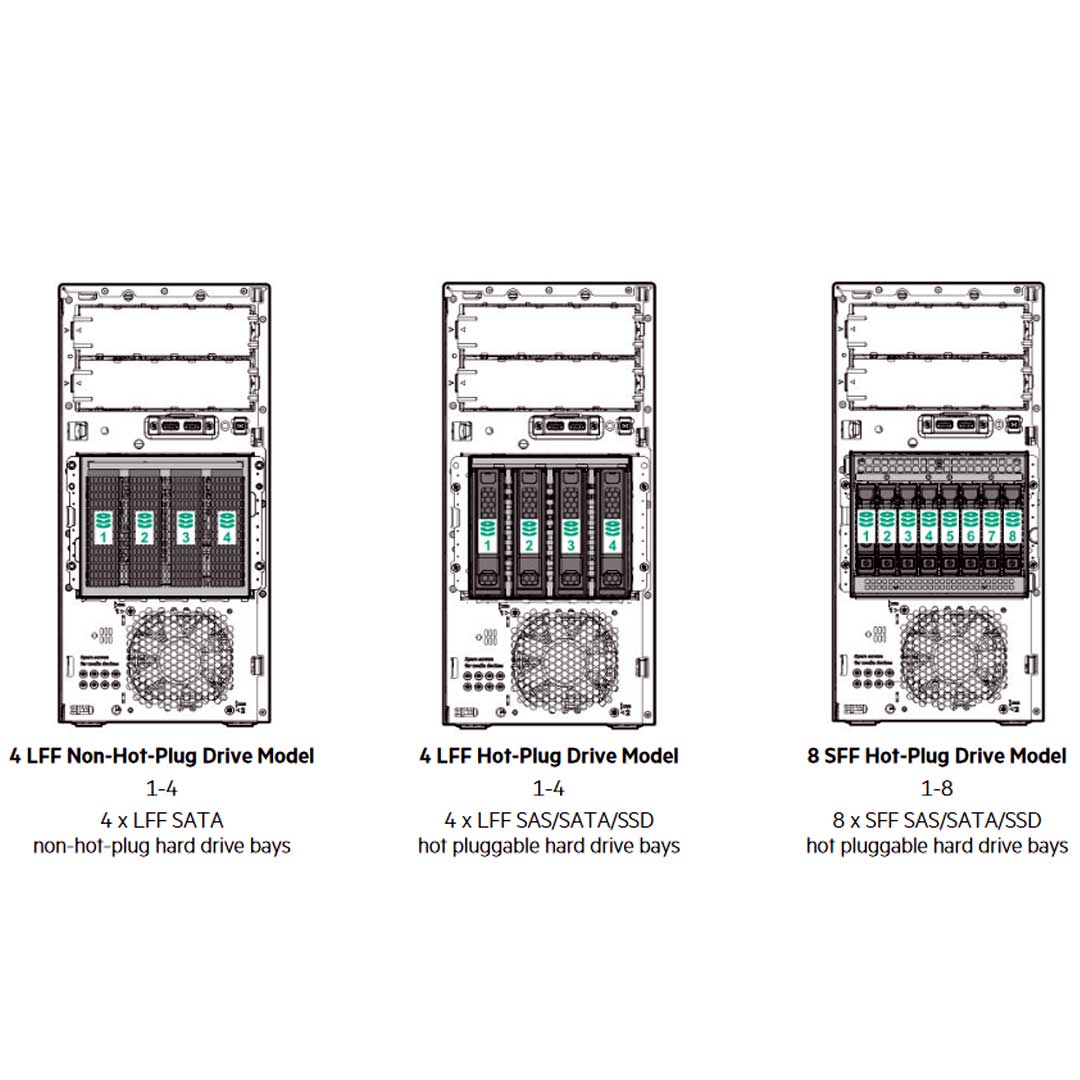

A redundant power supply option and up to 4 LFF or 8 SFF hot-plug HDDs provide availability and flexibility. The enhanced expansion capability, now including PCIe Gen4, allows you to upgrade with serial attached SCSI (SAS) controllers or networking cards as your business grows.
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Spec Sheet 4
| Technical specifications | HPE ProLiant ML30 Plus Gen10 server |
|---|---|
| Processor family | Intel® Xeon® E-2300 Processor |
| Processor core available | 4 to 8 core |
| Processor cache | Up to 16 MB Intel® Smart Cache, depending on processor |
| Processor speed | 3.7 GHz, maximum depending on processor |
| Expansion slots | 4, for detailed descriptions reference the QuickSpecs |
| Maximum memory | 128 GB with 32 GB DDR4 |
| Memory slots | 4 DIMM slots, maximum |
| Memory type | HPE DDR4 Standard Memory |
| Memory protection features | Unbufferred ECC |
| Network controller | HPE embedded 1Gb 2-port BCM5720 Network Adapter and optional HPE network controllers |
| Storage controller | Intel® VROC SATA (formerly known as Intel® RSTe) |
| Product Dimensions (imperial) | 14.5 x 6.89 x 18.7 in |
| Weight | 22.1 lb minimum 38.7 lb maximum |
| Infrastructure management | Included - HPE iLO Standard with intelligent provisioning (embedded), HPE Systems Insight Manager (requires download), HPE OneView Standard (requires download) Optional - HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced (requires download) |
| Drive supported | 4 NHP LFF SATA HDD 4 LFF SAS/SATA HDD/SSD or 8 SFF SAS/SATA HDD/SSD, with 1 M.2 NVMe SSD, depending on model |
