Home / 128GB / Dell PowerEdge T350 Tower Server Chassis (4x3.5")
SKU: DPE-T350-4x3.5-Chassis

Dell PowerEdge T350 Tower Server Chassis (4x3.5")

Dell

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

Tower server 4.5U (Rack Conversion)

Processor Max: 8 Cores

1x Intel E-2300, or Pentium (2 cores)

Memory Max: 128GB

4 DDR4 UDIMM 3200Mhz

Storage Max: 160TB

Up to 4x 3.5" SAS/SATA (HDD/SSD)
Up tp 8x 3.5" SAS/SATA (HDD/SSD)
Note: Supports 2.5-inch drive in 3.5-inch hybrid drive carrier

Boot Options

Boot Optimized Server Storage (BOSS-S2)
IDSDM
USB

RAID Controller:

S150 (SW RAID SATA)
PERC H355, H755, HBA355i, HBA355e (non-RAID)

NIC/LOM

2 x 1GbE LOM

Remote Management:

iDRAC9

PCIe Slots: 4

2 x Gen 4 PCIe slots
2 x Gen 3 PCIe slot

GPU:

Not Supported

Other Versions

Ideal for:

  • Cloud Servers
  • Database
  • Mail
  • Video Analytics
  • Web Tech
Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

FeaturePowerEdge T350 Technical specification
ProcessorOne Intel Xeon E-2300 Series processor with up to 8 cores, or Intel Pentium processors with up to 2 cores
Memory4 DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s
Supports registered ECC DDR4 DIMMs only
Note: For Pentium processor, maximum memory speed supported is 2666 MT/s
Storage controllersInternal controllers: PERC H755, PERC H355, PERC H345, HBA355i, S150
External PERC (RAID): N/A
External HBAs (non-RAID): HBA355e
Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 120GB, 240 GB
Internal Dual SD Module
internal USB 3.0
Drive bays
  • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD)
  • Up tp 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160TB
  • Note: Supports 2.5-inch drive in 3.5-inch hybrid drive carrier.
Power supplies
  • 450 W Bronze (cabled) AC/100 - 240 V
  • 600 W Platinum AC/100 - 240 V
  • 600 W DC/240 V
  • 700 W Titanium AC/100 - 240 V
  • 700 W DC/240 V
Cooling OptionsAir cooling
FansSystem fan
one non hot swap fan
DimensionsHeight – 382.5 mm (15.06 inches)
Width – 175 mm (6.89 inches)
Depth – 581.12 mm (22.88 inches) with bezel
Form Factor4.5U tower server
Embedded ManagementiDRAC9
iDRAC Direct
iDRAC RESTful with Redfish
iDRAC Service Module
BezelOptional security bezel
OpenManage Software
  • OpenManage Enterprise
  • OpenManage Power Manager plugin
  • OpenManage SupportAssist plugin
  • OpenManage Update Manager plugin
MobilityOpenManage Mobile
Integrations and connectionsOpenManage Integrations:
  • BMC Truesight
  • Microsoft System Center
  • Red Hat Ansible Modules
  • VMware vCenter and vRealize Operations Manager
OpenManage Connections:
  • IBM Tivoli Netcool/OMNIbus
  • IBM Tivoli Network Manager IP Edition
  • Micro Focus Operations Manager
  • Nagios Core
  • Nagios XI
Security
  • Cryptographically signed firmware
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC2 x 1 GbE LOM
GPU OptionsNot supported

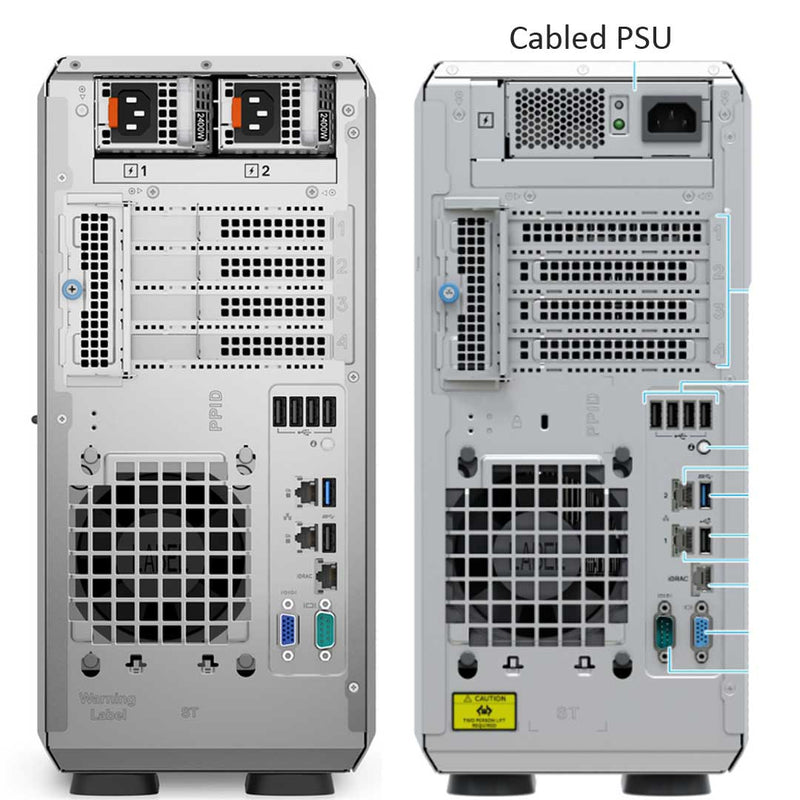

PortsFront Ports
  • 1 x Dedicated iDRAC (Micro-AB USB) port
  • 1 x USB 3.0
Rear Ports
  • 5 x USB 2.0
  • 1 x iDRAC dedicated port
  • 1 x USB 3.0
  • 1 x VGA
  • 1 x Serial
Internal Ports
1 x USB 3.0 (optional)
PCIe
  • 2 x Gen 4 PCIe slots
  • 2 x Gen 3 PCIe slot
Operating System and HypervisorsCanonical Ubuntu Server LTS
VMware ESXi
Microsoft Windows Server with Hyper-V
SUSE Linux Enterprise Server
Red Hat Enterprise Linux

Spec Sheet 4

Feature PowerEdge T350 PowerEdge T340
Processor Maximum one Intel® Xeon® E-2300 series processor with up to 8 cores, or Intel Pentium processors with up to 2 cores Maximum one Intel® Xeon® E-2200 product family processor with up to 8 cores per processor
Maximum one Intel® Pentium® G5420 processor up to 2 cores per processor
Maximum one Intel® Core i3® 9100 processor up to 4 cores per processor
Maximum one Intel® Celeron® G4930 processor up to 2 cores per processor
Memory 4 DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s
NOTE: DIMM speed is limited to 2933 MT/s when mixing dual rank DIMMs with single rank or dual rank DIMMs in the same channel.
NOTE: For Pentium processor, maximum memory supported is 2666 MT/s. 		● 4 DDR4 DIMM slots, supports UDIMM 64 GB max, speeds up to 2666 MT/s
● Supports registered ECC DDR4 DIMMs only
Storage Drives Front bays:
● Up to 8 x 3.5-inch SAS/SATA (HDD/SSD)
● Maximum capacity 160 TB on 8 HDD configuration
NOTE: Supports 2.5-inch drive in 3.5-inch hybrid drive carrier. 		Front bays:
● Up to 8 x 3.5-inch SAS/SATA (HDD), max 112 TB (Also supports up to 8 x 2.5-inch SAS/SATA (HDD) in 3.5-inch hybrid drive carrier)
Storage Controllers Internal controllers: PERC H345, PERC H355, HBA355i, PERC H755
External HBA (non-RAID): HBA355e
Internal Boot: Boot Optimized Storage Subsystem
(BOSS-S2): HWRAID 2 x M.2 SSDs
Software RAID: S150 		Internal controllers: PERC H330, H730p, HBA330
External controllers: 12 Gbps SAS HBA
Internal Boot: Boot Optimized Storage
Subsystem (BOSS): 2 x M.2 240 GB (RAID 1 or No RAID) and 1 x M.2 240 GB (No RAID only)
Software RAID: S140
PCIe Slots 4 PCIe slots:
● 1 x16 Gen4 (x16 connector) full height, full length
● 1 x4 Gen4 (x8 connector) full height, half length
● 1 x4 Gen3 (x8 connector) full height, half length
● 1 x1 Gen3 (x1 connector) full height, half length		 4 x PCIe Gen 3 slots
Embedded NIC (LOM) 2 x 1 GbE 2 x 1 GbE
Networking options (OCP 3.0) NA NA
Ports Front Ports
● 1 x iDRAC Direct (Micro-AB USB) port
● 1 x USB 3.0 Rear Ports
● 5 x USB 2.0
● 1 x iDRAC ethernet port
● 1 x USB 3.0
● 1 x VGA
● 1 x Serial Internal Ports
● 1 x USB 3.0 (Optional) 		Front Ports
● 1 x Micro USB 2.0 (Dedicated iDRAC direct)
● 1 x USB 3.0 Rear Ports
● 4 x USB 2.0
● 2 x USB 3.0
● 1 x VGA Internal Ports
● 1 x USB 3.0
Form Factor 4.5U 5U
Power Supplies ● 450W Bronze 100-240 VAC, cabled
● 600W Platinum 100-240 VAC or 240 VDC, hot swap redundant
● 700 W Titanium 100-240 V AC or 240 HVDC redundant, cabled		 ● 495 W Platinum (Hot plug redundant)
● 350 W Bronze (Cable)
Embedded Management ● iDRAC9
● iDRAC Direct
● iDRAC RESTful API with Redfish
● iDRAC Service Module		 ● iDRAC9
● iDRAC Direct
● iDRAC RESTful API with Redfish
Front IO ● Power button w/LED x1
● ID button w/LED x1
● USB 3.0 x1
● iDRAC MGMT USB x1
● System Status LED x1 		● Power button w/LED x1
● ID button w/LED x1
● USB 3.0 x1
● iDRAC MGMT USB x1
● System Status LED x1
Availability ● Hot-plug Drives
● Hot-plug Redundant Power Supplies
● Internal Dual SD Module (IDSDM) 		● Hot-plug Drives
● Hot-plug Redundant Power Supplies
● Internal Dual SD Module (IDSDM)
