Dell Poweredge 2x8 Butterfly Riser Card | 9PD6H

SKU: 9PD6H

Dell Poweredge 2x8 Butterfly Riser Card | 9PD6H

Name: Dell Poweredge 2x8 Butterfly Riser Card | 9PD6H
Brand: Dell
SKU: 9PD6H
Availability: OutOfStock

Dell

| Riser Kit

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

This item is included in the following kit.

Dell Poweredge (G15) Riser R2A 2x16 Assembly | RXMT7

Riser Specs

Type: Butterfly Riser Card
Server Compatibility: Dell PowerEdge (varies by model)
PCIe Configuration: 2 x PCIe Gen 3 x8 Slots
Design: Butterfly (opposing side riser layout)
Form Factor: Low Profile / Half Length (LP/HL)

Part Number:

9PD6H

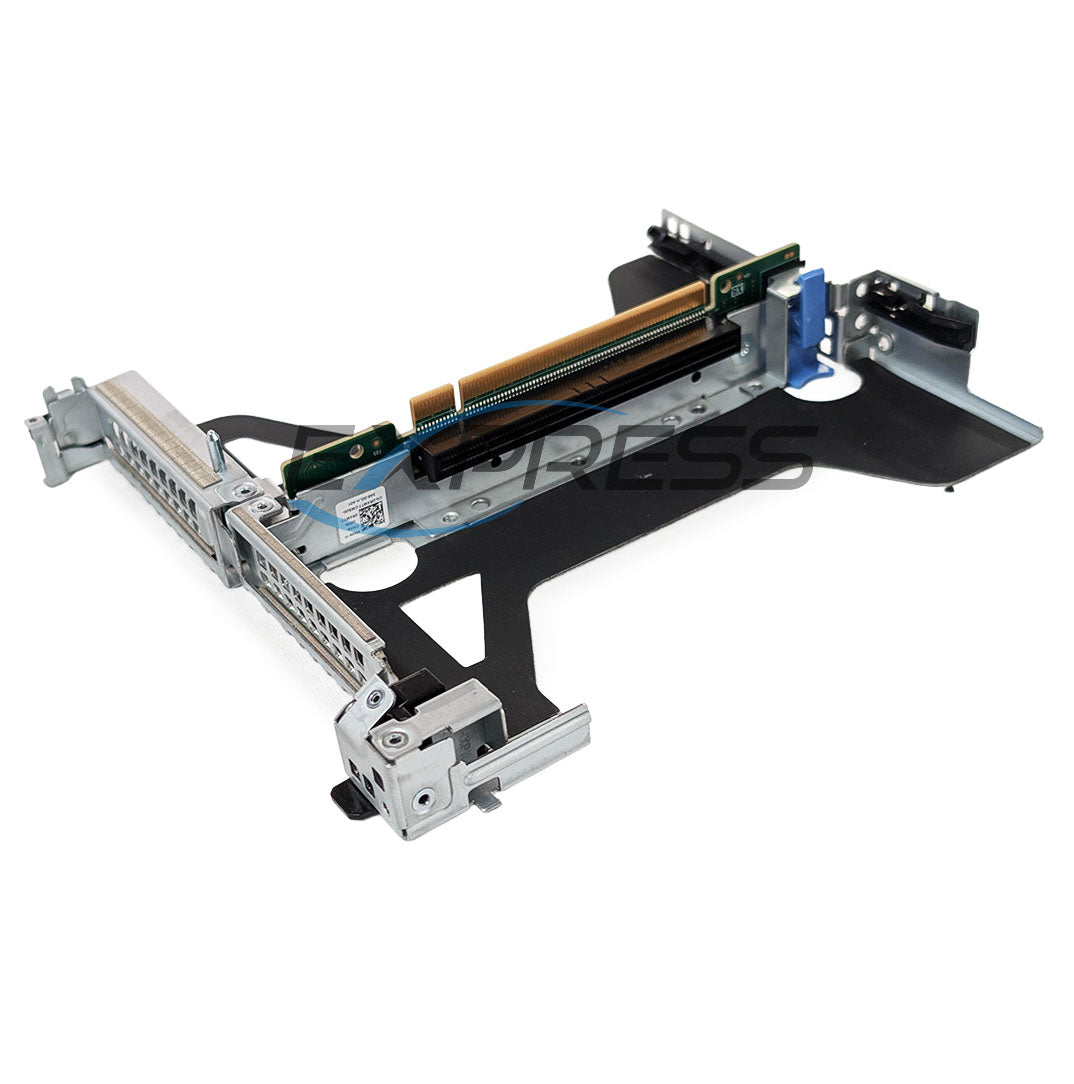

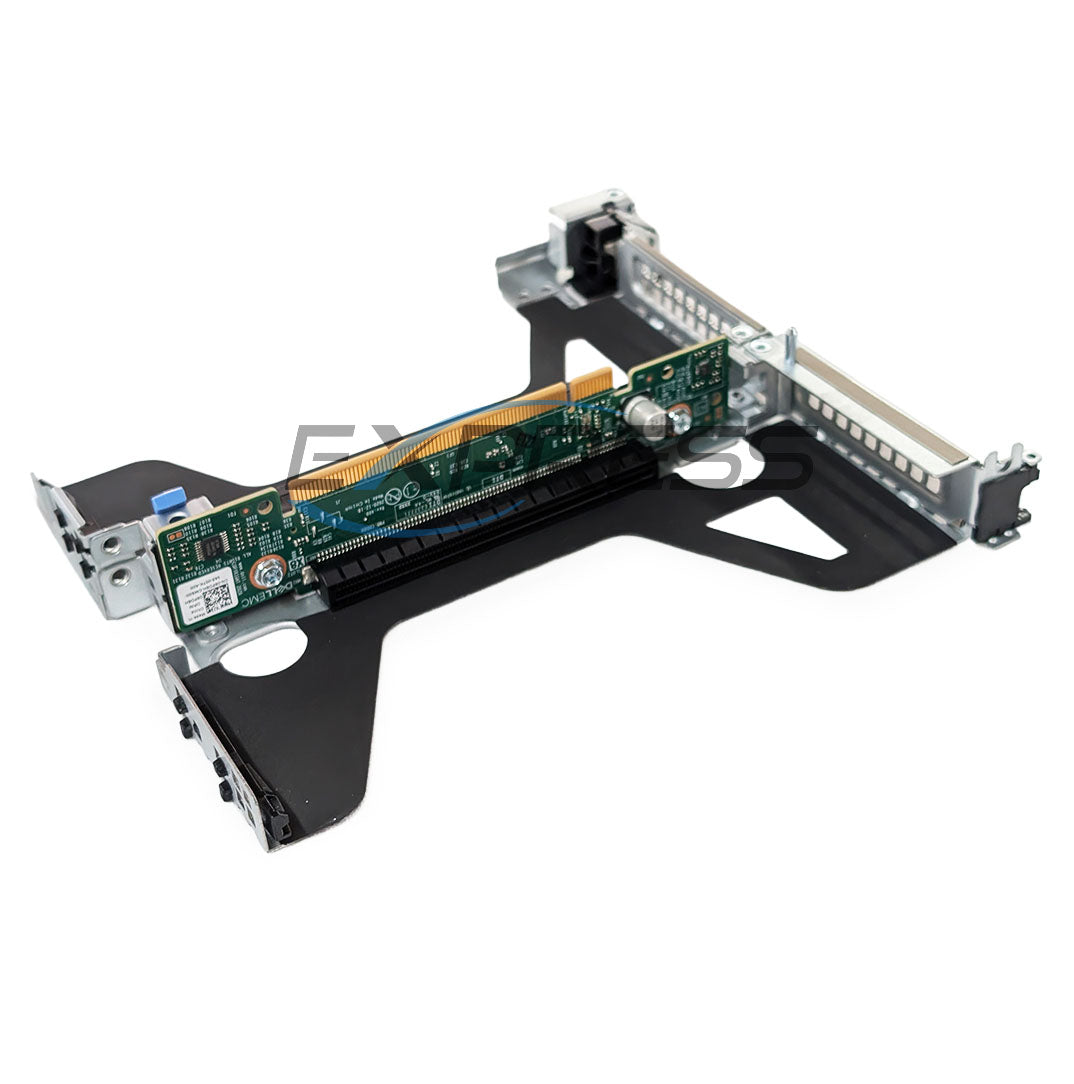

The Dell PowerEdge 2x8 Butterfly Riser Card (9PD6H) features two PCIe Gen 3 x8 slots positioned on opposing sides of the riser, enabling balanced and efficient expansion in supported PowerEdge systems. This layout is often used in compact servers like the R450.

Engineered for low-profile, half-length cards, this riser maximizes PCIe availability without increasing the chassis footprint. It’s ideal for enhancing I/O capabilities with dual-slot support in constrained server environments.

Compatible With:

Dell R660xs

(Click to View)

Base Standard Capabilities

Feature	Technical Specification
Processor	Up to two 3rd Generation Intel Xeon Scalable processors, with up to 24 cores per processor
Memory	Memory 16 DDR4 DIMM slots, supports RDIMM max 1 TB, speeds up to 2933 MT/s
Storage controllers	Internal controllers (RAID): PERC H345, PERC H745, PERC H755, S150 Internal Boot: Internal Dual SD Module or Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2x M.2 SSDs or USB External PERC (RAID): PERC H840 12 Gbps SAS HBAs (non-RAID): internal-HBA355i, external-HBA355e
Drive bays	Front bays: Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 61.4 TB
Power supplies	1100 W DC / -48–(-60) V 800 W Platinum AC / 240 V HVDC 600 W Platinum AC / 240 V HVDC
Cooling options	Air Cooling
Fans	Standard (STD) fans or High performance SLVR fans Up to seven cold swap fans
Dimensions	Height: 42.8 mm (1.7 inches) Width: 482 mm (18.97 inches) Depth: 734.95 mm (28.92 inches) without bezel 748.79 mm (29.47 inches) with bezel
Form Factor	1U Rack Server
Embedded mgmt	iDRAC9 iDRAC Direct iDRAC Service Manual Quick Sync 2 wireless module
Bezel	Optional LCD bezel or security bezel
OpenManage™ Software	OpenManage Enterprise OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin
Mobility	OpenManage Mobile
Integrations and Connections	OpenManage Integrations BMC Truesight Microsoft System Center Red Hat Ansible Modules VMware vCenter and vRealize Operations Manager	OpenManage Connections IBM Tivoli Netcool/OMNIbus IBM Tivoli Network Manager IP Edition Micro Focus Operations Manager Nagios Core Nagios XI
Security	Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown TPM 1.2/2.0, TCM 2.0 optional
Embedded NIC	2 x 1 GbE LOM
Network Options	1 x OCP 3.0
GPU Options	N/A
Ports	Front Ports: 1 x USB 2.0 1 x VGA 1 x iDRAC Direct (Micro-AB USB) port Internal Ports 1 x USB 3.0 (optional)	Rear Ports 1 x USB 2.0 1 x USB 3.0 1 x VGA 1 x Serial port (Optional) 2 x Ethernet
PCIe	2 x PCIe Gen4 slots
Operating System and Hypervisors	Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware ESXi

Spec Sheet 4

Feature	PowerEdge R450	PowerEdge R440
Processor	Up to two 3rd Generation Intel Xeon Scalable processors with up to 24 cores per processor	2nd Generation Intel® Xeon® Scalable Processor Family
Processor Interconnect	Intel Ultra Path Interconnect (Intel UPIx3)	Intel Ultra Path Interconnect (Intel UPI)
Memory	16x RDIMM/No NVDIMM	16x DDR4 RDIMM, LRDIMM
Storage Drives	Up to 4 x 3.5-inch SAS/SATA (HDD/ SSD) max 64 TB Up to 8 x 2.5-inch SAS/SATA (HDD/ SSD) max 61.44 TB	Up to 10 x 2.5" SAS/SATA (HDD/SSD) with up to 4 NVMe SSD max 76.8 TB or Up to 4 x 3.5 SAS/SATA HDD max 64 TB
Storage Controllers	Internal controllers: PERC H355, PERC H345, PERC H745, PERC H755, HBA355i, S150 Internal Boot: Internal Dual SD Module or Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs or USB External PERC (RAID): PERC H840, HBA355e	Internal Controllers: PERC H330, H730P, H740P, HBA330 External Controllers: H840, 12 Gbps SAS HBA Software RAID:S140 Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480GB Internal Dual SD Module
PCIe Slots	2 x PCIe Gen4 slots	2 x PCIe Gen3 (x16/x16)
Embedded NIC (LOM)	2 x 1GbE	2 x 1GbE + OCP riser: LRC 2 x 1GbE or 2 x 10GbE
Networking options (OCP 3.0)	OCP3 x16 Gen4	OCP2 x16 Gen3
I/O Ports	Front ports: ● 1 x iDRAC Direct (Micro-AB USB) port ● 1 x USB 2.0 ● 1x VGA Rear ports: ● 1 x USB 2.0 ● 1 x Serial (optional) ● 1 x USB 3.0 ● 2 x Ethernet ● 1 x VGA ● 1 x Dedicated iDRAC network port Internal Port: 1 x USB 3.0 (optional)	Front ports: ● 1 x iDRAC Direct (Micro-AB USB) port ● 1 x USB 2.0 ● 1x VGA Rear ports: ● 1 x USB 2.0 ● 1 x Serial (optional) ● 2 x USB 3.0 ● 1 x Dedicated iDRAC network port ● Up to 2 x PCIe Gen 3 slots all x16
Rack Height	1U	1U
Power Supplies	1100 W DC / -48–(-60) V 1100 W Titanium 100–240 VAC/ 240 VDC 800 W Platinum 100–240 VAC/ 240 VDC 700 W Titanium 200–240 VAC/240 VDC 600 W Platinum 100–240 VAC/ 240 VDC	Bronze 450W (Cabled PSU) Platinum 550W (Hot plug PSU with full redundancy option)
System Management	iDRAC9 iDRAC Direct iDRAC Service Module Quick Sync 2 wireless module	iDRAC9 iDRAC9 Direct iDRAC REST API with Redfish Quick Sync 2 BLE/wireless module
Internal GPU	No GPU support	No GPU support
Availability	Hot-plug Drives Hot-plug Redundant Power Supplies IDSDM	Hot-plug Drives Hot-plug Redundant Power Supplies IDSDM
