Adapter Specs
- Models: Drive Types
- Drive Types: 12 Gb/s SAS
- PCI Support: PCI-e 3.0
- SAS Connectors: 2x4 External
- Cache Memory: No Cache
- Write Back Cache: No Cache
- RAID Levels: No RAID Pass-Thru Only
- Max Drive Support: 255
- RAID Support: No RAID Pass-Thru Only
Part Numbers:
- LP: T93GD
- LP: 1HD39
- FH: 2PHG9

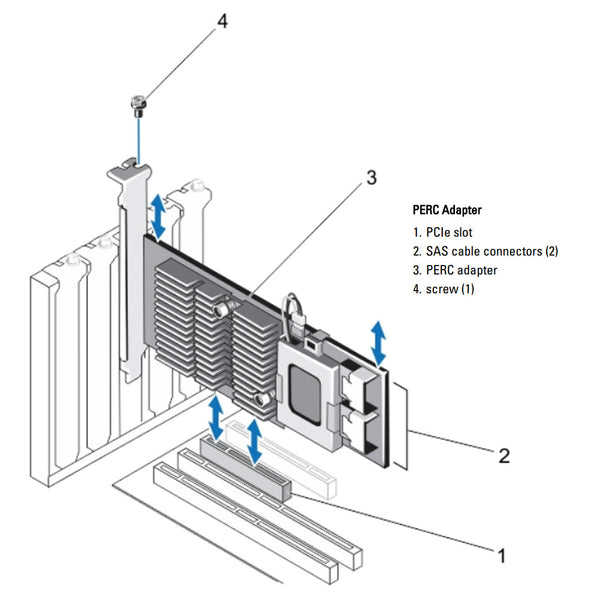

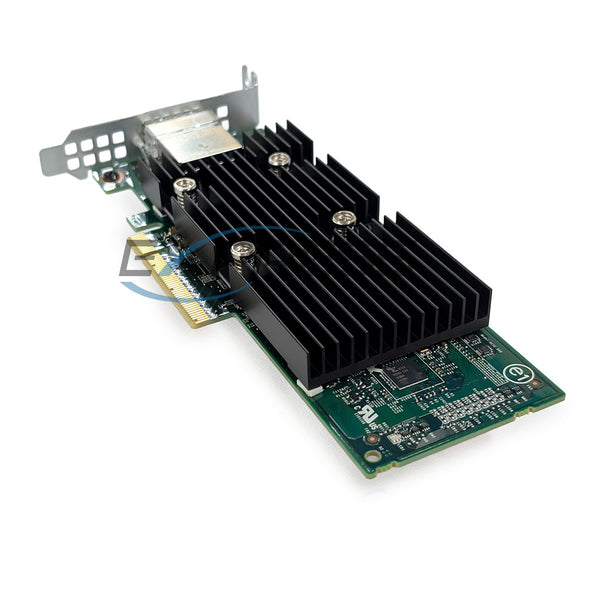

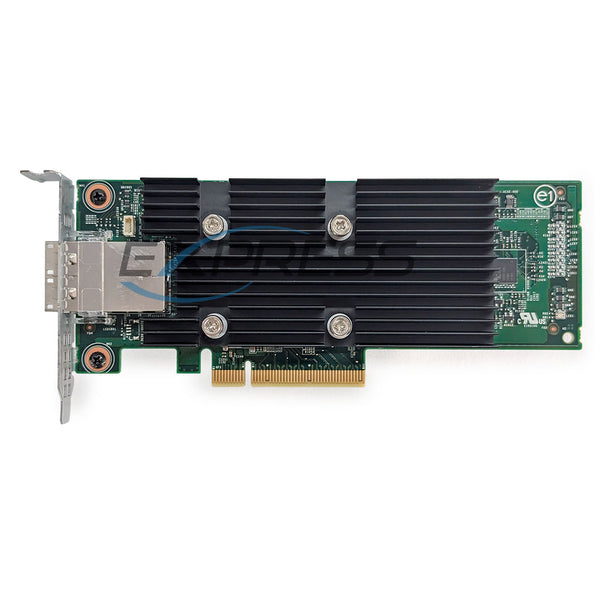

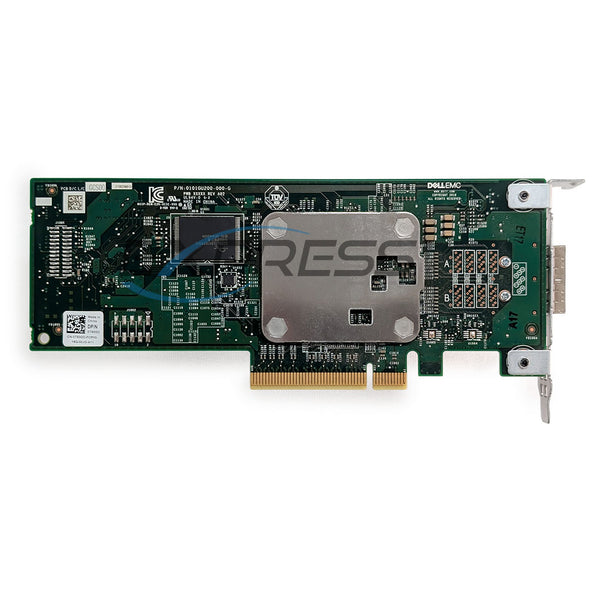

The Dell 12Gb SAS HBA (Non-RAID) External Controller LP provides efficient and streamlined external SAS storage connectivity without RAID overhead. It supports PCI-e 3.0 and features dual 2x4 external SAS connectors to ensure fast and reliable data transfer in enterprise environments.
Designed for non-RAID pass-through operation, this low-profile controller supports up to 255 drives. It is an ideal solution for external storage expansions where performance, simplicity, and scalability are critical requirements without the complexity of RAID configurations.
Summary of RAID levels
Summary of RAID levels Following is a list of the RAID levels supported by the PERC 12 series of cards:
- RAID 0: Uses disk striping to provide high data throughput, especially for large files in an environment that requires no data redundancy.
- RAID 1: Uses disk mirroring so that data written to one physical disk is simultaneously written to another physical disk. RAID 1 is good for small databases or other applications that require small capacity and complete data redundancy.
- RAID 5: Uses disk striping and parity data across all physical disks (distributed parity) to provide high data throughput and data redundancy, especially for small random access.
- RAID 6: Is an extension of RAID 5 and uses an additional parity block. RAID 6 uses block-level striping with two parity blocks distributed across all member disks. RAID 6 provides protection against double disk failures, and failures while a single disk is rebuilding. If you are using only one array, deploying RAID 6 is more effective than deploying a hot spare disk.
- RAID 10: Is a combination of RAID 0 and RAID 1, uses disk striping across mirrored disks. It provides high data throughput and complete data redundancy.
- RAID 50: Is a combination of RAID 0 and RAID 5 where a RAID 0 array is striped across RAID 5 elements. RAID 50 requires at least six disks.
- RAID 60: Is a combination of RAID 0 and RAID 6 where a RAID 0 array is striped across RAID 6 elements. RAID 60 requires at least eight disks.
Compatible With:
- Dell FC430
- Dell FC630
- Dell FC830
- Dell R240
- Dell R250
- Dell R330
- Dell R340
- Dell R350
- Dell R430
- Dell R440
- Dell R450
- Dell R530
- Dell R540
- Dell R550
- Dell R630
- Dell R640
- Dell R6415
- Dell R650
- Dell R650xs
- Dell R6515
- Dell R6525
- Dell R730
- Dell R730xd
- Dell R740
- Dell R740xd
- Dell R740xd2
- Dell R7415
- Dell R7425
- Dell R750
- Dell R750xa
- Dell R750xs
- Dell R7515
- Dell R7525
- Dell R830
- Dell R840
- Dell R940xa
- Dell vrtx
(Click to View)
Spec Sheet 4
| Models | Drive Types | PCI Support | SAS Connectors | Cache Memory | Write Back Cache | RAID Levels | Max Drive Support | RAID Support |
|---|---|---|---|---|---|---|---|---|
| H830 Adapter | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | 2 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 255 | Hardware |
| H730P Adapter FH - X4TTX | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | 2 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H730P Adapter LP - J14DC | ||||||||
| H730P Adapter No Bracket - C9Y6K | ||||||||
| H730P MX | 12 Gb/s SAS 6 Gb/s SATA/SAS 3 Gb/s SATA |
PCI-e 3.0 | 2x4 External | 2 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | - | Hardware |
| H730P Mini Mono | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | 2 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H730P Mini Blade - 3X31R | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | 2 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H730P Mini Blade - GD07N | ||||||||
| H730P Mini Blade - YRPP6 | ||||||||
| H730 Adapter FH | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | 1 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H730 Adapter LP | ||||||||
| H730 Adapter No Bracket | ||||||||
| H730 Mini Mono | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | 1 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H730 Mini Blade | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 1x4 External | 1 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H330 Adapter FH | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | No Cache | No Cache | 0,1,5,10,50 | 16 RAID, 32 Non-RAID | Hardware |
| H330 Adapter LP | ||||||||
| H330 Mini Mono | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | No Cache | No Cache | 0,1,5,10,50 | 16 RAID, 32 Non-RAID | Hardware |
| H330 Mini Blade | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | No Cache | No Cache | 0,1,5,10,50 | 8 | Hardware |
| S130 Software RAID | 6 Gb/s SATA | N/A | N/A | No Cache | No Cache | 0,1,5,10 | 10 | Software - Windows and Linux |
| 12 Gbps SAS Ext. HBA FH | 12 Gb/s SAS | PCI-e 3.0 | 2x4 External | No Cache | No Cache | No RAID Pass-Thru Only | 255 | No RAID Pass-Thru Only |
| 12 Gbps SAS Ext. HBA LP | ||||||||
| More HBA Gen 9 Controllers | ||||||||
| FD33XD Dual HBA (Split Host) |
FD33XD Dual HBA (Dual Host) |
FD33XD Dual PERC (Split Host) |
FD33XD Dual PERC (Dual Host) |
FD33XS Single HBA (Joined Mode) |
FD33XS Single PERC (Joined Mode) |
HBA330 + 12Gb SAS HBA |
HBA330 MX 12Gb SAS Non-RAID |
|
