NetApp FAS2554 Single Controller 24x 3.5”

NetApp FAS2554 Single Controller Filer Head (Stand Alone)

SKU: FAS2554

NetApp FAS2554 Single Controller Filer Head (Stand Alone)

Name: NetApp FAS2554 Single Controller Filer Head (Stand Alone)
Brand: NetApp
SKU: FAS2554
Availability: OutOfStock

NetApp

| Filer Head

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

The NetApp FAS2500 series Hybrid storage arrays provide more value for your money than any other system in its class. Every FAS2554 hybrid storage array includes unified support for NAS or SAN workloads and can be configured as a hybrid or an all-flash system to meet specific price or performance goals.

The FAS2554 is equipped for higher capacity needs and is a great fit for mid-sized organizations, Windows applications and virtual server consolidation with multiple workloads. The FAS2554 is also ideal for customers who require I/O flexibility, cost-effective large capacity systems.

You don't need to be a storage expert to deploy and manage NetApp storage systems. The FAS2500 series offers a powerful range of technologies to help reduce complexity and increase the efficiency of your storage administrators. FAS2500 series has a 3x faster System Setup, allows you to easily manage 2-3 times more storage, and quickly tune and troubleshoot virtual server environments with ease on the fly.

Model & Form Factor

Model: NetApp FAS2554
Form Factor: 4U
PCIe Expansion Slots: None
Disk Shelves: DS212C, DS2246, DS224C, DS4243, DS4246
Filer Heads: N/A

Dimensions & Weight

Chassis Heights: 7.05" (17.9 cm)
Chassis Width w/o Mounting Flanges: 17.7" (44.96 cm)
Chassis Depth w/ Cable Mgmt: 23.91" (60.73 cm)
Chassis Weight: up to 112.9 lb (51.2 kg)

Controller Specs

Controllers: Single Controller (Stand Alone)
Max Controllers: 2
PCI Slot (per): None
Ethernet Ports (per): 2 x RJ45 (1Gb)
Fibre Channel Ports (per): N/A
UTA2 Ports (per): 4 x SFP+ (10Gb/16Gb)
SAS Ports (per): 2 x QSFP (6Gb)
Remote Management: Yes
Processor Model (per):1x 64-bit 2-core with HT 1.73 Ghz
Memory (Single/HA): 18GB/36GB
NVMEM (per): 1GB

Storage

Max Number of Internal Drives: 24
Max Number Drives (total): 144
Max Capacity: 2,088TB (2.08PB)
Max Number of NL-SAS Drives: HA Pair: 144
Max Number of SAS Drives: HA Pair: 144
Max Number of SATA Drives: HA Pair: 144
Max Number of SSD Drives: HA Pair: 96
Drive Interface: NL-SAS, SAS, SATA, SSD
RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
Max Number of DS212C Shelves: 9 external
Max Number of DS2246 Shelves: 5 external
Max Number of DS224C Shelves: 5 external
Max Number of DS4243 Shelves: 5 external
Max Number of DS4246 Shelves: 1 internal + 5 external

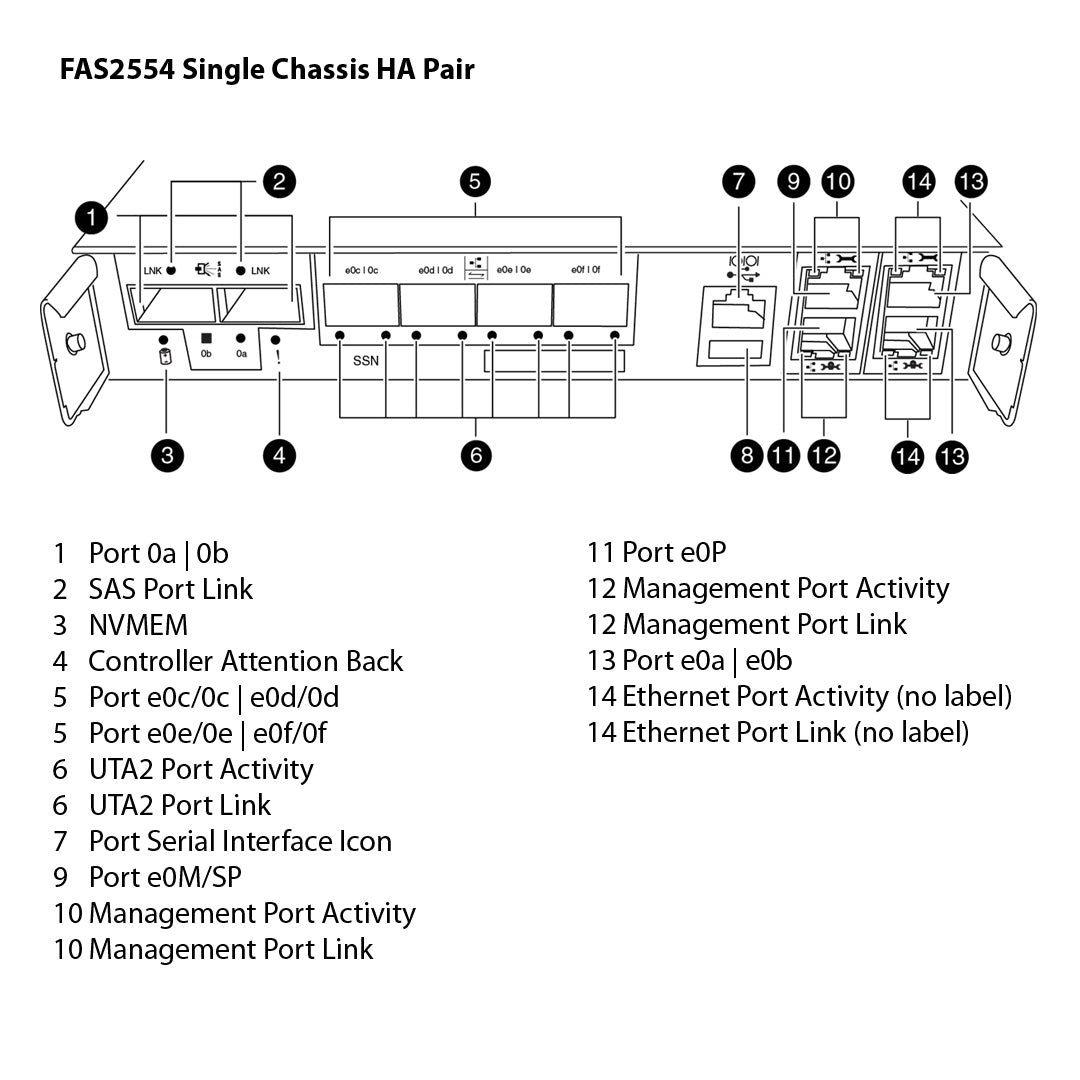

UTA2 ports

A UTA2 (Unified Target Adapter 2) port on a NetApp system is a flexible, multi-protocol port that can support both Fibre Channel (FC) and Ethernet-based protocols (FCoE or iSCSI over Ethernet). These ports allow NetApp controllers to connect to storage networks using different protocols without needing separate dedicated adapters.
