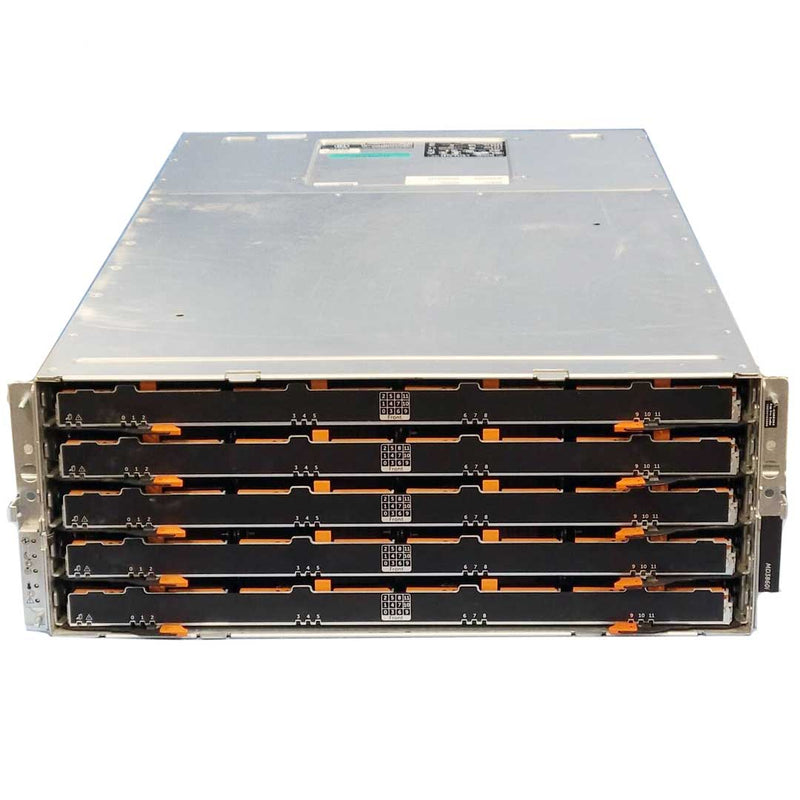

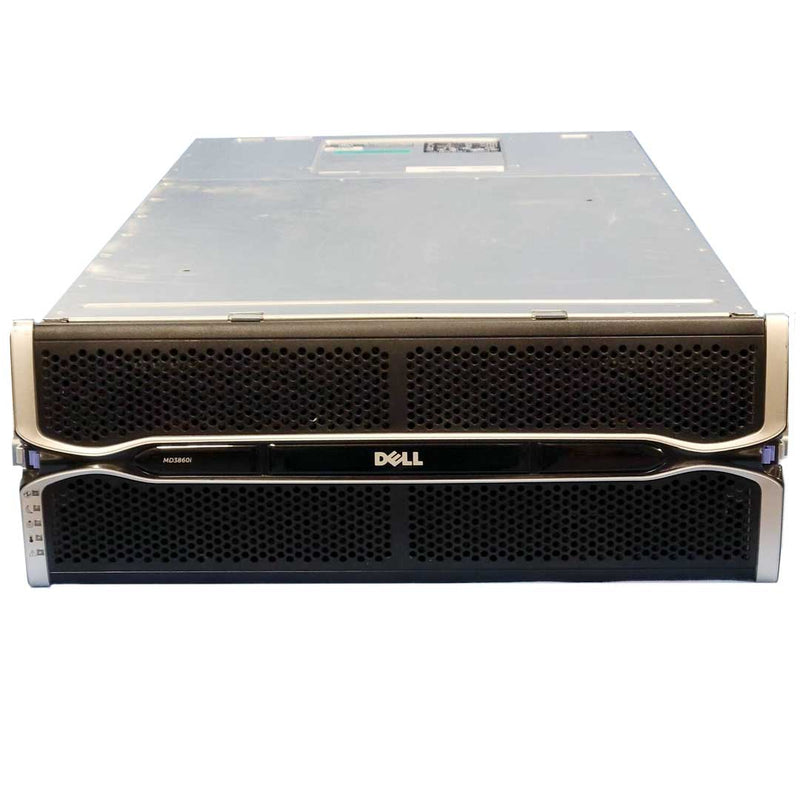

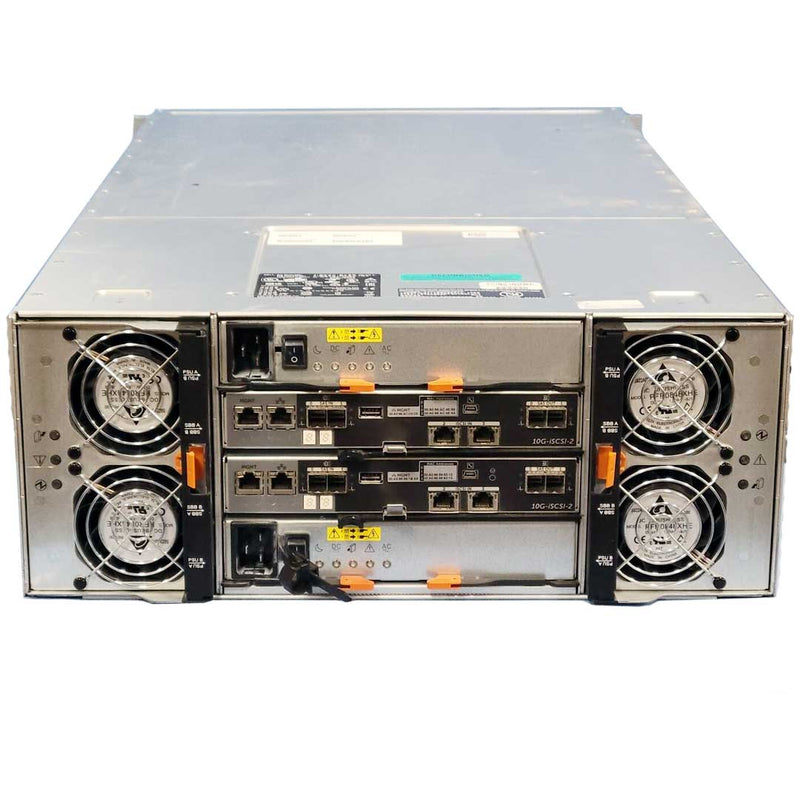

Dell PowerVault MD3860i 60x3.5" 10GBASE-T iSCSI SAN Storage Array CTO
Quick Specs
4U rack server
Storage | Max: 12060 LFF SAS, NL-SAS (HDD/SSD)
Mix and match drives:Supported
Controllers:Supports up to 2
Cache Per Controller:4GB. 8GB
Ports Per Controller:- Two 12Gb/s SAS FC Fibre Channel &
Two 10GbE Base-T iSCSI Host Connectivity - Two 12Gb/s SAS FC Fibre Channel Expansion Enclosures
- One RJ-45 1Gb Ethernet Management
- One RJ-45 1Gb Ethernet Reserved
Host Connectivity:
Support up to 64 Host servers on Dual controllers
Expansion Storage:Up to 120 drives using MD3060e enclosures
Support for 180 physical disks is a premium feature and requires activation.
The Dell EMC PowerVault MD3800i Series storage array is a high-availability storage solution designed to provide redundant access to data storage. It can support both single and dual RAID controller configurations and offers 10G/1000 BaseT connectivity to the host server. The array can support up to 60 3.5" HDD/SSD drives and up to 64 servers directly connected per controller, with a maximum of 180 drives when combined with expansion enclosure MD3060e.
The Dell EMC PowerVault MD3860i storage array provides 10 G/1000 BaseT connectivity to the host server. It enables access to 64 physical hosts.
Keeping pace with the latest technology

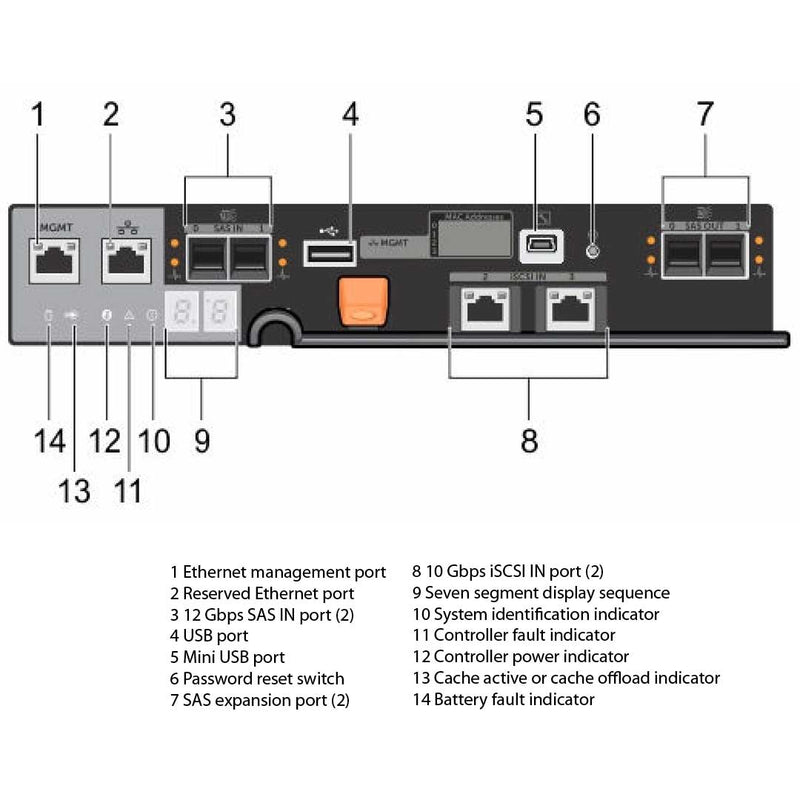

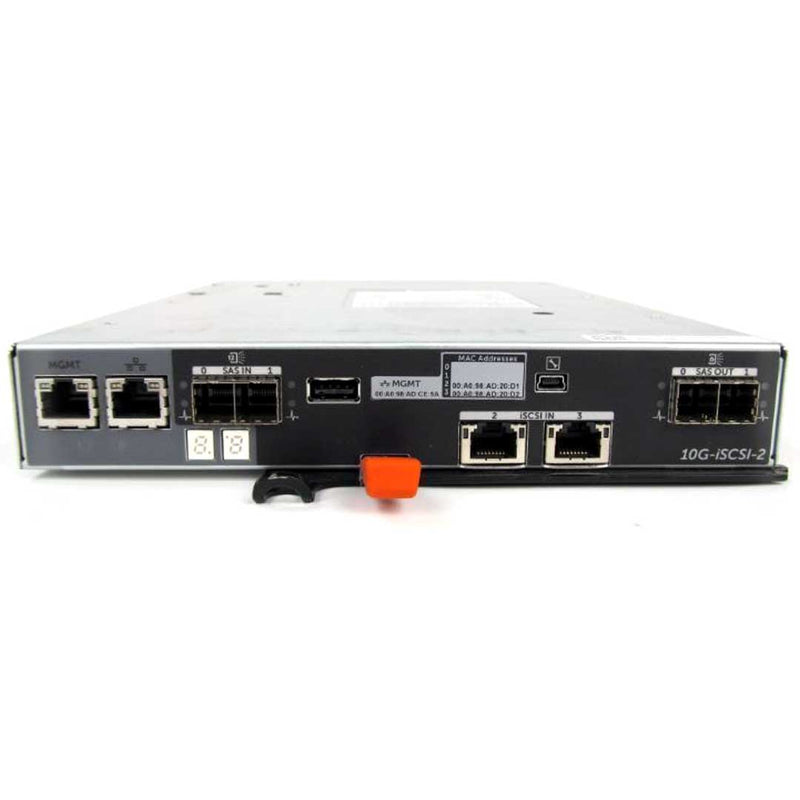

The RAID controller modules provide high-performance, advanced virtual disk configuration, and fault-tolerant disk subsystem management. Each RAID controller module contains 4GB or 8GB of mirrored cache for high availability and a battery-powered cache offload mechanism.
Versatile options your way
The MD3860i iSCSI array series offers two 10Gb Ethernet iSCSI SAN solutions that are ideal for entry-level storage consolidation in virtualized environments that require high availability and high performance. The array series supports a range of drive types, enclosures, and RAID levels all within a single array.
