Dell PowerVault MD3600f 12x3.5" 8Gb Fibre Channel SAN Storage Array CTO

Name: Dell PowerVault MD3600f 12x3.5" 8Gb Fibre Channel SAN Storage Array CTO
Brand: Dell
SKU: DPV-MD3600f-12LFF-CTO
Availability: OutOfStock

Dell

| CTO Servers |

DPV-MD3600f-12LFF-CTO

.price-ui--loading { display: block !important; opacity: 1 !important; }

Configure for Pricing

READ ME

Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
“Quote” items can be added to your cart and sent to us via the cart page
Click the blue bar to close/open a section from view after choosing your options

Select Chassis

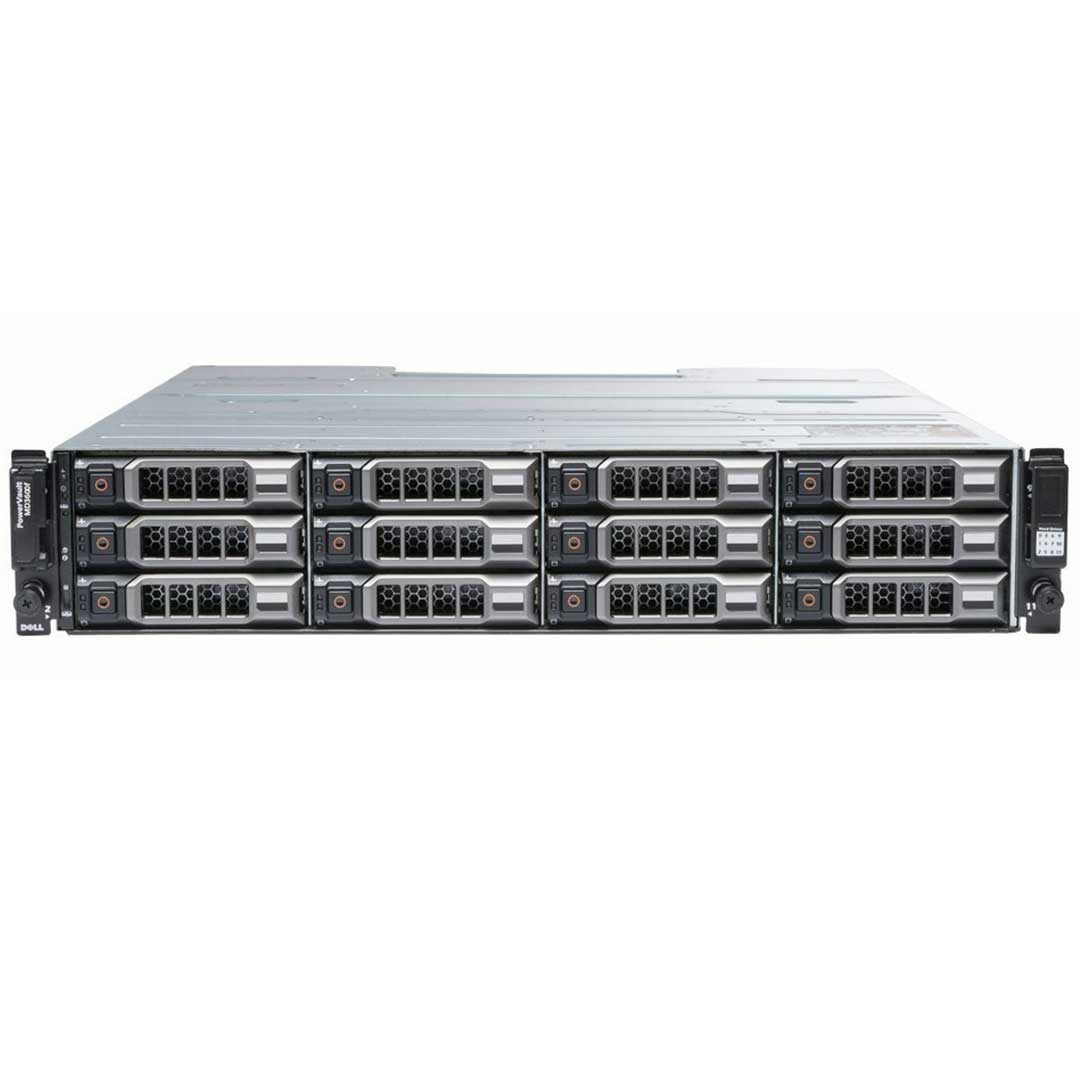

Dell PowerVault MD3600f (12x3.5") Chassis Quote

Bezel (Optional)

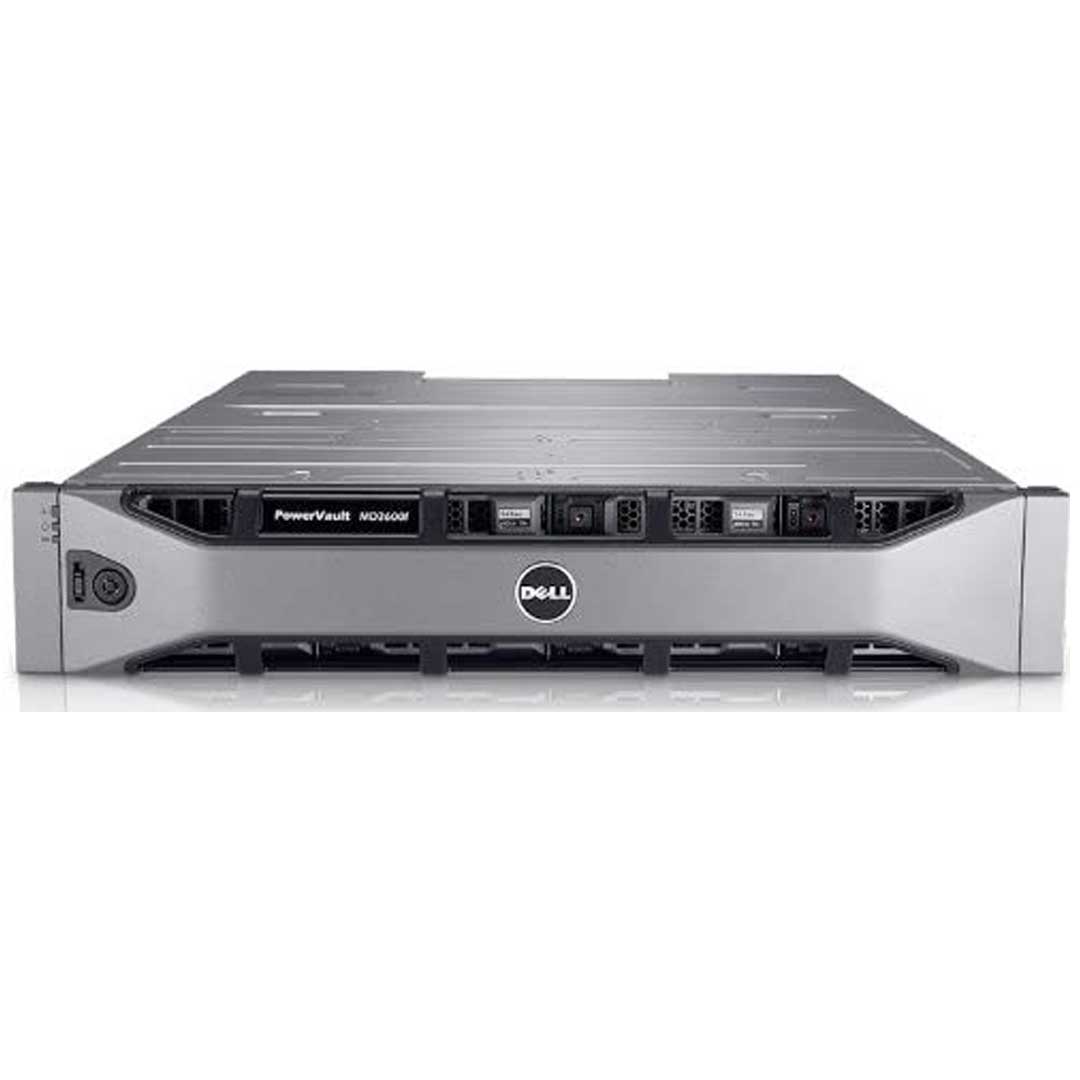

Dell PowerVault MD3600f 2U Bezel | Quote

Controller

Supports up to (2) Controllers
Do not Mix Caches.

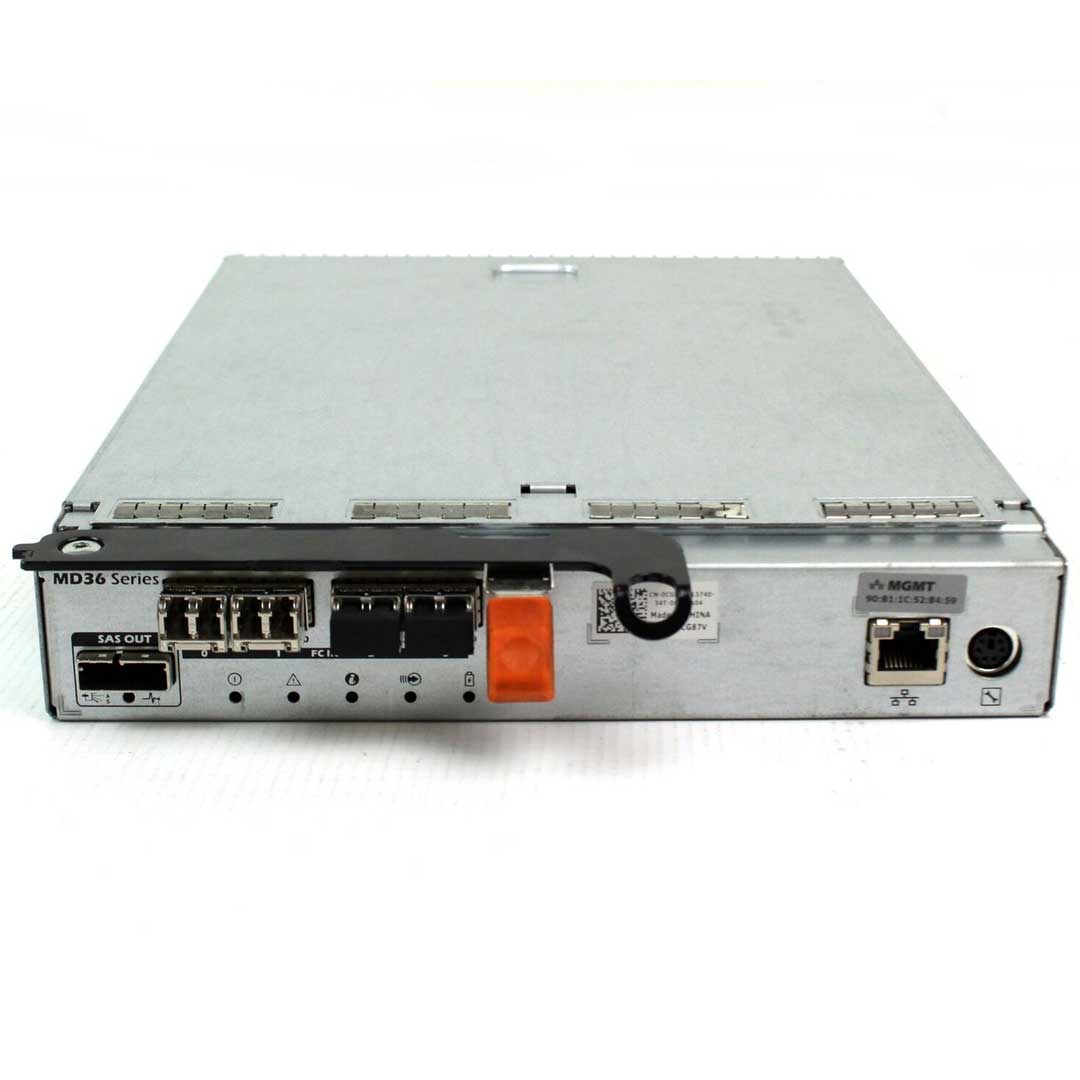

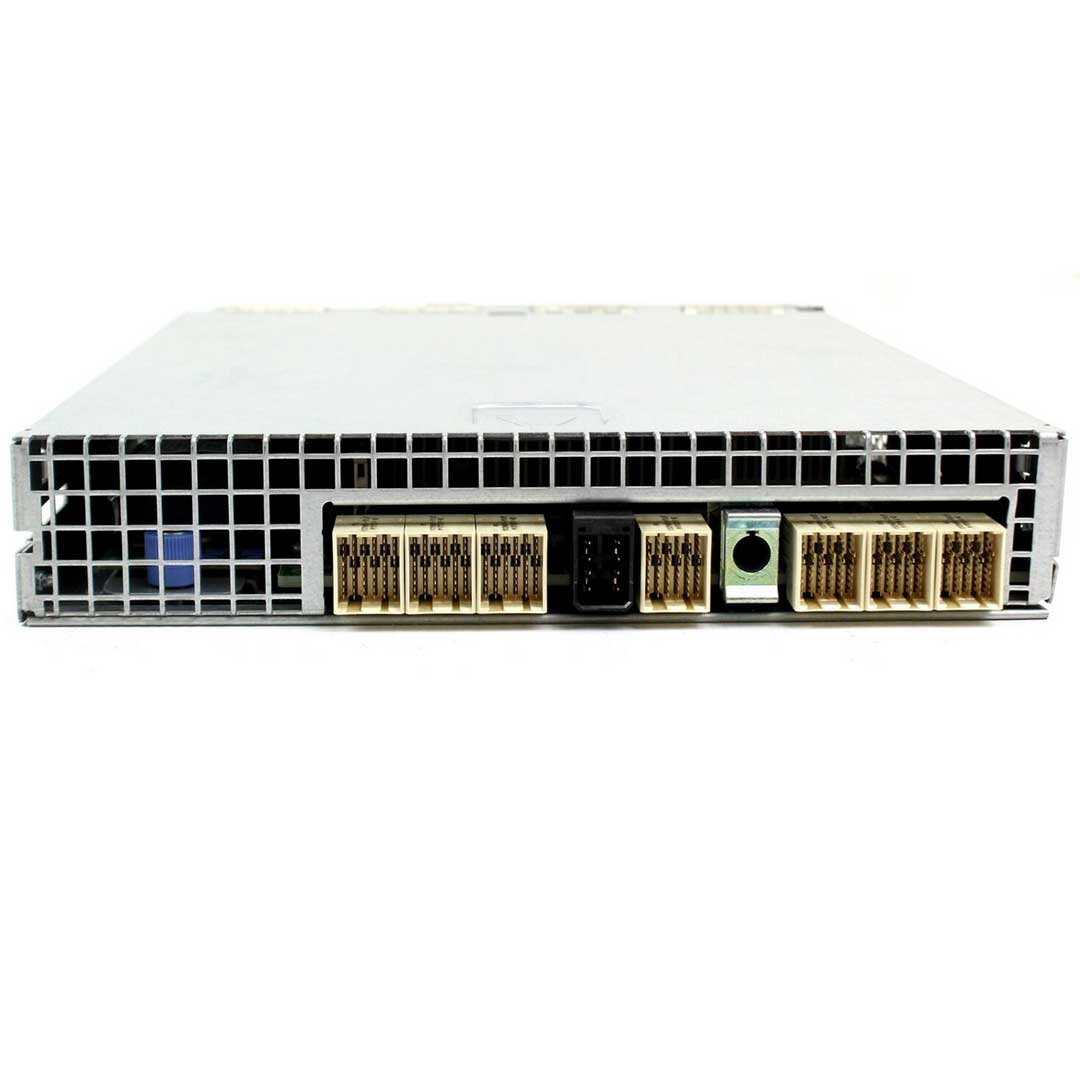

Dell PowerVault MD36 4GB 8Gb Fibre Channel Controller Quote

HDD (3.5") SAS Drives (Optional)

Supports up to (12) 3.5" Drives

Dell Enterprise Class 3.5" 300GB 15K SAS 6Gbps HDD Quote Dell Enterprise Class 3.5" 450GB 15K SAS 6Gbps HDD Quote Dell Enterprise Class 3.5" 500GB 7.2K NL-SAS 6Gbps HDD Quote Dell Enterprise Class 3.5" 600GB 10K SAS 6Gbps HDD Quote Dell Enterprise Class 3.5" 600GB 15K SAS 6Gbps HDD Quote Dell Enterprise Class 3.5" 1TB 7.2K NL-SAS 12Gbps HDD $65.00 Dell Enterprise Class 3.5" 1TB 7.2K NL-SAS 6Gbps HDD Quote Dell Enterprise Class 3.5" 2TB 7.2K NL-SAS 12Gbps HDD $80.00 Dell Enterprise Class 3.5" 2TB 7.2K NL-SAS 6Gbps HDD Quote

Rail Kit (Optional)

Dell PowerVault 2U Rail Kit $295.00

Power Supplies

Must have (2) PSU.

Dell PowerVault 1755W Power Supply Unit (PSU) | D7RNC Quote

ECS Warranty

ECS-1-Year - ECS 1-Year NBD Parts Replacement Warranty *Included as Standard for USA Customers* $1.00 ECS-2-Year - ECS 2-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-3-Year - ECS 3-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-4-Year - ECS 4-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-5-Year - ECS 5-Year NBD Parts Replacement Warranty (Ask for Quote) Quote

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs

Form Factor:

2U rack server

Storage | Max: 96

12 LFF SAS, NL-SAS, SED (HDD/SSD)

Mix and match drives:

Supported

Controllers:

Supports up to 2

Cache Per Controller:

2GB or 4GB

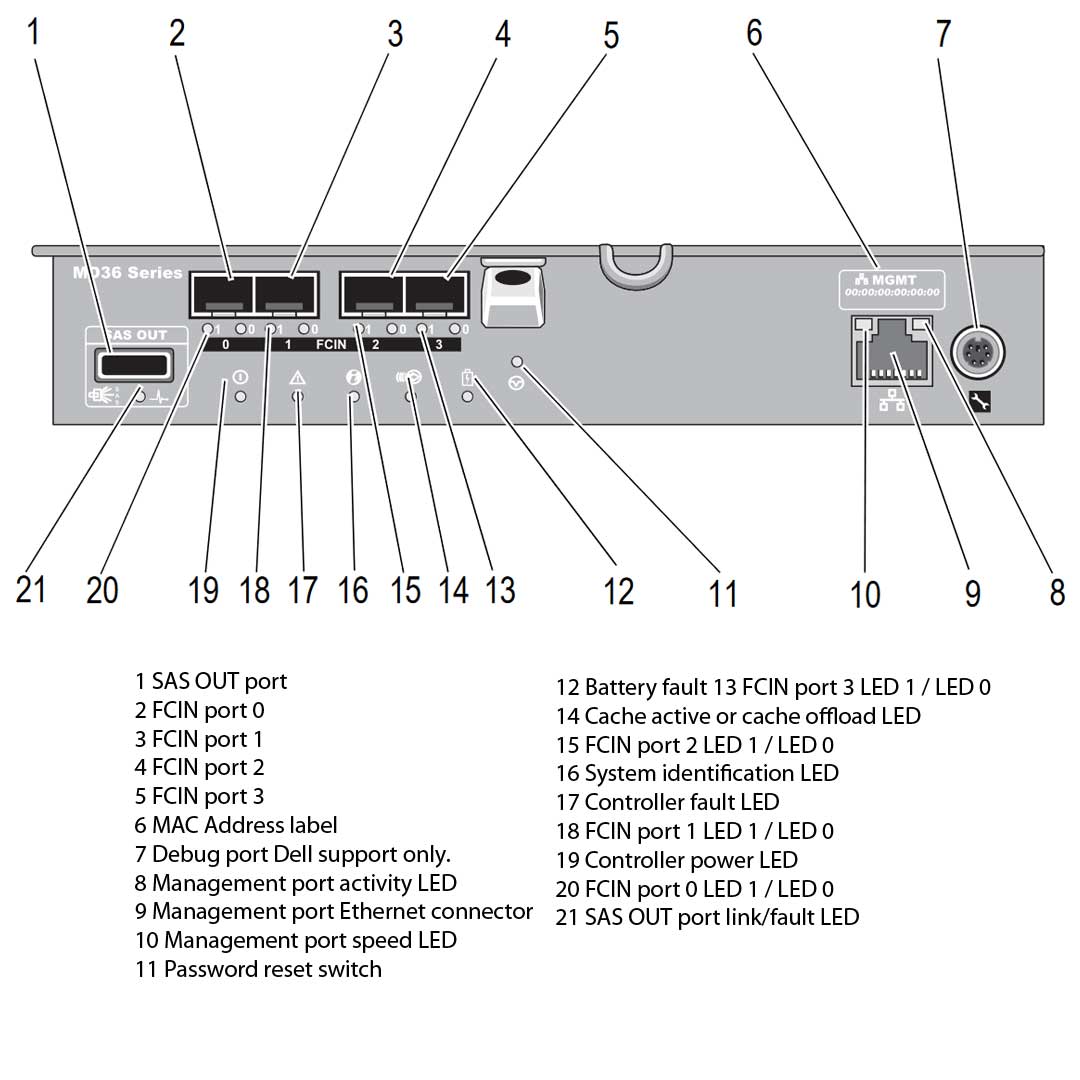

Ports Per Controller:

Four 8Gb/s SFP Fibre-Channel Host Connectivity
One 6Gb SAS Expansion Connectivity (8088 mini connector)
One RJ-45 1Gb Ethernet Remote Management

Host Connectivity:

Single Controller Models:

Supports up to 4 servers directly connected or up to 64 servers when configured with a Fibre Channel switches

Dual Controller Models:

Supports up to 8 servers directly connected or up to 64 servers when configured with Fibre Channel switches

Expansion Storage:

Expand up to 96 total drives using MD1200 and/or MD1220 expansion enclosures

Other Storage Arrays in the MD Series (JBOD)

MD3200 Series

Data Speeds

1Gb iSCSI

6Gb SAS

Server Options

MD3060e

MD3200 12 Bay SAS

MD3200i 12 Drive iSCSI

MD3220 24 Drives SAS

MD3220i 24 Drives iSCSI

MD3400 Series

Speeds

12Gb SAS

10GBase-T iSCSI

16Gb FC

Server Options

MD3400 12 Drives

MD3420 24 Drives

MD3460 60 Drives

MD3600 Series

Speeds

10GBase-T iSCSI

8Gb FC

Server Options

MD3600i 12 Drives iSCSI

MD3600f 12 Drives Fibre

MD3620i 24 Drives iSCSI

MD3620f 24 Drives Fibre

MD3660i 60 Drives iSCSI

MD3660f 60 Drives Fibre

MD3800 Series

Speeds

10GBase-T iSCSI + 12Gb SAS

16 FC + 12Gb SAS

Server Options

MD3800i 12 Drives iSCSI

MD3800f 12 Drives Fibre

MD3820i 24 Drives iSCSI

MD3820f 24 Drives Fibre

MD3860i 60 Drives iSCSI

MD3860f 60 Drives Fibre

The Dell™PowerVault™MD3600f/MD3620f arrays are the introduction of 8Gb/s Fibre Channel in the MD series of arrays. The SAN solution is ideal for entry-level storage consolidation that requires high availability, high performance, and business continuity without sacrificing ease of use and reliability. Designed for flexibility, the MD3600f arrays support a range of drive types, enclosures, and RAID levels all within a single array.

Proven Fibre Channel-based network storage

PowerVault MD3600f arrays offer exceptional performance and flexibility and reliability for storage consolidation and scalability to meet unexpected business demands. Now it’s simple to improve storage utilization by combining storage resources, increasing availability with redundant hardware, and streamlining the backup process. By consolidating data and resources with a single array, backup strategies, and management complexities are minimized.

Reduce the effort required to store and manage your data.MD3600f Series arrays can support up to 64 physical servers when connected to one or more 4Gb/s or 8Gb/s Fibre Channel switches. Storage capacity, up to a maximum of 96 hard disk drives, can be expanded by attaching additional PowerVault MD1200 and/or MD1220 expansion enclosures.

Fibre Channel storage, ideal for data-intensive applications

Implement your high-performance network storage solution for less with MD3600f Series arrays while protecting your existing Fibre Channel investment proving business continuity and reliability. Now you can effectively consolidate storage to support the value of your Fibre Channel environment with the performance to meet both IOPs-intensive as well as high bandwidth applications. MD3600f storage systems are also fully qualified for use in virtualized application environments with VMware® ESX and Microsoft® Hyper-V™ software.

To protect data and processes from major regional disasters like earthquakes, fires, or large-scale power outages, your organization needs remote replication of data to a secondary site. It is also used for testing and deploying new databases without any downtime.
