Quick Specs
Form Factor:
2U rack server
Processor | Max: 22 Cores2 x Intel Xeon E5-2600v3 or v4
Memory | Max: 3TB24 ECC DDR4 RDIMM/LRDIMM 2400Mhz
Storage | Max: 64TB LFF | 29TB SFF8x 3.5" SAS/SATA (HDD/SDD)
8x 2.5" SAS/SATA (HDD/SSD)
16x 2.5" SAS/SATA (HDD/SSD)
The R730 does not support Express Flash drives
S130 (SW RAID)
H330, H730, H730P, H830, 12Gbps SAS HBA
4x 1GbE
2x 10+2GbE
4x 10GbE NDC
iDRAC8 Express (default) with Lifecycle Controller
PCIe Slots:Up to 7 x PCIe 3.0 + dedicated PERC slot
-One x16 full-length, full-height
-Three x8 full-length, full-height
-Three x8 half-length, half-height
2 x 300W (double-wide) or
4 x 150W (single-wide)
Other Versions
- Dell PowerEdge R710
- Dell PowerEdge R720
- Dell PowerEdge R720XD
- Dell PowerEdge R730
- Dell PowerEdge R730XD
- Dell PowerEdge R740
- Dell PowerEdge R740XD
- Dell PowerEdge R740XD2
- Dell PowerEdge R7415
- Dell PowerEdge R7425
- Dell PowerEdge R750
- Dell PowerEdge R750XA
- Dell PowerEdge R750XS
- Dell PowerEdge R7515
- Dell PowerEdge R7525
- Dell PowerEdge R760
- Dell PowerEdge R760XA
- Dell PowerEdge R760XS
- Dell PowerEdge R760XD2
- Dell PowerEdge R7615
- Dell PowerEdge R7625
(Click to View)
Ideal for:
- Database
- High-Performance Computing (HPC)
- Retail Servers
- Virtual Desktop Interface (VDI)

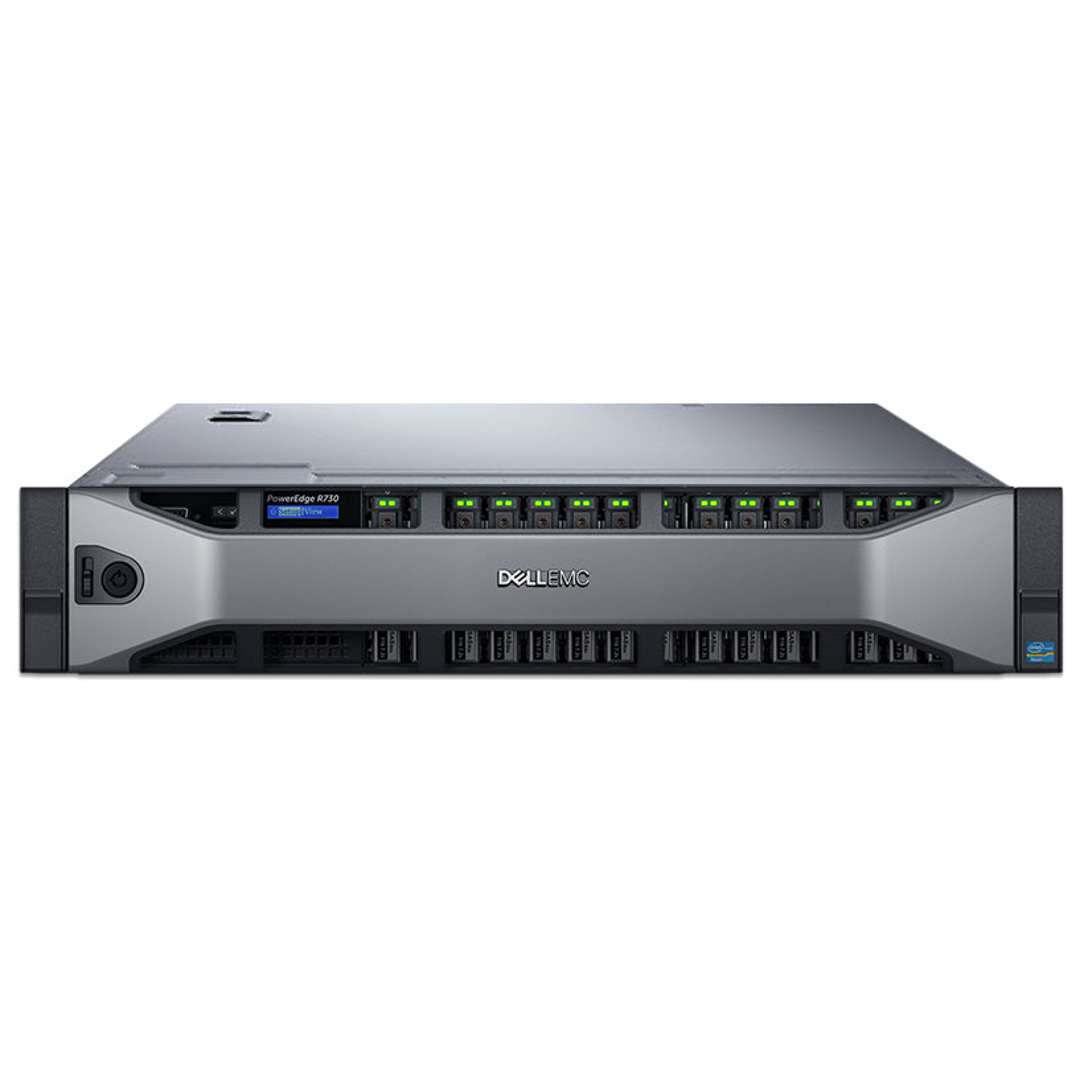

A highly versatile, two-socket 2U rack server with impressive processor performance, a large memory footprint, extensive I/O options and a choice of dense, high performance storage or low-cost, high-capacity storage.
The Refurbished Dell PowerEdge R730 CTO Rack Server, a highly versatile 2U rack server designed to deliver peak performance and tackle almost any workload. With the latest Intel Xeon processor E5-2600 v4 product family with up to 22 cores and up to 24 DIMMs of high-capacity DDR4 memory, this server is perfect for midsize and large enterprises that require demanding workloads such as data warehouses, e-commerce, virtual desktop infrastructure (VDI), databases, and high-performance computing (HPC) as a data node.
Deliver peak performance
With extensive I/O options and a choice of dense, high-performance storage or low-cost, high-capacity storage, the PowerEdge R730 provides up to 64TB of rapidly accessed storage for databases, business intelligence, and HPC applications when configured with 3.5" drives. This makes it an ideal solution for environments that require processing acceleration, including graphics-intensive VDI implementations such as CAD/CAM and other research and development applications.
GPU Performance
The R730 is extremely flexible with seven PCIe 3.0 expansion slots plus a dedicated PERC slot, up to 16 x 2.5" SAS, SATA, nearline SAS HDD/SSD, and up to 8 x 3.5" SAS, SATA, nearline SAS HDD/SSD. It also has the option for up to two 300W dual-width accelerators/GPUs (choose from Intel® Xeon Phi, NVIDIA Tesla, and AMD FirePro) to support environments that require processing acceleration
Discover greater versatility
With its ability to create a dense, resource-rich virtualization environment and consolidate management operations in a scalable and centralized virtual desktop environment, the R730 is an excellent choice for midrange medical imaging solutions. It also delivers outstanding functionality in just 2U of rack space, making it an ideal compute node for IT as a service (XaaS) providers
Memory
| DIMM capacity | DIMM speed | DIMM type | Ranks per DIMM | Data width | SDDC support | Voltage |
|---|---|---|---|---|---|---|
| 4 | 2133 | RDIMM | 1 | x8 | Advanced ECC | 1.2 |
| 8 | 2133 | RDIMM | 2 | x8 | Advanced ECC | 1.2 |
| 16 | 2133 | RDIMM | 3 | x4 | All modes | 1.2 |
| 32 | 2133 | LRDIMM | 4 | x4 | All modes | 1.2 |
Networking and PCIe
Network Adapters
The Dell PowerEdge R730 offers balanced, scalable I/O capabilities, including integrated PCIe 3.0-capable expansion slots. Dell Select Network Adapters, Dell’s network daughter cards, let you choose the right network fabric without using up a valuable PCI slot.
The R730 supports NDC options including a selection of 1GbE and 10GbE port cards, such as 1000BASE-T, 10GBASE-T and 10Gb SFP+.
Storage Controller
| Controller | Features | RAID modes supported | Form factor | Solution |
|---|---|---|---|---|
| PERC H830 |
|
0, 1, 10, 5, 50, 6, 60 | Adapter | Performance hungry external storage environments |
| PERC H730P |
|
0, 1, 10, 5, 50, 6, 60 | Mini and Adapter | Premium performance for significant performance gains |
| PERC H730 |
|
0, 1, 10, 5, 50, 6, 60 | Mini and Adapter | Value/performance RAID and non RAID for high density servers and workstations |
| PERC H330 |
|
0, 1, 10, 5, 50 | Mini and Adapter | Low cost, entry RAID and non RAID for high density servers and workstations |
| PERC S130 |
|
0, 1, 5, 10 | System board embedded SATA | Software |

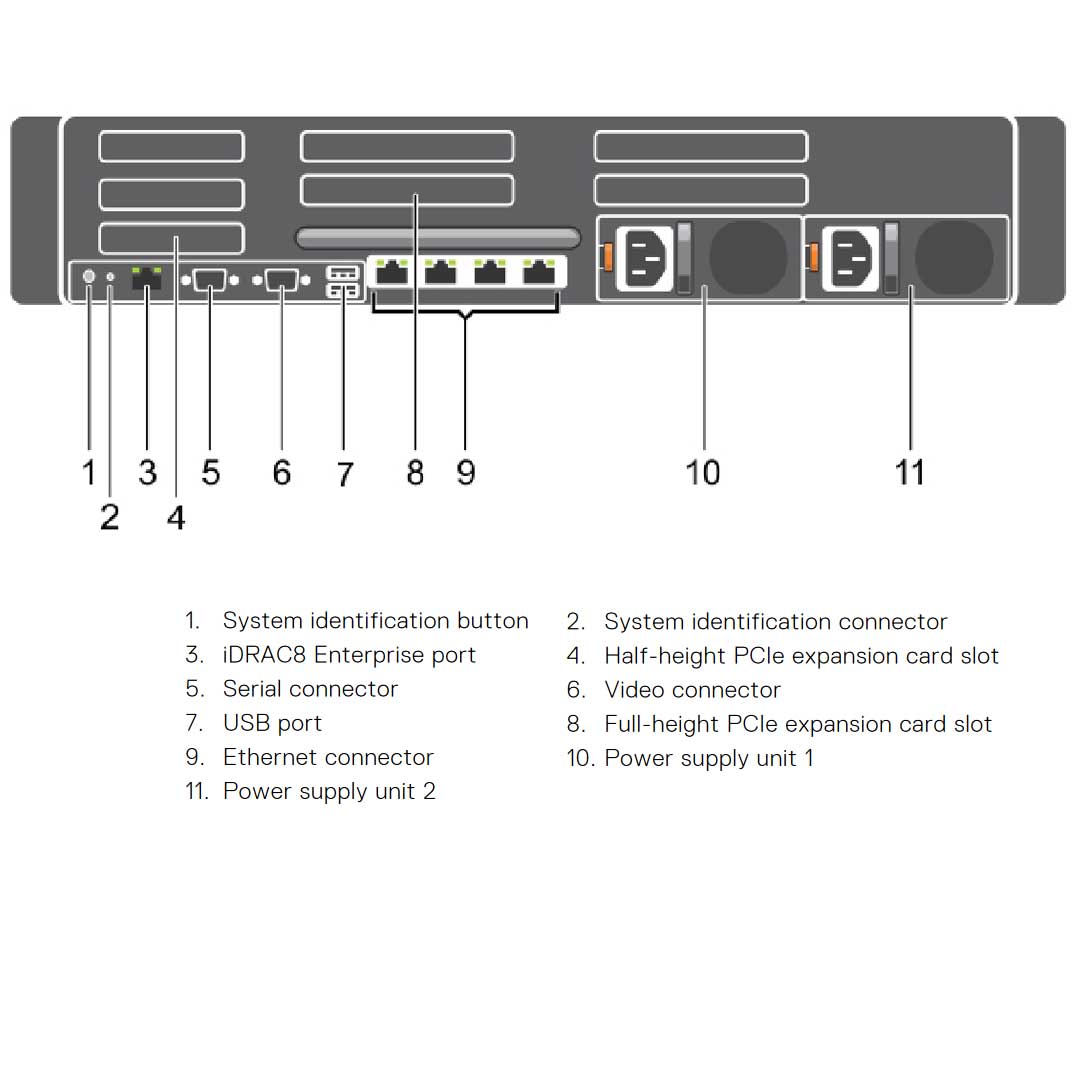

PCIe Slot Mapping
The R730 provides greatly expanded PCIe slot capability over their predecessor servers. This is made possible by the 40 PCIe lanes available from each processor in the system. Two processors are required in the system to enable all PCIe slots. The Dell PowerEdge R730 has been designed to be PCIe 3.0 compliant in order to take full advantage of the processor's capabilities.
NOTE: In a single-processor configuration, slots 1–4 are not usable.
PCI Slots Supported
- One x16 full-length, full-height
- Three x8 full-length, full-height
- Three x8 half-length, half-height
| Riser | Slot number | Form factor | Controlling CPU | Slot electrical bandwidth and physical connector | Power |
|---|---|---|---|---|---|
| Right riser 1 | 1 | Low profile | CPU2 | PCIe 3.0 x8 (x16 connector) | 25W |
| Right riser 1 | 2 | Low profile | CPU2 | PCIe 3.0 x8 (x16 connector) | 25W |
| Right riser 1 | 3 | Low profile | CPU2 | PCIe 3.0 x8 (x16 connector) | 25W |
| Center riser 2 | 4 | Full height | CPU2 | PCIe 3.0 x16 (x16 connector) | 75W |
| Center riser 2 | 5 | Full height | CPU1 | PCIe 3.0 x8 (x16 connector) | 75W |
| Left riser 3 | 6 | Full height | CPU1 | PCIe 3.0 x8 (x16 connector) | 75W |
| Left riser 3 | 7 | Full height | CPU1 | PCIe 3.0 x8 (x16 connector) | 75W |
| Left riser 3 alternative | 6 | Full height | CPU1 | PCIe 3.0 x16 (x16 connector) *For DW GPUs | 75W |
Right Riser 13x Low Profile
PCIe 3.0 x8 (x16 connector)
Power: 25W
Center Riser 22x Full height
Slot 4: PCIe 3.0 x16 (x16 connector)
Slot 5: PCIe 3.0 x8 (x16 connector)
Power: 75W
Left Riser 32x Full Height
PCIe 3.0 x8 (x16 connector)
Power: 75W
Left Riser 3 (Alternative)1x Full Height
PCIe 3.0 x16 (x16 connector) *For DW GPUs
Power: 75W
GPU Support
Internal GPU support
Internal CPU cooling restriction
The R730 supports two 300W, full-length, double-wide GPUs or up to four 150W, full-length, single-wide GPUs. Each GPU can support up to 6GB of dedicated GDDR5 memory. Active cooled GPU cards not supported. The GPUs are installed on the PCIe x16 3.0 interfaces available on riser 2 and GPU-optional riser 3. A system must have the optional riser 3 with a single x16 slot to support two double-wide GPUs. A standard riser 3 is required to support 3 or 4 single-wide GPUs.
Because GPUs demand high power, each GPU has up to two power connectors for power delivery. The GPU enablement kit is required for internal GPU installation. The kit contains the power cables and other items to enable GPU support on the R730 chassis.
Internal CPU cooling restriction
Due to the high power consumption of GPUs, there is an ambient temperature restriction of 30oC maximum system inlet temperature to ensure adequate system cooling the R730 has one or more GPUs installed. Note that this temperature is less than the standard environmental specification of 35oC
Other GPU restrictions
The following GPU restrictions for the R730 are enforced by the order validator:
- Requires two processors
- Processors must be 120W or less
- All GPUs must be same type and model
- GPUs require a redundant 1100W power supply and GPU enablement kit
- Two double-wide GPUs require the optional riser 3 with a single x16 slot
- Four single-wide GPUs cannot occupy optional riser 3 with a single x16 slot
- Maximum of two double-wide GPUs (since each takes up two slots)
- Maximum of four single-wide GPUs
- Must have 1U heatsinks and solid PCIe blanks
- Tape backup not supported
power Supply Unit (PSU)
| Form factor | Output | Class |
|---|---|---|
| Redundant 86mm | 495W AC | Platinum |
| 750W AC | Titanium | |
| 750W AC | Platinum | |
| 1100W AC | Platinum | |
| 1100W DC | N/A |
Dimensions
- Height: 87.3mm (3.43")
- Depth: 716.0mm (28.01")
- Width: 482.4mm (18.97")
- Weight: 29.5kg (64.9lb)
