Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Comes with:

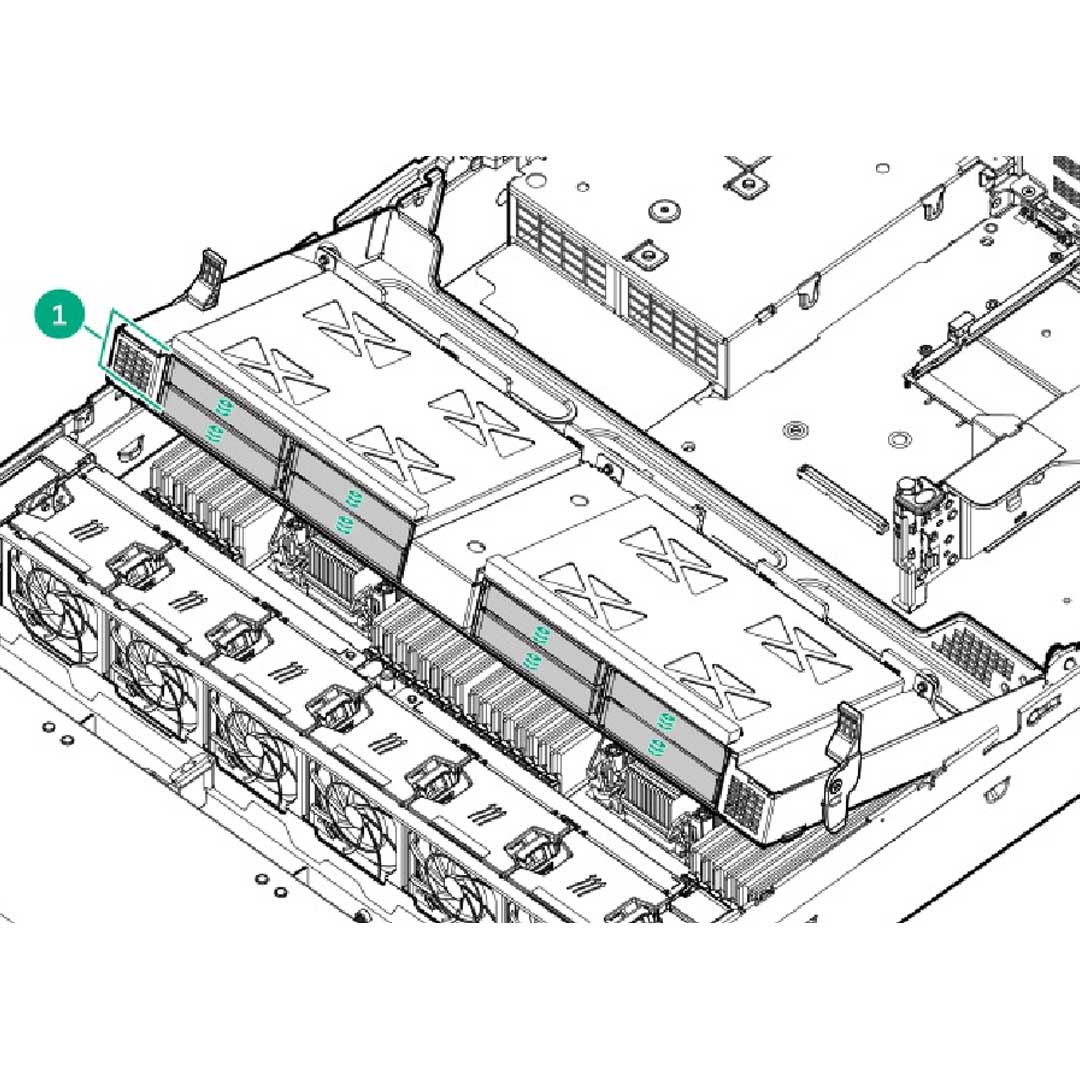

- Backplane - 8SFF x1 Tri-Mode 24G U.3 BC
- Processors - 1 x 5315Y (8-Core, 3.2 GHz, 140W)
- Memory - 32 GB RDIMM 2R 3200 MT/s (1x 32 GB)
- Network Controller - Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE
Notes: No embedded networking
- Storage Controller - MR416i-p/4GB with Smart Storage Battery
- Hard Drive - None ship standard
- Optical Drive Bay - Not included (Optical Drive options available)
- Optical Drive - None
- PCIe Slots - 3 PCIe: x8/x16/x8
- Power Supply - 1x 800W
- Fans - 6 – Maximum Performance
- Management - HPE iLO 5
- Security - TPM (Trusted Platform Module)
- Energy Start - N/A
- Form Factor - Rack (2U), Easy Install w/ CMA
Looking to Customize?
Not seeing the exact specs you need?
Start your build today with Express Computer Systems!
Start Customizing Today!
Base Standard Capabilities
| Technical specifications | HPE ProLiant DL380 Gen10 Plus server |
|---|---|
| Processor name | 3rd Generation Intel® Xeon® Scalable Processors |
| Processor family | 3rd Generation Intel® Xeon® Scalable Processors |
| Processor core available | 16 to 40 core, depending on processor |
| Processor speed | 3.1 GHz maximum, depending on processor |
| Power supply type | Dual hot-plug redundant 1+1 HPE Flexible Slot Power Supplies (2.6”) |
| Expansion slots | 8, for detailed descriptions refer to the QuickSpecs |
| Maximum memory | 8.1 TB - RDIMM (4 TB per processor), 11.2 TB - LRDIMM and Intel® Optane™ (5.6 TB per processor with 8x LRDIMM and 8x 512 GB Intel Optane) |
| Memory, standard | 16 GB (1 x 16 GB) RDIMM |
| Memory slots | 32 DIMM slots |
| Memory type | HPE DDR4 SmartMemory |
| Persistent memory type | Intel® Optane™ Persistent Memory for HPE |
| Persistent memory media capacity | 128 GB - 512 GB |
| Memory protection features | RAS – Advanced ECC, online spare, mirroring, combined channel (lockstep) functionality, and HPE Fast Fault Tolerant Memory (ADDDC) Intel Optane Persistent Memory |
| Included hard drives | None ship standard, SFF and LFF drives supported |
| Optical drive type | Optional DVD-ROM Optional via Universal Media Bay External support only |
| System fan features | Hot-plug redundant fans, standard |
| Network controller | Intel I350 1GbE 4 port Base-T OCP3 adapter or Broadcom 57416 10GbE 2 port Base-T adapter and/or optional network adapters depending on model |
| Storage controller | HPE SR932i-p and/or HPE SR416i-a and/or HPE MR216i-a and/or HPE MR416i-a and/or HPE MR216i-p and/or HPE MR416i-p and/or HPE Smart Array P816i-a SR and/or HPE Smart Array E208i-a SR and/or HPE Smart Array P408i-a SR and/or HPE Smart Array E208i-p SR and/or HPE Smart Array E208e-p SR and/or HPE Smart Array P408e-p SR and/or HPE Smart Array P408i-p SR |
| Infrastructure management | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional requires licenses) |
| Drive supported | 8 or 12 LFF SAS/SATA/SSD 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD, 2 M.2 SATA SSD standard on primary riser, depending on configuration, 8 SFF mid-tray optional, 6 SFF rear drive optional or 4 LFF mid tray optional, 3 LFF rear-drive optional and 2 SFF or 2 Dual UFF rear-drive optional, 20 SFF NVMe optional, NVMe support via Express Bay will limit maximum drive capacity, depending on model |
