Specs
Quick Specs
Form Factor:
2U rack server
Processor | Max: 36 Cores1x 3rd Gen Intel Xeon Scalable
Memory | Max: 512GB RDIMM | 1TB LRDIMM8x DDR4 RDIMM/LRDIMM 3200Mhz
4x Intel Optane PMem 200 Series | Max: 512 GB
6x 2.5" SAS/SATA/NVMe (SSD)
NVMe drives are not supported for Front Accessed configurations with Riser 1A.
S150, H345, H355, H755, H840, 12G SAS HBA, HBA355i, HBA355e
Boot Options:BOSS-S1, USB (Located on R1B)
Networking:4x 10GbE/25GbE SFP+ LOM
Remote Management:iDRAC9 with Lifecycle Controller
PCIe Slots:5x PCIe 4.0
GPU:2x 75W / 150W (SW)
2x 300W (DW/FH/FL)
Ideal for:
- Edge Servers
- Military
- Retail Servers
- Telecom Networks
Expandable, ruggedized, and certified for conditions at the edge
Rugged certifications and specifications
The PowerEdge XR12 supports the rugged environment space for temperatures up to 55°C through custom configurations. These configurations are geared for the Telecom (or Telco) and Military industries and hence meet industry-specific standards in addition to the maximum temperature requirement of 55°C. The Telco configurations will be tested to the NEBS requirements outlined in the GR-63 and GR-1089 Telcordia specifications. The Military configurations will be tested to: MIL-STD-810H, MIL-DTL-901E and MIL-STD-461G.
MIL-STD-461G
MIL-STD-461G, is an electromagnetic compatibility testing standard published and maintained by the United States Department of Defense (U.S. DoD)
MIL-DTL-901E
MIL-DTL-901E is a detail (DTL) specification defining the high-impact shock testing requirements for machinery, equipment, systems and structures aboard surface ships and submarines.
MIL-STD-810H
MIL-STD-810H standard is a U.S. military standard of testing that examines the military equipment's resistance to the environmental conditions it may face throughout its lifetime.
This server has a unique piece called the MIL 901E and MIL 461G rugged kit. It has a few pieces that make this kit. From holders in the PCIe slots for half and full-height cards, a foam strip for the M.2 Boss card, a PSU Bracket along with a drive bracket that sits like a bezel just for the drives.
Please read the manuals below for more detailed information about the Dell PowerEdge XR12 Rugged Rack Server.
Built-in protection through a complete portfolio of solutions
From the silicon and supply chain all the way to asset retirement, know that your servers are safe and secure with innovative Dell EMC and Intel technologies that give you the confidence of cyber resilience
- Start strong with platform security features, even before the server is built, including Secured Component Verification and Silicon Root of Trust
- Stay strong with continuous innovations that bolster cyber resilience, like OpenManage Secure Enterprise Key Manager and Automatic Certificate Enrollment
- Outmaneuver threats with intelligence, automation, and recovery tools that include iDRAC9 Telemetry, BIOS live scanning, and Rapid OS recovery
Innovate at scale with challenging and emerging workloads
The new Dell EMC PowerEdge XR12 is a ruggedized, marine-compliant 2U server. Only 16 inches/400 mm deep, it offers new ways to:
- EBoost services at the edge: The XR12 offers up to 36 x86 cores, support for accelerators, DDR4, PCIe 4.0, persistent memory and up to 6 drives
- Cope with challenges: Certified rugged for telco and defense applications, including dust, extreme temperatures, shock, vibration, and other environmental variants
- Add versatility without compromise: With reduced depth and front and rear port options that support reverse airflow, it gives administrators new flexibility without expensive retrofits or HVAC updates
- Improve longevity: built for long life so organizations can offer game-changing services without downtime and disruption
Expandable, ruggedized, and certified for conditions at the edge
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
- Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
- Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
- Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
- Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Feature | Technical Specifications | |
|---|---|---|
| Processor | One 3rd Generation Intel Xeon Scalable processor with up to 36 cores | |
| Memory |
| |
| Storage controllers |
| |
| Drive bays | 6 x 2.5-inch SATA/SAS/NVMe (SSDs) max 92 TB | |
| Power supplies |
| |
| Cooling options | Air cooling | |
| Fans |
| |
| Dimension | Rear Accessed configuration | Front Accessed configuration |
|
| |
| Form Factor | 2U rack server | |
| Embedded management |
| |
| Bezel | Optional bezel or security bezel | |
| OpenManage Software |
| |
| Mobility | OpenManage Mobile | |
| Integrations and Connections | OpenManage Integrations | OpenManage Connections |
|
| |
| Security |
| |
| Embedded NIC | 4 x 25 GbE SFP+ LOM | |
| GPU options |
| |

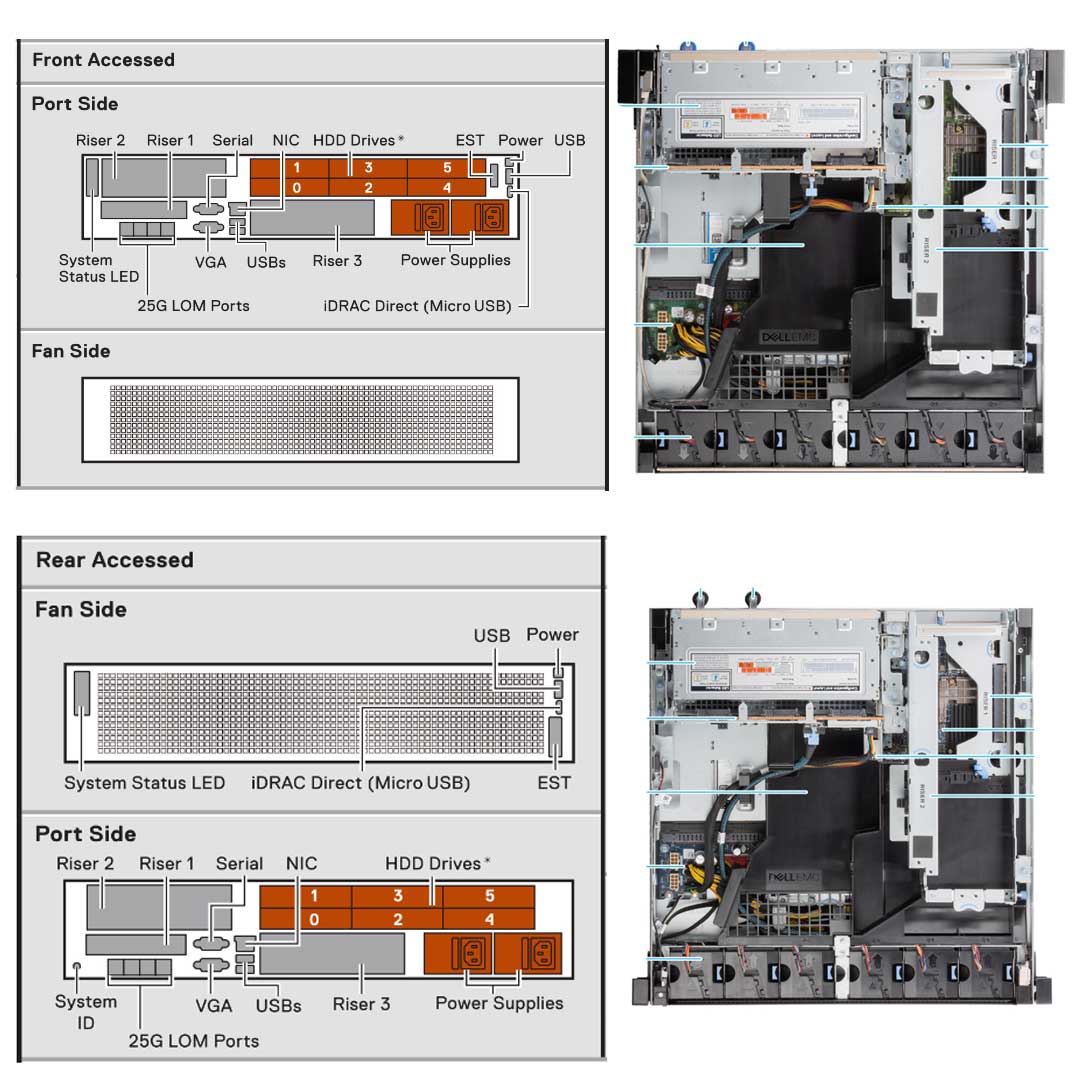

| Ports | For Rear Accessed configuration | |
Front Ports
| Rear ports
| |
Internal Ports
| ||
| For Front Accessed configuration | ||
Front Ports
| Rear Ports
| |
Internal Ports
| ||
| PCIe | 5 x PCIe Gen4 slots | |
| Operating System and Hypervisors |
| |
