Current Configuration
(List below serves as quick links to each section)
Select Chassis
Select Processor
Bezel
Memory

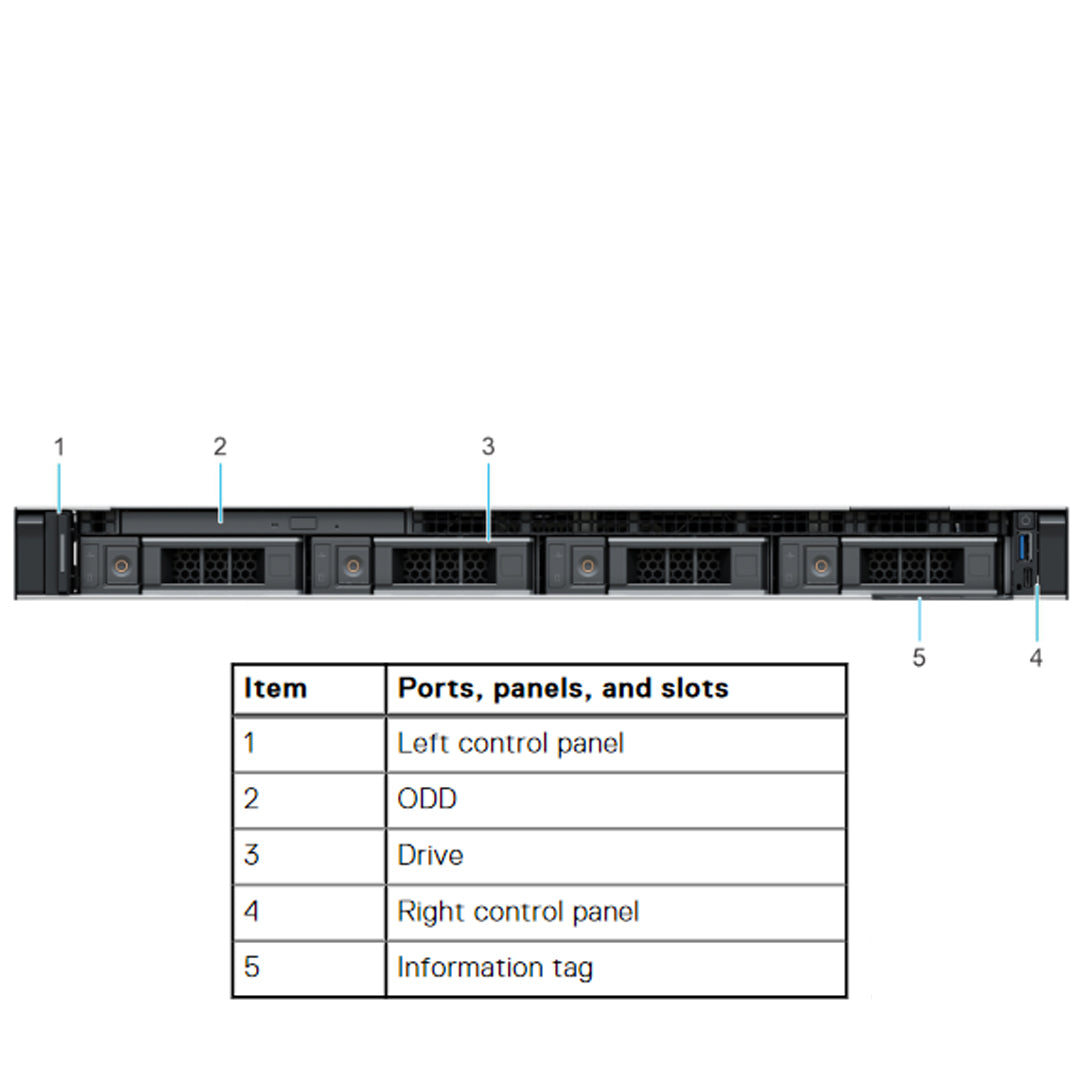

LFF (3.5") Drives

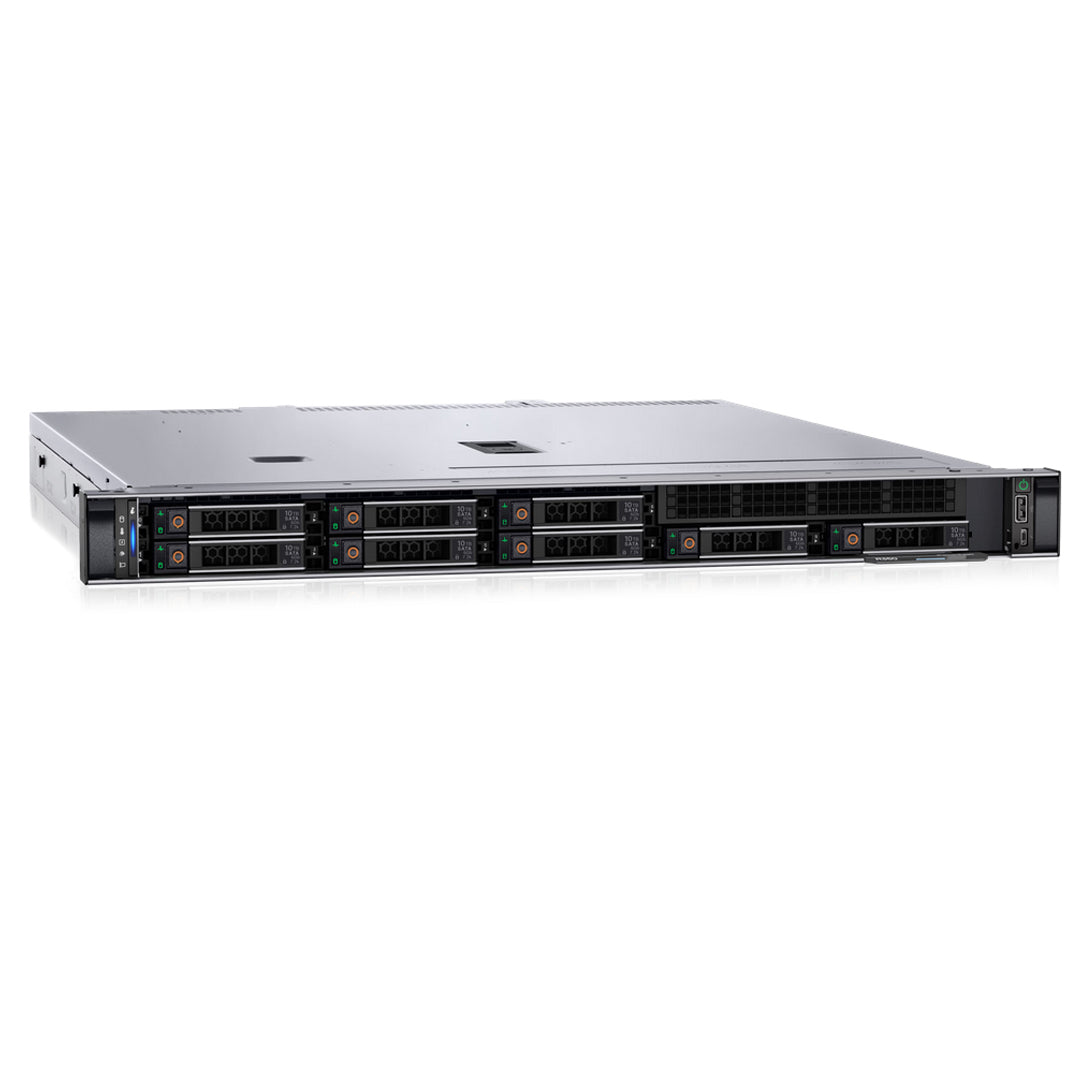

SFF (2.5") Drives
PCIe Riser Options
Optical DVD Drive
RAID Controllers
Boot Optimized Storage Solution (BOSS S2)
Internal Dual SD Card Module (IDSDM)
Internal USB Module
Trusted Platform Module (TPM)
iDRAC9 Lifecycle controller
Power Supply Unit (PSU)
Select Warranty
Quick Specs
Form Factor:
1U rack server
Processor | Max: 2 or 8 Cores1x Intel Xeon E-2300 or 1x Intel Pentium
Memory | Max: 128GB4 DDR4 UDIMM 3200Mhz
* Supports unregistered ECC
Broadcom 5720 Dual port 1GbE
Storage | Max: 128TB4 LFF or 8 SFF SAS/SATA (HDD/SSD)
Storage controllers:S150 (SW RAID)
H355, H355f, H345, H345f, H755, H755f, HBA355i, HBA355f, HBA355e
3x PCIe 4.0
1x8 Gen4 (x16 connector) low profile, half length
1x8 Gen4 (x8 connector) low profile, half length
1x4 Gen4 (x8 connector) for dedicated PERC only
BOSS-S2
IDSDM
Internal USB
iDRAC9 with lifecycle controller
Other Versions
- Dell PowerEdge R310
- Dell PowerEdge R320
- Dell PowerEdge R330
- Dell PowerEdge R340
- Dell PowerEdge R350
- Dell PowerEdge R360
(Click to View)
Ideal for:
- Data Analytics
- Web Tech

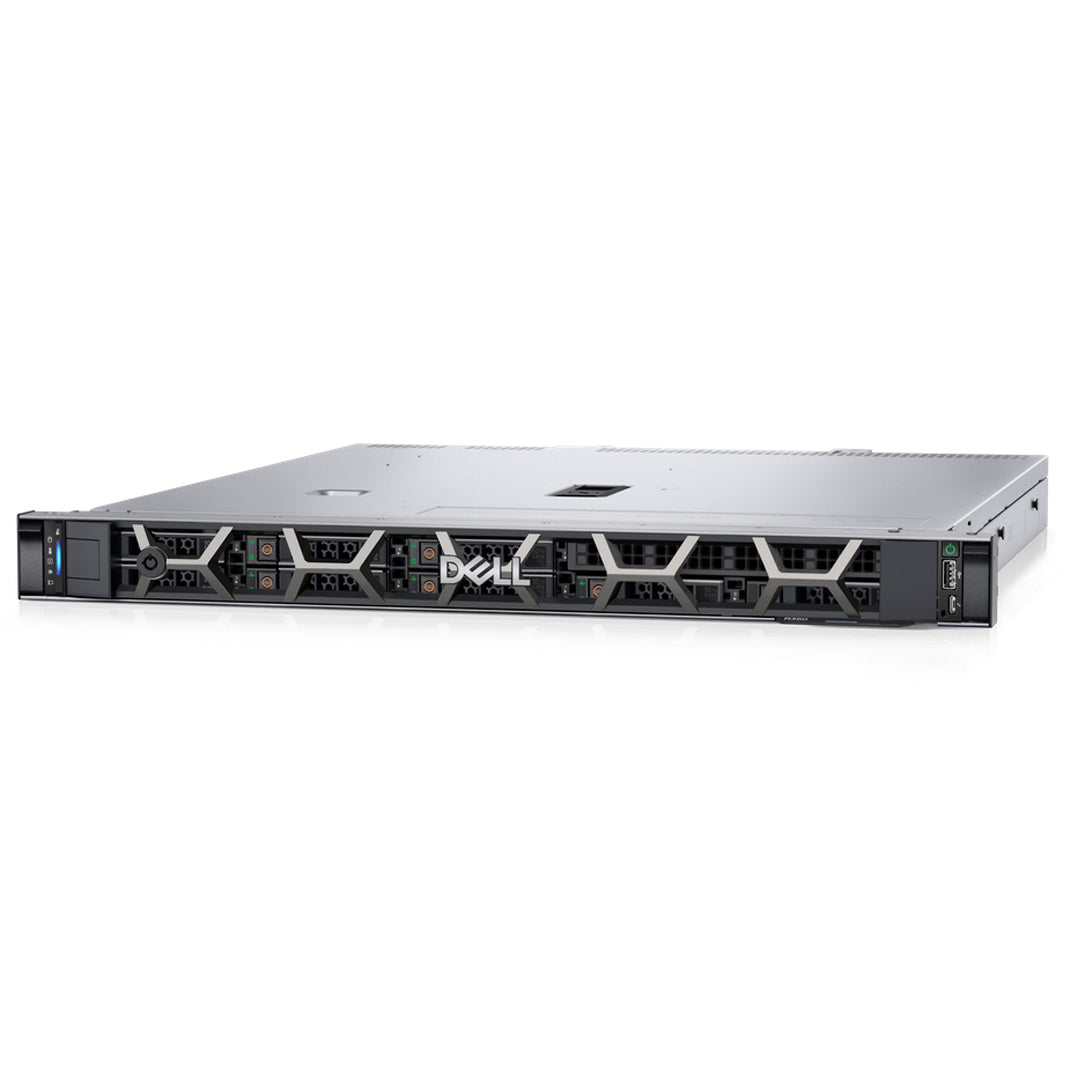

The Dell EMC PowerEdge R350 addresses evolving compute demands with an easy-to-manage rack server designed for businesses looking for affordable enterprise features.
Your Innovation Engine for businesses of all sizes
The Dell EMC PowerEdge R350, powered by Intel® Xeon® E-2300 processors, delivers increased performance and is designed for productivity and data-intensive applications. It supports 3200 MT/s DDR4 speeds and 32 GB DIMMs, up to 128 GB for memory-intensive workloads. In addition, to address substantial throughput improvements, the PowerEdge R350 supports PCIe Gen 4 and offers enhanced efficiency to support increasing power and thermal requirements. This makes the PowerEdge R350 a powerful and versatile server for small to mid-sized businesses to enable a variety of workloads ranging from business-critical to cloud infrastructure. It is also widely used for point-of-sale transactions and enterprise-level requirements for data analysis and virtualization.
Increase efficiency and accelerate operations with autonomous collaboration
Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
- Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
- Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
- Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
- Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools
Protect your data assets and infrastructure with proactive resilience
The Dell EMC PowerEdge R350 server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.
- Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
- Maintain server firmware safety with digitally signed firmware packages
- Prevent unauthorized configuration or firmware change with system lockdown
- Securely and quickly wipe all data from storage media including hard drives, SSDs and system memory with System Erase
Memory
| DIMM type | Rank | Capacity | DIMM rated voltage | Transfer speed |
|---|---|---|---|---|
| UDIMM | 1R | 8 GB / 16 GB | DDR4 (1.2V) | 2933 MT/s, 2666 MT/s, and 3200 MT/s |
| 2R | 32GB | DDR4 (1.2V) | 2933 MT/s, 2666 MT/s, and 3200 MT/s |
Boot Options
Boot Optimized Storage Solution
Boot Optimized Storage Solution (BOSS) is a RAID solution that is designed for boot optimization and provides a separate RAID/SSD solution allowing customers to maximize server disk slots for data.
The HW RAID BOSS-S2 card is a RAID controller with a limited feature set that presents M.2 SATA-only SSDs as either Non-RAID disks or a single RAID1 volume. BOSS enables support for 240 GB and 480 GB disks from factory installation.
IDSDM
The intended use of IDSDM is to support hypervisor boot: a minimal OS that primarily resides in memory and does not depend on the IDSDM heavily for I/O. Writes, in particular, should be minimized as the SD media can wear out.
The Internal USB and the IDSDM take up the same slot and can't be installed together.
Internal USB
The Internal USB and the IDSDM take up the same slot and can't be installed together.
Expansion Butterfly Riser
| Configurations | Expansion Card Risers | PCIe Slots | Controlling Processor | Height | Length | Slot width |
|---|---|---|---|---|---|---|
| Config 1 | NA | INT | Processor 1 | Half Height | Half length | x8 |
| Config 0 | Riser | 2 | Processor 1 | Half Height | Half length | x16 |
| Riser | 1 | Processor 1 | Half Height | Half length | x8 |
Storage Controllers
The R350 supports a PCIe Adapter PERC and the front PERC (fPERC). Not all Storage Controllers come in both form factors.
- PowerEdge Hardware RAID controllers (PERC) series 10, 11 are designed for:
- Enhanced performance
- Fault tolerance
- Simplified management of RAID array drives
- PowerEdge controller series 10, 11 support older legacy SAS and SATA drive interfaces
- Dell S150 is software RAID solution for PowerEdge systems.
| Performance Level | Controller and Description |
|---|---|
| Entry | S150 |
| Value | H355, H345, HBA355 (Internal) |
| Premium Performance | H755 |
| External Controllers | HBA355e |
Storage controller feature matrix
| Model and Form Factors | Interface Support | PCI Support | SAS Connection | Cache Memory Size | Write Back Cache | RAID Levels | Max Drive Support | RAID Support |
|---|---|---|---|---|---|---|---|---|
| PowerEdge Server-Storage Controllers (PERC & SAS HBA) Series 11 | ||||||||
| H755 Adapter | 12 Gb/s SAS 6 Gb/s SAS/SATA 3 Gb/s SAS/SATA Gen3 (8 GT/s) NVMe |
PCIe Gen 4 | 16 ports 2 x 8 Internal |
8 GB NV | Flash-Backed Cache | 0,1, 5, 6, 10, 50, 60 | 16/controller 50 with SAS Expander *Platform limit |
Hardware RAID |
| H755 Front (SAS/SATA Only) | 12 Gb/s SAS 6 Gb/s SAS/SATA 3 Gb/s SAS/SATA | PCIe Gen 4 | 16 ports- 2 x 8 Internal | 8 GB NV | Flash-Backed Cache | 0,1, 5, 6, 10, 50, 60 | 16/controller 50 with SAS Expander *Platform limit |
Hardware RAID |
| HBA355i Adapter | 12 Gb/s SAS 6 Gb/s SAS/SATA 3 Gb/s SAS/SATA | PCIe Gen 4 | 16 ports- 2 x 8 Internal | N/A | N/A | N/A | 16/controller 50 with SAS Expander *Platform limit |
N/A |
| HBA355e Adapter | 12 Gb/s SAS 6 Gb/s SAS/SATA 3 Gb/s SAS/SATA | PCIe Gen 4 | 16 ports- 4 x 4 Internal | N/A | N/A | N/A | 240 | N/A |
| H355 Adapter | 12 Gb/s SAS 6 Gb/s SAS/SATA | PCIe Gen 4 | 16 ports- 2 x 8 Internal | N/A | N/A | 0,1,10 | Maximum 32 | Hardware RAID |
| H355 Front | 12 Gb/s SAS 6 Gb/s SAS/SATA | PCIe Gen 4 | 16 ports- 2 x 8 Internal | N/A | N/A | 0,1,10 | Maximum 32 | Hardware RAID |
| PowerEdge Server-Storage Controllers (PERC & SAS HBA) Series 10 | ||||||||
| PERC H345 | 12 Gb/s SAS 6 Gb/s SATA |
PCIExpress 3.1 | 16 ports 2 x 8 Internal |
No Cache | No Cache | 0,1,1 0 Note - 1 | Maximum 32 RAID, or 32 Non-RAID | Hardware RAID |
| HBA - Internal HBA345 | 12 Gb/s SAS 6 Gb/s SATA |
PCIExpress 3.1 | 16 ports 2 x 8 Internal |
No Cache | No Cache | No RAID Pass Through Only | Maximum 32 | No RAID SAS HBA |
| PowerEdge Server-Storage Software RAID | ||||||||
| S150 Software RAID | 6 Gb/s SATA | N/A | N/A | No Cache | No Cache | 0,1, 5, 10 | Maximum 12 SATA | Software RAID - Windows & Linux (Limited) Note 2 |
| Note 1: RAID 5/50 removed from entry RAID card | ||||||||
| Note 2: SWRAID support for Linux provides a pre-boot configuration utility to configure MDRAID and degraded boot capability. | ||||||||
Power Supply Units (PSU)
| PSU | Class | Heat dissipation (maximum) | Frequency | Voltage | AC | DC Input | Current | |
|---|---|---|---|---|---|---|---|---|
| High line 200-240V | Low line 100-200V | |||||||
| 600 W AC | Platinum | 2250 BTU/hr | 50/60 Hz | 100 - 240 V Autoranging |
600 W | 600 W | N/A | 7.1 - 3.6 A |
| 600 W DC | N/A | 2250 BTU/hr | N/A | 240 V DC | N/A | N/A | 600 W | 2.9 A |
| 700 W AC | Titanium | 2625 BTI/hr | 50/60Hz | 100 -240 V Autoranging |
700 W | 700 W | N/A | 4.1 A |
| 700 W Mixed Mode HVDC | Titanium | 2625 BTU/hr | N/A | 240 V DC | N/A | N/A | 700 W | 3.4 A |
