Quick Specs
Form Factor:
1U rack server
Processor | Max: N/A1x Intel® Xeon® E-2200 product family
Memory | Max: 64GB4 DDR4 UDIMM 2666Mhz
Supports ECC
8x 2.5" hot-plug SATA, SAS or SSD
4x 3.5 hot-plug SATA, SAS or SSD
None
PCIe Slots:2x PCIe 4.0
One x8 slot LP, HL with x4 slot width
One x16 slot (LP or FH), HL with x8 bandwith
BOSS
IDSDM w/ vFlash
Internal USB
2x 1GbE
Storage Controller:S140 (SW RAID)
PERC H730P, H330, HBA330, HBA355e, 12Gbps SAS HBA
iDRAC9 with Lifecycle Controller & vFlash

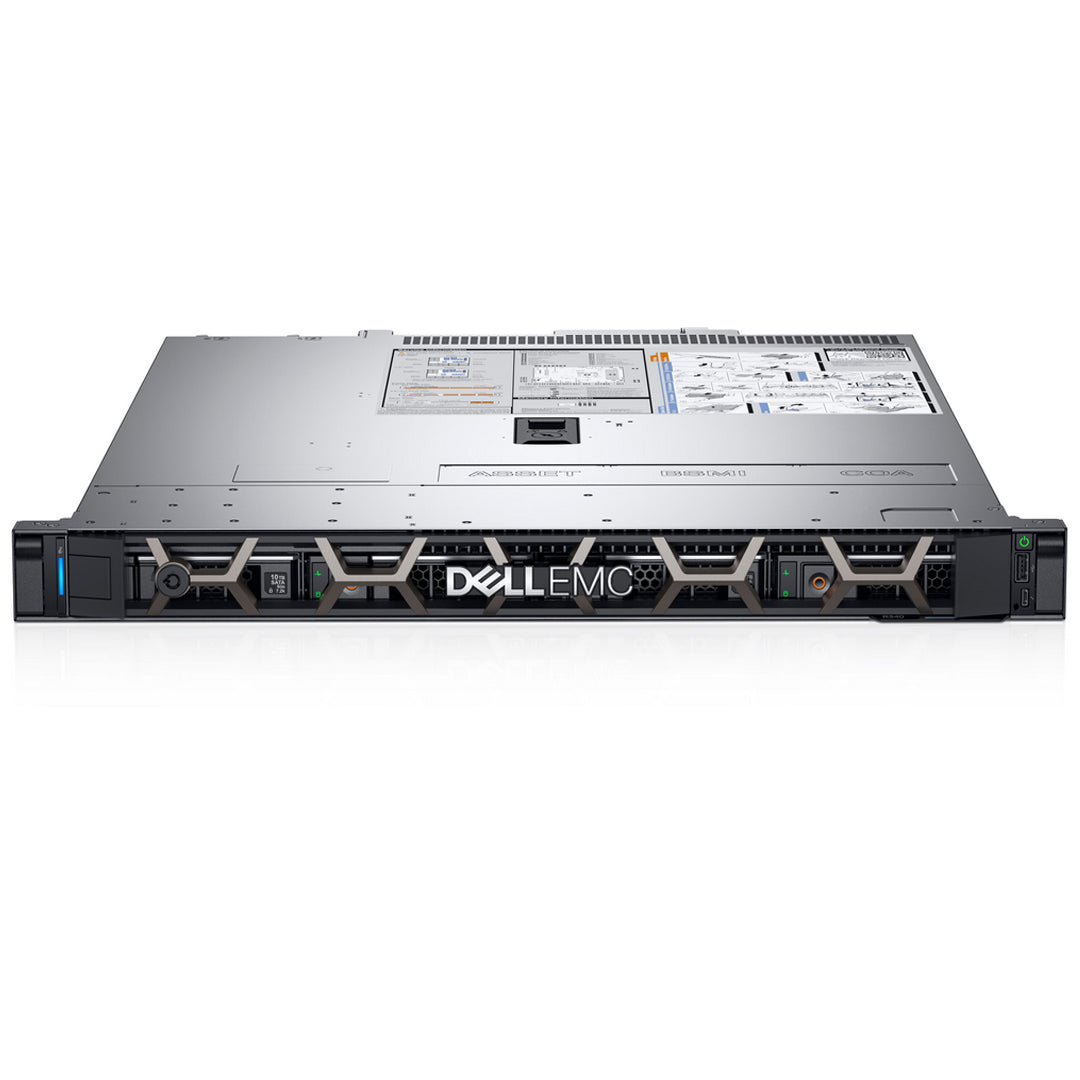

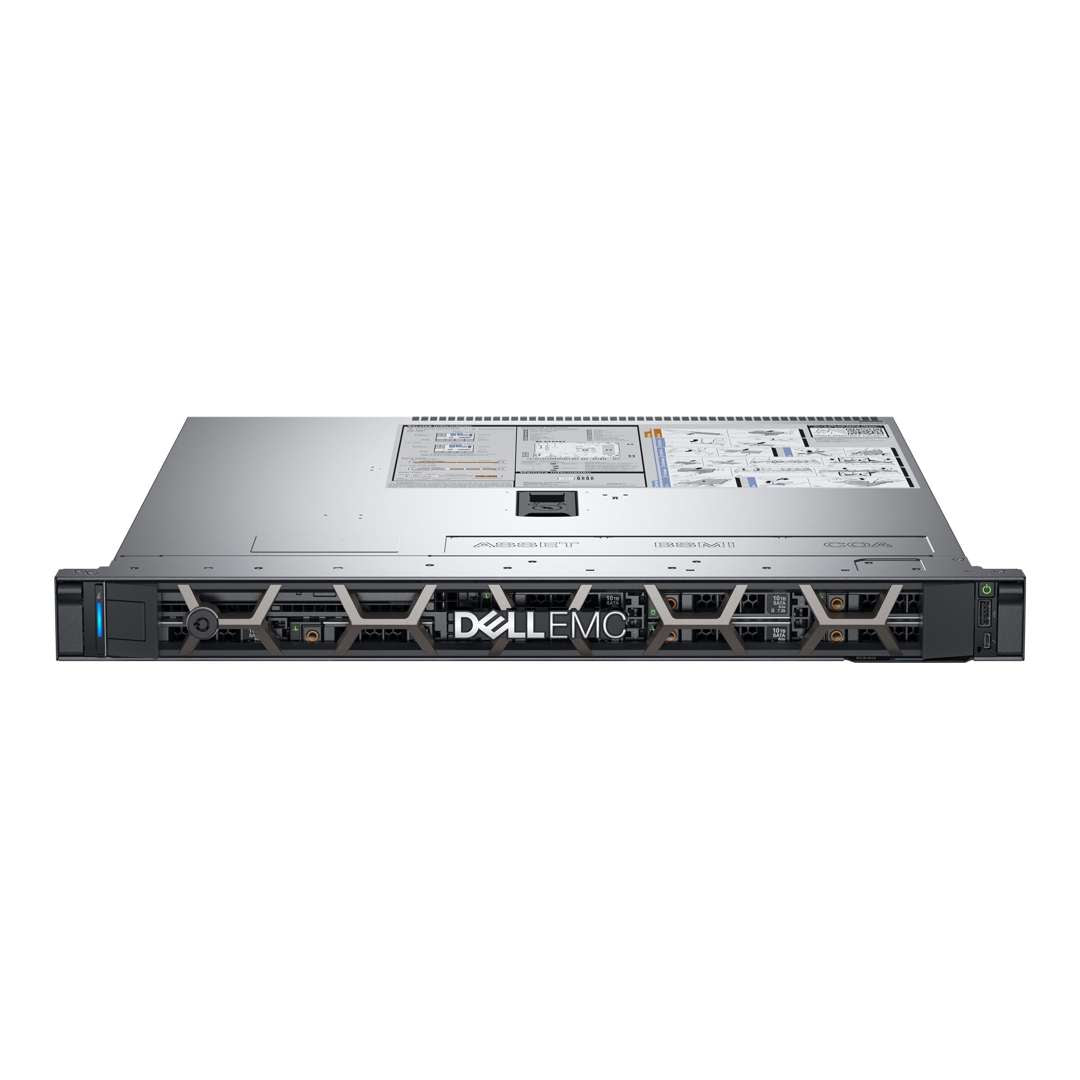

The Dell EMC PowerEdge R340 is a single-socket 1U rack server designed for productivity and data intensive applications for remote office/branch offices.
PowerEdge R340
- Improved performance due to 100% more cores
- Scale with 17% more storage capacity
- Protect your server from malicious malware with iDRAC9 Enterprise Server Lockdown mode
Boost your business productivity
The Dell EMC PowerEdge R340 boosts business productivity, provides the flexibility to scale, and automates daily tasks. It is the ideal solution that allows you to focus on what matters: Accelerate your business growth. The Dell EMC PowerEdge R340 offers features to support your demanding and growing business needs.
- Accelerate your business with improved performance due to 100% more cores with Intel® Xeon® E-2200 processors, 11% increase in memory speed, and 20% more PCIe lanes.1

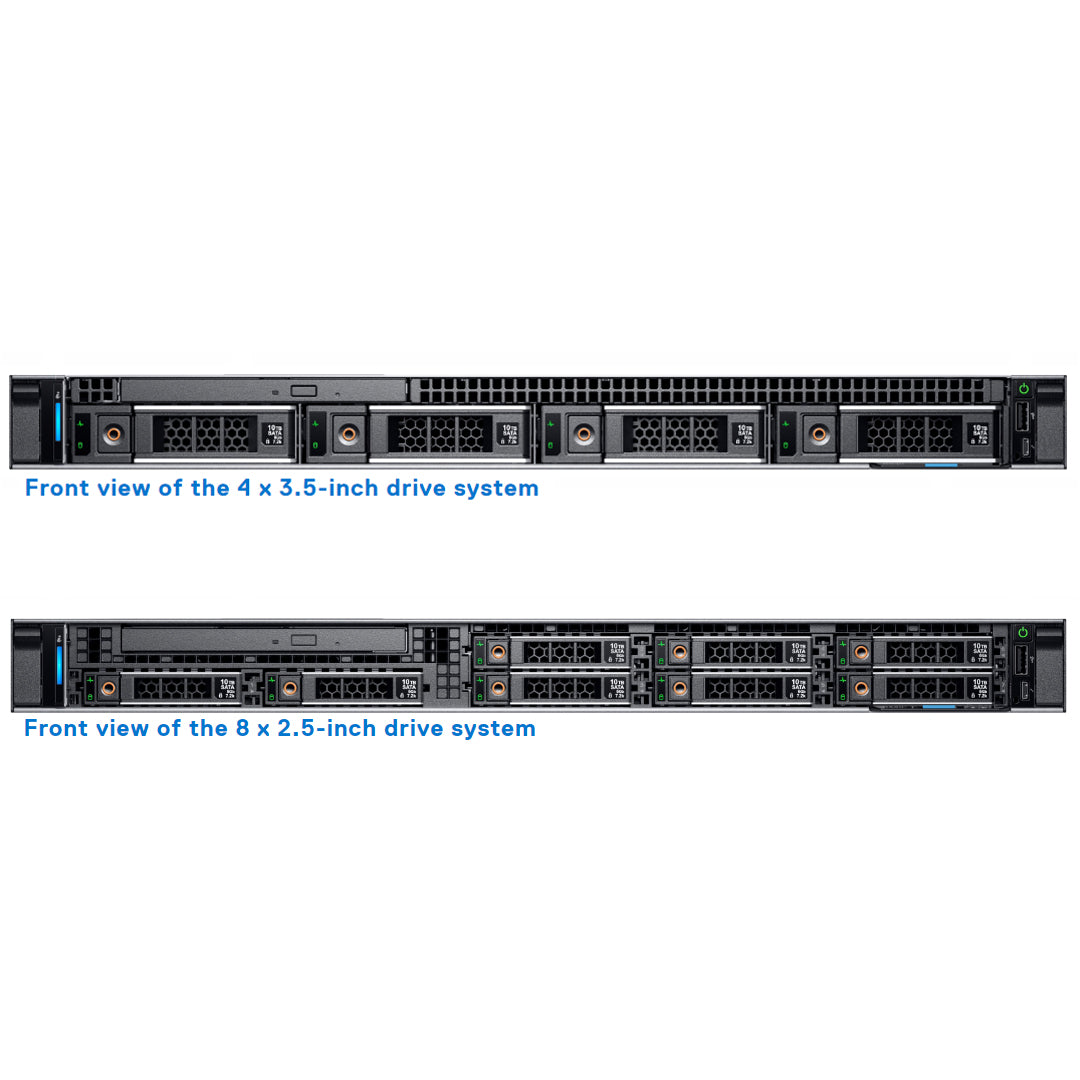

- Harness data growth with up to 8 x internal 2.5” or 4 x 3.5” hot-plug hard drives.
- Manage operational costs with Multi-Vector cooling which automatically calculates and delivers the proper airflow needed for optimal cooling.
Simplify your IT infrastructure
The Dell OpenManage portfolio offers innovations that simplifies management tasks, making IT operations efficient and cost-effective throughout the server lifecycle.
- The embedded iDRAC9 with Lifecycle Controller, server deployment, configuration and updates are fast and worry-free.
- Access your servers anywhere, anytime from your mobile device with OpenManage Mobile (requires OpenManage Enterprise).
- Resolve issues with up to 72% less IT effort using automated proactive and predictive technology from ProSupport Plus and SupportAssist.
Keep your data safe
Every PowerEdge server is made with a cyber-resilient architecture, building security into the server’s entire life cycle. Dell EMC is laser-focused on security (from design to end-of-life) to ensure trust and deliver worry-free, secure servers.
- Keep your data safe with software RAID.
- Maintain data safety with cryptographically-signed firmware packages and Secure Boot.
- Protect your server from malicious malware with iDRAC9 Server Lockdown mode (requires Enterprise and Datacenter license).
- Wipe all data from storage media quickly and securely with System Erase
Scale your IT on your own terms
The Dell EMC PowerEdge R340 delivers the flexibility to increase compute, storage, and memory capacity.
- Increase compute performance and the ability to run multiple applications at the same time, by choosing either a 4-, 6-, or 8-core Intel Xeon E-2200 processor
- Harness data growth with up to eight internal 2.5" hot plug HDDs or four 3.5" hot plug HDDs
- Address data sets with up to four DDR4 DIMMs and with a maximum of 64GB of RAM
Memory Options
| DIMM type | DIMM rank | DIMM capacity | Minimum RAM | Maximum RAM |
|---|---|---|---|---|
| UDIMM | Single rank | 8 GB | 8 GB | 32 GB |
| 16 GB | 16 GB | 64 GB | ||
| Dual rank | 8 GB | 8 GB | 32 GB | |
| 16 GB | 16 GB | 64 GB |
Storage Controllers
| Internal controllers | External controllers |
|---|---|
|
|

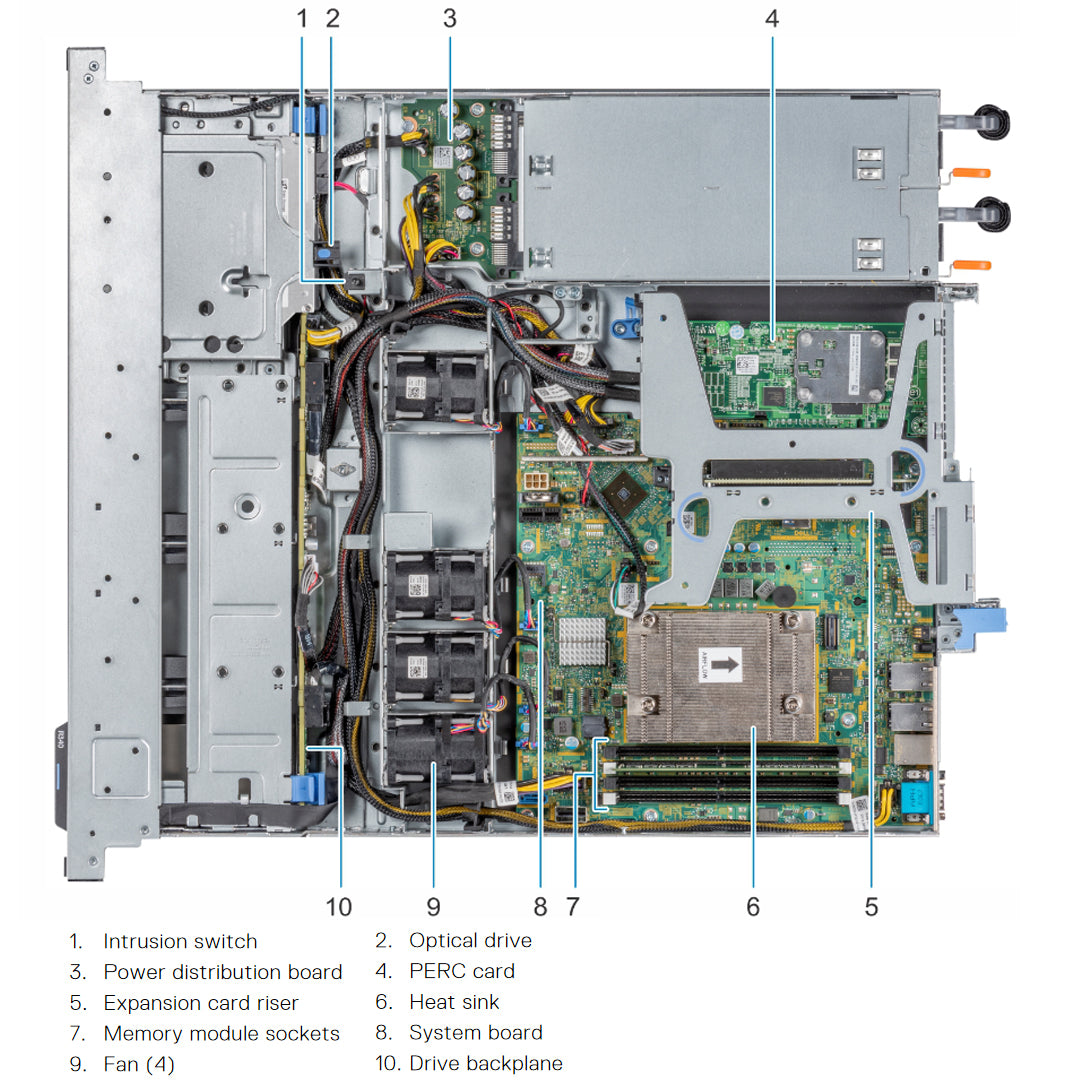

The Storage Controller is installed under the Butterfly PCIe Riser directly from the system board. The Controller has its own dedicated PCIe slot.
Boot Options
IDSDM
The Internal Dual SD Module (IDSDM) holds 2 SD Card and 1 vFlash card. The cFlash is for the remote management iDRAC8 when you upgrade to the enterprise version. The IDSDM is perfect to load the OS for the hypervisor when supporting virtualization. The IDSDM can not load a full OS for the system. That is what the BOSS card is for.
BOSS Card
The Boot Optimized Sub-System (BOSS) is the perfect way to load the OS onto any system without allocating a drive for this operation. The BOSS card can hold 2 M.2 Drives and loads the full OS.
Internal USB
The Internal USB slot is located under the butterfly riser embedded on the system board. This USB can load the OS for you or other management software.
PCIe Expansion Options
| PCIe slot | Riser | PCIe slot height | PCIe slot length | Link width | Slot width |
|---|---|---|---|---|---|
| Slot 1 | x8 PCIe | Low-profile | Half-length | x4 | x8 |
| Slot 2 | x16 PCIe | Low-profile/Full-height | Half-length | x8 | x16 |
| Internal PERC | x8 PCIe | Low-profile | Half-length | x8 | x8 |
Power Supply Unit (PSU)
| PSU | Class | Heat dissipation (maximum) | Frequency | Voltage | AC | Current | |
|---|---|---|---|---|---|---|---|
| High line 100–240 V | Low line 100–120 V | ||||||
| 350 W AC | Platinum | Redundant - 1356 BTU/hr | 50/60 Hz | 100–240 V AC, autoranging | 350 W | NA | 4.8 A–2.4 A |
| 550 W AC | Platinum | 2107 BTU/hr | 50/60 Hz | 100–240 V AC, autoranging | 550 W | NA | 7.4 A–3.7 A |
