Quick Specs
Form Factor:
1U rack server
Processor | Max: 2 or 8 Cores1 x Intel Xeon E-2300 or 1 Intel Pentium
Memory | Max: 128GB4 DDR4 UDIMM 3200Mhz
Networking LOM:2 x 1 GbE LOM
Storage | Max: 30.72TB2 or 4 LFF SAS/SATA (HDD/SSD) Cabled
4 LFF SAS/SATA (HDD/SSD) Hot-Swap
S150 (SW RAID)
PERC H345, H355, H755, HBA355i, HBA355e
BOSS
IDSDM
Internal USB 3.0
2x PCIe 4.0
1 x8 Gen4 (x16 connector) low profile, half length
1 x8 Gen4 (x8 connector) low profile, half length
None
Remote Management:iDRAC9 with Lifecycle Controller
Other Versions
- Dell PowerEdge R210
- Dell PowerEdge R210 II
- Dell PowerEdge R220
- Dell PowerEdge R230
- Dell PowerEdge R240
- Dell PowerEdge R250
- Dell PowerEdge R260
(Click to View)
Ideal for:
- Cloud Servers
- Point-of-Sale (POS)
- Virtualization
The Dell PowerEdge R250, powered by Intel® Xeon® E-2300 processors, delivers powerful compute for common business applications and streamlines productivity. It supports 3200 MT/s DDR4 speeds and 32 GB DIMMs, up to 128 GB for memory intensive workloads. In addition, to address substantial throughput improvements, the PowerEdge R250 supports PCIe Gen 4 and offers enhanced thermal efficiency to support increasing power and thermal requirements. This makes the PowerEdge R250 an rack ideal server for business critical workloads, cloud infrastructure, and point of sale transactions in a 1U form factor, for small to midsized businesses, inside and outside of the data center.

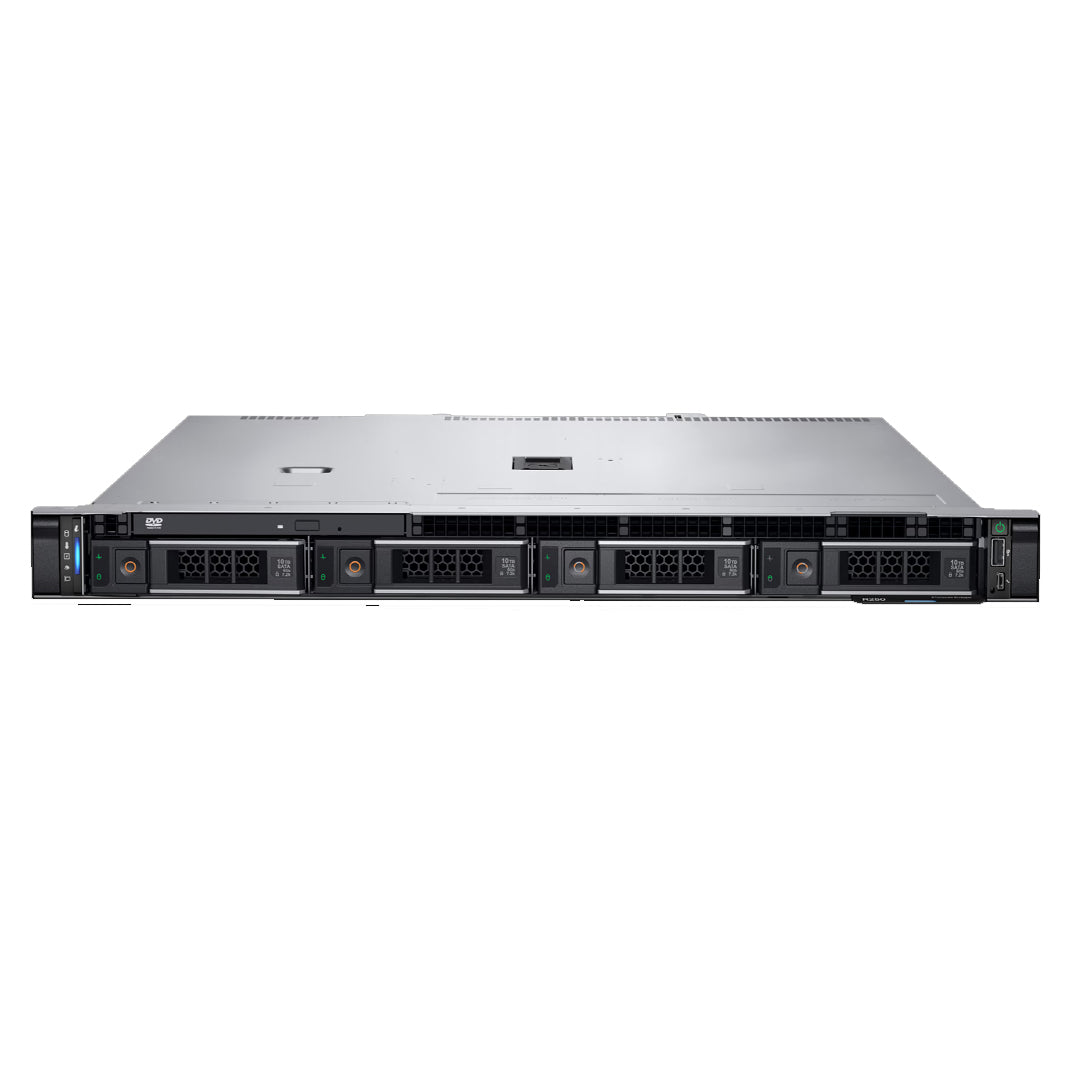

PowerEdge R250
The Dell PowerEdge R250 affordably addresses common business workloads while delivering compute with an entry-level 1U rack server.
The Dell PowerEdge R250 offers streamlined productivity, high-speed memory and capacity, powerful compute to address common business applications. Ideal for:
- Small midsized businesses
- Remote office/branch office
- Collaboration and sharing
- Mail/messaging and file/print
Increase efficiency and accelerate operations with autonomous collaboration
The Dell OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
- Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
- Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
- Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
- Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools
Protect your data assets and infrastructure with proactive resilience
The Dell PowerEdge R250 server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.
- Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
- Maintain server firmware safety with digitally signed firmware packages
- Prevent unauthorized configuration or firmware change with system lockdown
- Securely and quickly wipe all data from storage media, including hard drives, SSDs and system memory with System Erase
Memory
| DIMM type | Rank | Capacity | DIMM rated voltage and speed | DIMMs per Channel (DPC) |
|---|---|---|---|---|
| UDIMM | 1R | 8GB / 16GB | DDR4 (1.2 V), 3200 MT/s | 3200 MT/s |
| 2R | 32GB | DDR4 (1.2 V), 3200 MT/s | 3200 MT/s |
Boot Options
BOSS-S1 PCIe Adapter
The Boot Optimized Sub System is the perfect way to load the OS on this server. Otherwise, you will have to allocate 1 of the 4 drives. This is not ideal when the storage in the system is so limited and the mixing of drive types is not supported. The BOSS module takes up 1 PCIe slot on the butterfly riser leaving you with 1 more PCIe slot to us for networking.
IDSDM
The Internal Dual SD module is great for loading the hypervisor OS for virtualization. This IDSDM uses the same slot as the internal USB. These can't be installed together. This IDSDM takes up to 2 MicroSD Cards.
Internal USB
The Internal USB is usually embedded on the system board or comes with the IDSDM Module. This R250 Rack Server has a Module dedicated to the internal USB Drive. This usb drive can handle any OS you need to load. View the Manual for more information on the internal USB.

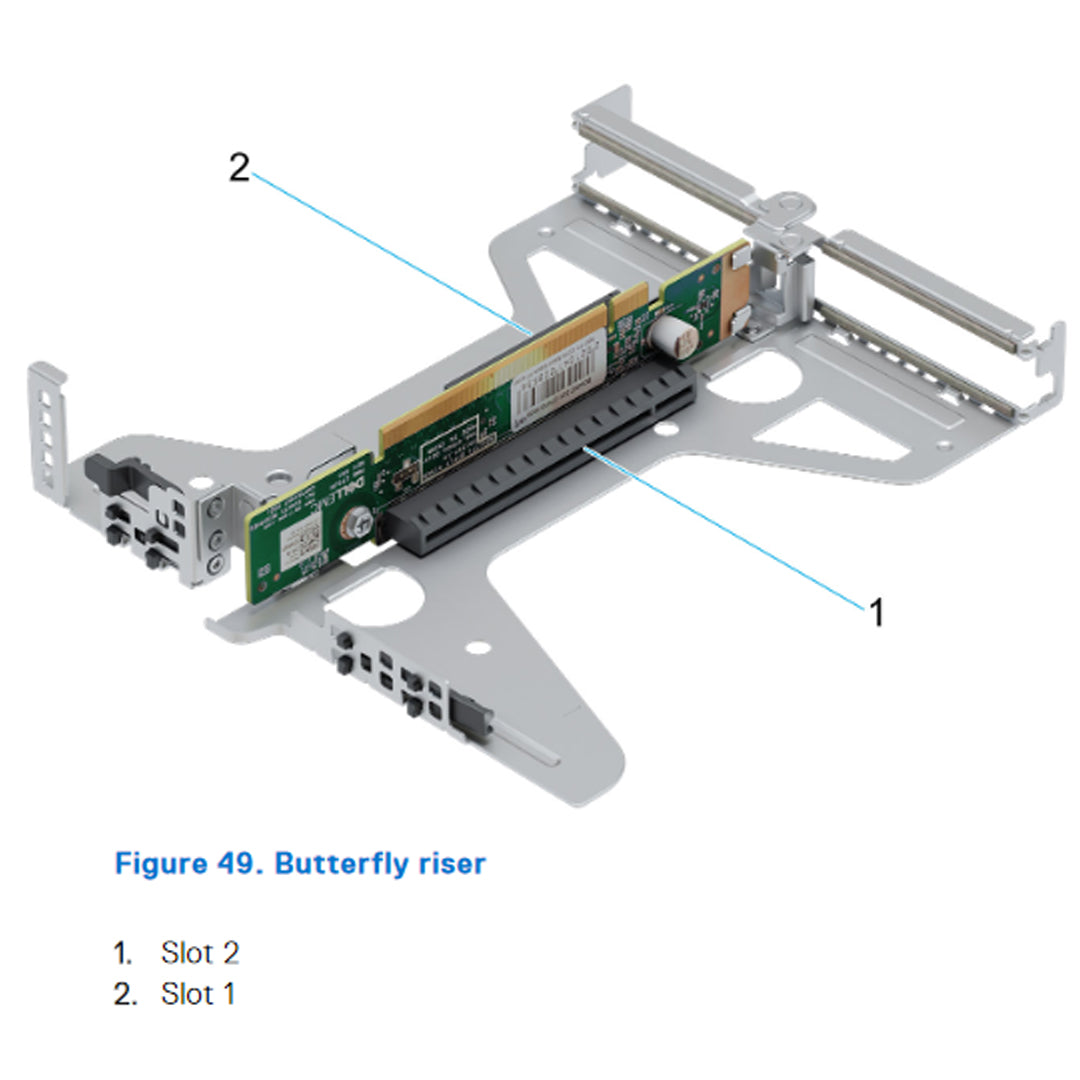

PCIe ButterFly Riser
| Configurations | Expansion card risers | PCIe Slots | Controlling processor | Height | Length | Slot width | Power |
|---|---|---|---|---|---|---|---|
| Config 0 | Butterfly riser | 1 | Processor 1 | Half height | Half length | x8 | 25 W |
| 2 | Processor 1 | Half height | Half length | x16 | 25 W |
Storage Controllers
| Model and Form Factors | Interface Support | PCI Support | SAS Connection | Cache Memory Size | Write Back Cache | RAID Levels | Max Drive Support | RAID Support |
|---|---|---|---|---|---|---|---|---|
| PowerEdge Server-Storage Controllers (PERC & SAS HBA) Series 11 | ||||||||
| H755 (SAS/SATA Only) | 12 Gb/s SAS 6 Gb/s SAS/SATA 3 Gb/s SAS/SATA |
PCIe Gen 4 | 2 x 8 Internal | 8 GB NV | Flash Backed Cache | 0,1, 5, 6, 10, 50, 60 | 16/controller 50 with SAS Expander *Platform limit |
Hardware |
| HBA355i Adapter | 12 Gb/s SAS 6 Gb/s SAS/SATA 3 Gb/s SAS/SATA |
PCIe Gen 4 | 2 x 8 Internal | N/A | N/A | N/A | 16/controller 50 with SAS Expander *Platform limit |
N/A |
| HBA355e Adapter | 12 Gb/s SAS 6 Gb/s SAS/SATA 3 Gb/s SAS/SATA |
PCIe Gen 4 | 2 x 8 Internal | N/A | N/A | N/A | 240 | N/A |
| H355 Adapter | 12 Gb/s SAS 6 Gb/s SATA |
PCIExpress 3.1 | 16 ports- 2 x 8 Interna | No Cache | No Cache | 0,1,1 0 Note 1 |
Maximum 32 RAID, or 32 Non-RAID | Hardware RAID |
| PowerEdge Server-Storage Controllers (PERC & SAS HBA) Series 10 | ||||||||
| PERC H345 | 12 Gb/s SAS 6 Gb/s SATA |
PCIExpress 3.1 | 16 ports- 2 x 8 Interna | No Cache | No Cache | 0,1,1 0 Note 1 |
Maximum 32 RAID, or 32 Non-RAID | Hardware RAID |
| PowerEdge Server-Storage Software RAID | ||||||||
| S150 Software RAID | 6 Gb/s SATA | N/A | N/A | No Cache | No Cache | 0,1, 5, 10 | Maximum 12SATA | SoftwareRAID -Windows& Linux(Limited) Note 2 |
| Note: 1 | RAID 5/50 removed from entry RAID card | ||||||||
| Note: 2 | SWRAID support for Linux provides a pre-boot configuration utility to configure MDRAID and degraded boot capability. See User’s Guide for details. | ||||||||
Power & Dimensions
Power
- 450 W Bronze 100-240 V AC, cabled
- 450 W Platinum 100-240 V AC, cabled
- 700 W Titanium 100-240 V AC, cabled
- 700 W Titanium 240 V DC, cabled
Dimensions
- Height: 42.8 mm (1.68 inches)
- Width: 482 mm (18.97 inches)
- Depth: 598.64 mm (23.56 inches) with bezel
- Depth: 585 mm (23.03 inches) without bezel
- Weight: 12.48 kg (27.51 lbs.)
