Quick Specs
Form Factor:
1U rack server
Processor | Max: 8 Cores1 x Intel Xeon E-2200
Memory | Max: 64TB4 DDR4 UDIMM 2666Mhz
Storage | Max: N/A4 LFF SAS/SATA (HDD) Cabled
4 LFF SAS/SATA (HDD/SSD) Hot-Swappable
S140 (SW RAID)
H330, H730p, HBA330, 12Gbps SAS HBA
BOSS
IDSDM (Micro SD)
USB
2x PCIe 3.0
One x8 slot low-profile, half-length with x4 slot width
One x16 slot low-profile/full-height, half-length with x8 bandwith
iDRAC9 with Lifecycle Controller and vFlash

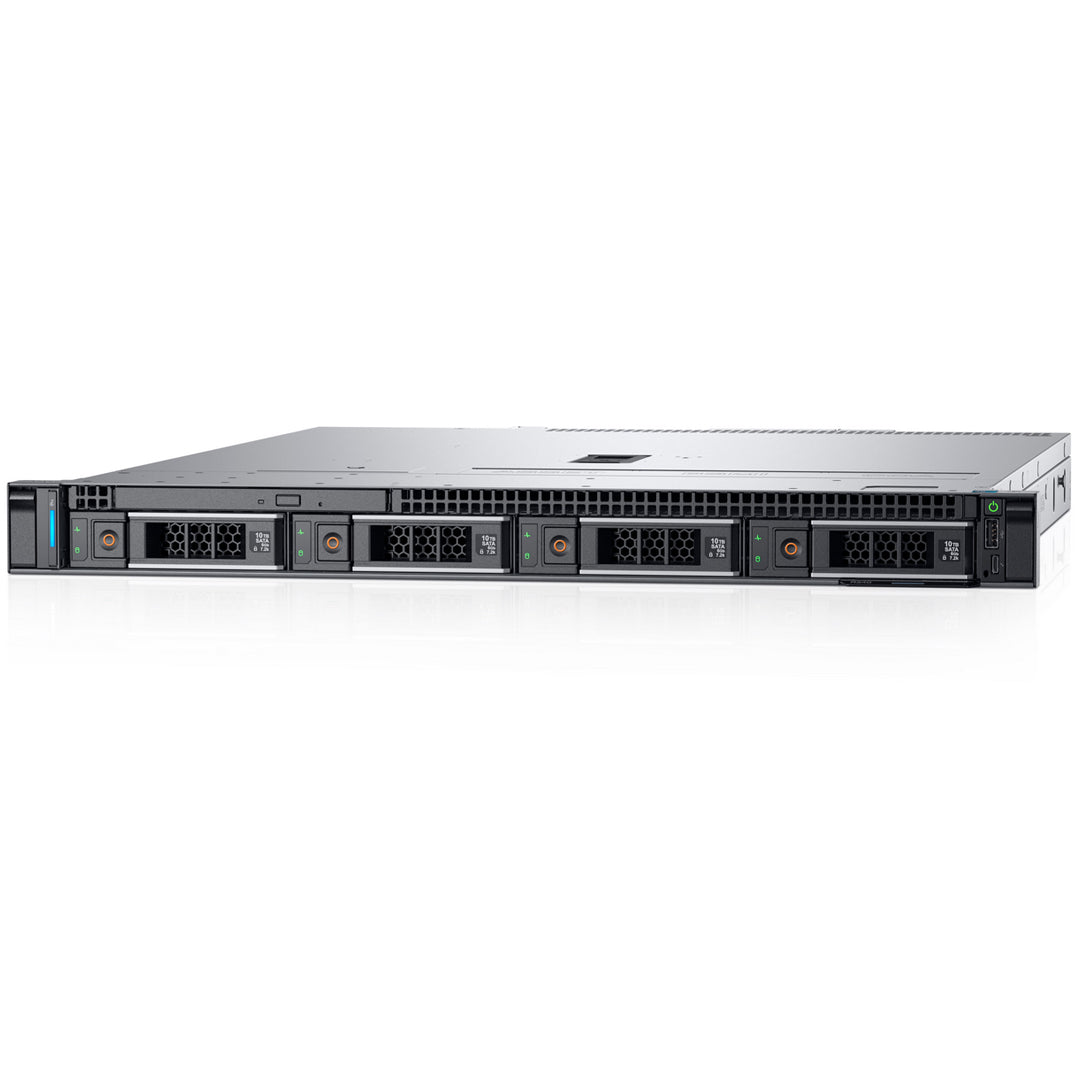

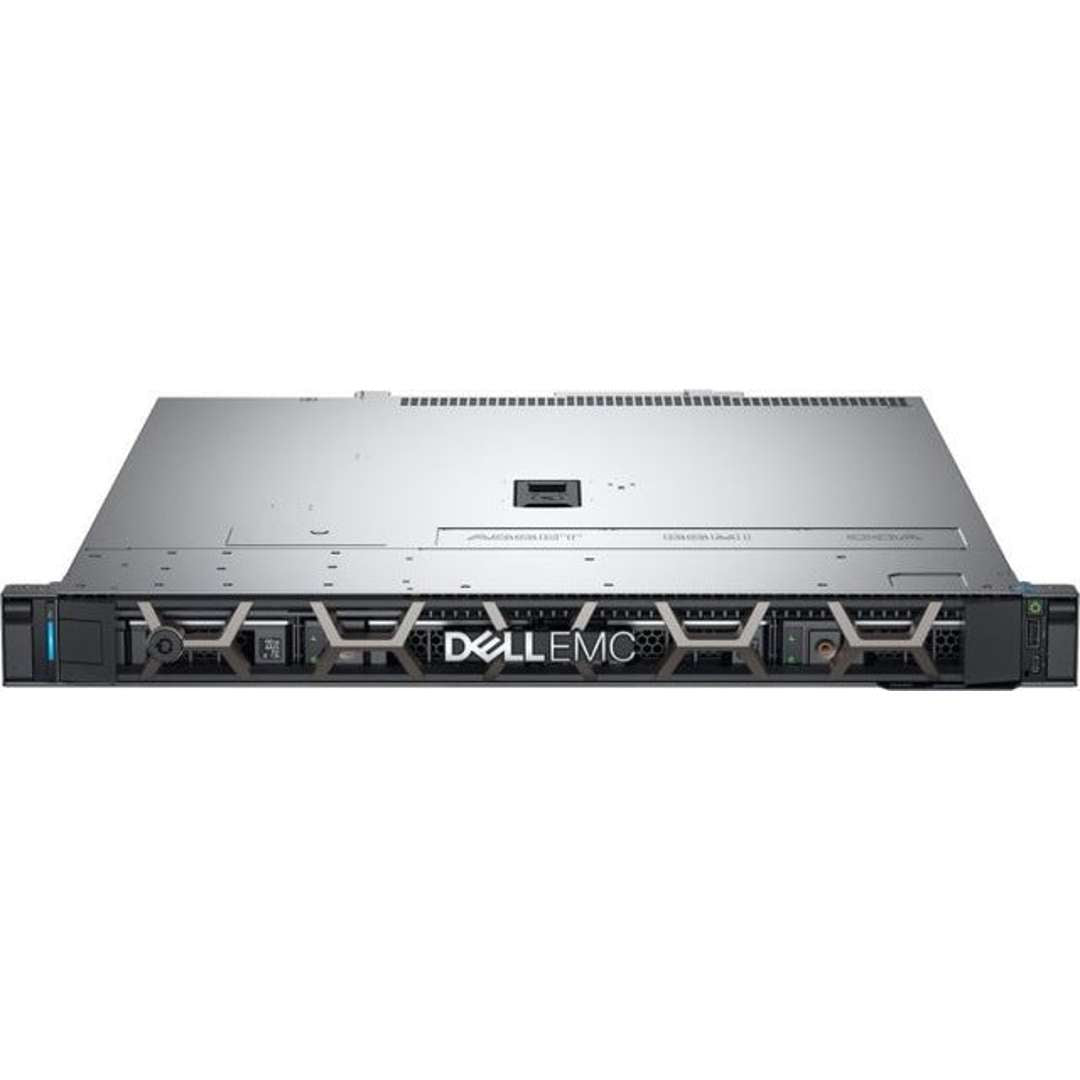

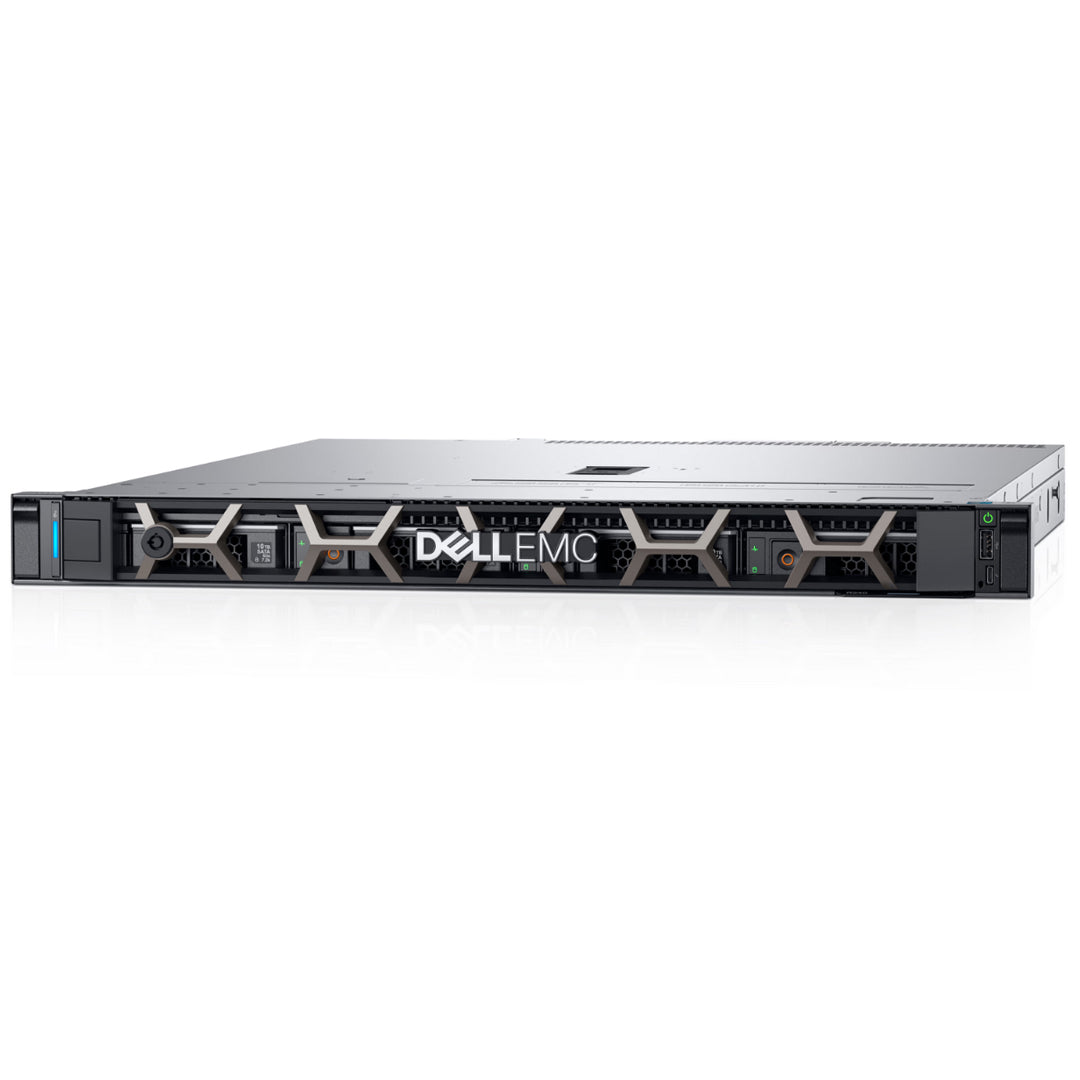

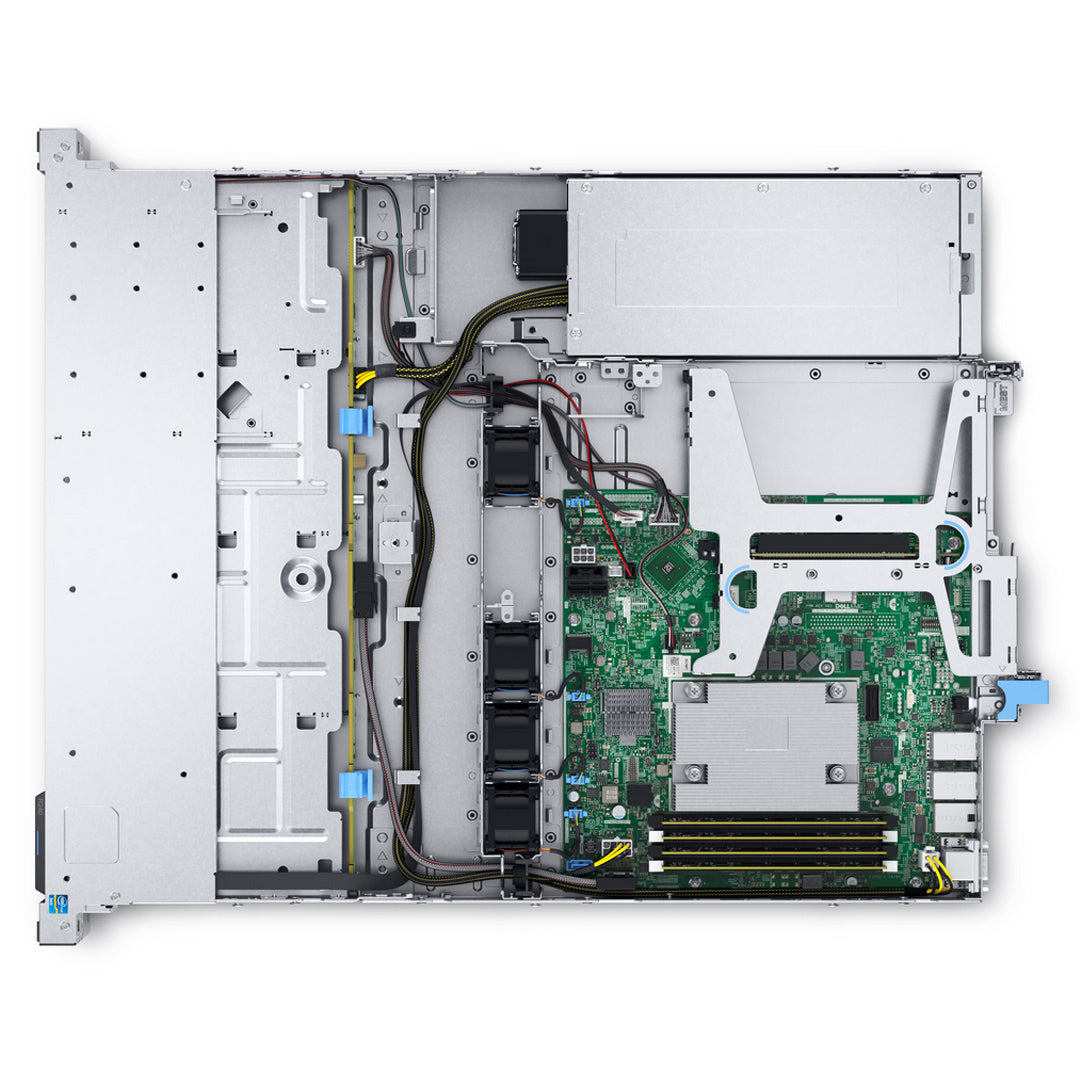

The Dell EMC PowerEdge R240 is an affordable single-socket 1U rack server designed for small businesses and service providers.
PowerEdge R240
- Improved performance due to 100% more cores
- Scale with 17% more storage capacity
- Protect your server from malicious malware with iDRAC9 Enterprise Server Lockdown mode
The Dell EMC PowerEdge R240 designed for dense environments is the ideal solution for budget-conscious businesses. The Dell EMC PowerEdge R240 offers features to support your demanding and growing business needs.
- Accelerate your business with improved performance due to 100% more cores with Intel Xeon E-2200 processors, 11% increase in memory speed, and 20% more PCIe lanes.1

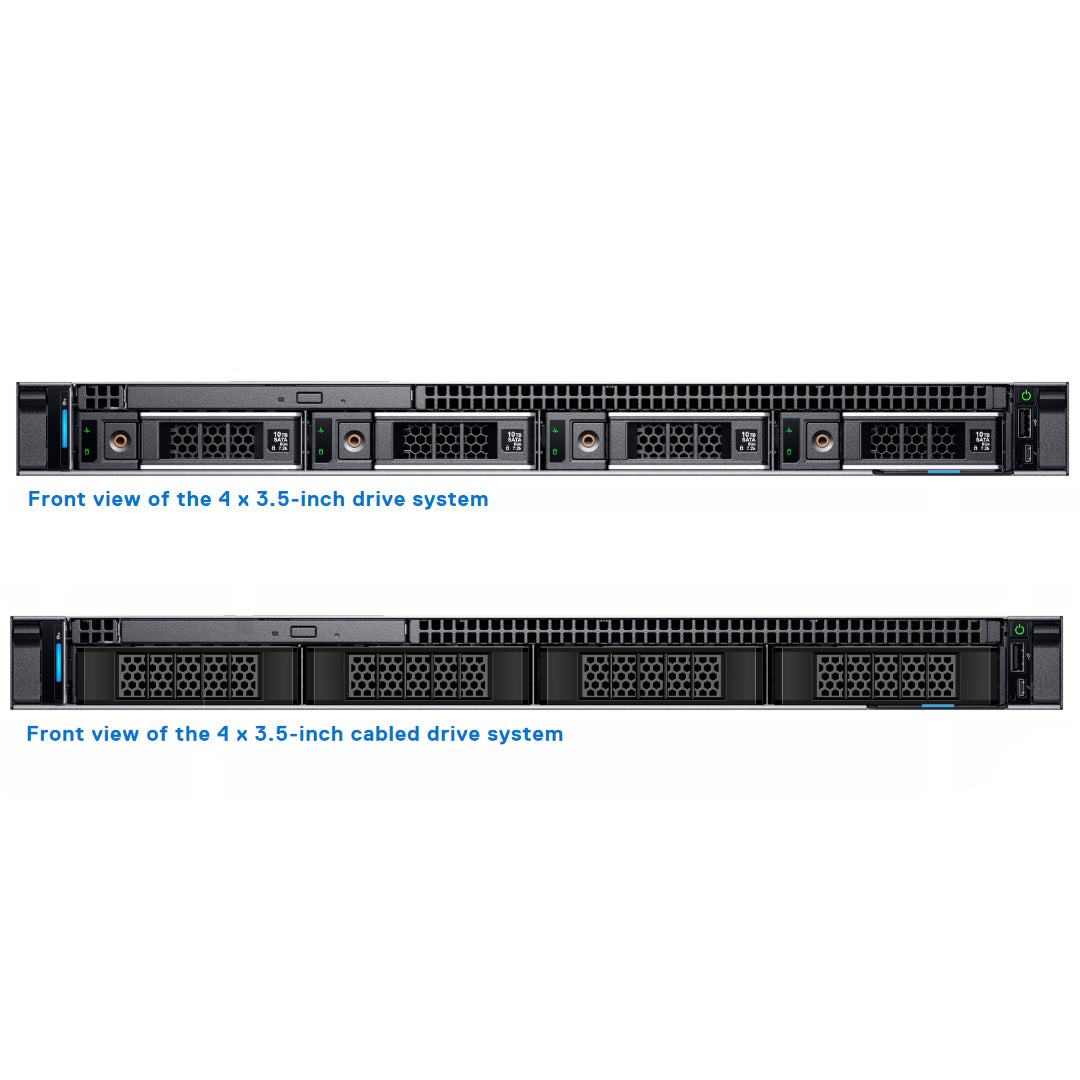

- Harness data growth with up to 4 x 3.5” cabled hard drives.
- Manage operational costs with Multi-Vector cooling which automatically calculates and delivers the proper airflow needed for optimal cooling.
Simple to install, manage and deploy
The Dell OpenManage portfolio offers innovations that simplifies management tasks, making IT operations efficient and cost-effective throughout the server lifecycle.
- The embedded iDRAC9 with Lifecycle Controller, server deployment, configuration and updates are fast and worry-free.
- Access your servers anywhere, anytime from your mobile device with OpenManage Mobile (requires OpenManage Enterprise).
- Resolve issues with up to 72% less IT effort using automated proactive and predictive technology from ProSupport Plus and SupportAssist.
Keep your data safe
Every PowerEdge server is made with a cyber-resilient architecture, building security into the server’s entire life cycle.
Dell EMC is laser-focused on security (from design to end-of-life) to ensure trust and deliver worry-free, secure servers.
- Keep your data safe with software RAID.
- Maintain data safety with cryptographically-signed firmware packages and Secure Boot.
- Protect your server from malicious malware with iDRAC9 Server Lockdown mode (requires iDRAC Enterprise and Datacenter license).
- Wipe all data from storage media quickly and securely with System Erase.
PCIe Expansion Slots
IDSDM w/ vFlash
Internal Dual SD Module with vFlash holds 2 MicroSD Cards for the hypervisor OS System. This can not be used to load the full OS system. Along with 2 MicroSD Cards on one side, it also has a vFlash slot on the other side for iDRAC management.
BOSS
Boot Optimized Subsystem (BOSS) holds 2 M.2 SSD drives. This BOSS card supports the loading of the OS system on the rack server. If you dont use the BOSS card you will have to allocate 1 of the 4 drives as boot.

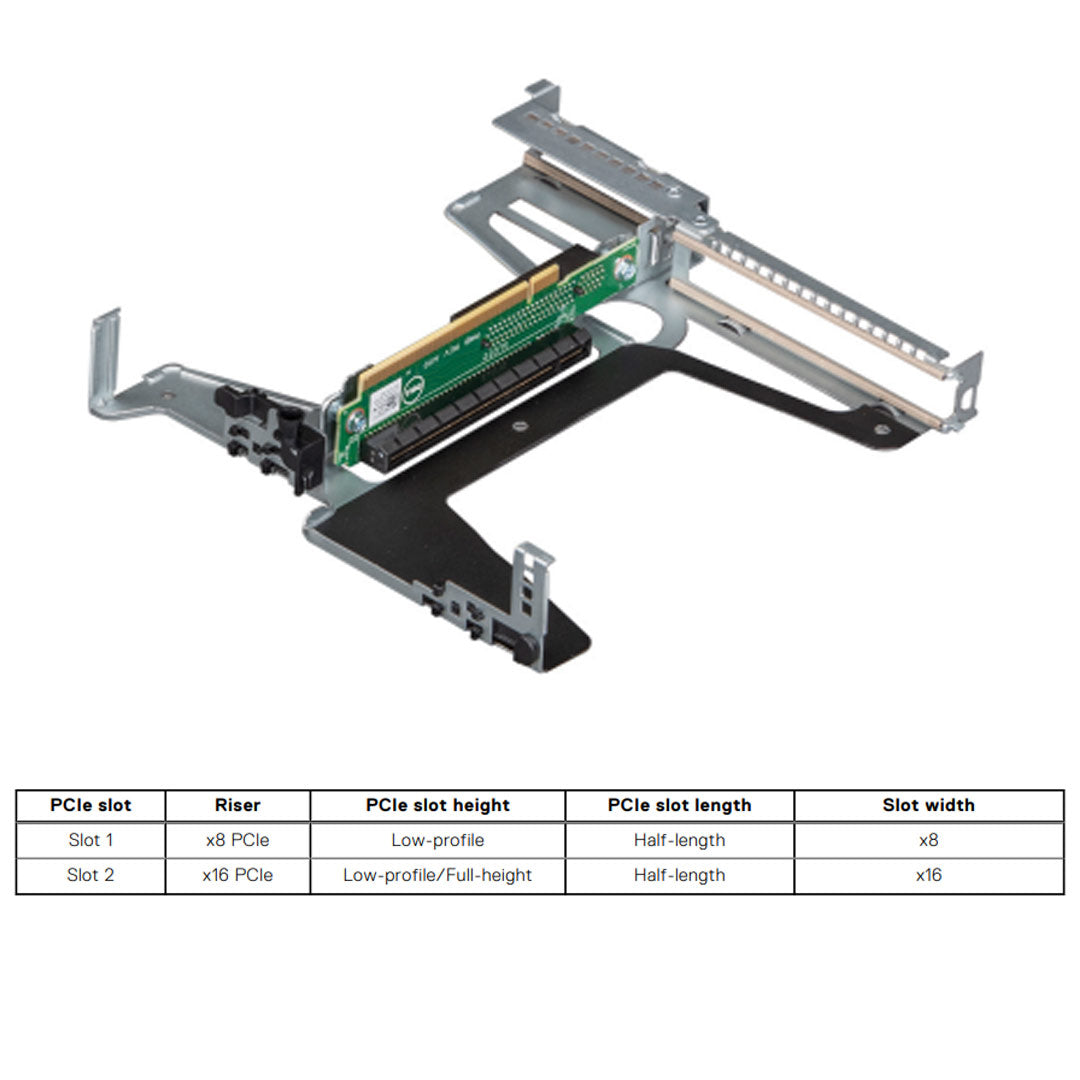

PCIe Expansion Slots
| PCIe Slot | Riser | PCIe Slot Height | PCIe Slot Lenght | Slot Width |
|---|---|---|---|---|
| Slot 1 | x8 PCIe | Low-Profile | Half-Height | x8 |
| Slot 2 | x16 PCIe | Low-Profile/Full-Height | Half-Length | x16 |
