SKU: DS2246-24X-450GB

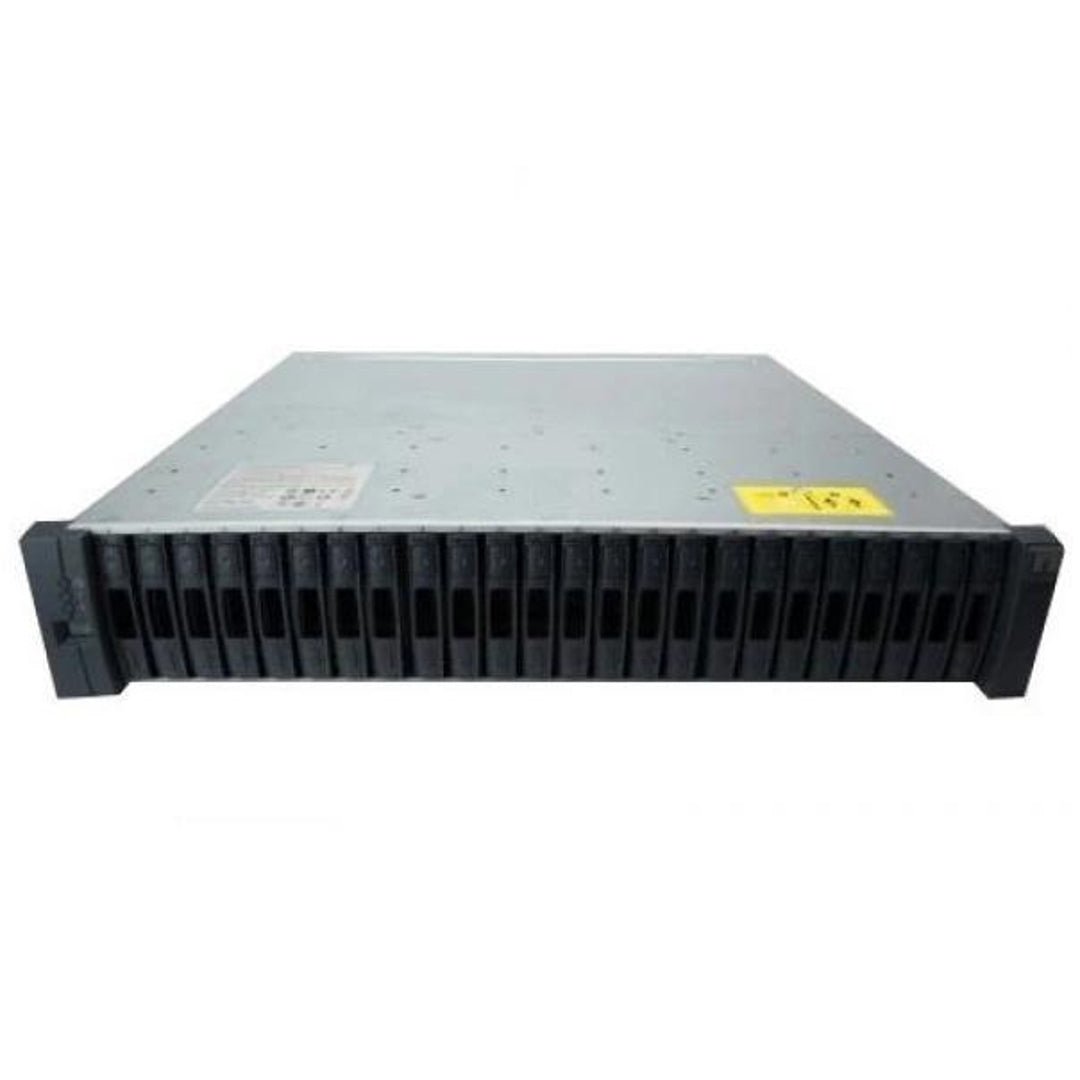

Netapp Ds2246 Expansion Shelf With 24X 450Gb 10K Sas 6Gbps Hdds (X421A-R5) | DS2246-24X-450GB

Name: Netapp Ds2246 Expansion Shelf With 24X 450Gb 10K Sas 6Gbps Hdds (X421A-R5) | DS2246-24X-450GB
Brand: NetApp
SKU: DS2246-24X-450GB
Price: 750.0 USD
Availability: InStock

NetApp

| Disk Shelves

.price-ui--loading { display: block !important; opacity: 1 !important; }

$750.00

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

NetApp DS2246 with 24x 450GB SAS 10K X421A-R5 Disk Shelf achieves both storage and performance in a 2U form factor. The DS2246 has the ability to use performance SAS drives, SSD's or Self-Encrypting drives. This DS2246 is populated with 24 450GB 10K SAS Drives (X421A-R5) and comes with all necessary parts as well as a 1-Year Parts Replacement Warranty as standard.

Parts Included:

1x DS2246 Disk Shelf
24x 450GB 10K SAS 6Gbps HDD (X421A-R5)
2x IOM6 Controller (X5713A-R5)
2x Power Supplies with Fans - 750W, AC (X519A-R6)
2x .5 QSFP to QSFP SAS Cables (X6557A-R6)
1x Rail Kit II, Cab, R6 (X877B-R6)
2x Power Cable (NA), -C, R6 (X800E-R6-C)

NetApp DS2246 Disk Shelf Specifications

NETAPP DS2246 DISK SHELF SPECIFICATIONS
Form Factor	2U
Drives per Enclosure	24
Supported Drive Types	2.5" 450GB 10K SAS HDD 2.5" 600GB 10K SAS HDD 2.5" 900GB 10K SAS HDD 2.5" 1.2TB 10K SAS 2.5" 1.8TB 10K SAS SSDs Supported 200GB, 400GB, 800GB, 1.6TB & 3.6TB Mixed: 400GB SSD + 1.2TB SAS 800GB SSD + 1.8TB SAS 200GB SSD + 900GB SAS 400GB SSD + 900GB SAS
Supported Controllers	FAS2000 Series FAS/V3070 FAS/V3100 Series FAS/V3200 Series FAS/V6000 Series FAS/V6200 Series
Data ONTAP Version Required	For FAS2040: 7.3.4 or later & 8.0.1 or later For other Controllers: 7.3.3P2 or later & 8.0P1 or later
Shelf architecture and I/O Bandwidth	SAS 6Gbps SAS 3Gbps with FAS2040 and FAS2050 systems Connections require PCIe SAS HBA card or available embedded SAS port
Shelf I/O modules	Dual IOM6 modules
Power Supplies and Cooling	Dual redundant hot-pluggable power supplies and fan assembly
AC Input Power Voltage	50 - 60 Hz
Weight	49 lbs
Dimensions	Height: 3.4" Width: 19" Depth: 19.1"
Temperature	Operating Temp: 50ºF to 104ºF Non-Operating Temp: -40ºF to 158ºF
AC Input Power Voltage (Autoranging, VRMS)	100-120V or 200-240V
Self-Encrypting Drives Supported	900GB 10K 1.8TB 10K 800GB SSD 1.6TB SSD 800GB SSD + 1.8TB 10K AES-256, FIPS 140-2 compliant
Compatible SAS Cables	X6557-R6 - SAS Cable .5M (QSFP-QSFP) (112-00176) X6558-R6 - SAS Cable 2M (QSFP-QSFP) (112-00177) X6559-R6 - SAS Cable 5M (QSFP-QSFP) (112-00178)
Compatible Ethernet Cables	X6560-R6 - RJ45 to RJ45 .5M CAT6 (112-00194) X6561-R6 - RJ45 to RJ45 2M CAT6 (112-00195) X6562-R6 - RJ45 to RJ45 5M CAT6 (112-00196)
Compatible Filers	FAS6280, FAS6280A, FAS6240, FAS6240A, FAS6210, FAS6210A, FAS3270A, FAS3270, FAS3240A, FAS3240, FAS3210A, FAS3210, FAS6080A, FAS6080, FAS6070A, FAS6070, FAS6040A, FAS6040, FAS6030A, FAS6030, FAS3170A, FAS3170, FAS3160A, FAS3160, FAS3140A, FAS3140, FAS3070A, FAS3070, FAS3040, FAS3040A, FAS2240A, FAS2240 FAS2040A, FAS2040, V6280, V6280A, V6240, V6240A, V6210, V6210A, V3270A, V3270, V3240A, V3240, V3210A, V3210, V6080A, V6080, V6070A, V6070, V6040A, V6040, V6030A, V6030, V3170A, V3170, V3160A, V3160, V3140A, V3140, V3070A, V3070, V3040, V3040A
Alternate NetApp Part Numbers	DS2246-1011-24S-PB-R5-C DS2246-1011-24S-PBR-R5-C DS2246-1011-24S-QS-R5 DS2246-1011-24S-R5-C DISK SHELF, 24x 450GB, 10K, 6Gb SAS, IOM6, PB, -C, R5 DISK SHELF, 24x 450GB, 10K, 6Gb SAS, IOM6, PBR, -C, R5 DISK SHELF, 24x 450GB, 10K, 6Gb SAS, IOM6, QS, R5 DISK SHELF, 24x 450GB, 10K, 6Gb SAS, IOM6, -C, R5

NetApp DS2246 Configuration

Associated Part No.	Configuration	Rack Units	Weight	Sound Power	Sound Pressure	Line Voltage Actual (Min to Max)	Amps Typical	Amps Worst	Watts Typical	Watts Worst	BTU/Hr Typical	BTU/Hr Worst
Quickship Half Populated
DS2246-10.8TB-QS-R5	12x900GB,10K,SAS	2	45.6 lb (20.7 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.60	2.50	156	245	533	837
DS2246-10.8TB-QS-R5	12x900GB,10K,SAS	2	45.6 lb (20.7 kg)	6.9 Bels	51 dBA	200 (200 to 240)	.79	1.23	153	241	523	823
DS2246-1005-12S-QS-R5	12x450GB,10K,SAS	2	45.6 lb (20.7 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.64	2.55	160	249	547	850
DS2246-1005-12S-QS-R5	12x450GB,10K,SAS	2	45.6 lb (20.7 kg)	6.9 Bels	51 dBA	200 (200 to 240)	.81	1.25	157	245	536	837
DS2246-1007-12S-QS-R5	12x600GB,10K,SAS	2	45.6 lb (20.7 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.64	2.55	160	249	547	850
DS2246-1007-12S-QS-R5	12x600GB,10K,SAS	2	45.6 lb (20.7 kg)	6.9 Bels	51 dBA	200 (200 to 240)	.81	1.25	157	245	536	837
DS2246-12X1.8TB-QS-R6	12x1.8TB,10K,SAS	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.98	2.69	194	263	663	898
DS2246-12X1.8TB-QS-R6	12x1.8TB,10K,SAS	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	.98	1.32	191	258	652	881
DS2246-14.4TB-QS-R6	12x1.2TB,10K,SAS	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.03	2.73	198	267	676	912
DS2246-14.4TB-QS-R6	12x1.2TB,10K,SAS	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.00	1.34	195	262	666	895
DS2246-AF-1.6-12N-0P-C	12x1.6TB,SSD,NSE	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.60	2.29	156	224	533	765
DS2246-AF-1.6-12N-0P-C	12x1.6TB,SSD,NSE	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	.79	1.13	153	220	523	751
DS2246-SL-3.8-12S-QS	12x3.8TB,SSD	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.42	2.13	139	208	475	710
DS2246-SL-3.8-12S-QS	12x3.8TB,SSD	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	.70	1.05	137	204	468	697
DS2246-SL008-4A-QS-R6	4x200GB,SSD	2	35.7 lb (16.2 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.42	2.33	139	228	475	779
DS2246-SL008-4A-QS-R6	4x200GB,SSD	2	35.7 lb (16.2 kg)	6.9 Bels	51 dBA	200 (200 to 240)	.70	1.15	137	224	468	765
DS2246-SL008-4A-QS-R6	4x200GB,SSD	2	37.5 lb (17.0 kg)	6.9 Bels	51 dBA	100 (100 to 120)	.72	2.53	69	256	236	874
DS2246-SL008-4A-QS-R6	4x200GB,SSD	2	37.5 lb (17.0 kg)	6.9 Bels	51 dBA	200 (200 to 240)	.55	1.26	70	251	239	857
DS2246-SL016-4S-QS-R6	4x400GB,SSD	2	39.7 lb (18.0 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.13	1.83	110	179	376	611
DS2246-SL016-4S-QS-R6	4x400GB,SSD	2	39.7 lb (18.0 kg)	6.9 Bels	51 dBA	200 (200 to 240)	.56	.90	108	176	369	601
DS2246-SL024-12A-QS-R6	12x200GB,SSD	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.08	2.98	203	292	693	997
DS2246-SL024-12A-QS-R6	12x200GB,SSD	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.02	1.47	199	287	680	980
DS2246-SL048-12S-QS-R6	12x400GB,SSD	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.19	1.97	114	199	389	679
DS2246-SL048-12S-QS-R6	12x400GB,SSD	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	.75	1.07	115	192	393	655
DS2246-SL096-12N-QS-R6	12x800GB,SSD,NSE	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.08	2.98	203	292	693	997
DS2246-SL096-12N-QS-R6	12x800GB,SSD,NSE	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.02	1.47	199	287	680	980
DS2246-SL096-12S-QS-R6	12x800GB,SSD	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.08	2.98	203	292	693	997
DS2246-SL096-12S-QS-R6	12x800GB,SSD	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.02	1.47	199	287	680	980
DS2246-SL192-12S-QS-R6	12x1.6TB,SSD	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.60	2.29	156	224	533	765
DS2246-SL192-12S-QS-R6	12x1.6TB,SSD	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	.79	1.13	153	220	523	751
Quickship Fully Populated
DS2246-10-.8-1.8-24M-QS	20x1.8TB,NSE,4x800GB,NSE,Mixed	2	54.1 lb (24.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.87	3.58	281	350	960	1195
DS2246-10-.8-1.8-24M-QS	20x1.8TB,NSE,4x800GB,NSE,Mixed	2	54.1 lb (24.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.41	1.75	276	343	942	1171
DS2246-10-1.8-24N-QS	24x1.8TB,10K,SAS,NSE	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.04	3.74	297	366	1014	1250
DS2246-10-1.8-24N-QS	24x1.8TB,10K,SAS,NSE	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.49	1.84	292	359	997	1226
DS2246-1011-24S-QS-R5	24x450GB,10K,SAS	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	-40 (-60 to -40)					837	1468
DS2246-1011-24S-QS-R5	24x450GB,10K,SAS	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.76	4.28	274	428	936	1461
DS2246-1011-24S-QS-R5	24x450GB,10K,SAS	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.58	2.29	270	420	922	1434
DS2246-1014-24N-QS-R5	24x600GB,10K,SAS,NSE	2	52.0 lb (23.6 kg)	6.9 Bels	51 dBA	-40 (-60 to -40)					847	1451
DS2246-1014-24N-QS-R5	24x600GB,10K,SAS,NSE	2	52.0 lb (23.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.77	4.22	267	422	912	1441
DS2246-1014-24N-QS-R5	24x600GB,10K,SAS,NSE	2	52.0 lb (23.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.64	2.29	266	418	908	1427
DS2246-1014-24S-QS-R5	24x600GB,10K,SAS	2	52.0 lb (23.6 kg)	6.9 Bels	51 dBA	-40 (-60 to -40)					847	1451
DS2246-1014-24S-QS-R5	24x600GB,10K,SAS	2	52.0 lb (23.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.77	4.22	267	422	912	1441
DS2246-1014-24S-QS-R5	24x600GB,10K,SAS	2	52.0 lb (23.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.64	2.29	266	418	908	1427
DS2246-1021-24N-QS-R6	24x900GB,10K,SAS,NSE	2	52.0 lb (23.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.43	4.13	336	404	1147	1379
DS2246-1021-24N-QS-R6	24x900GB,10K,SAS,NSE	2	52.0 lb (23.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.69	2.03	330	396	1127	1352
DS2246-18TB-24M-QS-R6	20x900GB,SAS,4x200GB,SSD,Mixed	2	48.9 lb (22.2 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.92	3.44	277	334	945	1139
DS2246-18TB-24M-QS-R6	20x900GB,SAS,4x200GB,SSD,Mixed	2	48.9 lb (22.2 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.43	1.72	269	329	918	1122
DS2246-21.6TB-QS-R5	24x900GB,10K,SAS	2	52.0 lb (23.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.43	4.13	336	404	1147	1379
DS2246-21.6TB-QS-R5	24x900GB,10K,SAS	2	52.0 lb (23.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.69	2.03	330	396	1127	1352
DS2246-24x1.8TB-QS-R6	24x1.8TB,10K,SAS	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.04	3.74	297	366	1014	1250
DS2246-24x1.8TB-QS-R6	24x1.8TB,10K,SAS	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.49	1.84	292	359	997	1226
DS2246-28.8TB-QS-R6	24x1.2TB,10K,SAS	2	54.6 lb (24.8 kg)	6.0 Bels	51 dBA	100 (100 to 120)	2.85	3.55	283	354	966	1209
DS2246-28.8TB-QS-R6	24x1.2TB,10K,SAS	2	54.6 lb (24.8 kg)	6.0 Bels	51 dBA	200 (200 to 240)	1.46	1.80	276	348	942	1188
DS2246-AF-1.6-24N-0P-C/DS2246-S-1.6-24N-QS	24x1.6TB,SSD NSE	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.63	2.34	161	230	550	786
DS2246-AF-1.6-24N-0P-C/DS2246-S-1.6-24N-QS	24x1.6TB,SSD NSE	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	200 (200 to 240)	.93	1.30	159	224	543	766
DS2246-S-1.6-1.8-24N-QS	20x1.8TB,SAS,NSE,4x1.6TB,SSD,NSE,Mixed	2	54.0 lb (24.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.87	3.55	281	347	960	1185
DS2246-S-1.6-1.8-24N-QS	20x1.8TB,SAS,NSE,4x1.6TB,SSD,NSE,Mixed	2	54.0 lb (24.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.41	1.74	276	341	942	1164
DS2246-SL-3.8-24S-QS	24x3.8TB,SSD	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.91	2.62	187	256	639	874
DS2246-SL-3.8-24S-QS	24x3.8TB,SSD	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	200 (200 to 240)	.94	1.29	184	251	628	857
DS2246-SL001-24M-QS-R6	20x1.2TB,4x400GB,Mixed	2	48.9 lb (22.2 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.92	3.44	277	334	945	1139
DS2246-SL001-24M-QS-R6	20x1.2TB,4x400GB,Mixed	2	48.9 lb (22.2 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.43	1.72	269	329	918	1122
DS2246-SL002-24M-QS-R6	20x1.8TB,SAS,4x400GB,SSD,Mixed	2	54.1 lb (24.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.87	3.58	281	350	960	1195
DS2246-SL002-24M-QS-R6	20x1.8TB,SAS,4x400GB,SSD,Mixed	2	54.1 lb (24.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.41	1.75	276	343	942	1171
DS2246-SL009-24M-QS-R6	20x900GB,4x400GB,Mixed	2	52.5 lb (23.8 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.70	3.60	264	352	902	1202
DS2246-SL009-24M-QS-R6	20x900GB,4x400GB,Mixed	2	52.5 lb (23.8 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.33	1.77	259	345	884	1178
DS2246-SL048-24A-QS-R6	24x200GB,SSD	2	45.2 lb (20.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.60	3.41	161	343	550	1171
DS2246-SL048-24A-QS-R6	24x200GB,SSD	2	45.2 lb (20.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	.90	1.67	162	336	553	1147
DS2246-SL096-24S-QS-R6	24x400GB,SSD	2	48.9 lb (22.2 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.75	2.40	174	240	594	819
DS2246-SL096-24S-QS-R6	24x400GB,SSD	2	48.9 lb (22.2 kg)	6.9 Bels	51 dBA	200 (200 to 240)	.97	1.29	167	236	570	805
DS2246-SL192-24A-QS-R6	24x800GB,SSD	2	54.7 lb (24.8 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.80	3.54	281	354	960	1209
DS2246-SL192-24A-QS-R6	24x800GB,SSD	2	54.7 lb (24.8 kg)	6.9 Bels	51 dBA	200

Compatible With:

NetApp DS2246
NetApp DS4246
