Dell PowerVault MD3860f 60x3.5" 12Gb SAS + 16Gb (FC) SAN Storage Array CTO
Configure for Pricing
Quick Specs
Form Factor:
4U rack server
Storage | Max Drives: 12060 LFF SAS (HDD/SSD)
Mix and match drives:Supported
Controllers:Supports up to 2
Cache Per Controller:4GB or 8GB

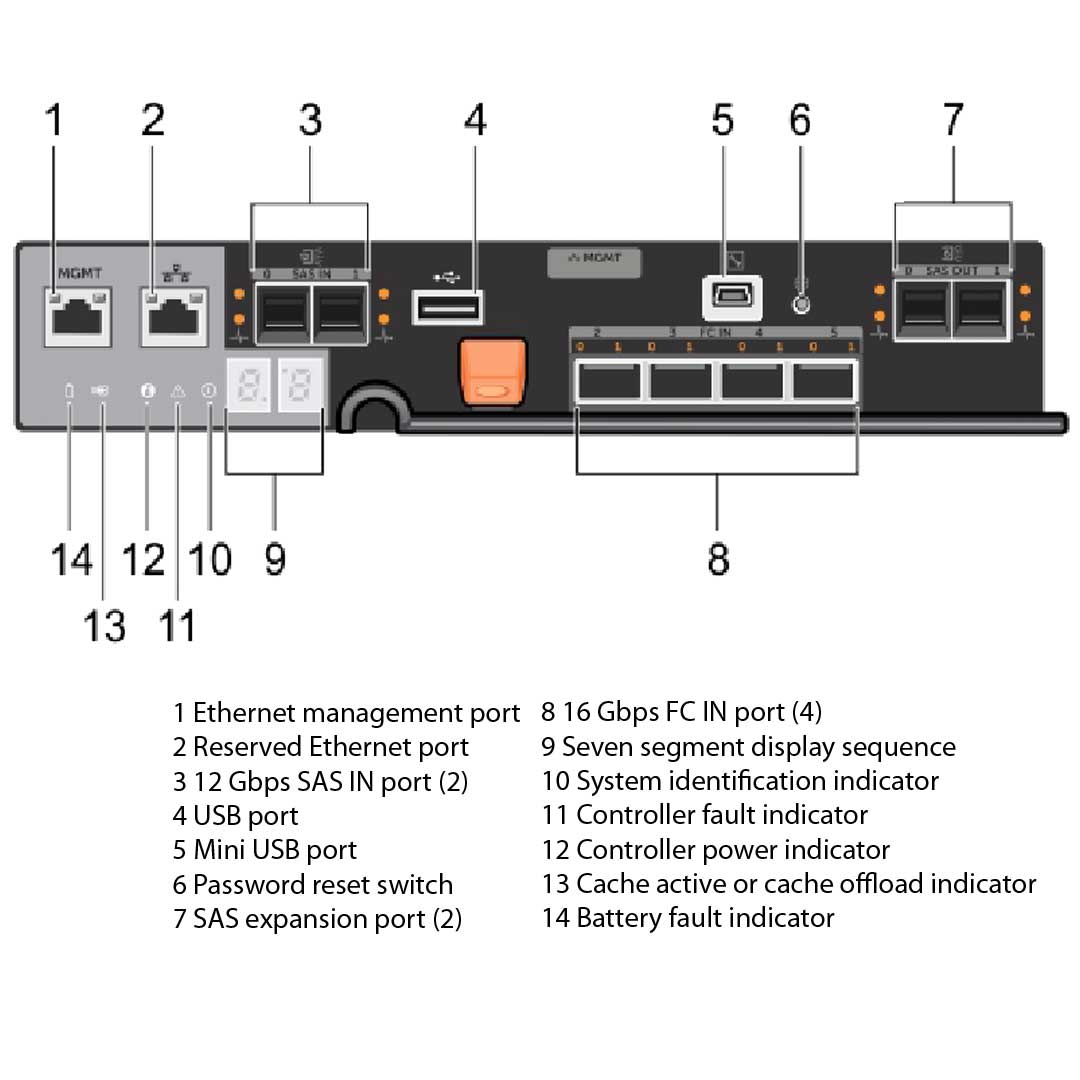

Ports Per Controller:- Four x4 16Gb FC SFP &
Two 12Gb SAS Host Connectivity - Two 12Gb SAS Expansion Connectivity
- One RJ-45 1Gb Ethernet Remote Management
- One PS/2 Serial Service Management
Host Connectivity:
Single or Dual Controller Models:
Single or Dual Controller Models:
Support up to 64 servers
Expansion Storage:Scale up to 120 (180 disks with premium feature kit) total drives using MD3060e expansion enclosures
Other Storage Arrays in the MD Series (JBOD)
MD3200 Series
Data Speeds1Gb iSCSI
6Gb SAS
Server Options
MD3060e
MD3200 12 Bay SAS
MD3200i 12 Drive iSCSI
MD3220 24 Drives SAS
MD3220i 24 Drives iSCSI
MD3400 Series
Speeds12Gb SAS
10GBase-T iSCSI
16Gb FC
Server OptionsMD3400 12 Drives
MD3420 24 Drives
MD3460 60 Drives
MD3600 Series
Speeds10GBase-T iSCSI
8Gb FC
Server Options
MD3600i 12 Drives iSCSI
MD3600f 12 Drives Fibre
MD3620i 24 Drives iSCSI
MD3620f 24 Drives Fibre
MD3660i 60 Drives iSCSI
MD3660f 60 Drives Fibre
MD3800 Series
Speeds10GBase-T iSCSI + 12Gb SAS
16 FC + 12Gb SAS
Server Options
MD3800i 12 Drives iSCSI
MD3800f 12 Drives Fibre
MD3820i 24 Drives iSCSI
MD3820f 24 Drives Fibre
MD3860i 60 Drives iSCSI
MD3860f 60 Drives Fibre

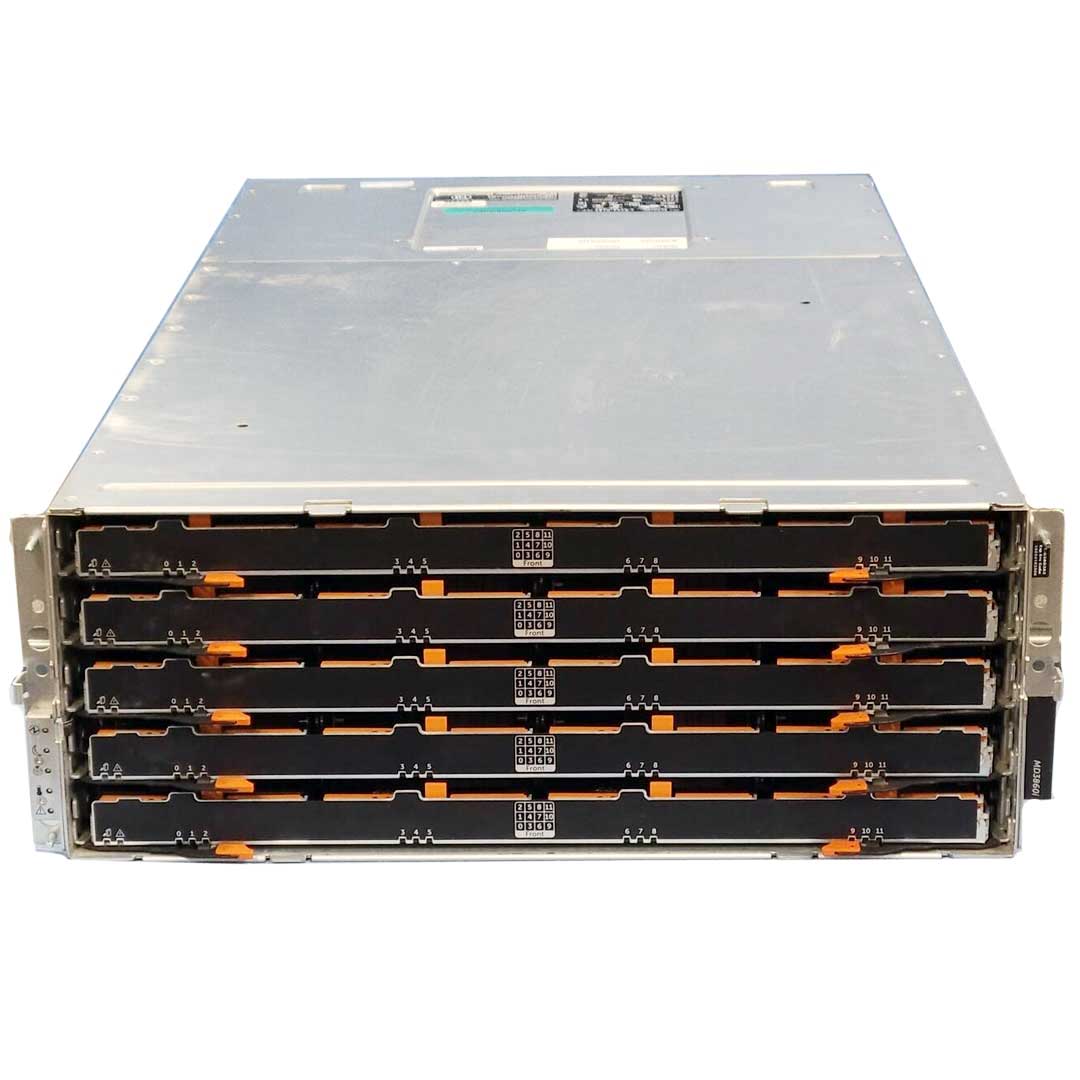

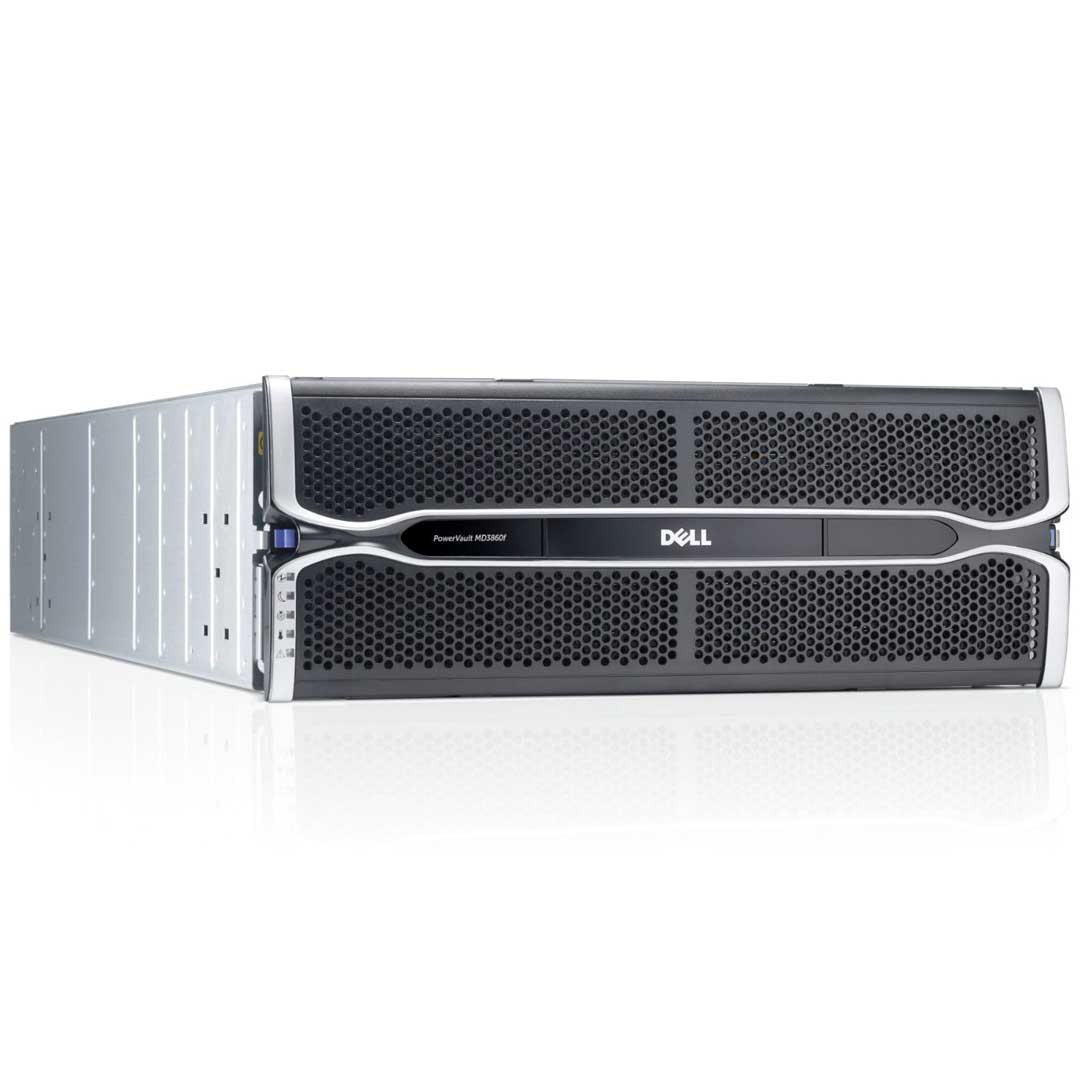

The Refurbished Dell PowerVault MD3860f is a high-performance storage array that is designed to meet the demands of modern data centers. With support for up to 60 3.5 inch or 2.5 inch hard drives or solid-state drives (SSDs), this 4U rack-mounted system is perfect for businesses that require reliable and scalable storage solutions.

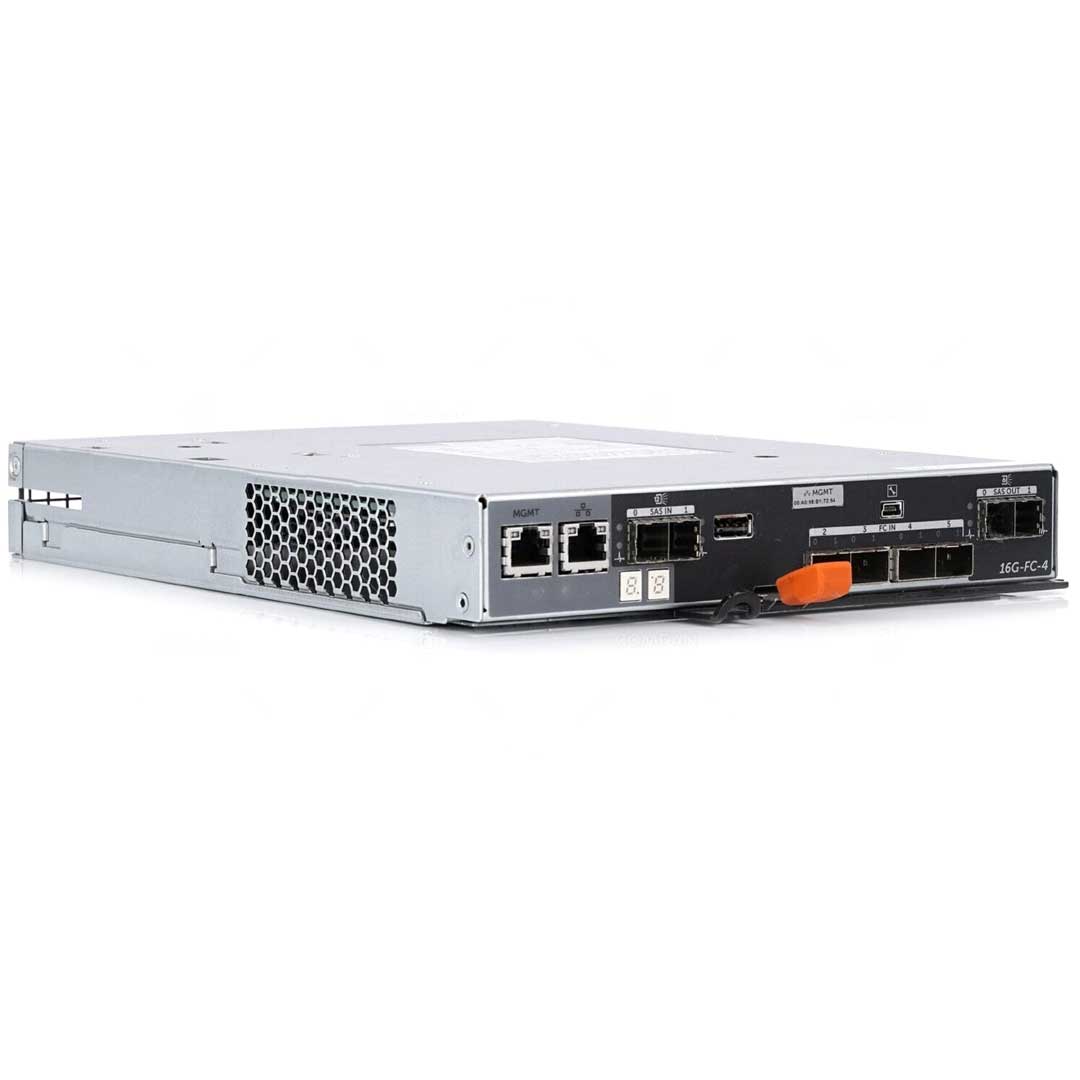

The MD3860f is equipped with 16Gb Fibre Channel and 12Gb/s SAS controllers that offer the latest technology in high-speed connectivity. It comes with 4GB or 8GB cache per controller and solid-state drive (SSD) support that maximizes performance, ensuring that your data is always available when you need it. The MD3860f offers single and dual controller models, with a maximum capacity of 16GB (8GB per controller), to cater to your specific storage needs.
The Storage Array You Need
This Dell MD3860f storage array is built to be flexible and scalable, allowing you to mix and match drives to create a tiered storage environment that is perfect for your business. You can expand the number of physical disks up to a maximum of 120 disks (180 disks with premium feature kit), by daisy-chaining your storage enclosure with up to two MD3060e SAS-based expansion enclosures. This enables you to store and manage large amounts of data without having to worry about running out of storage space.

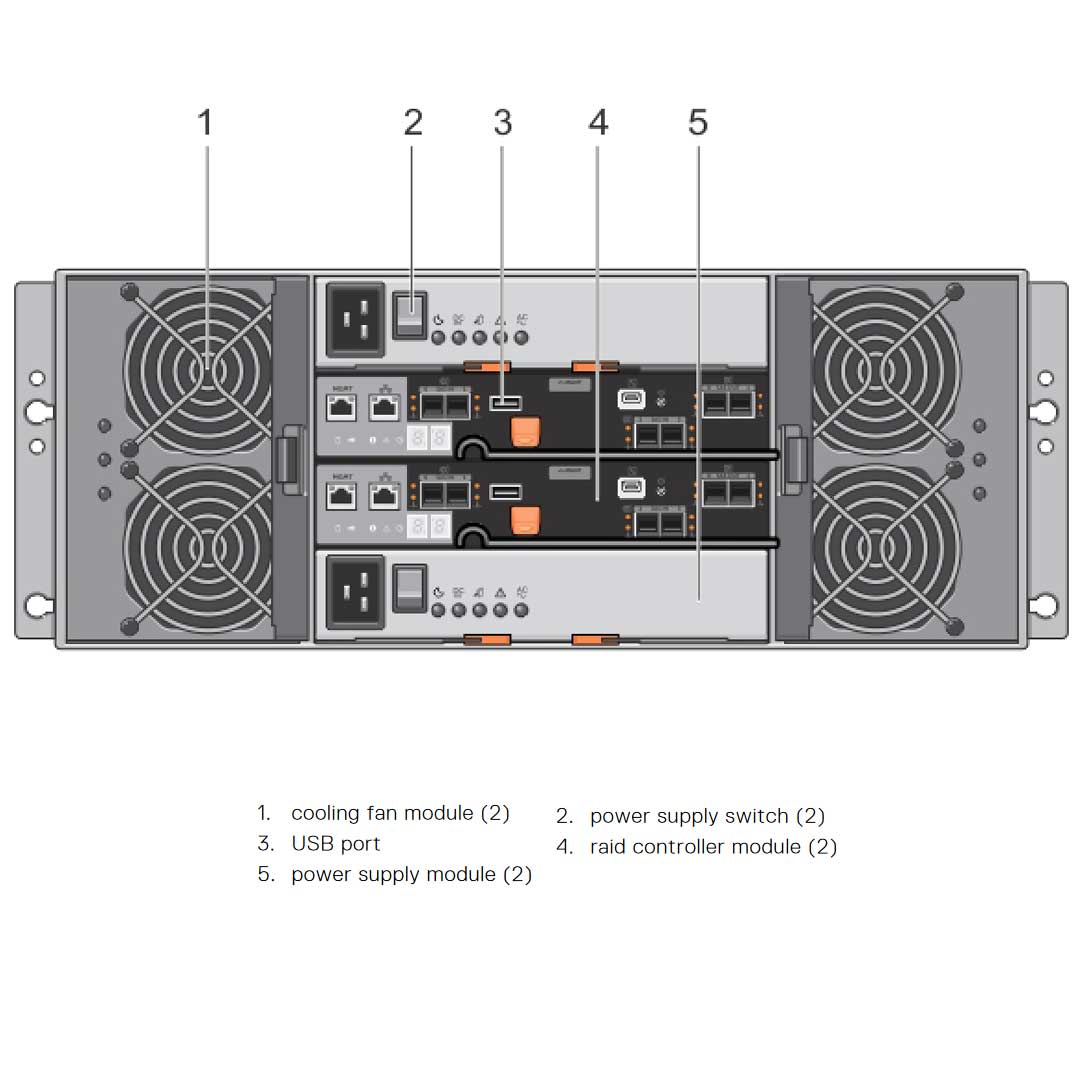

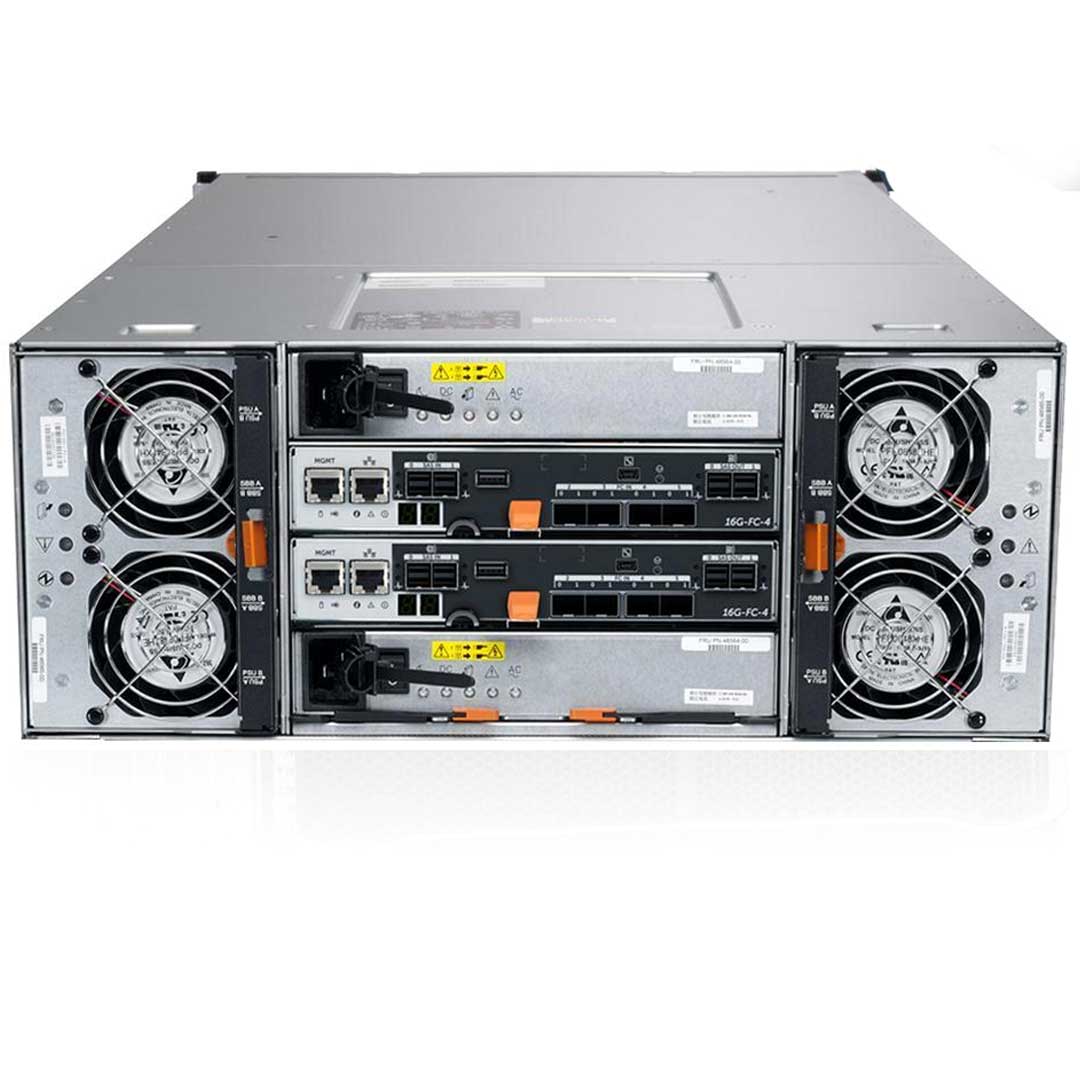

The MD3860f comes with six ports per controller, which includes four 16Gb Fibre Channel and two 12Gb SAS ports, making it ideal for businesses that require high-speed data transfer rates. It also supports up to 64 servers directly connected per controller, with a maximum host of 64, which makes it a perfect solution for businesses with multiple servers.
