Specs
Quick Specs
Form Factor:
2U rack server
Processor | Max: 28 Cores2 x Gen2 Intel Xeon Scalable
Memory | Max: 3TB24 ECC DDR4 RDIMM/LRDIMM 2933Mhz
Up to 12 NVDIMM, 192 GB Max
Front bays:24x SFF SAS/SATA (HDD/SSD) NVMe
Mid bay: 4x LFF or 4x SFF SAS/SATA (HDD/SSD) NVMe
Rear bay: 2x LFF or 4x SFF SAS/SATA (HDD/SSD) NVMe
Boot Optimized Server Storage (BOSS-S1)
Internal Dual SD module (IDSDM) w/ a 16GB vFlash card
S140 (software RAID)
H730P, H740P, H840, H750, HBA330, HBA350i, HBA355e, 12Gbps SAS HBA
4x 1GbE, 2x 10GbE + 2x 1GbE, 4x 10GbE, 2x 25GbE NDC
(Many Options to choose from)
iDRAC9 Express (default) with Lifecycle Controller
PCIe Slots:Up to 8 PCIe Gen 3 slots, maximum of 4x 16 slots
GPU: **Available only on 24x 2.5” chassis- Up to (3) 300W GPUs
- Up to (6) 150W GPUs
- Up to (3) double-width FPGAs
- Up to (4) single-width FPGAs
Other Versions
- Dell PowerEdge R710
- Dell PowerEdge R720
- Dell PowerEdge R720XD
- Dell PowerEdge R730
- Dell PowerEdge R730XD
- Dell PowerEdge R740
- Dell PowerEdge R740XD
- Dell PowerEdge R740XD2
- Dell PowerEdge R7415
- Dell PowerEdge R7425
- Dell PowerEdge R750
- Dell PowerEdge R750XA
- Dell PowerEdge R750XS
- Dell PowerEdge R7515
- Dell PowerEdge R7525
- Dell PowerEdge R760
- Dell PowerEdge R760XA
- Dell PowerEdge R760XS
- Dell PowerEdge R760XD2
- Dell PowerEdge R7615
- Dell PowerEdge R7625
Ideal for:
- Database
- High-Performance Computing (HPC)
- Retail Servers
- Virtual Desktop Interface (VDI)

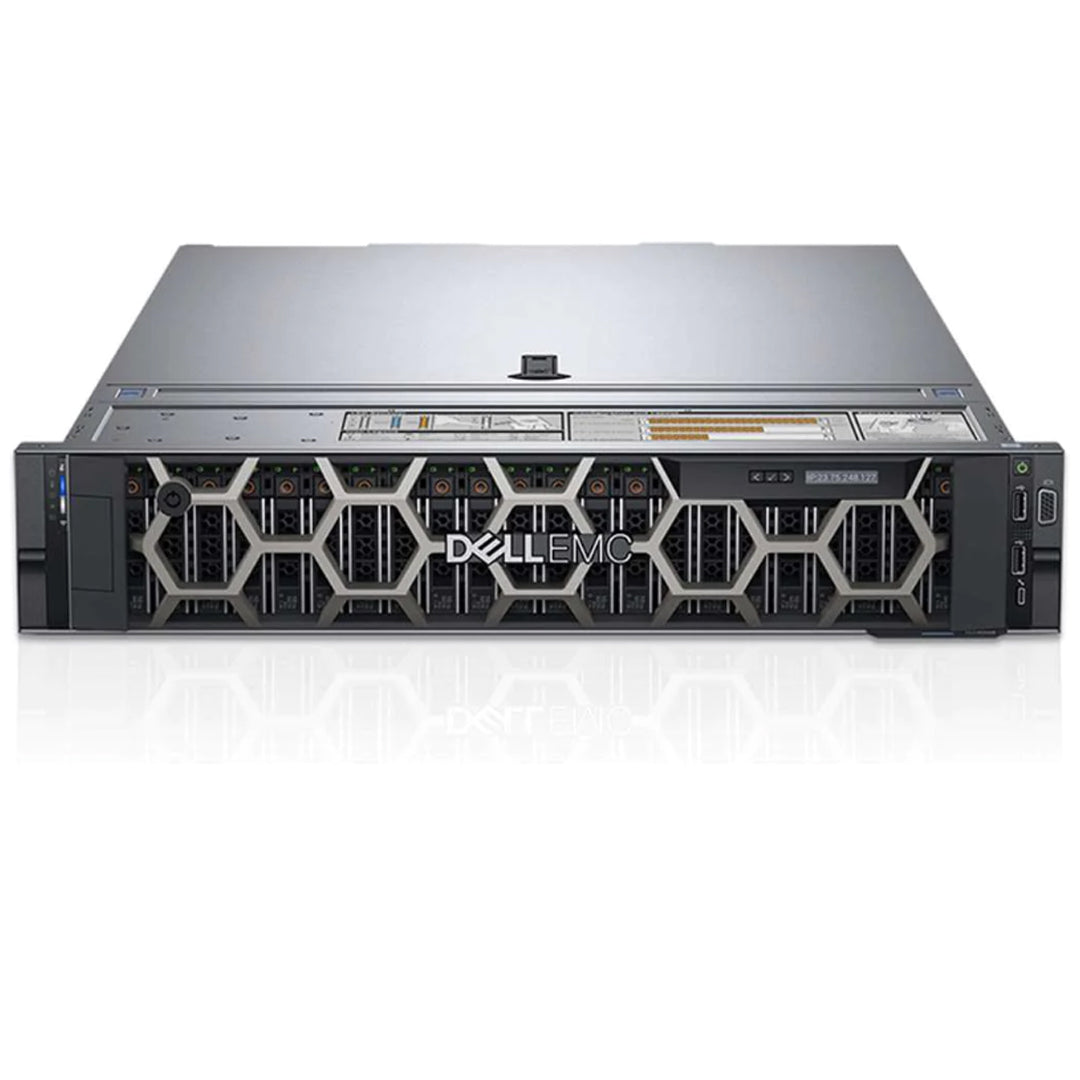

The Dell PowerEdge EMC R740xd delivers a perfect balance between storage scalability and performance. The 2U two-socket platform is ideal for software-defined storage, service providers, or as virtual desktop infrastructure.
The R740XD has many configurations. Please read up on the manuals to make sure your configuration is going to work. Below are the Spec and Tech manuals.
The Dell PowerEdge R740xd has 3 Backplanes to choose from.

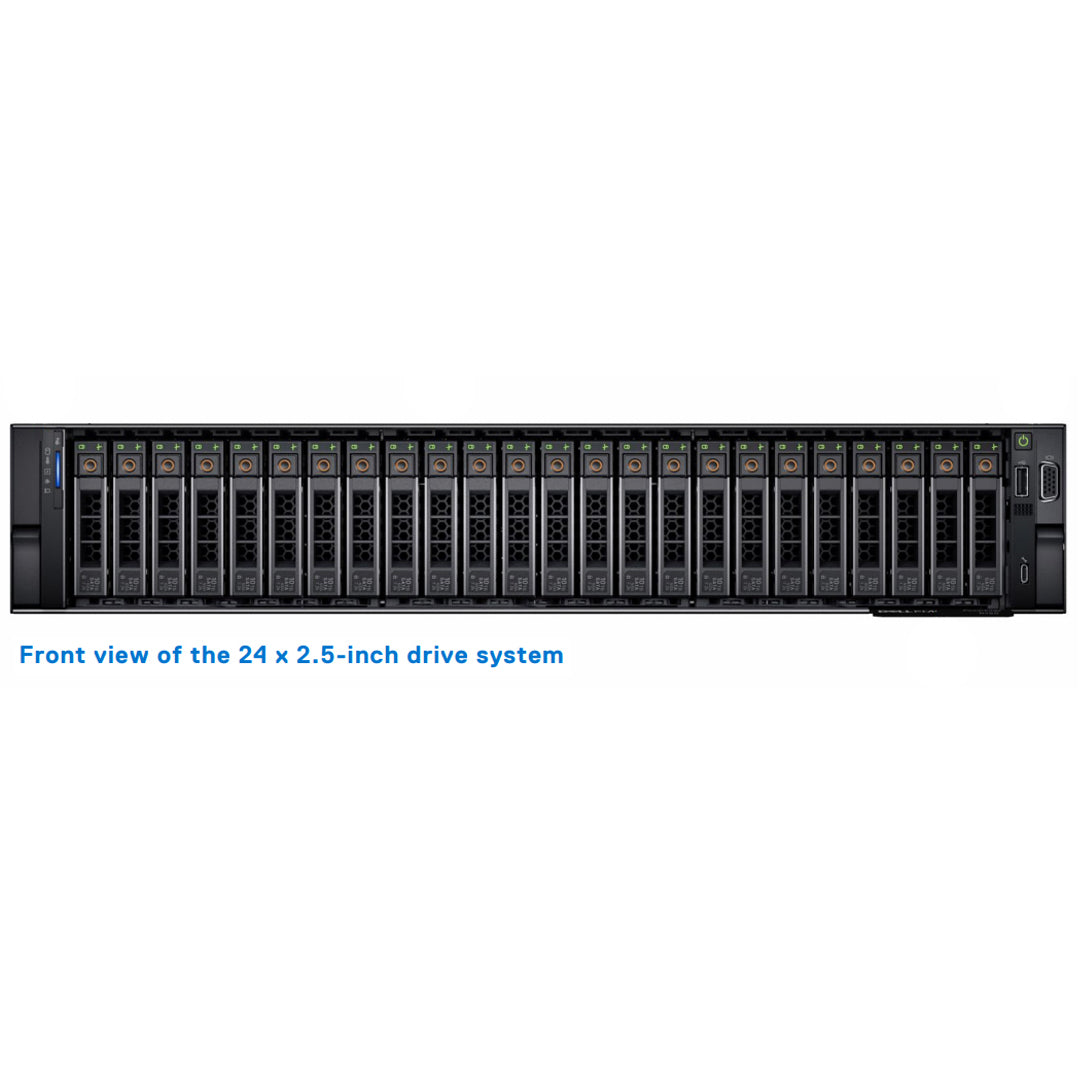

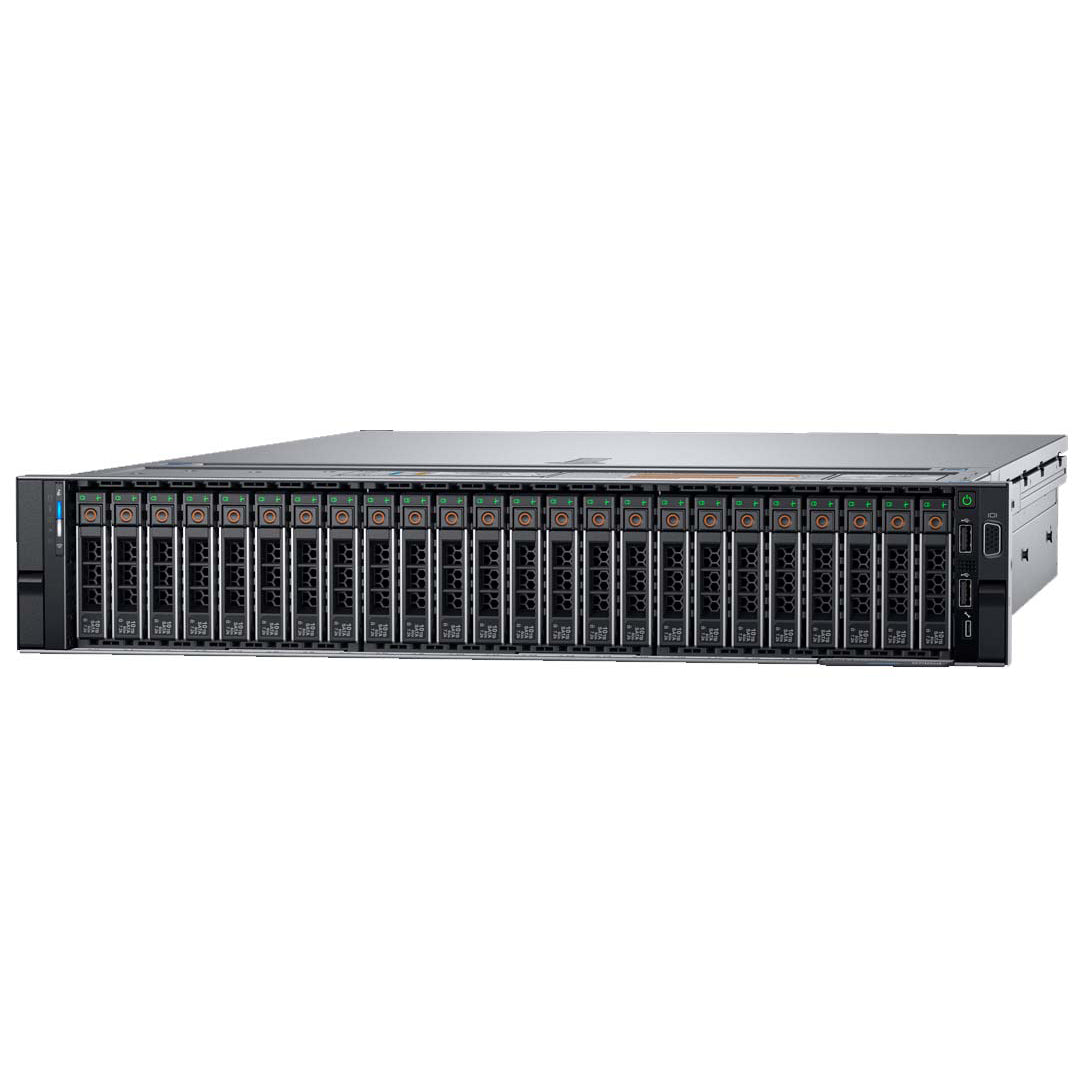

The 24 x 2.5" SAS/SATA/NVMe with a max of 12 NVMe drives allowed. Supports the mid and rear drive trays.
The 12 x 3.5" SAS/SATA (HDD/SDD) which supports the mid and rear drive trays.
The 24 x (NVMe) does not support a mid or a rear drive tray.

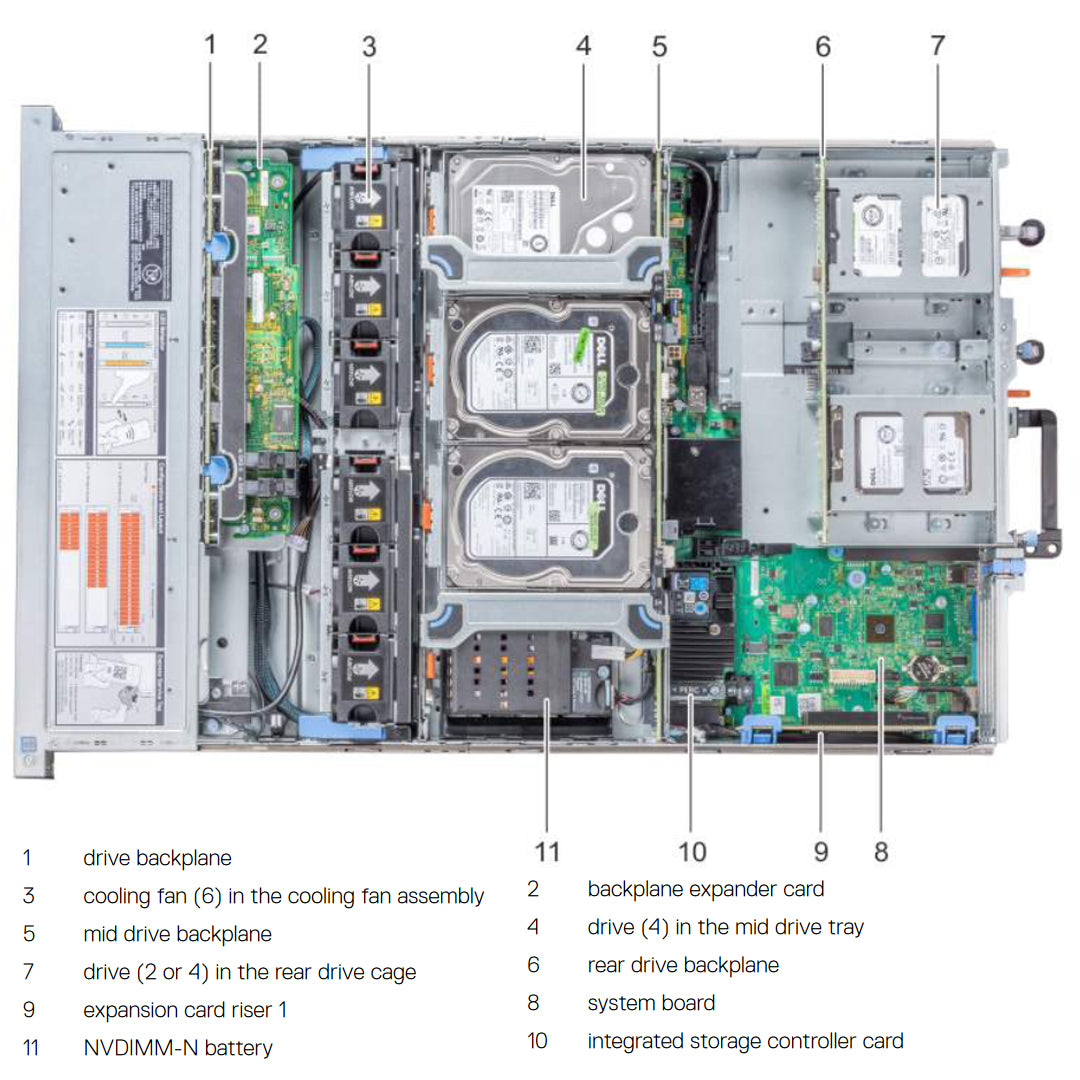

If you're thinking of having NVDIMM's with a battery. You can only install a 3.5" Mid-drive tray or no mid-drive tray. The Mid mid-drive tray for the 2.5" does not support a NVDIMM battery.
Maximize performance and capacity
The scalable system architecture behind the Dell R740xd Server with up to 24 NVMe drives creates the ideal balance between scalability and performance. The refurbished poweredge R740xd versatility is highlighted with the ability to mix any drive type to create the optimum configuration of NVMe, SSD and HDD for either performance, capacity or both. The PowerEdge R740xd server is the platform of choice for software defined storage and is the foundation for ScaleIO, VSAN or the PowerEdge XC.
- Maximize storage performance with up to 24 NVMe drives and ensure application performance scales to meet demands.
- Free up storage space using internal M.2 SSDs optimized for boot.
- Simplify and accelerate ScaleIO or VMware vSAN deployments with validated, pre-bundled and tailored Ready Nodes.
- Accelerate workloads with up to 3 double-width 300W GPUs, up to 6 single-width 150W GPUs or up to 4 FPGAs.
Automate systems management with OpenManage
Dell EMC PowerEdge servers with OpenManage technology work at peak efficiency for PowerEdge servers, delivering intelligent, automated management of routine tasks. Combined with unique agent-free management capabilities, the R740xd is simply managed, freeing up time for high profile projects.
- Simplify management with the New OpenManage Enterprise console, with customized reporting and automatic discovery.
- Take advantage of QuickSync 2 capabilities and gain access to your servers easily through your phone or tablet.
Optimize flexibility and density
Benefit from scalable storage performance and data set processing with the Dell PowerEdge EMC R740xd server. This 2U, 2-socket platform brings you scalability and performance to adapt to a variety of applications. Choose up to 24 NVMe drives, or a total of 32 x 2.5” or 18 x 3.5” drives. As you scale your deployments, scale your productivity with embedded intelligence and automation from iDRAC9 and the entire OpenManage portfolio designed to simplify the IT lifecycle from deployment to retirement.
Accomplish IT transformation with Dell EMC PowerEdge servers
Transform your data center for modern applications and operations with the help of the R740xd. Storage performance and flexibility create the perfect balance for software-defined storage or data set processing and analytics.
- Simplify deployment and easily scale from 3 to 1000+ nodes for software-defined storage with Dell EMC Ready Node for ScaleIO.
- Maximize storage performance with up to 24 NVMe drives and ensure application performance scales to meet demands.
- Drive demanding workloads with 2nd Generation Intel Xeon Scalable processors and Intel Optane DC Persistent Memory.
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Features | Technical specification | |
|---|---|---|
| Processor | Up to two Intel ® Xeon ® Scalable processors, up to 28 cores per processor | |
| Memory | 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Supports registered ECC DDR4 DIMMs only | |
| Storage controllers | Internal controllers: PERC H730P, H740P, Software RAID (SWRAID) S140 External PERC (RAID): H840 12Gbps SAS HBAs (non-RAID): External-12Gbps SAS HBA (non-RAID): Internal- HBA330 (non-RAID) Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB or 240 GB | |
| Drive bays | Front bays:
| |
| Power supplies | Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, 2000W 48VDC 1100W, 380HVDC 1100W, 240HVDC 750W Hot plug power supplies with full redundancy Up to 6 hot plugs fans with full redundancy | |
| Dimensions | Form factor: Rack (2U) Max depth: 715.5 mm | |
| Embedded management | IPMI 2.0 compliant iDRAC9 with Lifecycle Controller (Express, Enterprise) Quick Sync 2 wireless module optional | |
| Bezel | Optional LCD bezel or security bezel | |
| OpenManage Software | OpenManage Enterprise OpenManage Mobile OpenManage Essentials OpenManage Power Manager | |
| Integrations and connections | Integrations: Microsoft System Center VMware vCenter BMC Software | Connections: IBM Tivoli® Netcool/OMNIbus IBM Tivoli® Network Manager, HP Operations Manager, CA Network and Systems Management Oracle Enterprise Manager Nagios® Core Nagios® XI |
| Security | TPM 1.2/2.0 optional Cryptographically signed firmware Secure Boot Secure Erase System Lockdown | |
| I/O & Ports | Network daughter card options:

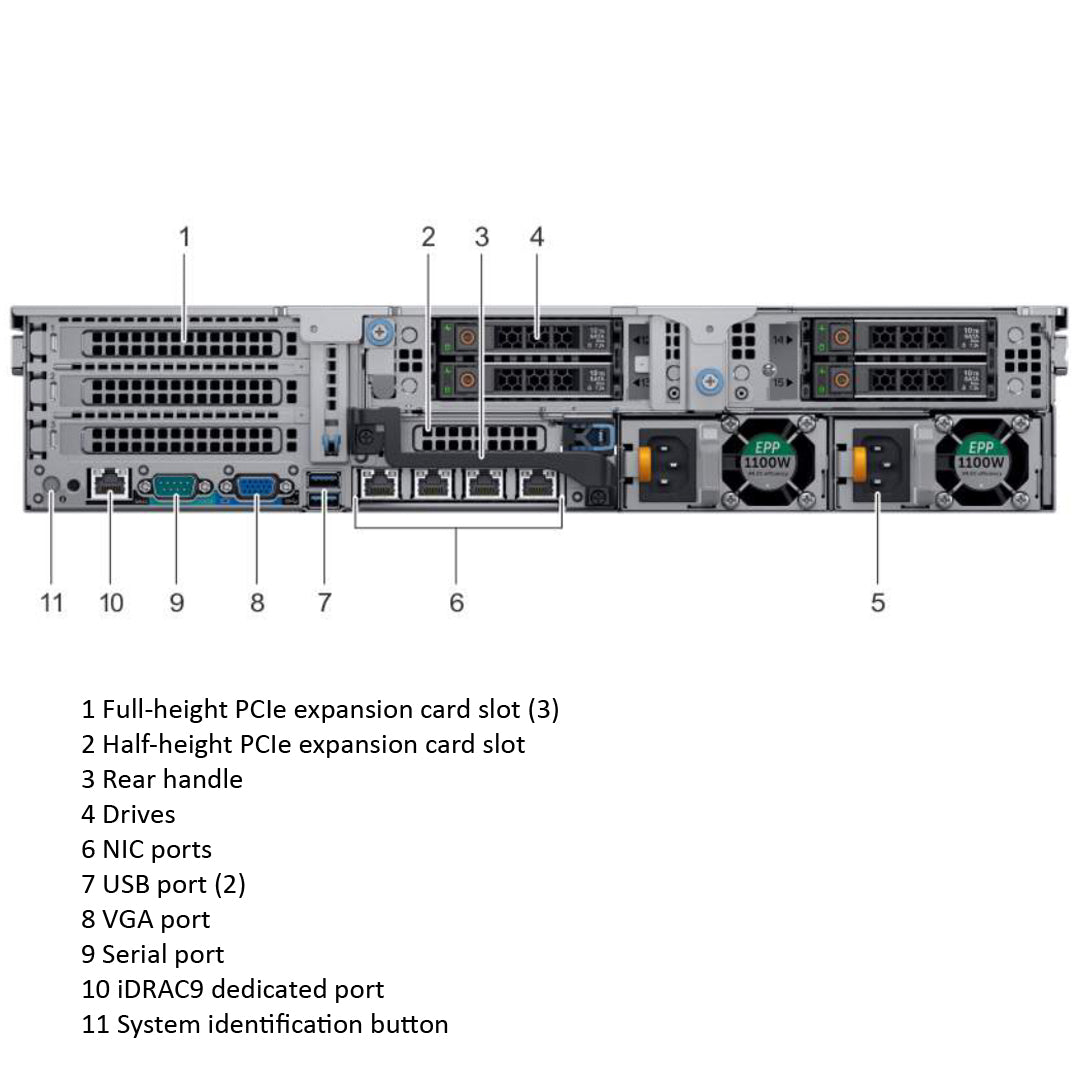

| Rear Ports:
|
| Accelerator options | GPU and FPGA options are available only on 24 x 2.5” drive chassis
| |
| Supported operating systems | Canonical® Ubuntu® LTS Citrix® XenServer Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi | |
Spec Sheet 4
| Feature | PowerEdge R740/R740xd | PowerEdge R730/R730xd |
|---|---|---|
| Processor | 2 x 2nd Generation Intel® Xeon® Scalable processor family | Intel® Xeon® processor E5-2600 product family |
| CPU interconnect | Intel Ultra Path Interconnect (UPI) | Intel QuickPath Interconnect (QPI) |
| Memory | ● 24 x DDR4 RDIMM, LRDIMM
● 12 x NVDIMM ● 12 x DCPMM (Intel® Optane™ DC persistent memory) |
24 x DDR4 RDIMM, LRDIMM |
| Disk Drives | ● 3.5 -inch or 2.5 -inch 12Gb/s SAS, 6Gb/s
SATA
● Up to 24 x NVMe |
● 3.5 -inch, 2.5 -inch or 1.8 -inch 12Gb/s SAS, 6Gb/s
SATA
● 4 x PCIe SSD with common slot |
| Storage Controllers | Adapters: HBA330, HBA350i, H330(R740 only), H350(R740 only), H730P, H740P, H840, 12G SAS HBA, HBA355e, H750 Mini Mono: HBA330, H330(R740 only), H730P, H740P, H350 (R740 only), HBA350i (R740xd only) SW RAID: S140 | Adapters: HBA330, H330, H730, H730P, H830 (ext) Mini Mono: HBA330, H330, H730, H730P SW RAID: S130 |
| PCIe Slots | Max 8 x PCIe 3.0 | Max 7 x PCIe 3.0 or 6 x PCIe 3.0 |
| rNDC | 4x 1GbE, 4x 10GbE, 2x 10GbE + 2x 1GbE, or 2x 25GbE | 4x 1GbE, 4x 10GbE, or 2x 10GbE + 2x 1GbE |
| USB Ports | Front:
● 1 x Dedicated iDRAC direct USB ● 2 x USB 2.0 ● 1 x USB 3.0 (optional only for R740) ● 1 x Video Rear: ● 1 x Dedicated iDRAC network port ● 1 x Serial ● 2 x USB 3.0 ● 1 x Video |
Front: two ports (USB 2.0), one managed port Rear: two ports (USB 3.0) Internal: one port (USB 3.0) |
| Rack Height | 2U | 2U |
| Power Supplies | ● AC (Platinum): 495W, 750W, 1100W,
1600W, 2000W, 2400W
● AC (Titanium): 750W, 1600W, 2600W ● DC: 1100W ● DC: 750 W Mixed Mode Platinum (for China only) ● AC: 750 W Mixed Mode Platinum ● Mixed mode/HVDC: 750W, 1100W |
● AC: 495W, 750W, 1100W
● DC: 750W, 1100W |
| System Management | Lifecycle Controller 3.x, OpenManage, QuickSync2.0, OMPC3, Digital License Key, iDRAC Direct(dedicated micro-USB port), Easy Restore, vFlash | Lifecycle Controller 3.x, OpenManage, QuickSync1.0, PM3, Digital License Key, iDRAC8, iDRAC Direct( dedicated micro-USB port), Easy Restore, vFlash |
| Internal GPU | ● *3 x 300W (double-width) or 6 x 150W (single-width) NOTE: *Only supports up to 2 x NVIDIA M10 GPUs. | ● 2 x 300W (double-wide) or 4 x 150W (single-wide)
● Not supported on R730xd ● FPGAs not supported on the R730/xd. |
| Availability | Hot-plug Redundant Cooling
Hot-plug Drives Hot-plug Redundant Power Supplies Boot Optimized Storage Subsystem (BOSS) IDSDM |
Hot-plug Drives Hot-plug Redundant Cooling Hot-plug Redundant Power Supplies IDSDM |
