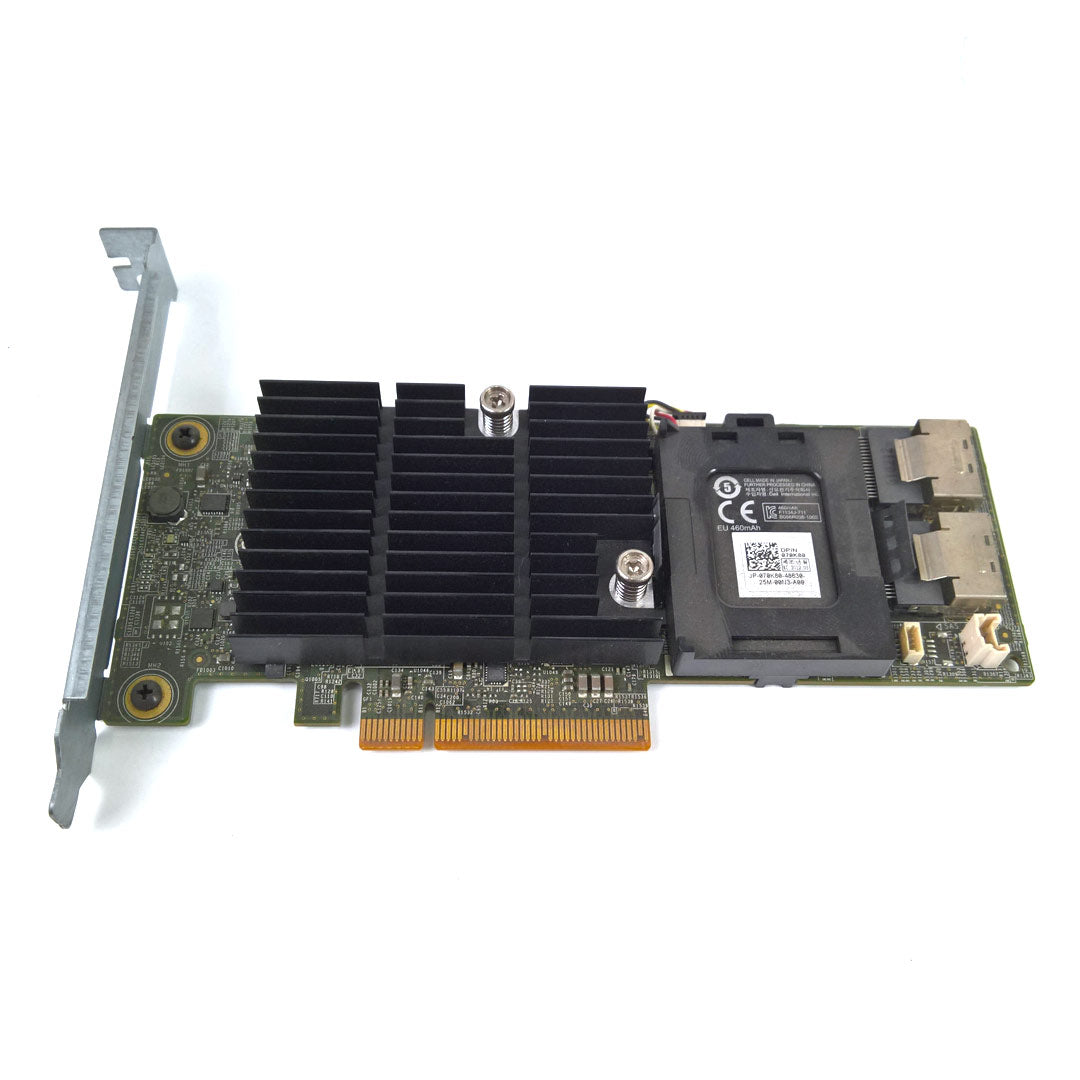

Dell PERC 8 H710p 1GB SAS 6Gb RAID Controller FH | KYJRD

SKU: KYJRD

Dell PERC 8 H710p 1GB SAS 6Gb RAID Controller FH | KYJRD

Name: Dell PERC 8 H710p 1GB SAS 6Gb RAID Controller FH | KYJRD
Brand: Dell
SKU: KYJRD
Price: 150.0 USD
Availability: OutOfStock

Dell

| Adapter

.price-ui--loading { display: block !important; opacity: 1 !important; }

$150.00

Thanks for the request. We'll get back to you with in 24 hours.

Adapter Specs

Models: PERC 8 H710p
Drive Types: 6 Gb/s SAS
PCI Support: PCI-e 2.0
SAS Connectors: 2x4 Internal
Cache Memory: 1GB NV
Write Back Cache: Flash Backed Cache
RAID Levels: 0, 1, 5, 6, 10, 50, 60
Max Drive Support: 32
RAID Support: Hardware

Part Number:

Mini Mono: TY8F9
FH: KYJRD

The Dell PERC 8 H710p 1GB SAS 6Gb RAID Controller FH provides robust storage performance and data protection through its hardware RAID capabilities. Supporting PCI-e 2.0 and dual 2x4 internal SAS connectors, it offers reliable throughput and compatibility for legacy Dell PowerEdge platforms.

Equipped with 1GB of non-volatile cache and flash-backed write cache, the H710p supports RAID levels 0 through 60 and handles up to 32 connected drives. This full-height controller is ideal for performance-sensitive applications requiring dependable RAID functionality and SAS 6Gb connectivity.

Mini SAS Cables: F4DPW

The PERC H710p provides high server RAID performance for database and multimedia applications. An eight-port, 6Gb/s PCI Express RAID controller, the Dell PowerEdge RAID Controller (PERC) H710p provides high server RAID performance for database and multimedia applications.

As storage demands expand and processing loads grow, it becomes increasingly more difficult for administrators to achieve maximum performance from their applications. The newest line of Dell PowerEdge RAID Controller cards, built on the LSISA2208 dual-core PowerPC RAID-on-Chip (ROC), offers unmatched I/O performance for database applications and streaming digital media environments.

The PowerEdge RAID Controller (PERC) H710p, with eight internal ports, delivers two PowerPC processor cores and a 72-bit DDR3 interface that drives 1GB cache memory. You can deploy the PERC H710p in hard-drive-based server environments for significant performance gains. If you are implementing hybrid server platforms based on solid-state storage, these next-generation PERCs exploit the potential of solid-state drives (SSDs) for unsurpassed performance and enterprise-class reliability.

Advanced software options: The Dell family of 6Gb/s PowerEdge RAID Controllers is designed to support advanced software options for the Dell PowerEdge server family with enhanced performance and data protection capabilities. These new software options can help you address key business challenges while helping to deliver a higher return on your IT investments. The PERCs and Dell's Cut Through I/O (CTIO) feature boost transactional I/O performance of both rotational hard-drive and SSD configurations.

Enterprise data protection: Standard support for the most popular RAID levels and accessories, including RAID 5, RAID 6, RAID 50, RAID 60, and NVCache, further strengthen the data-protection capabilities of the PERC H710p. Dell's NVCache technology backs up the data to non-volatile storage in a power-loss event and can store it safely for a nearly unlimited period of time.

Intuitive RAID management utility: Dell OpenManage Storage Services (OMSS) provides the essential tools to efficiently manage PERC products, whether deployed in an enterprise or small business. Dell offers a collection of applications and tools, including a pre-boot setup utility and a full spectrum of online RAID management utilities. This suite of applications allows administrators to adjust SAS or SATA topology views from the system host, controller, and disk enclosure down to the logical and physical drive level. Extending to enterprise deployments, these tools can scale to easily configure, monitor and manage RAID and JBOD volumes locally or over the LAN network.

Compatible With:

Dell R820

(Click to View)

Spec Sheet 4

Models	Drive Types	PCI Support	SAS Connectors	Cache Memory	Write Back Cache	RAID Levels	Max Drive Support	RAID Support
H810 Adapter	6 Gb/s SAS	PCI-e 2.0	2x4 External	1 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	192	Hardware
H710P Adapter	6 Gb/s SAS	PCI-e 2.0	2x4 Internal	1 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H710P Mini Mono	6 Gb/s SAS	PCI-e 2.0	2x4 Internal	1 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H710P Mini Blade	6 Gb/s SAS	PCI-e 2.0	2x4 Internal	1 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	4	Hardware
H710 Adapter	6 Gb/s SAS	PCI-e 2.0	2x4 Internal	512 MB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H710 Mini Mono	6 Gb/s SAS	PCI-e 2.0	2x4 Internal	512 MB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H710 Mini Blade	6 Gb/s SAS	PCI-e 2.0	1x4 Internal	512 MB NV	Flash Backed Cache	0,1,5,6,10,50,60	4	Hardware
H310 Adapter	6 Gb/s SAS	PCI-e 2.0	2x4 Internal	-	-	0,1,5,10,50	16, Non-RAID 32	Hardware
H310 Mini Mono	6 Gb/s SAS	PCI-e 2.0	2x4 Internal	-	-	0,1,5,10,50	16, Non-RAID 32	Hardware
H310 Mini Blade	6 Gb/s SAS	PCI-e 2.0	1x4 Internal	-	-	0,1,5,10,50	4	Hardware
S110	3 Gb/s SATA	PCI-e 2.0	-	-	-	0,1,5,10	4	Software - Windows Only

Dell PERC 8 H710p 1GB SAS 6Gb RAID Controller FH | KYJRD

Part Number:

Spec Sheet 4
