HPE ProLiant DL560 (G10) Entry Server 5220 2.2GHz 18C 2P 64GB-R P408i-A 8SFF 1600W RPS | P21271-B21

SKU: P21271-B21

HPE ProLiant DL560 (G10) Entry Server 5220 2.2GHz 18C 2P 64GB-R P408i-A 8SFF 1600W RPS | P21271-B21

Name: HPE ProLiant DL560 (G10) Entry Server 5220 2.2GHz 18C 2P 64GB-R P408i-A 8SFF 1600W RPS | P21271-B21
Brand: HPE
SKU: P21271-B21
Availability: InStock

HPE

| Server

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Comes with:

Processors - 2 x Intel® Xeon® 5220 (18-Core, 2.2GHz, 125W )
Memory - 64 GB (2x32GB Registered DIMMs, 2933 MT/s)
Network Controller - HPE Ethernet 1Gb 4-port FLR-T I350-T4V2 Adapter
Storage Controller - HPE Smart Array P408i-a
Hard Drive - None ship standard
Internal Storage - 8 SFF Drive Bays
Notes:
− Can be expanded up to a max of 24 SFF drives, with optional HPE DL560 Gen10 8SFF HDD Bay2 Kit (872235-B21) and HPE DL560 Gen10 8 SFF HDD Bay1 Kit (872231-B21).
− Optionally NVMe SSD drives can be added with HPE DL560 Gen10 Premium 6SFF and 2 NVMe or 8 SFF Bay1 Kit (872227-B21) or HPE DL560 Gen10 Prem 6 SFF+2 NVMe Bay2 Kit(872229-B21) or HPE DL560 Gen10 Premium 6 SFF and 2 NVMe or 8 SFF Bay3 Kit (872231-B21) or HPE DL560 NVMe 8 SSD Express Bay Enablement Kit (872225-B21).
− Alternatively, optional HPE DL560 Gen10 Universal Media Bay Kit
Optical Drive Bay - Optional via Universal Media Bay
Optical Drive - Optional via Universal Media Bay
PCIe Slots - 3 PCIe 3.0 slots available
Power Supply - 2x 1600W
Fans - 6 hot plug fans, redundant
Management - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced (require licenses)
Energy Start - N/A
Form Factor - RACK (2U), HPE Easy Install Rails with CMA

Looking to Customize?

Not seeing the exact specs you need?
Start your build today with Express Computer Systems!

Start Customizing Today!

Base Standard Capabilities

Technical specifications	HPE ProLiant DL560 Gen10 server
Processor name	Intel® Xeon® Scalable processors
Processor family	Intel® Xeon® Scalable 8200 series Intel® Xeon® Scalable 6200 series Intel® Xeon® Scalable 5200 series Intel® Xeon® Scalable 8100 series Intel® Xeon® Scalable 6100 series Intel® Xeon® Scalable 5100 series
Processor core available	28 or 26 or 24 or 22 or 20 or 18 or 16 or 14 or 12 or 10 or 8 or 6 or 4, per processor, depending on model
Processor speed	3.8 GHz, maximum depending on processor
Processor cache	13.75 MB L3 or 16.50 MB L3 or 19.25 MB L3 or 22.00 MB L3 or 24.75 MB L3 or 27.50 MB L3 or 30.25 MB L3 or 33.00 MB L3 or 35.75 MB L3 or 38.50 MB L3, depending on model
Power supply type	4 HPE Flexible Slot Power Supplies, maximum depending on model
Expansion slots	8 maximum, for detail descriptions reference the QuickSpecs
Maximum memory	6.0 TB with 128 GB DDR4, depending on processor model 12.0 TB with 512 GB Persistent Memory, depending on processor model
Memory, standard	6.0 TB (48 X 128 GB) LRDIMM; 12.0 TB (24 X 512 GB) HPE Persistent Memory
Memory slots	48 DIMM slots maximum
Memory type	HPE DDR4 SmartMemory and HPE Persistent Memory
System fan features	Hot plug redundant standard
Network controller	Optional FlexibleLOM
Storage controller	HPE Smart Array S100i or HPE Smart Array P408i-a SR Gen10 Controller or HPE Smart Array P816i-a SR Gen10 Controller, depending on model
Product Dimensions (imperial)	3.44 x 17.54 x 29.71 in
Weight	75.23 lb
Infrastructure management	HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (optional require licenses)
Drive supported	8SFF SAS/SATA/SSD or Premium 6SFF and 2 NVMe SAS/SATA/SSD or 8SFF NVMe or 2SFF Premium HDD Front NVMe/SAS/SATA - for detailed configuration options refer to the QuickSpecs

Specs 1

Product features

Feature

Description

Processors

One, two or four of the following depending on model.

Intel Xeon Models	CPU Frequency	Cores	L3 Cache	Power	UPI	DDR4 MT/s	Memory per socket
Platinum Processors - 2nd generation
Platinum 8280L Processor	2.7 GHz	28	38.50MB	205 W	3 @ 10.4 GT/s	2933 MT/s	4.5TB
Platinum 8280M Processor	2.7 GHz	28	38.50MB	205 W	3 @ 10.4 GT/s	2933 MT/s	2.0TB
Platinum 8280 Processor	2.7 GHz	28	38.50MB	205 W	3 @ 10.4 GT/s	2933 MT/s	1.0TB
Platinum 8276L Processor	2.2 GHz	28	38.50MB	165 W	3 @ 10.4 GT/s	2933 MT/s	4.5TB
Platinum 8276M Processor	2.2 GHz	28	38.50MB	165 W	3 @ 10.4 GT/s	2933 MT/s	2.0TB
Platinum 8276 Processor	2.2 GHz	28	38.50MB	165 W	3 @ 10.4 GT/s	2933 MT/s	1.0TB
Platinum 8270 Processor	2.7 GHz	26	35.75MB	205 W	3 @ 10.4 GT/s	2933 MT/s	1.0TB
Platinum 8268 Processor	2.9 GHz	24	35.75MB	205 W	3 @ 10.4 GT/s	2933 MT/s	1.0TB
Platinum 8260L Processor	2.4 GHz	24	35.75MB	165 W	3 @ 10.4 GT/s	2933 MT/s	4.5TB
Platinum 8260M Processor	2.4 GHz	24	35.75MB	165 W	3 @ 10.4 GT/s	2933 MT/s	2.0TB
Platinum 8260 Processor	2.4 GHz	24	35.75MB	165 W	3 @ 10.4 GT/s	2933 MT/s	1.0TB
Platinum 8260Y Processor	2.4 GHz	24/20/16	35.75MB	165 W	3 @ 10.4 GT/s	2933 MT/s	1.0TB
Platinum 8256 Processor	3.8 GHz	4	16.50MB	105 W	3 @ 10.4 GT/s	2933 MT/s	1.0TB
Platinum 8253 Processor	2.2 GHz	16	22.00MB	125 W	3 @ 10.4 GT/s	2933 MT/s	1.0TB
Gold Processors - 2nd generation
Gold 6254 Processor	3.1 GHz	18	24.75MB	200 W	3 @ 10.4 GT/s	2933 MT/s	1.0TB
Gold 6252 Processor	2.1 GHz	24	35.75MB	150 W	3 @ 10.4 GT/s	2933 MT/s	1.0TB
Gold 6248 Processor	2.5 GHz	20	27.50MB	150 W	3 @ 10.4 GT/s	2933 MT/s	1.0TB
Gold 6244 Processor	3.6 GHz	8	24.75MB	150 W	3 @ 10.4 GT/s	2933 MT/s	1.0TB
Gold 6242 Processor	2.8 GHz	16	22.00MB	150 W	3 @ 10.4 GT/s	2933 MT/s	1.0TB
Gold 6240 Processor	2.6 GHz	18	24.75MB	150 W	3 @ 10.4 GT/s	2933 MT/s	1.0TB
Gold 6240Y Processor	2.6 GHz	18/14/8	24.75MB	150 W	3 @ 10.4 GT/s	2933 MT/s	1.0TB
Gold 6230 Processor	2.1 GHz	20	27.50MB	125 W	3 @ 10.4 GT/s	2933 MT/s	1.0TB
Gold 5222 Processor	3.8 GHz	4	16.50MB	105 W	2 @ 10.4 GT/s	2933 MT/s	1.0TB
Gold 5220 Processor	2.2 GHz	18	24.75MB	125 W	2 @ 10.4 GT/s	2666 MT/s	1.0TB
Gold 5218 Processor	2.3 GHz	16	22.00MB	125 W	2 @ 10.4 GT/s	2666 MT/s	1.0TB
Gold 5218B Processor	2.3 GHz	16	22.00MB	125 W	2 @ 10.4 GT/s	2666 MT/s	1.0TB
Gold 5218N Processor	2.3 GHz	16	22.00MB	105 W	2 @ 10.4 GT/s	2666 MT/s	1.0TB
Gold 5217 Processor	3.0 GHz	8	11.00MB	115 W	2 @ 10.4 GT/s	2666 MT/s	1.0TB
Gold 5215L Processor	2.5 GHz	10	13.75MB	85 W	2 @ 10.4 GT/s	2666 MT/s	4.5TB
Gold 5215M Processor	2.5 GHz	10	13.75MB	85 W	2 @ 10.4 GT/s	2666 MT/s	2.0TB
Gold 5215 Processor	2.5 GHz	10	13.75MB	85 W	2 @ 10.4 GT/s	2666 MT/s	1.0TB

Form factor ¹

2U rack form factor

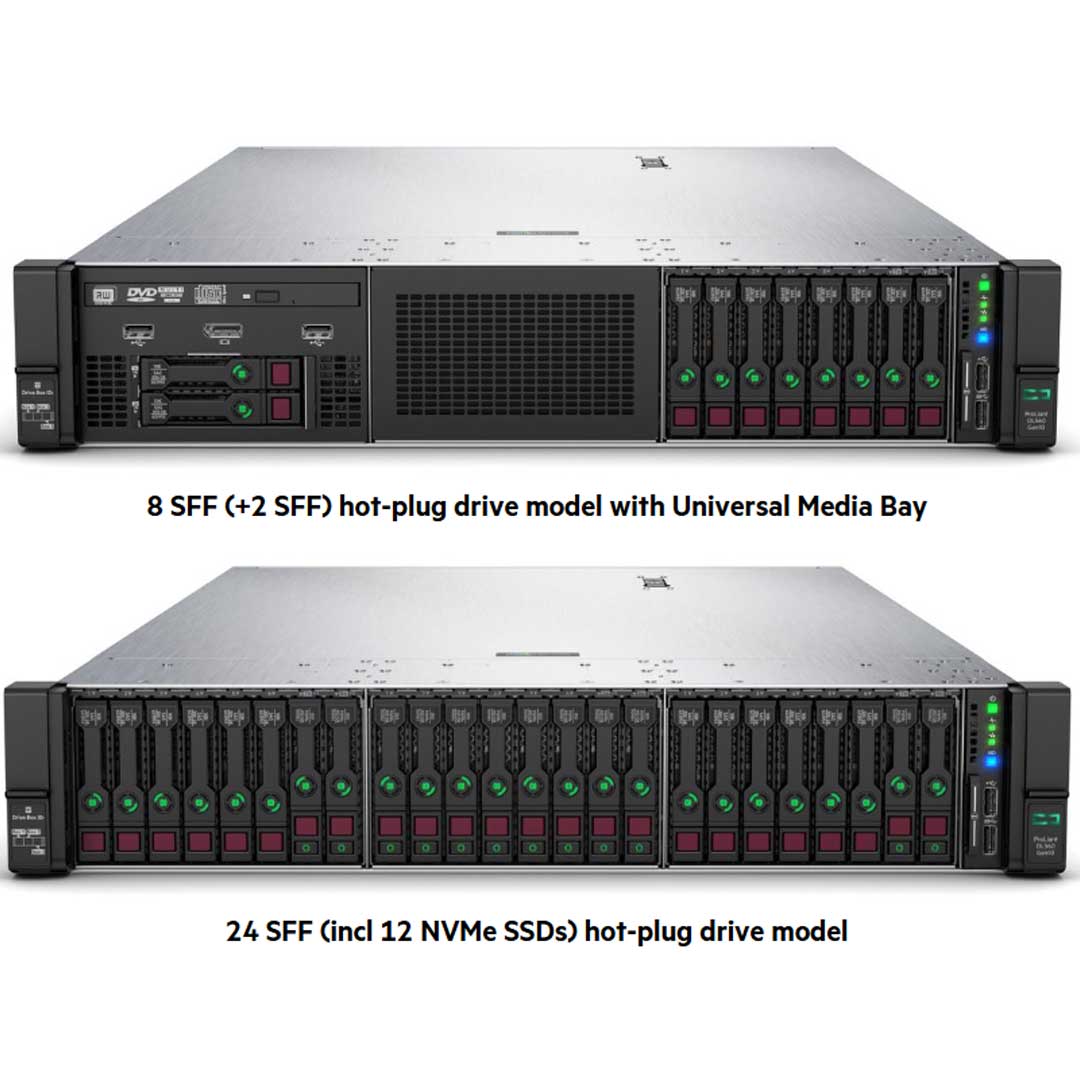

Chassis types

24 SFF With optional universal media bay

System fans

6 Hot plug fans (With N+1 redundancy)

Chipset

Intel C621 chipset

On system management chipset

HPE iLO 5 ASIC

Specs 2

Product features

Memory ²

One of the following depending on model

Type	DIMM Slots available	Maximum capacity (LRDIMM)		Maximum capacity (RDIMM)			Maximum capacity (NVDIMM)
SmartMemory Registered (RDIMM), Load Reduced (LRDIMM)	48 12 DIMM slots per processor 6 channels per processor 2 DIMMs per channel	With 2nd gen processors 3TB 24 x 128GB LRDIMM - 2933 MT/s 1 DPC 15TB 48 x 128GB LRDIMM - 2666 MT/s 2 DPC	With 3rd gen processors 6TB 48 x 128GB LRDIMM - 2666 MT/s	With 2nd gen processors 6TB 24 x 64GB RDIMM - 2933 MT/s 1 DPC 3TB 48 x 32GB RDIMM - 2666 MT/s	With 3rd gen processors 1.5TB 48 x 32GB RDIMM - 2666 MT/s	With 2nd gen processors Not supported	With 3rd gen processors 384GB 24 x 16GB NVDIMM - 2666 MT/s

Memory protection

HPE Server memory options RAS feature

Network controller

The HPE ProLiant DL560 Gen10 servers offer a flexible network technology - FlexibleLOMs, which offers users a choice of 1Gb, 10Gb, 25Gb or 10Gb and 100Gb base-T ethernet or converged networking in their embedded adapter. A range of NIC cards are also available to enhance networking capabilities

The HPE ProLiant DL560 Gen10 servers offer a flexible network technology

Model	Adapter
Entry model	HPE Ethernet 1Gb 4-port 331FLR adapter
Base model	HPE FlexFabric 10Gb 2P 533FLR-T adapter
Performance model	HPE FlexFabric 10/25Gb 2P 640FLR-SFP28 adapter

Storage controllers ⁴

Software (SW) RAID:
- HPE Smart Array S100i SR Gen10 SW RAID
Essential RAID:
- HPE Smart Array E208i-a SR G10 LH controller
- HPE Smart Array E208i-p SR Gen10 controller
- HPE Smart Array E208e-p SR Gen10 controller
Performance RAID:
- HPE Smart Array P408i-a SR G10 LH controller
- HPE Smart Array P408i-p SR Gen10 controller
- HPE Smart Array P408e-p SR Gen10 controller
- HPE Smart Array P816i-a SR G10 LH controller
- HPE Smart Array P824i-p MR Gen10 controller

Internal storage devices ⁵

Optical drive optional:
- DVD-RW
- DVD-ROM
Hard drives none ship standard
Hard Drive Bays:
- 8 Hot plug SFF SAS/SATA HDD bays in entry and base models
- 16 Hot plug SFF SAS/SATA HDD bays in performance models

Maximum internal storage

Storage	Capacity	Configuration
Hot Plug SFF SATA HDD	48TB	24 x 2TB
Hot Plug SFF SAS HDD	58TB	24 x 2.4TB
Hot Plug SFF SATA SSD	184TB	24 x 7.68TB
Hot Plug SFF SAS SSD	367TB	24 x 15.3TB
SFF NVMe SSD	184TB	12 x 15.36TB

Power supply

One of the following depending on model

HPE 1600 W flex slot platinum hot plug low halogen power supply kit⁶
HPE 800 W flex slot platinum hot plug low halogen power supply kit⁷

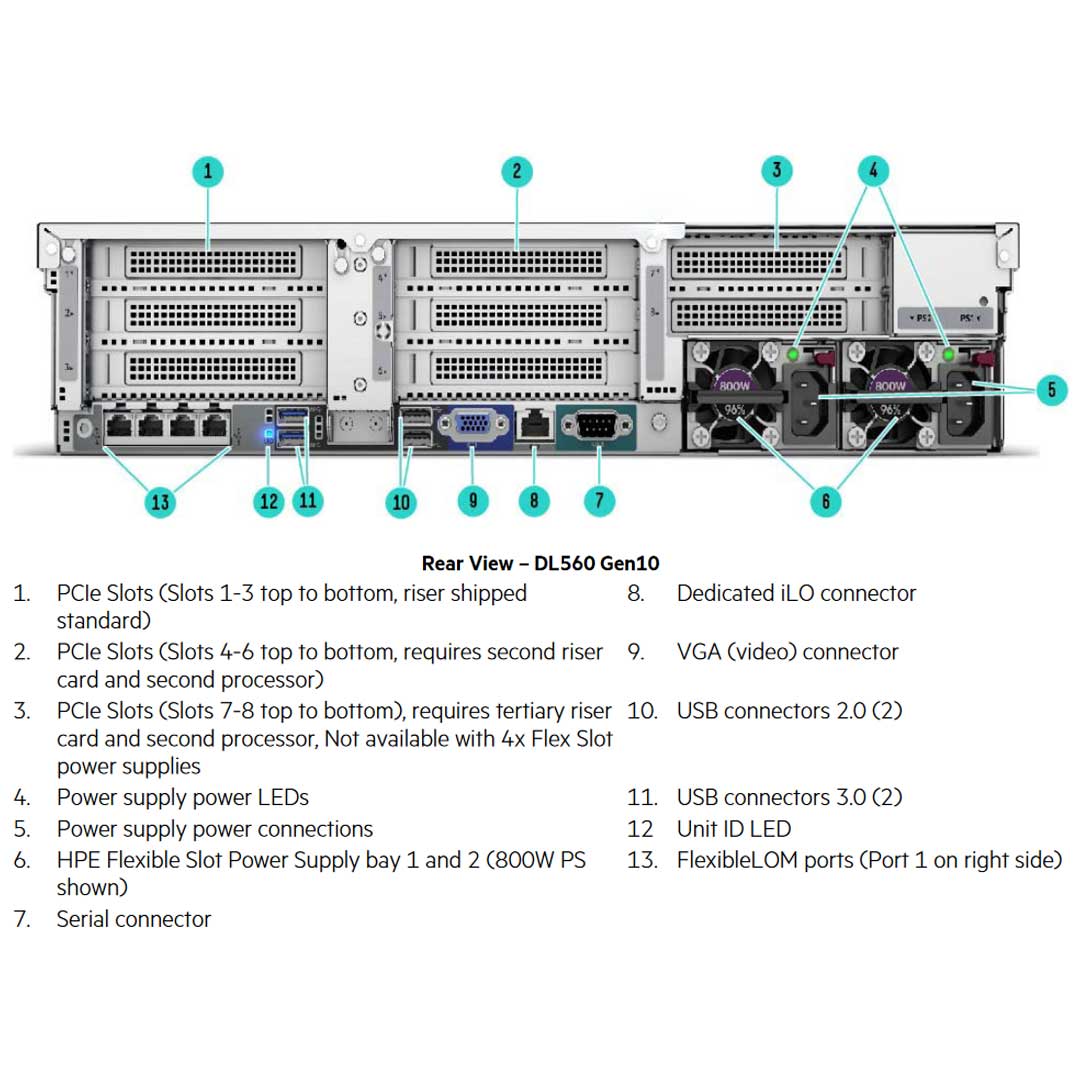

Interfaces

Serial: 1 rear
Video: 1 front (Optional with universal media bay),1 rear
HPE iLO remote management network port: 1
HPE iLO front service port: 1
Micro SD slot:1 (Internal), 2 (Optional, internal)⁸
USB 2.0 ports: 4 (2 front (optional), 2 rear)
USB 3.0 ports: 5 (1 front, 2 rear, 2 internal)⁹

Industry standard compliance

ACPI 6.1 compliant
PCIe 3.0 compliant
WOL support
Microsoft logo certifications
Preboot Execution Environment (PXE) support
USB 3.0 compliant (Internal)
USB 2.0 compliant (External ports VIA SUV)
SMBIOS 3.1
UEFI 2.6
Redfish API

Graphics

Integrated video standard
Video modes up to 1920 x 1200 - 60 Hz (32 b/p)
16MB video memory
HPE iLO 5 on system management memory
32MB flash
4Gb DDR 3 with ECC protection

HPE Server UEFI/Legacy ROM ¹⁰

Unified Extensible Firmware Interface (UEFI) enables numerous new capabilities specific to HPE ProLiant servers such as:

Secure boot and secure start enable for enhanced security
Operating system specific functionality
Support for > 2.2TB (Using GPT) boot drives
USB 3.0 stack
Embedded UEFI shell
Mass configuration deployment tool using iLO RESTful API that is Redfish API conformant
PXE boot support for IPv6 networks
Workload profiles for simple performance optimization

UEFI boot mode only:

TPM 2.0 support
NVMe boot support
Platform Trust Technology (PTT) can be enabled
iSCSI software initiator support
HTTP/HTTPs boot support as a PXE alternative
Boot support for option cards that only support a UEFI option ROM

Embedded management

HPE Integrated Lights-Out (HPE iLO)
Monitor users servers for ongoing management, service alerting, reporting and remote management with HPE iLO.
Click here to access HPE iLO for more information .
UEFI
Configure and boot users servers securely with industry standard UEFI.
Click here to access UEFI more information .
Intelligent provisioning
Hassle free server and OS provisioning for one or more servers with intelligent provisioning.
Cllick here to access more information about Intelligent Provisioning .
iLO RESTful API
iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards.
Click here to view more about iLO RESTful API Ecosystem .

Server utilities

Active health system
Active health system viewer
Smart update
iLO amplifier pack
HPE iLO mobile application
RESTful Interface Tool
Scripting tools
HPE OneView standard
HPE Systems Insight Manager (HPE SIM)

Security ¹¹

UEFI secure boot and secure start support
Immutable silicon root of trust
FIPS 140-2 validation (iLO 5 certification in progress)
Common criteria certification (iLO 5 certification in progress)
Configurable for PCI DSS compliance
Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
Support for Commercial National Security Algorithms (CNSA)
Granular control over iLO interfaces
Smart card (PIV/CAC) and kerberos based 2-factor authentication
Tamper-Free updates - Components digitally signed and verified
Secure recovery - Recover critical firmware to known good state on detection of compromised firmware
Ability to rollback firmware
Secure erase of NAND/User data
Trusted Platform Module (TPM) 1.2 option
TPM 2.0 option bezel locking kit
Chassis intrusion detection option

NOTE: 1. Entry, base and performance Pre-Configured models ship with Gen10 easy install rail kits and cable management assembly

Only 2666 MT/s memory SKUs are supported with 1st gen processors (81xx, 61xx and 51xx)
2933 MT/s memory SKUs are supported with 2nd gen processors (82xx,62xx and 52xx)
The 2933 MT/s memory SKUs offer a transfer rate of 2933 MT/s at 1 DIMM per channel and 2666 MT/s at 2 DIMMs per channel
Mixing of RDIMM and LRDIMM memory is not supported
The maximum memory speed is a function of the memory type, memory configuration, and processor model
Intel memory processors (With suffix M) are needed for supporting 1.5TB memory per socket on 1st gen processors
Intel memory processors (With suffix M or suffix L) are needed for supporting more than 1TB memory per socket on 2nd gen processors
Maximum of 6 NVDIMMs are supported per processor on the 1st gen processors
NVDIMMs are not supported on the 2nd gen processors

The secondary and tertiary risers need the 2nd processor to be installed
The expansion slots at the back are numbered in ascending order from top to bottom and from left to right
Some riser kits (826704-B21, 873418-B21, 873420-B21) have FIO options with separate numbers and they do not ship with riser cages. Please review the FIO section for details
The optional 4-port NVMe mezzanine card 874633-B21 supports a maximum of 8 NVMe drives and does not consume a PCIe slot. It goes on top of the HPE DL5x0 Gen10 CPU mezzanine board kit (872222-B21) and requires a four processor configuration

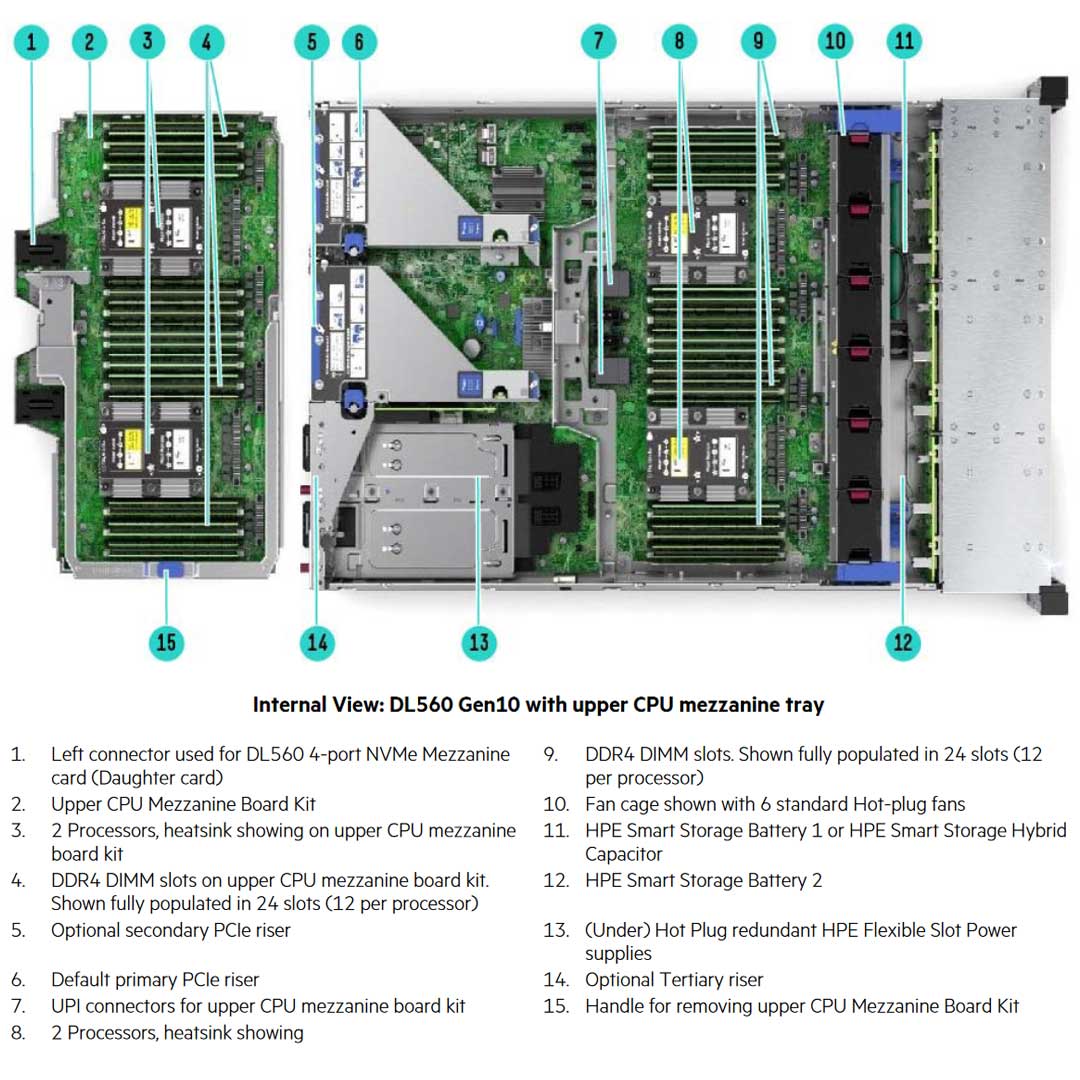

It goes on top of the HPE DL5x0 Gen10 CPU mezzanine board kit (872222-B21) or HPE DL5x0 Gen10 CPU version 2 mezzanine board kit (P07991-B21) and requires a four processor configuration
The tertiary risers can only be installed when using two PSUs. There is no space for tertiary risers when the four PSU’s are installed. If a secondary riser is required it needs to be ordered separately
A maximum of 1 primary, 1 secondary and 1 tertiary riser can be installed in one server
Slimline riser kit (873418-B21) does not contain any additional PCIe slots

HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for CTO orders please also select the legacy mode settings part, 758959-B22
HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled. For enabling, please select HPE FIO enable Smart Array SW RAID (784308-B21)

Box 3 is populated by 8 SFF SAS/SATA bay and shipped as default
The 8 NVMe drive option can only placed in bay 2
The Universal media bay (872267-B21) not available with the 24 SFF front end, and can only be populated in box 1

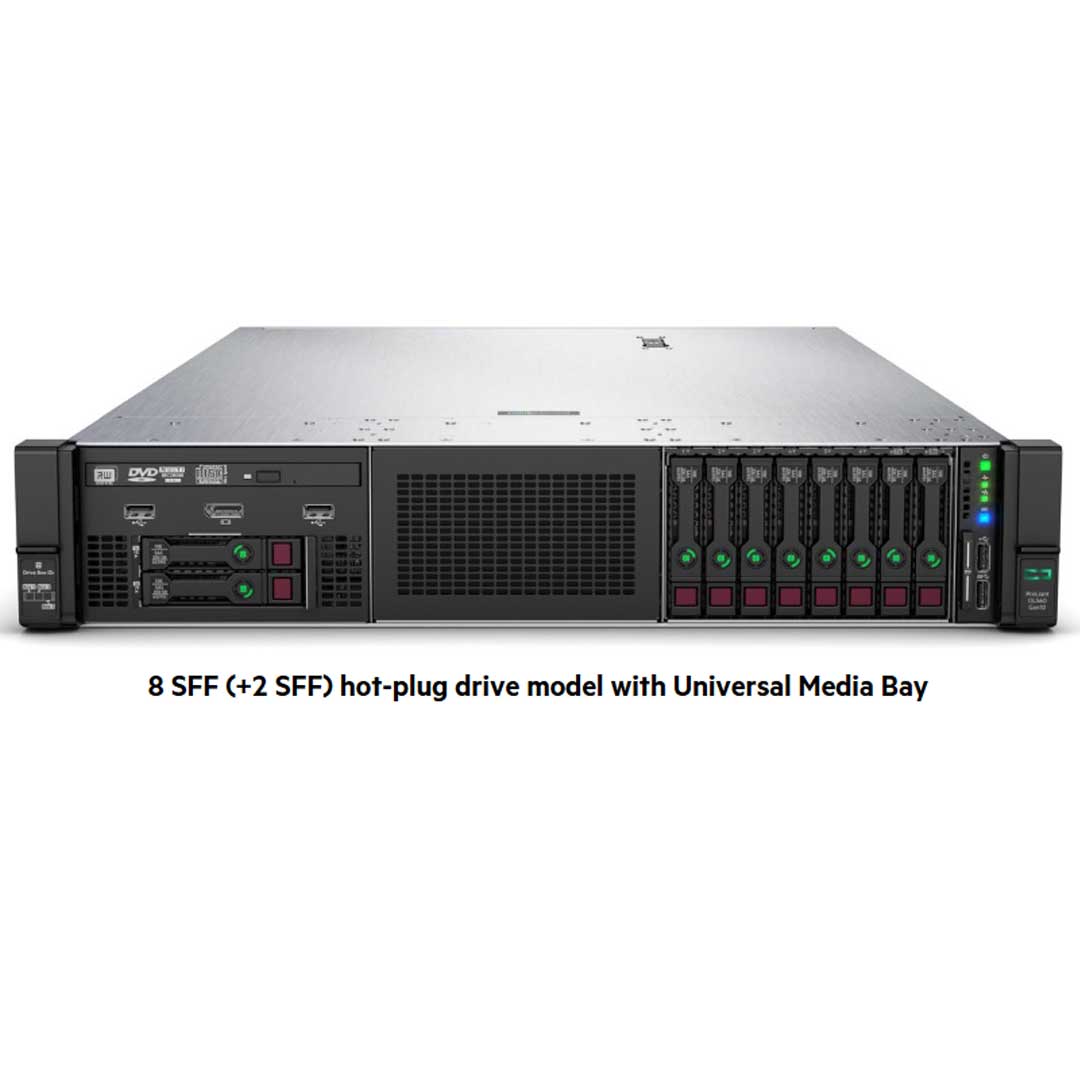

The 8 SFF can be upgraded with a drive cage to 16 or 24 SFF with field upgrades. For optimal upgrade box 2 should be populated second, with box 1 the last to be populated for a field upgrade to 24 SFF
A maximum of 12 NVMe drives can be supported with 2 NVMe drives in bay 1, 8 NVMe drives in bay 2 and 2 NVMe drives in bay 3
All Pre-Configured models come with embedded software RAID support for 10 SATA drives. Optional HPE Smart Array controllers can be added

Available in 94% and 96% efficiency
Also available in -48 V dc and 227 V ac/380 V dc power inputs
Must order 4 x 800 W flex slot PSU

Available in 94% efficiency
1600 W power supplies only support high line voltage (200 - 240 V ac)

8. Requires the optional HPE Dual Micro SD 8GB USB kit

9. 2 front (Optional) USB 2.0 ports need the HPE DL560 Gen10 universal media bay kit (872267-B21).

10.

For UEFI boot mode, boot environment and OS image installations should be configured properly to support UEFI
UEFI FIO setting (758959-B22) can be selected to configure the system in legacy mode in the factory for users HPE ProLiant Gen10 server

11.

HPE TPM 2.0 option (864279-B21) works with Gen10 servers with UEFI mode and not legacy mode. The TPM 2.0 option can be configured to the 1.2 version through the UEFI BIOS to support TPM 1.2 functionality
HPE server systems can have a TPM module (Of any type) installed only once. It cannot be replaced with any other TPM module

top

HPE ProLiant DL560 (G10) Entry Server 5220 2.2GHz 18C 2P 64GB-R P408i-A 8SFF 1600W RPS | P21271-B21

Comes with:

Looking to Customize?

Base Standard Capabilities

Specs 1

Product features

Specs 2

Product features

You may also like

Currency

Welcome to the Request Express Quoting Form!
