Specs
Quick Specs
Form Factor:
1U rack server
Processor | Max: 40 Cores2x 3rd Gen Intel Xeon Scalable
Memory | Max: 4TB LRDIMM - 8TB Pmem32 DDR4 RDIMM/LRDIMM 3200Mhz
Storage | Max: 153TB8x 2.5" SAS/SATA/NVMe (HDD/SSD) Max: 122.8TB
Rear Drives | Max: 30.7TB2x 2.5" SAS/SATA/NVME (HDD/SSD)
RAID Controller:S150 (SW RAID SATA, NVMe)
H745, HBA355I, H345, H755, H755N, H840, HBA355E
BOSS-S2
IDSDM
Internal USB
2x 1GbE with BCM5720 LAN controller
OCP 3.0:1x OCP 3.0 x8
PCIe Slots:3x PCIe 4.0
GPU:Up to 3x SW 75 W GPUs
Remote Management:iDRAC9 with Lifecycle Controller
Ideal for:
- Artificial Intelligence (AI)
- Corporate IT
- Data Analytics
- High-Performance Computing (HPC)
- Machine Learning (ML)
- Financial/Trading Servers
- Virtual Desktop Interface (VDI)
The Dell EMC PowerEdge R650, is a full-featured enterprise server, designed to optimize workloads performance and data center density
PowerEdge R650 The Dell EMC PowerEdge R650 offers compelling performance, highspeed memory and capacity, I/O bandwidth and storage to address data requirements
Innovate at scale with challenging and emerging workloads
The Dell EMC PowerEdge R650, powered by the 3rd Generation Intel® Xeon® Scalable processors is the optimal rack server to address application performance and acceleration. The PowerEdge R650, is a dual-socket/1U rack server that delivers outstanding performance for the most demanding workloads. It supports 8 channels of memory per CPU, and up to 32 DDR4 DIMMs @ 3200 MT/s speeds. In addition, to address substantial throughput improvements the PowerEdge R650 supports PCIe Gen 4 and up to 24 NVMe drives with improved air-cooling features and optional Direct Liquid Cooling to support increasing power and thermal requirements. This makes the PowerEdge R650 an ideal server for data center standardization on a wide range of workloads including; Database and Analytics, High Frequency Trading, Traditional corporate IT, Virtual Desktop Infrastructure, and even HPC or AI/ML environments that require performance, and GPU support in a dense 1U form factor.
Increase efficiency and accelerate operations with autonomous collaboration
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
- Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
- Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
- Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
- Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools
Protect your data assets and infrastructure with proactive resilience
The Dell EMC PowerEdge R650 server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.
- Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
- Maintain server firmware safety with digitally signed firmware packages
- Prevent unauthorized configuration or firmware change with system lockdown
- Securely and quickly wipe all data from storage media, including hard drives, SSDs and system memory with System Erase
Storage Options
Internal storage
The PowerEdge R650 supports the following internal storage configuration.
- 4 x 3.5-inch (SAS/SATA)
- 4 x 3.5-inch (Chipset SATA)
- 4 x 3.5-inch (SAS/SATA) + 2 x 2.5-inch (SAS/SATA or NVMe)

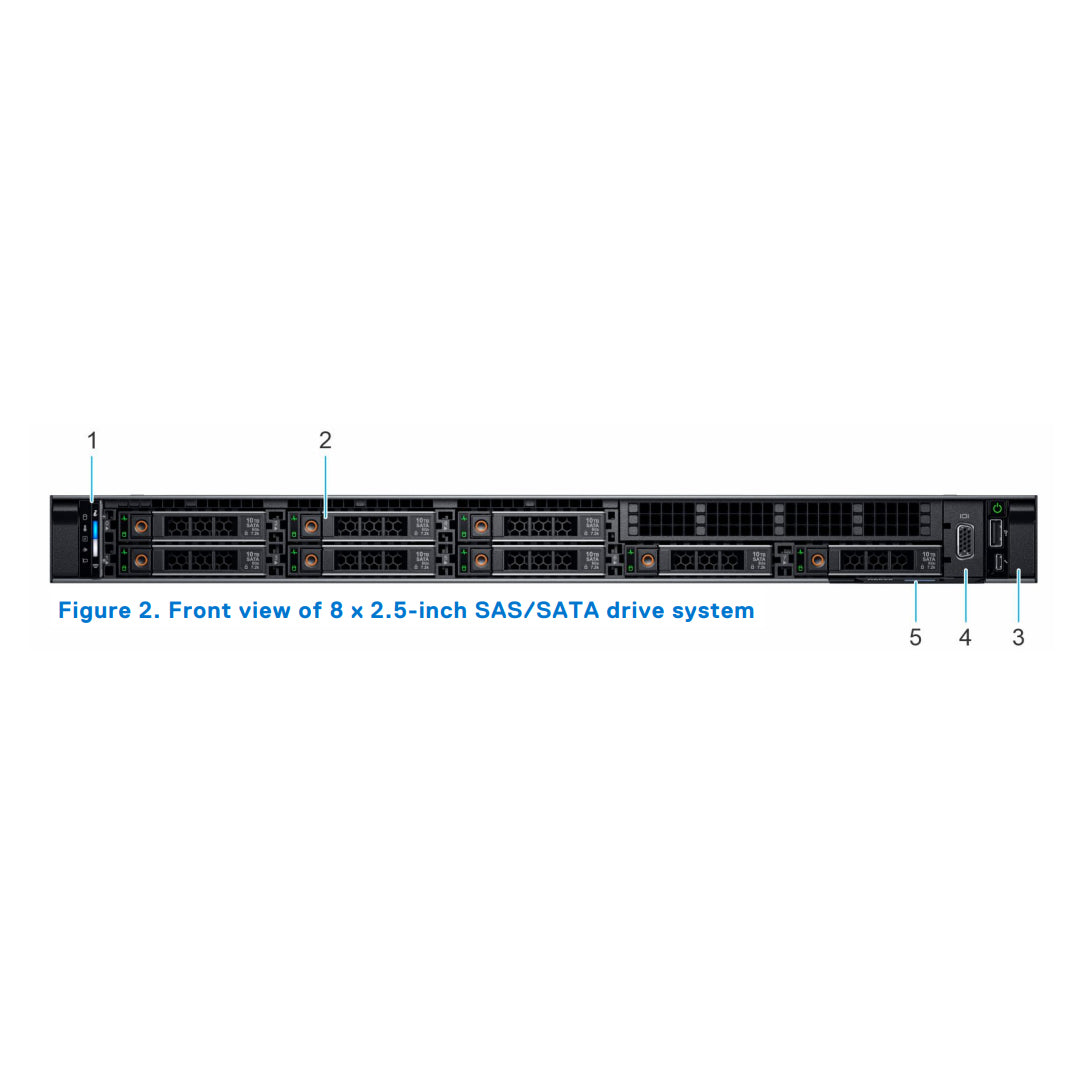

- 8 x 2.5-inch (SAS/SATA, NVMe, or NVMe RAID)
- 10 x 2.5-inch (SAS/SATA or with 4 universal)
- 10 x 2.5-inch (SAS/SATA) + 2 x 2.5-inch (SAS/SATA)
- 10 x 2.5-inch (NVMe)
- 10 x 2.5-inch (NVMe) + 2 x 2.5-inch (NVMe)
- 10 x 2.5-inch (SAS/SATA or with 2 universal) - 1 socket only

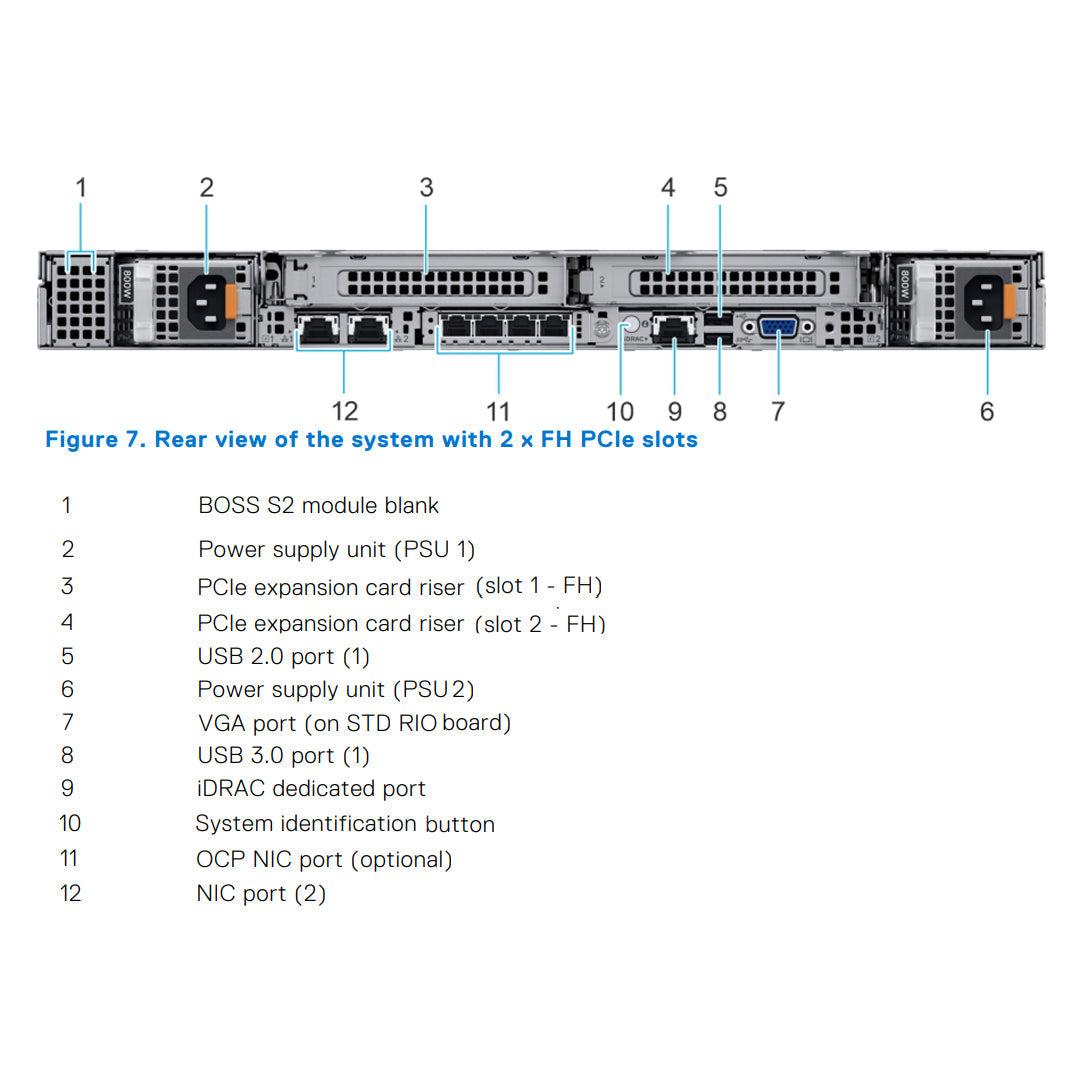

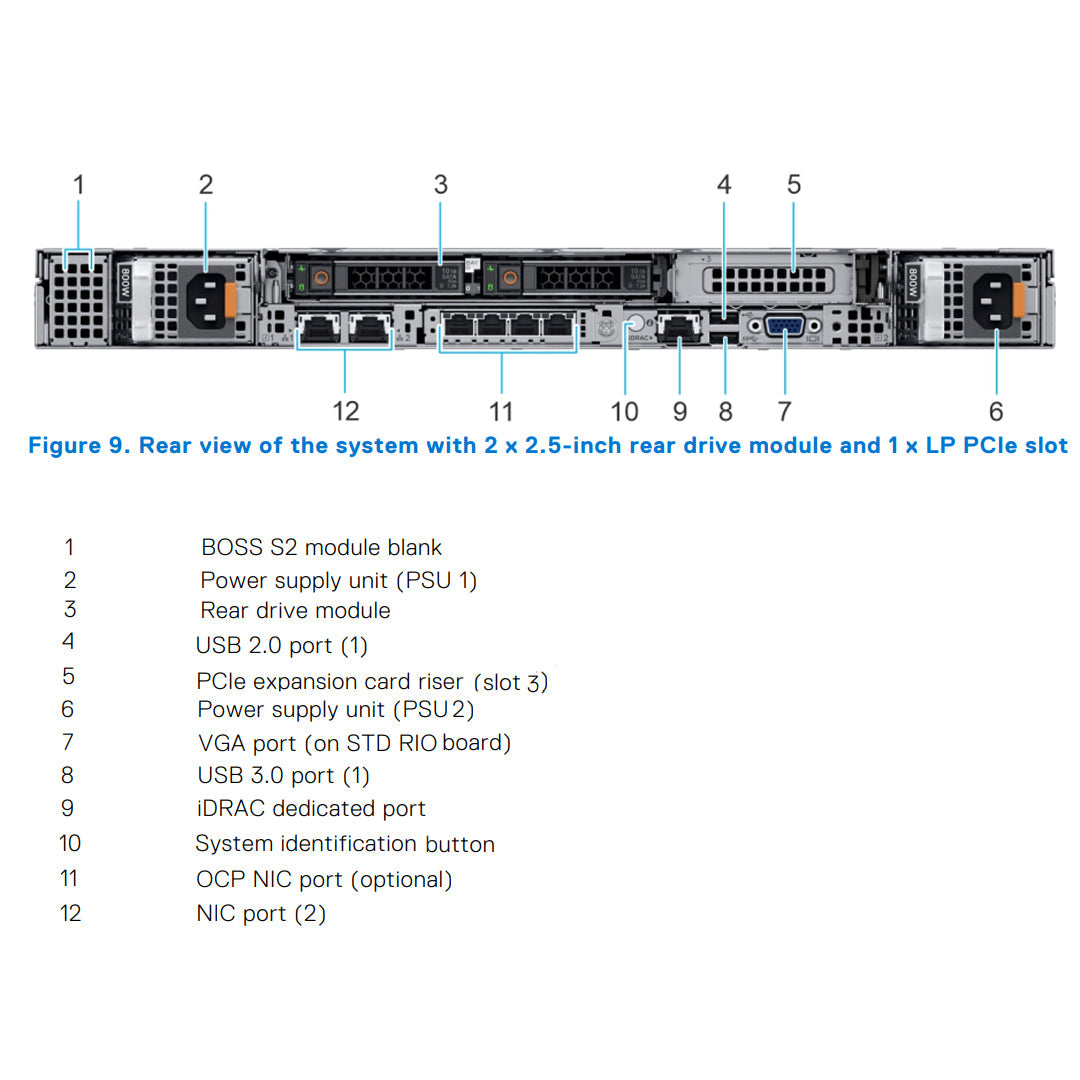

Rear Storage - 2x 2.5" SAS/SATA/NVMe
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Feature | Technical Specification | |
|---|---|---|
| Processor | Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor | |
| Memory |
| |
| Storage controllers |
| |
| Drive bays | Front bays:
| |
| Power supplies |
| |
| Cooling options | Air cooling, optional processor liquid cooling | |
| Fans |
| |
| Dimensions | Height – 42.8 mm (1.7 inches) Width – 482 mm (18.97 inches) Depth – 809 mm (31.85 inches) – without bezel 822.84 mm (32.39 inches) – with bezel | |
| Form Factor | 1U rack server | |
| Embedded mgmt |
| |
| Bezel | Optional LCD bezel or security bezel | |
| OpenManage™ Software |
| |
| Mobility | OpenManage Mobile | |
| Integrations and Connections | OpenManage Integrations
| OpenManage Connections
|
| Security |
| |
| Embedded NIC | 2 x 1 GbE LOM | |
| Network Options | 1 x OCP 3.0 (x8 PCIe lanes) | |
| GPU Options | Up to three 75 W single-width GPU | |
| Ports | Front Ports:
| Rear Ports
|
| PCIe |
| |
| Operating System and Hypervisors |
| |
Spec Sheet 4
| Feature | PowerEdge R650 | PowerEdge R640 |
|---|---|---|
| Processor | 2 x 3rd Generation Intel® Xeon® Processor Scalable Family | 2 x 2nd Generation Intel® Xeon® Processor Scalable Family |
| CPU interconnect | Intel Ultra Path Interconnect (UPI) | Intel Ultra Path Interconnect (UPI) |
| Memory | 32 x DDR4 RDIMM, LRDIMM
16 x PMem ( Intel Optane Persistent Memory 200 Series) |
24 x DDR4 RDIMM, LRDIMM
12 x NVDIMM 12 x PMem (Intel Optane Apache Pass) |
| Storage Drives | 3.5 inches, 2.5 inches- 12 Gb SAS, 6 Gb SATA, NVMe | 3.5 inches, 2.5 inches- 12 Gb SAS, 6 Gb SATA, NVMe |
| Storage Controllers | Adapters: HBA355E, H840
PERC: HBA355i, H345, H355, H745, H755, H755N BOSS- S1 adapter BOSS S2 SW RAID: S150 |
Adapters: HBA330, H330, H730P,
H740P, H840, 12G SAS HBA Mini Mono:
HBA330, H330, H730P, H740P SW
RAID: S140 |
| PCIe SSD | Up to 10+2 (10 x direct attach in front, and 2 x direct attach in rear) | Up to 10 (8 x direct attach, 2 x from PCIe bridge card) |

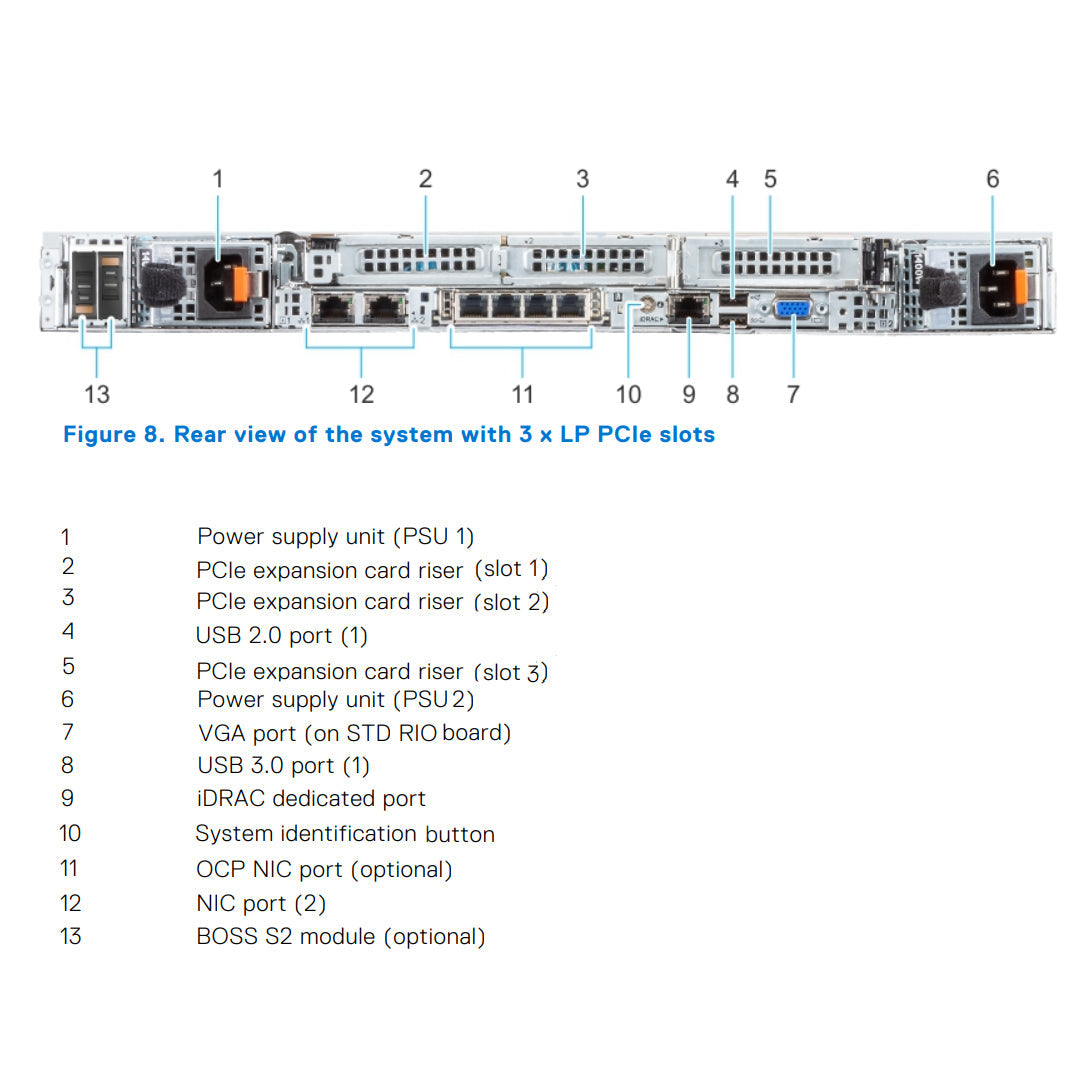

| PCIe Slots | Max 3 PCIe 4.0 | Max 3 PCIe 3.0 |
| OCP 2.0 | OCP Type 1: (Connector A) | OCP Type 1: (Connector A) |
| LOM | 2 x 1 Gb | NA |
| Networking | OCP 3.0 (x8 PCIe) | rNDC |
| Rack height | 1U | 1U |
| Power supplies | 100~240 V AC/240 V DC: 800 W, 1100
W, 1400 W
DC - 48 V ~- 60 V :1100 W |
AC (Platinum): 495 W, 750 W, 1100 W,
1600W, 2000W, 2400W
AC (Titanium): 750 W DC: 1100 W Mix Mode/HVDC: 750 W, 1100 W |
| System management | LC 4.x, OpenManage, QuickSync2.0, Digital License Key, iDRAC Direct (dedicated micro-USB port), Easy Restore | LC 3.x, OpenManage, QuickSync 2.0, OMPC3, Digital License Key, iDRAC Direct (dedicated micro-USB port), Easy Restore, vFlash |
| Internal GPU | Up to 3 x 75 W (SW) | Up to 3 x 70 W (SW) |
| Availability | Hot-plug drives
Hot-plug redundant cooling Hot-plug redundant power supplies Hot-plug BOSS S2 IDSDM |
Hot-plug drives
Hot-plug redundant cooling Hot-plug redundant Power supplies BOSS IDSDM |
