Specs
CTO Item
This part is strictly for configuring Dell servers. If you have landed on this page and you're looking for a specific part number. Please send us a "Request a Quote" with the part number you need.
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Feature | PowerEdge R530 Technical Specification | |
|---|---|---|

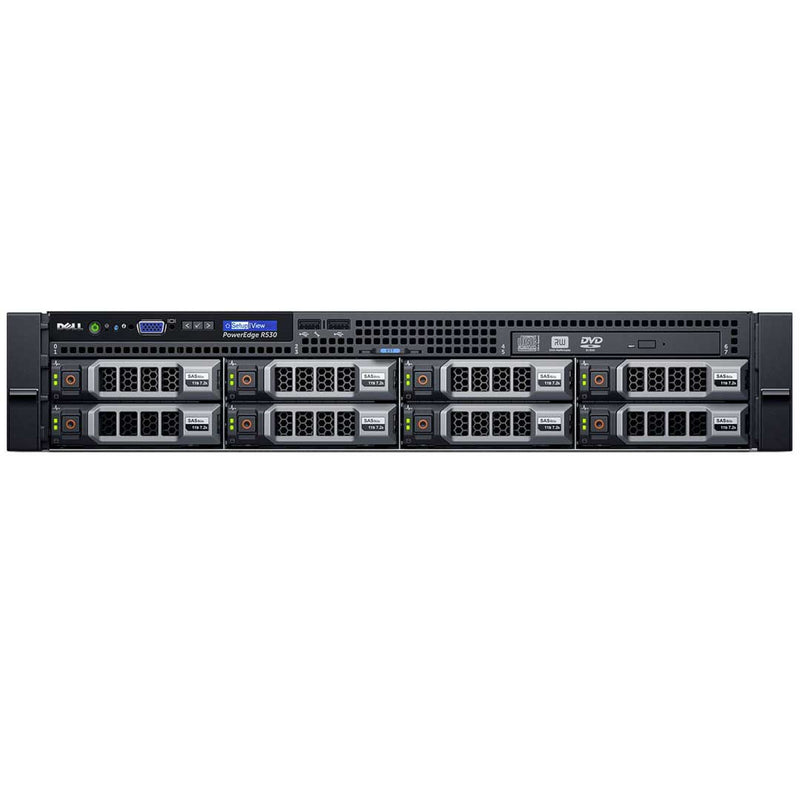

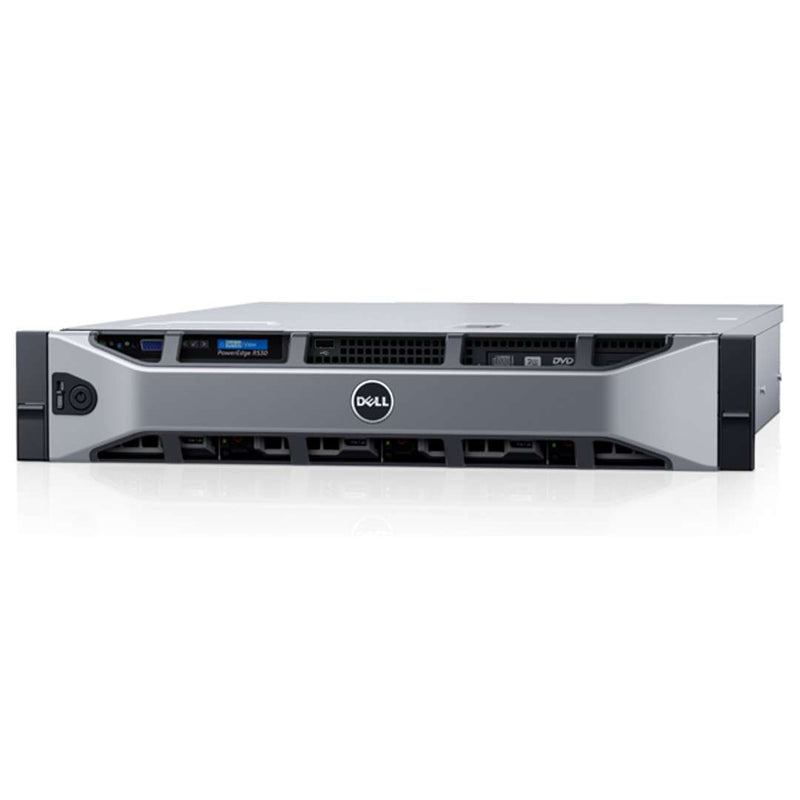

| Form factor | 2U rack server | |
| Dimensions and weight | H: 86.80 mm (3.4 in) W: 434 mm (17.1 in) without ears D: 646 mm (25.4 in) with bezel, 648 mm (25.5 in) without bezel | Minimum weight: 14.2 kg (31.2 lb) Maximum weight: 28.2 kg (62 lb) |

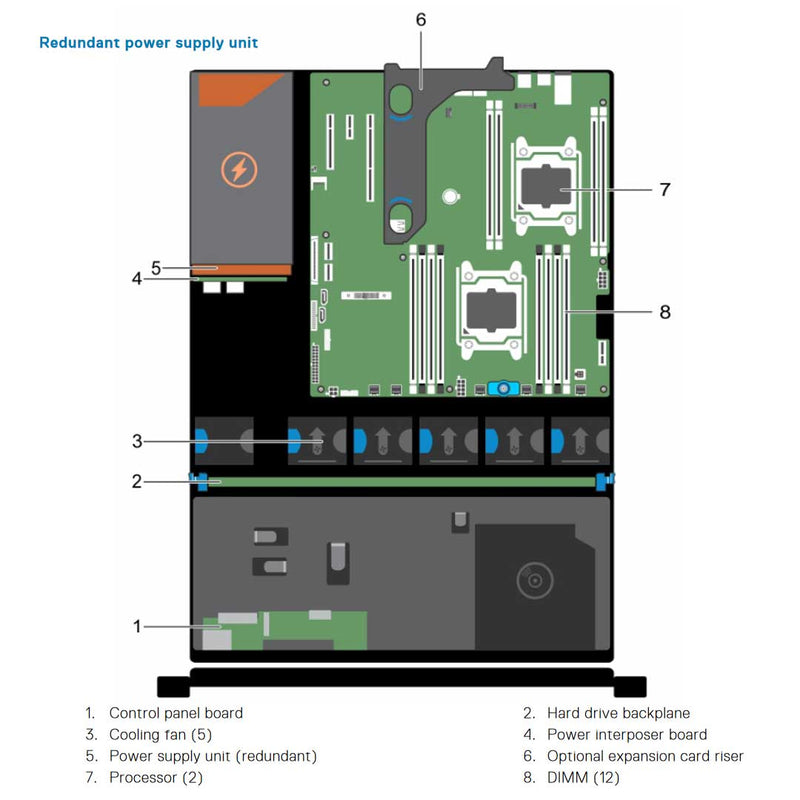

| Processor | Intel® Xeon® processor E5-2600 v4 product family Processor sockets: 2 Chipset: C610 Internal interconnect: Up to 9.6GT/s Cache: 2.5MB per core; core options: 4, 6, 8, 10, 12, 14, 16, 18 | |
| Memory | DDR4 RDIMMs at up to 2400MT/s 12 DIMM slots: 4GB/8GB/16GB/32GB | |

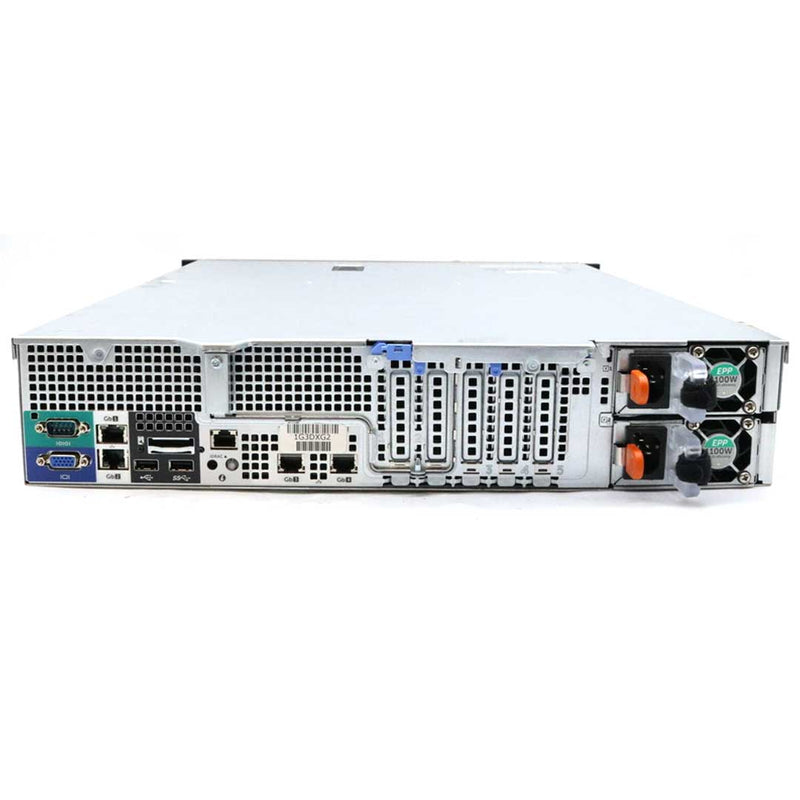

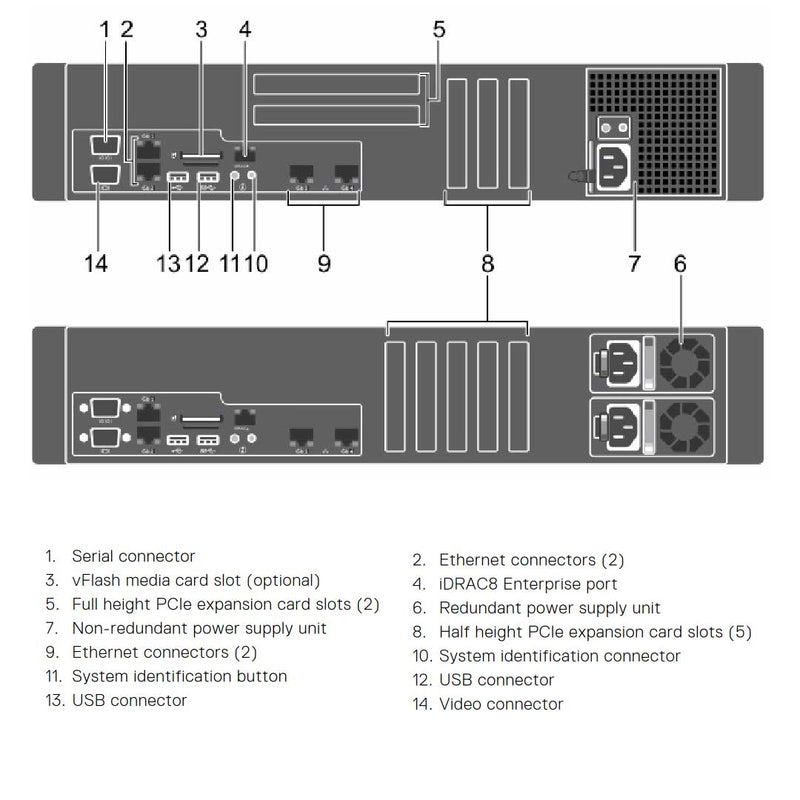

| I/O slots | Support for up to 5 x PCIe
| |
| Storage | Up to 8 x 3.5" SAS, SATA, nearline SAS, SSD drives | |
| RAID controllers | Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P External HBAs (RAID): PERC H830 External HBAs (non-RAID): 12Gbps SAS HBA | |
| Communications | 4 x 1GbE LOM | |

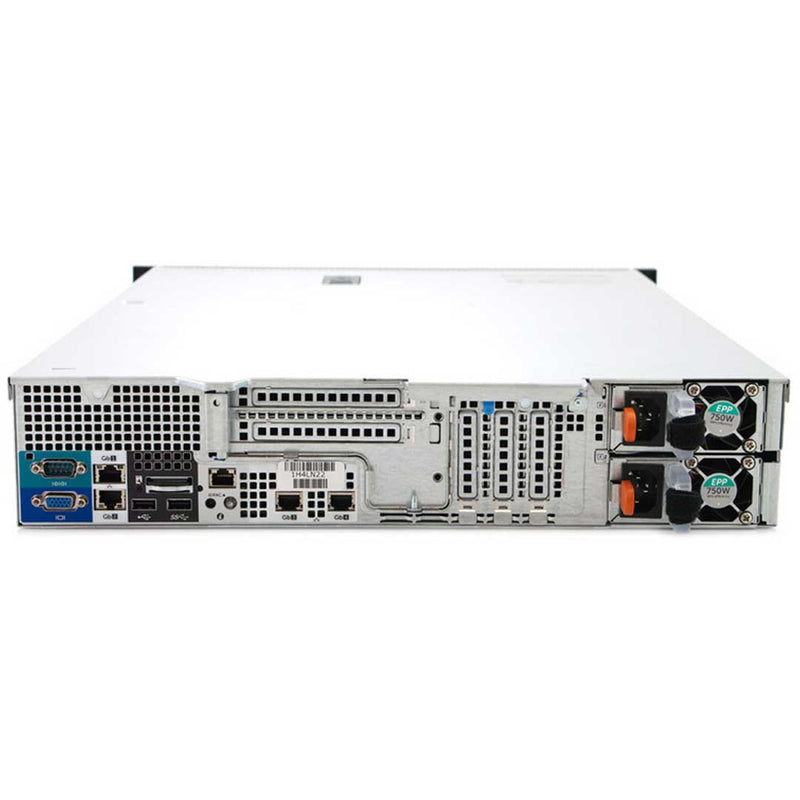

| Power supplies | 495W, 750W, 1100W hot-plug PSU; -48V DC 1100W hot-plug PSU; 450W cabled PSU | |
| Management | Systems management
iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade), 16GB vFlash media (upgrade) | Dell OpenManage Connections:
|
| Optional supported hypervisors | Citrix® XenServer, VMware vSphere® ESXi®, Red Hat® Enterprise Virtualization® | |
| Operating system | Microsoft Windows Server® 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Novell® SUSE® Linux Enterprise Server Red Hat Enterprise Linux | |
| Rack support | ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm. | |
