Supported Drives
| Part Number | Encryption | Capacity | RPM | Checksum |
|---|---|---|---|---|
| Drive Type: MSATA | ||||
| X381A | No | 10TB | 7.2k | AZCS |

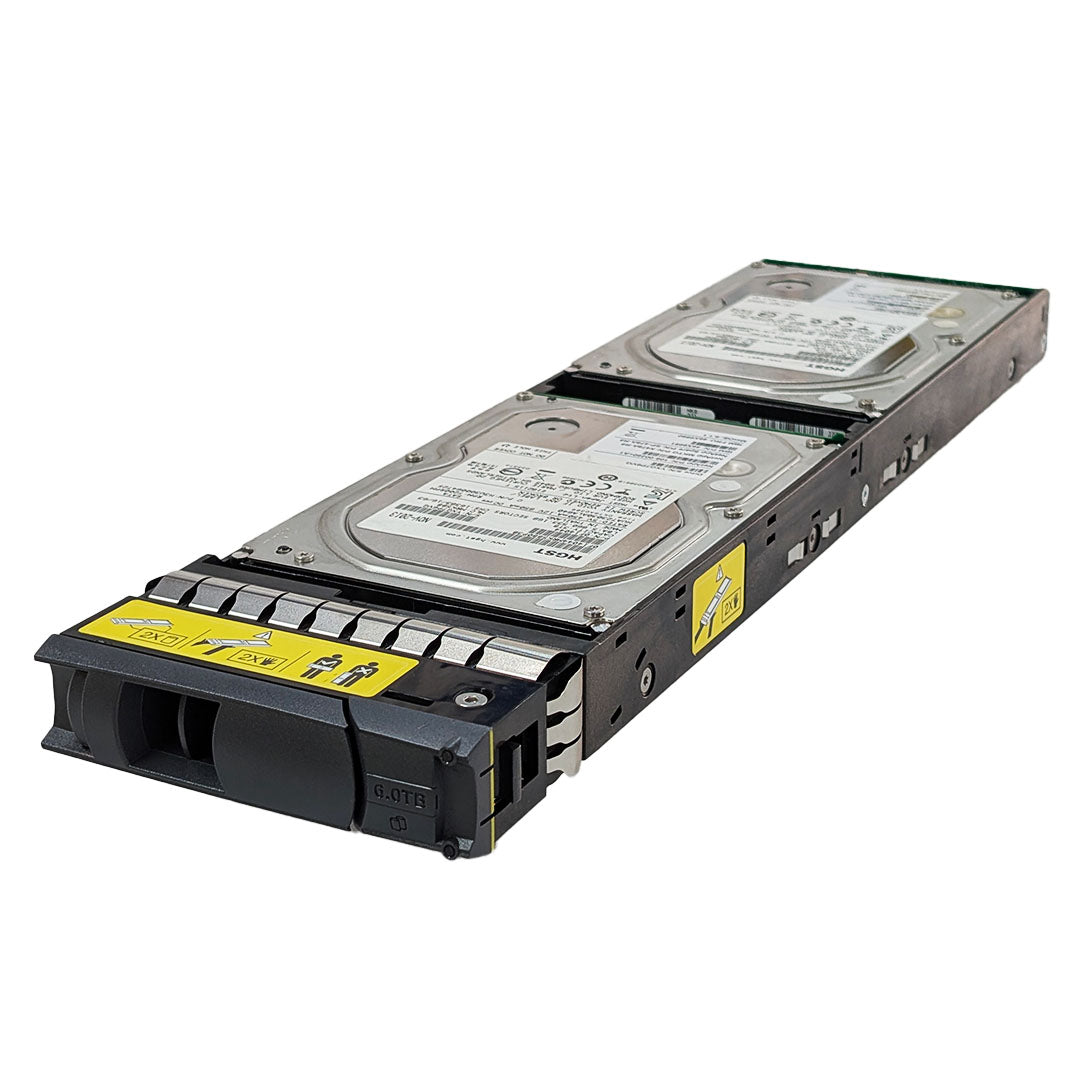

| X478A-R5 | No | 3TB | 7.2k | AZCS |
| X480A-R6 | No | 4TB | 7.2k | AZCS |
| X481A-R6 | No | 6TB | 7.2k | AZCS |
| X483A-R6 | No | 8TB | 7.2k | AZCS |
| Footnotes | ||||
Supported Shelf Modules for NetApp DS4243
| Module | Part Number | Interface | Max Data Rate | Min ONTAP |
|---|---|---|---|---|
| IOM6 | X5713A-R6 | IN: QSFP, OUT: QSFP | 6 Gbps | 9.11.1RC1, 9.10.1RC1, 9.9.1RC1, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.2RC1, 8.1, 8.0.2, 7.3.4 |
Cables Compatibility for Module IOM6
| Mktg Part No | Mfg Part No | Length | End 1 / End 2 | Description | Supported Speed(s) | Min OS |
|---|---|---|---|---|---|---|
| Ethernet 10/100 Mbps (Copper Cables) | ||||||
| NetApp Cable X6560-R6 | 112-00194 | 0.5m | RJ45 / RJ45 | Cable,Ethernet,CAT6,RJ45,0.5m | - | |
| NetApp Cable X6584-R6 | 112-00290 | 1m | RJ45 / RJ45 | Cable,Ethernet,CAT6,RJ45,1m | - | |
| NetApp Cable X6561-R6 | 112-00195 | 2m | RJ45 / RJ45 | Cable,Ethernet,CAT6,RJ45,2m | - | |
| NetApp Cable X6585-R6 | 112-00291 | 3m | RJ45 / RJ45 | Cable,Ethernet,CAT6,RJ45,3m | - | |
| NOFRU_ETH_CAT6_RJ45_5M | ||||||
| NetApp Cable X6562-R6 | 112-00196 | 5m | RJ45 / RJ45 | Cable,Ethernet,CAT6,RJ45,5m | - | |
| NetApp Cable X6592-R6 | 112-00246 | 10m | RJ45 / RJ45 | Cable,Ethernet,CAT6,RJ45,10m | - | |
| NetApp Cable X6593-R6 | 112-00247 | 20m | RJ45 / RJ45 | Cable,Ethernet,CAT6,RJ45,20m | - | |
| NetApp Cable X6577-R6 | 112-00238 | 30m | RJ45 / RJ45 | Cable,Ethernet,CAT6,RJ45,30m | - | |
| SAS 3/6 Gbps (Copper Cables) | ||||||
| NetApp Cable X6557-R6 | 112-00176 | 0.5m | QSFP / QSFP | Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,0.5m | 3/6 Gbps | - |
| NetApp Cable X66020A-R6 | 112-00429 | 1m | MiniSAS HD / QSFP | Cable,Storage,MiniSAS HD/QSFP,12Gb,1m | 6 Gbps | - |
| NetApp Cable X6594-R6 | 112-00256 | 1m | QSFP / QSFP | Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,1m | 3/6 Gbps | - |
| NetApp Cable X66021A-R6 | 112-00430 | 2m | MiniSAS HD / QSFP | Cable,Storage,MiniSAS HD/QSFP,12Gb,2m | 6 Gbps | - |
| NetApp Cable X6558-R6 | 112-00177 | 2m | QSFP / QSFP | Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,2m | 3/6 Gbps | - |
| NetApp Cable X6595-R6 | 112-00255 | 3m | QSFP / QSFP | Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,3m | 3/6 Gbps | - |
| NetApp Cable X66022A-R6 | 112-00431 | 5m | MiniSAS HD / QSFP | Cable,Storage,MiniSAS HD/QSFP,12Gb,5m | 6 Gbps | - |
| NetApp Cable X6559-R6 | 112-00178 | 5m | QSFP / QSFP | Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,5m | 3/6 Gbps | - |
| NetApp Cable X6590-R6 | 112-00242 | 10m | QSFP / QSFP | Cable,SAS Cntlr-Shelf/Shelf-Shelf,Active,10m | 3/6 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.2RC1, 8.1, 8.0.2, 7.3.5.1 |
| NetApp Cable X6591-R6 | 112-00243 | 20m | QSFP / QSFP | Cable,SAS Cntlr-Shelf/Shelf-Shelf,Active,20m | 3/6 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.2RC1, 8.1, 8.0.2, 7.3.5.1 |
| SAS 3/6 Gbps (Optical Cables) | ||||||
| Optical Transceiver X65400A-R6 with Supported Cables | ||||||
| NetApp Cable X65400A-R6 | 332-00335, AFBR-79EQDZ-NA1, FTL410QE2C-N1, FTL410QE4C-N1, FTL410QL1C-N1 | XCVR | QSFP / MPO | XCVR,QSFP,Opt,6Gb,SAS | 6 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1 |
| Optical Cables | ||||||
| NetApp Cable X66000A-R6 | 112-00265 | 1m | QSFP / QSFP | Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,1m | 6 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1 |
| NetApp Cable X66001A-R6 | 112-00266 | 2m | QSFP / QSFP | Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,2m | 6 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1 |
| NetApp Cable X66002A-R6 | 112-00267 | 3m | QSFP / QSFP | Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,3m | 6 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1 |
| NetApp Cable X66003A-R6 | 112-00268 | 5m | QSFP / QSFP | Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,5m | 6 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1 |
| NetApp Cable X66008A-R6 | 112-00260 | 5m | QSFP / 4xLC | Cable,Cntlr/Shelf-PatchP,OM4,QSFP-LC,5m | 6 Gbps | - |
| NetApp Cable X66010A-R6 | 112-00263 | 5m | QSFP / 2xSC | Cable,Cntlr/Shelf-PatchP,OM4,QSFP-SC,5m | 6 Gbps | - |
| NetApp Cable X66012A-R6 | 112-00278 | 5m | QSFP / 4xMT-RJ | Cable,Cntlr/Shelf-PatchP,OM4,QSFP/MTRJ,5m | 6 Gbps | - |
| NetApp Cable X66014A-R6 | 112-00272 | 5m | QSFP / 8x Simplex LC | Cable,Cntlr/Shelf-PatchP,OS1,QSFP/LC,5m | 6 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1 |
| NetApp Cable X66016A-R6 | 112-00274 | 5m | QSFP / 8x Simplex SC | Cable,Cntlr/Shelf-PatchP,OS1,QSFP/SC,5m | 6 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1 |
| NetApp Cable X66018A-R6 | 112-00281 | 5m | QSFP / 4xMT-RJ | Cable,Cntlr/Shelf-PatchP,OS1,QSFP/MTRJ,5m | 6 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1 |
| NetApp Cable X66004A-R6 | 112-00269 | 7m | QSFP / QSFP | Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,7m | 6 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1 |
| NetApp Cable X66005A-R6 | 112-00270 | 15m | QSFP / QSFP | Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,15m | 6 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1 |
| NetApp Cable X66011A-R6 | 112-00264 | 30m | MPO / 4xSC | Cable,Cntlr/Shelf-PatchP,OM4,QSFP-SC,30m | 6 Gbps | - |
| NetApp Cable X66006A-R6 | 112-00271 | 30m | QSFP / QSFP | Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,30m | 6 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1 |
| NetApp Cable X66009A-R6 | 112-00261 | 30m | QSFP / 4xLC | Cable,Cntlr/Shelf-PatchP,OM4,QSFP-LC,30m | 6 Gbps | - |
| NetApp Cable X66013A-R6 | 112-00279 | 30m | QSFP / 4xMT-RJ | Cable,Cntlr/Shelf-PatchP,OM4,QSFP/MTRJ,30m | 6 Gbps | - |
| NetApp Cable X66015A-R6 | 112-00273 | 30m | QSFP / 8x Simplex LC | Cable,Cntlr/Shelf-PatchP,OS1,QSFP/LC,30m | 6 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1 |
| NetApp Cable X66017A-R6 | 112-00276 | 30m | QSFP / 8x Simplex SC | Cable,Cntlr/Shelf-PatchP,OS1,QSFP/SC,30m | 6 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1 |
| NetApp Cable X66019A-R6 | 112-00282 | 30m | QSFP / 4xMT-RJ | Cable,Cntlr/Shelf-PatchP,OS1,QSFP/MTRJ,30m | 6 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1 |
| NetApp Cable X66007A-R6 | 112-00280 | 50m | QSFP / QSFP | Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,50m | 6 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1 |
Supported Power Cords for NetApp DS4486
| Marketing Part No. | End 1 / End 2 | Length | Description | |
|---|---|---|---|---|
| Non-Cabinet Power Cords | ||||
| X800B-R6 | CEE 7/7 (Schuko) / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V | |
| X800C-R6 | BS1363 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V | |
| X800D-R6 | JIS-C-8303 / IEC60320-C13 | 1.83 m | Pwr Cord,Non-Cabinet,Japan,15A/125V | |
| X800E-R6 | NEMA 5-15P / IEC60320-C13 | 1.83 m | Pwr Cord,Non-Cabinet,North America,15A/125V | |
| X800F-R6 | AS/NZS 3112 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V | |
| X800G-R6 | SEV 1011 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Switzerland,10A/250V | |
| X800H-R6 | IRAM 2073 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Argentina,10A/250V | |
| X800I-R6 | GB2099 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,China,10A/250V | |
| X800J-R6 | DHCR107-2-D1 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Demark,10A/250V | |
| X800K-R6 | SANS 164-1 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V | |
| X800L-R6 | SI32 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Israel,10A/250V | |
| X800M-R6 | CEI 23-16 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Italy,10A/250V | |
| X800P-R6 | NEMA 6-15P / IEC60320-C13 | 1.83 m | Pwr Cord,Non-Cabinet,North America,15A/250V | |
| X800T-R6 | CNS 10917-3 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Taiwan,BSMI,15A/125V | |
| X800VB-R6 | NBR14136 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Brazil,10A/250V | |
| X800W-R6 | CNS10917/CNS690 / IEC60320-C13 | 1.83 m | Pwr Cord,Non-Cabinet,Taiwan,10A/250V | |
| X800Y-R6 | JIS-C-830 / IEC60320-C13 | 1.83 m | Pwr Cord,Non-Cabinet,Japan,15A/250V | |
| In-Cabinet Power Cords | ||||
| X1558A-R6 | IEC60320-C14 / IEC60320-C13 | 1.20 m | Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V | |
| X800-42U-35 | IEC60320-C14 / IEC60320-C13 | 0.89 m | Pwr Cord,In-Cabinet,C13-C14,35-inch | |
| X800-42U-43 | IEC60320-C14 / IEC60320-C13 | 1.09 m | Pwr Cord,In-Cabinet,C13-C14,43-inch | |
| X800-42U-64 | IEC60320-C14 / IEC60320-C13 | 1.63 m | Pwr Cord,In-Cabinet,C13-C14,64-inch | |
| X800-42U-R6 | IEC60320-C14 / IEC60320-C13 | 0.68 m | Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V | |
Supported Rail Kits for NetApp DS4486
| Marketing Part No. | Manufacturing Part No. | Description | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NetApp System Cabinet Rail Kits | ||||||||||||
| X8783A-R6 | 111-01110 | Rail Kit III, NetApp Cabinet, R6 | ||||||||||
| X87880A | 111-03887 | Rail Kit 4,Cabinet | ||||||||||
| Third-Party Cabinet Rail Kits | ||||||||||||
| X-02659-00 | 113-00232 | Kit,4-Post,Square or Round-Hole, 24"-32" Rail | ||||||||||
| X5515A-R6 [1] | 111-00232 | Kit,2-Post (Round) or 4-Post (Square), 24"-32" Rail | ||||||||||
| X5526A-R6 | 111-00593 | Kit,4-Post.Square-Hole, 24"-32" Rail | ||||||||||
| X5529A-R6 | 111-00310 | Kit,4-Post,Swift,Square-Hole, 24"-32" Rail | ||||||||||
| Marketing Part No. | Manufacturing Part No. | Description |
|---|
Field Replacement Unit Parts for NetApp DS4486
| Marketing Part No. | Manufacturing Part No. | Description | |
|---|---|---|---|
| Cabinets | |||
| X870F-C | - | Cabinet,1280mm,Empty,No PDU,No Rails,-C | |
| X870F-N-C | - | Cab,1280mm,Empty,No PDU,No Rails,-C | |
| X870F-QS-C | - | Cabinet,1280mm,Empty,No PDU,No Rails,QS,-C | |
| Chassis | |||
| X5723A | 111-03068 | SHELF,EMPTY,2 PSU,913W,MIDPLANE II,DS212C | |
| Conversion Kit | |||
| X898A | TBD | DS212C, Kit,FAS2620 Conversion | |
| Data Cable | |||
| X66020A-R6 | 112-00429 | Cable,Storage,MiniSAS HD,QSFP,12G,1m | |
| X66020A-R6-C | 112-00429 | Cable,Storage,MiniSAS HD,QSFP,12G,1m,-C | |
| X66021A-R6 | 112-00430 | Cable,Storage,MiniSAS HD,QSFP,12G,2m | |
| X66021A-R6-C | 112-00430 | Cable,Storage,MiniSAS HD,QSFP,12G,2m,-C | |
| X66022A-R6 | 112-00431 | Cable,Storage,MiniSAS HD,QSFP,12G,5m | |
| X66022A-R6-C | 112-00431 | Cable,Storage,MiniSAS HD,QSFP,12G,5m,-C | |
| X66030A | 112-00435 | Cable,12Gb,Mini SAS HD,0.5m | |
| X66030A-C | 112-00435 | Cable,12Gb,Mini SAS HD,0.5m,-C | |
| X66030A-K-N | 112-00435 | Cable,12Gb,Mini SAS HD,0.5m | |
| X66030A-N | 112-00435 | Cable,12Gb,Mini SAS HD,0.5m | |
| X66030A-N-C | 112-00435 | Cable,12Gb,Mini SAS HD,0.5m,-C | |
| X66031A | 112-00436 | Cable,12Gb,Mini SAS HD,1m | |
| X66031A-C | 112-00436 | Cable,12Gb,Mini SAS HD,1m,-C | |
| X66031A-K-N | 112-00436 | Cable,12Gb,Mini SAS HD,1m | |
| X66031A-N | 112-00436 | Cable,12Gb,Mini SAS HD,1m | |
| X66031A-N-C | 112-00436 | Cable,12Gb,Mini SAS HD,1m,-C | |
| X66032A | 112-00437 | Cable,12Gb,Mini SAS HD,2m | |
| X66032A-C | 112-00437 | Cable,12Gb,Mini SAS HD,2m,-C | |
| X66032A-K-N | 112-00437 | Cable,12Gb,Mini SAS HD,2m | |
| X66032A-N | 112-00437 | Cable,12Gb,Mini SAS HD,2m | |
| X66032A-N-C | 112-00437 | Cable,12Gb,Mini SAS HD,2m,-C | |
| X66033A | 112-00438 | Cable,12Gb,Mini SAS HD,3m | |
| X66033A-C | 112-00438 | Cable,12Gb,Mini SAS HD,3m,-C | |
| X66033A-K-N | 112-00438 | Cable,12Gb,Mini SAS HD,3m | |
| X66033A-N | 112-00438 | Cable,12Gb,Mini SAS HD,3m | |
| X66033A-N-C | 112-00438 | Cable,12Gb,Mini SAS HD,3m,-C | |
| X66034A | 112-00439 | Cable,12Gb,Mini SAS HD,5m | |
| X66034A-C | 112-00439 | Cable,12Gb,Mini SAS HD,5m,-C | |
| X66034A-K-N | 112-00439 | Cable,12Gb,Mini SAS HD,5m | |
| X66034A-N | 112-00439 | Cable,12Gb,Mini SAS HD,5m | |
| X66034A-N-C | 112-00439 | Cable,12Gb,Mini SAS HD,5m,-C | |
| X66040A | 112-00449 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m | |
| X66040A-C | 112-00449 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C | |
| X66040A-K-N | 112-00449 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m | |
| X66040A-N | 112-00449 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m | |
| X66040A-N-C | 112-00449 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C | |
| X66041A | 112-00450 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m | |
| X66041A-C | 112-00450 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C | |
| X66041A-K-N | 112-00450 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m | |
| X66041A-N | 112-00450 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m | |
| X66041A-N-C | 112-00450 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C | |
| X66042A | 112-00451 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m | |
| X66042A-C | 112-00451 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C | |
| X66042A-K-N | 112-00451 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m | |
| X66042A-N | 112-00451 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m | |
| X66042A-N-C | 112-00451 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C | |
| X66043A | 112-00452 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m | |
| X66043A-C | 112-00452 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C | |
| X66043A-K-N | 112-00452 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m | |
| X66043A-N | 112-00452 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m | |
| X66043A-N-C | 112-00452 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C | |
| X66044A | 112-00453 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,15m | |
| X66045A | 112-00454 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,30m | |
| X66046A | 112-00455 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,50m | |
| X66047A | 112-00456 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m | |
| X66047A-C | 112-00456 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C | |
| X66047A-N-C | 112-00456 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C | |
| X66048A | 112-00457 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m | |
| X66048A-C | 112-00457 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C | |
| X66048A-N-C | 112-00457 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C | |
| Drive | |||
| X302A-R5 | 108-00268 | Disk Drive,1.0TB 7.2k,DS424x,FAS2240-4 | |
| X306A-R5 | 108-00270 | Disk Drive,2.0TB 7.2k,DS424x,2554/2240-4 | |
| X308A-R5 | 108-00277 | Disk Drive,3.0TB 7.2K,DS424x,2554/2240-4 | |
| X315A-R6 | 108-00368 | DSK DRV,4TB 7.2k,NSE,DS424x,2554/2220/2240-4 | |
| X317A | 108-00399 | DSK DRV,6TB,7.2K,12G,NSE,DS212C | |
| X318A-R6 | 108-00455 | DSK DRV,8TB,7.2K,12G,DS212C | |
| X322A | 108-00551 | DSK DRV,10TB,7.2K,12G,NSE,DS212C | |
| X336A-R6 | 108-00427 | DSK DRV,4TB,7.2K,12G,DS212C | |
| X339A | 108-00426 | DSK DRV,2TB,7.2K,12Gb,DS212C,FAS2620 | |
| X363A-R6 | 108-00467 | SSD,3.8TB,FAS2520/2554 | |
| X364A | 108-00650 | SSD,3.8TB,DS212C,FAS2620,w/MSW | |
| X366A-R6 | 108-00470 | SSD,1.6TB,NSE,DS4246,FAS2554 | |
| X374A | 108-00573 | SSD,960GB,12G,DS212C,W/MSW | |
| X380A | 108-00549 | DSK DRV,10TB,7.2K,12G,DS212C | |
| X388A | 108-00885 | DSK DRV,16TB,7.2K,12G,DS212C | |
| X448A-R6 | 108-00253 | SSD,200GB,DS4246,FAS2554/2240-4/2220 | |
| X449A-R6 | 108-00319 | SSD,800GB,DS4246,FAS2554/2240-4/2220 | |
| X477A-R6 | 108-00315 | DSK DRV,4TB 7.2k,DS4246,2554/2220/2240-4 | |
| X488A-R5 | 108-00298 | Disk Drive,900GB 10K,2520/2220 | |
| X489A-R6 | 108-00322 | Disk Drive,1.2TB 10K,2520/2220 | |
| X490A-R6 | 108-00425 | Disk Drive,1.8TB 10K,FAS2520 | |
| X575A-R6 | 108-00370 | SSD,400GB,DS424x,FAS2554/2240-4/2220 | |
| X576A-R6 | 108-00373 | SSD,1.6TB,DS424x,FAS2554/2240-4/2220 | |
| X577A-R6 | 108-00375 | SSD,800GB,NSE,DS4246,FAS2554 | |
| Power Cord | |||
| X-50617-00 | - | Jumper Crd,In-Cab,2m,C20-C13,E-Series | |
| X-50617-00-0E-C | - | Jumper Crd,In-Cab,2m,C20-C13,E-Series,0E,-C | |
| X1558A-R6 | - | Jumper Crd,In-Cab,48-IN,C13-C14 | |
| X1558A-R6-C | - | Jumper Crd,In-Cab,48-IN,C13-C14-C | |
| X800-42U-35 | - | Jumper Crd,In-Cab,C13-C14,35-inch | |
| X800-42U-35-C | - | Jumper Crd,In-Cab,C13-C14,35-inch,-C | |
| X800-42U-35-K-N | - | Jumper Crd,In-Cab,C13-C14,35-inch | |
| X800-42U-35-N | - | Power Cable,In-Cabinet,C13-C14,35-inch | |
| X800-42U-43 | - | Jumper Crd,In-Cab,C13-C14,43-inch | |
| X800-42U-43-C | - | Jumper Crd,In-Cab,C13-C14,43-inch,-C | |
| X800-42U-43-K-N | - | Jumper Crd,In-Cab,C13-C14,43-inch | |
| X800-42U-43-N | - | Power Cable,In-Cabinet,C13-C14,43-inch | |
| X800-42U-64 | - | Jumper Crd,In-Cab,C13-C14,64-inch | |
| X800-42U-64-C | - | Jumper Crd,In-Cab,C13-C14,64-inch,-C | |
| X800-42U-64-K-N | - | Jumper Crd,In-Cab,C13-C14,64-inch | |
| X800-42U-64-N | - | Power Cable,In-Cabinet,C13-C14,64-inch | |
| X800-42U-R6 | - | Jumper Crd,In-Cab,C13-C14 | |
| X800-42U-R6-C | - | Jumper Crd,In-Cab,C13-C14,-C | |
| X800B-R6 | - | Power Cable,Continental Europe,R6 | |
| X800B-R6-C | - | Power Cable,Continental Europe,-C,R6 | |
| X800C-R6 | - | Power Cable,UK and Ireland,R6 | |
| X800C-R6-C | - | Power Cable,UK and Ireland,-C,R6 | |
| X800D-R6 | - | Power Cable,Japan,R6 | |
| X800D-R6-C | - | Power Cable,Japan,-C,R6 | |
| X800E-R6 | - | Power Cable,North America,R6 | |
| X800E-R6-C | - | Power Cable,North America,-C,R6 | |
| X800F-R6 | - | Power Cable,Australia/New Zealand,R6 | |
| X800F-R6-C | - | Power Cable,Australia/New Zealand,-C,R6 | |
| X800G-R6 | - | Power Cable,Switzerland,R6 | |
| X800G-R6-C | - | Power Cable,Switzerland,-C,R6 | |
| X800H-R6 | - | Power Cable,Argentina,R6 | |
| X800H-R6-C | - | Power Cable,Argentina,-C,R6 | |
| X800I-R6 | - | Power Cable,China,R6 | |
| X800I-R6-C | - | Power Cable,China,-C,R6 | |
| X800J-R6 | - | Power Cable,Denmark,R6 | |
| X800J-R6-C | - | Power Cable,Denmark,-C,R6 | |
| X800K-R6 | - | Power Cable,India,South Africa,R6 | |
| X800K-R6-C | - | Power Cable,India,South Africa,-C,R6 | |
| X800L-R6 | - | Power Cable,Israel,R6 | |
| X800L-R6-C | - | Power Cable,Israel,-C,R6 | |
| X800M-R6 | - | Power Cable,Italy,R6 | |
| X800M-R6-C | - | Power Cable,Italy,-C,R6 | |
| X800N | - | POWER CABLE,INDIA BIS | |
| X800N-C | - | Power Cable,India BIS,-C | |
| X800P-R6 | - | Power Cable,North America,250V,R6 | |
| X800P-R6-C | - | Power Cable,North America,250V,-C,R6 | |
| X800T-R6 | - | Power Cable,Taiwan,BSMI,R6 | |
| X800T-R6-C | - | Power Cable,Taiwan,BSMI,-C,R6 | |
| X800VB-R6 | - | Power Cable,Brazil,IEC-60906-1-Plug | |
| X800W-R6 | - | Power Cable,Taiwan,250V,BSMI,R6 | |
| X800W-R6-C | - | Power Cable,Taiwan,250V,BSMI,-C | |
| X800Y-R6 | - | Power Cable,Japan,250V/15A | |
| X800Y-R6-C | - | Power Cable,Japan,250V/15A,-C | |
| Power Supply Unit | |||
| X5726A | 114-00148 | PSU,913W | |
| RailKit | |||
| X-02654-00 | 111-02852 | Rail Kit,Thin,Rnd/Sq-Hole,2-Post | |
| X-02654-00-C | 111-02852 | Rail Kit,Thin,Rnd/Sq-Hole,2-Post,-C | |
| X-02654-00-K-N | 111-02852 | Rail Kit,Thin,Rnd/Sq-Hole,2-Post | |
| X-02654-00-N | 111-02852 | Rail Kit,Thin,Rnd/Sq-Hole,2-Post | |
| X-02654-00-N-C | 111-02852 | Rail Kit,Thin,Rnd/Sq-Hole,2-Post | |
| X-02657-00 | 111-02657 | Rackmount Kit,212C,4-post,Adj | |
| X-02657-00-C | 111-02657 | Rail Kit,Thin,Rnd/Sq-Hole,4-Post,Adj,24-32,-C | |
| X-02657-00-K-N | 111-02657 | Rackmount Kit,212C,4-post,Adj | |
| X-02657-00-N | 111-02657 | Rackmount Kit,212C,4-post,Adj | |
| X-02657-00-N-C | 111-02657 | Rail Kit,Thin,Rnd/Sq-Hole,4-Post,Adj,24-32,-C | |
| Shelf Module | |||
| X5720A | - | IOM12,SAS,12G | |
Size, Weight, Acoustic, Power for NetApp DS4486
| Associated Part No. | Configuration | Rack Units | Weight | Sound Power | Sound Pressure | Line Voltage Actual (Min to Max) | Amps Typical | Amps Worst | Watts Typical | Watts Worst | BTU / Hr Typical | BTU / Hr Worst |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Empty Shelf (without PSU) | ||||||||||||
| X568A-R6 | shelf empty without PSU | - | - | - | - | - | - | - | - | - | - | - |
| Quickship Fully Populated | ||||||||||||
| DS4486-07-10-48A-QS | 48x10TB,MSATA | 4 | 151.2 lb (68.6 kg) | 6.2 Bels | 49 dBA | 100 (100 to 120) | 6.93 | 9.95 | 679 | 975 | 2318 | 3328 |
| DS4486-07-10-48A-QS | 48x10TB,MSATA | 4 | 151.2 lb (68.6 kg) | 6.2 Bels | 49 dBA | 200 (200 to 240) | 3.4 | 4.88 | 666 | 956 | 2273 | 3263 |
| DS4486-07-8-48A-QS | 48x8TB,7.2K,MSATA | 4 | 163.8 lb (74.3 kg) | 6.2 Bels | 49 dBA | 100 (100 to 120) | 7.64 | 10.66 | 748 | 1044 | 2553 | 3564 |
| DS4486-07-8-48A-QS | 48x8TB,7.2K,MSATA | 4 | 163.8 lb (74.3 kg) | 6.2 Bels | 49 dBA | 200 (200 to 240) | 3.75 | 5.23 | 734 | 1024 | 2506 | 3495 |
| DS4486-144TB-QS-R5 | 48x3TB 7.2K SATA | 4 | 148.4 lb (67.3 kg) | 6.2 Bels | 49 dBA | 100 (100 to 120) | 6.57 | 8.71 | 657 | 870 | 2243 | 2970 |
| DS4486-144TB-QS-R5 | 48x3TB 7.2K SATA | 4 | 148.4 lb (67.3 kg) | 6.2 Bels | 49 dBA | 200 (200 to 240) | 3.46 | 4.59 | 692 | 919 | 2362 | 3137 |
| DS4486-192TB-QS-R6 | 48x4TB 7.2K SATA | 4 | 147.9 lb (67.1 kg) | 6.2 Bels | 49 dBA | 100 (100 to 120) | 6.79 | 8.54 | 677 | 853 | 2311 | 2912 |
| DS4486-192TB-QS-R6 | 48x4TB 7.2K SATA | 4 | 147.9 lb (67.1 kg) | 6.2 Bels | 49 dBA | 200 (200 to 240) | 3.38 | 4.25 | 657 | 837 | 2243 | 2857 |
| DS4486-288TB-QS-R6 | 48x6TB 7.2K SATA | 4 | 147.9 lb (67.1 kg) | - | - | 100 (100 to 120) | 6.8 | 9.08 | 672 | 901 | 2292 | 3072 |
| DS4486-288TB-QS-R6 | 48x6TB 7.2K SATA | 4 | 147.9 lb (67.1 kg) | - | - | 200 (200 to 240) | 3.4 | 4.45 | 655 | 871 | 2234 | 2970 |
Category: 2000-5000, 4u, drive-capacity-3tb, drive-count-48, drive-rpm-7-2k, ds4486, interface-type-msata, interface-type-sata, lff, netapp
Shipping Information
Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.
Custom configured orders ship within 2 business days after all required products are in stock.
Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.
Domestic Shipments
- Standard Ground
- Shipping time: 2-7 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-10 business days
- Excludes weekends, holidays or weather delays.
- 3 Business Days
- Shipping time: 3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 3-6 business days
- Excludes weekends, holidays or weather delays.
- 2 Business Days
- Shipping time: 2 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-5 business days
- Excludes weekends, holidays or weather delays.
- Overnight / Next Business Day
- Shipping time: 1 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 1-4 business days
- Excludes weekends, holidays or weather delays.
International Shipments
- International Economy
- Shipping time: 4-6 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 5-9 business days
- Excludes weekends, holidays or weather delays.
- International Priority
- Shipping time: 1-3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-6 business days
- Excludes weekends, holidays or weather delays.
For more information on shipping view our Shipping Information page or send us a message
ECS Warranty Information
Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.
What does our ECS warranty cover?
We offer 1 year warranty as standard and additional
years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more
information on extended coverage options. During the coverage period if your product fails we
will offer a Next Business Day replacement. If we are unable to replace the product we will
refund its original selling price. Shipping costs and tax are not refundable. Express Computer
Systems retains the right to decide whether the goods will be replaced or
refunded.
What is not covered by our warranty?
Our warranty does not cover any problem caused
by the following conditions:
- accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
- any improper use that contravenes the instructions in the user manual;
- problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.
Important notes:
- Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
- FREE technical support is provided on purchased items via phone, email, or live chat.
About Express Computer Systems
Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.
We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.
Same-Day Shipping
At Express Computer Systems, we know hardware emergencies can happen at anytime. We also understand that you want to receive the best hardware as quickly as possible. At Express Computer Systems we'll ship the majority of our orders out the same day payment is made. Curious if the item you need will make it out on time? Feel free to contact us directly via the Contact Us link at the bottom, Live Chat feature or (800) 327-0730.
Buy, Sell, Rent, Lease, Trade-In
At Express Computer Systems we not only will sell you equipment at a great value, but we'll also purchase your used Dell, Cisco, NetApp or other networking equipment. Feel free to contact us with the model of the items you're looking to sell and we'll get you a quote ASAP. We also have flexible financing options for your purchasing needs.
In-House Configuration and Testing Lab
Every item we sell is tested on-site in our state-of-the-art hardware engineering lab. We use certified technicians to test every piece of equipment as well as updating all necessary firmware. The highest quality of testing and certification is guaranteed. We warranty all of our items we sell. Ask us today about warranty for a specific item.
Shop with Confidence
