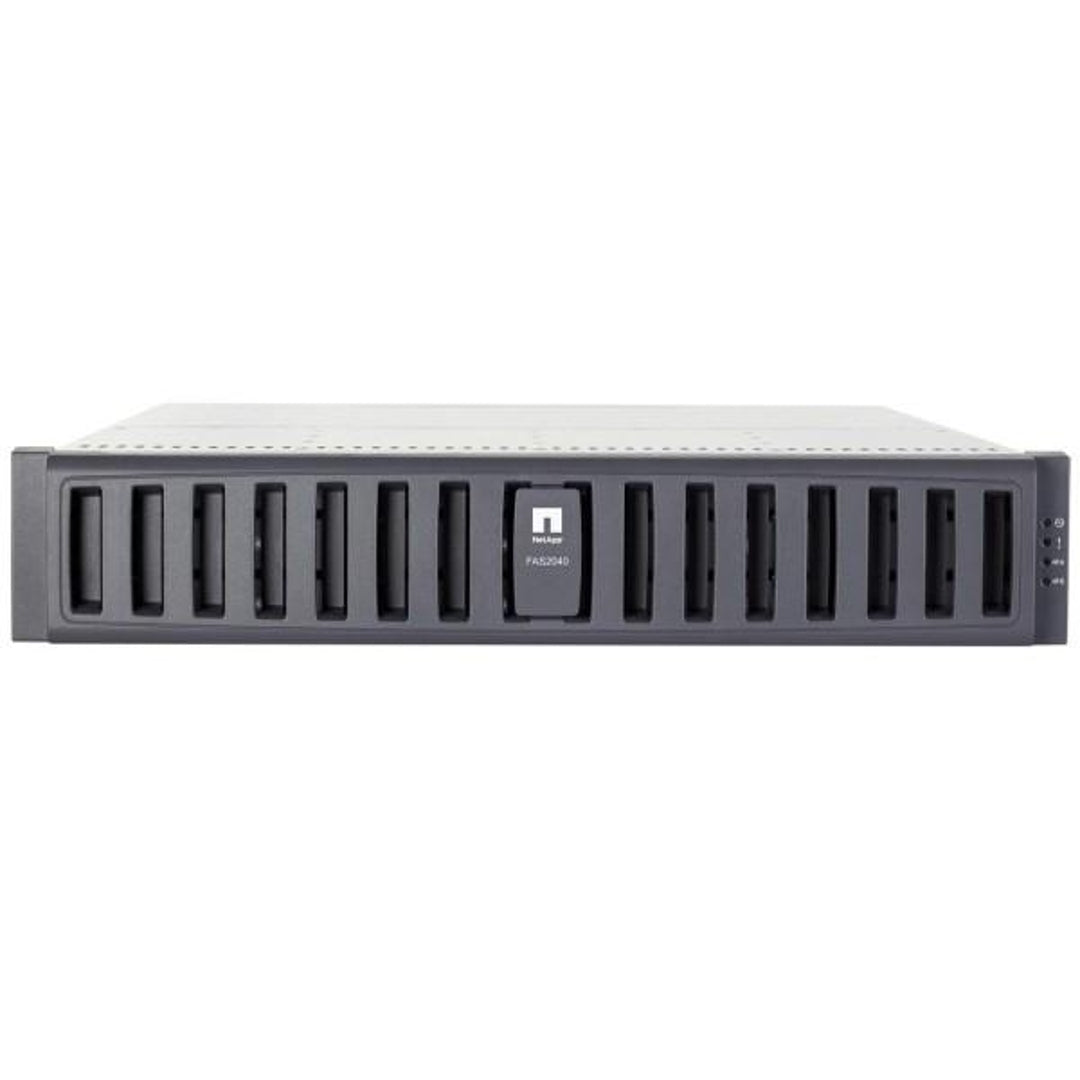

NetApp FAS2040A / FAS2040C Dual Controller 12x 3.5”

SKU: FAS2040HA

NetApp FAS2040 Dual Controller Filer Head (HA)

Name: NetApp FAS2040 Dual Controller Filer Head (HA)
Brand: NetApp
SKU: FAS2040HA
Availability: OutOfStock

NetApp

| Filer Head

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

The NetApp FAS2000 series provides a powerful range of technologies to help increase the efficiency of your storage administrators. FAS2000 series rapidly deploys within minutes and also helps to cut storage costs by up to 50% with features such as deduplication and thin provisioning.

The FAS2040 is geared towards midsize businesses, remote offices, and local storage at an affordable price. FAS2040 is excellent for consolidating virtualized environments with one to three Windows applications or lighter file-serving workloads.

The FAS2040 utilizes up to 136 drives and can support up to 408TB of max storage in a 2U/12 drive configuration.

Model & Form Factor

Model: NetApp FAS2040
Form Factor: 2U
PCIe Expansion Slots: None
Disk Shelves: DS12-ESAS, DS14-Mk2-AT, DS14-Mk2-FC, DS14-Mk4-FC, DS2246, DS4243, DS4246
Filer Heads: N/A

Dimensions & Weight

Chassis Heights: 3.5" (8.9 cm)
Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
Chassis Depth w/ Cable Mgmt: 22.52" (57.2 cm)
Chassis Weight: 66.0 lb (29.9 kg)

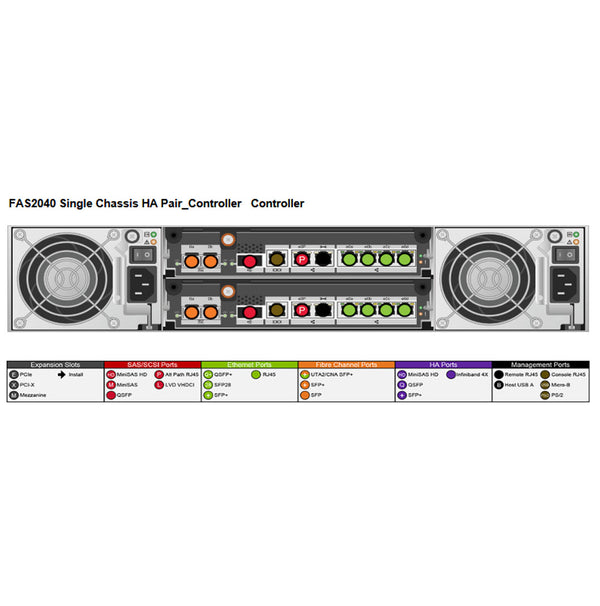

Controller Specs

Controllers: Dual Controller (HA)
Max Controllers: 2 (Built-in)
Ethernet Ports (per): 4x RJ45 (1Gbps)
Fibre Channel Ports (per): 2x SFP (4Gbps)
SAS Ports (per): 1 x QSFP (3Gb)
Remote Management: Yes
Processor Model (Per Node): 1x 32-bit 1.67Ghz
Memory (Single/HA): 4GB/8GB
NVRAM (Single): 512MB (NVMEM)

Storage

Max Number of Internal Drives: 12
Max Number Drives (total): 136
Max Capacity: 408TB
Max Number of FC Drives: HA Pair: 112
Max Number of SAS Drives: HA Pair: 108
Max Number of SATA Drives: HA Pair: 136
Drive Interface: FC, SAS, SATA
RAID: RAID4, RAID 6 (RAID-DP)
Max Number of DS12-ESAS Shelves: 1 internal
Max Number of DS14-Mk2-AT Shelves: 8 external
Max Number of DS14-Mk2-FC Shelves: 8 external
Max Number of DS14-Mk4-FC Shelves: 8 external
Max Number of DS2246 Shelves: 4 external
Max Number of DS4243 Shelves: 4 external
Max Number of DS4246 Shelves: 4 external

FAS2040 Parts Lists

View Drives

View Data Cables

View Power Cables

View Rail Kits

Ask about our NetApp Disk Shelves!
We can create custom Turn-Key configurations based on your needs!
Click here to view NetApp Disk Shelves
