SKU: JG926A

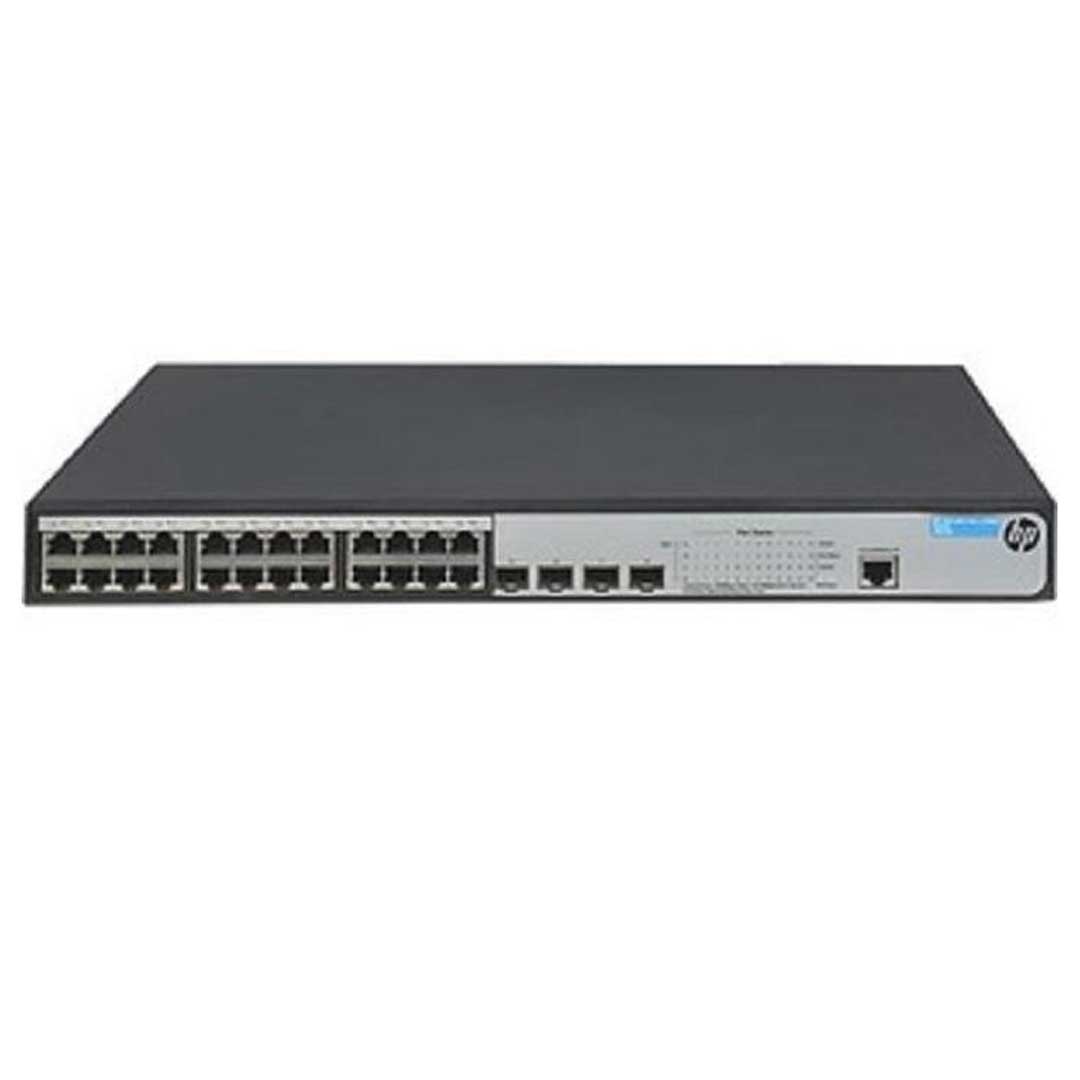

HPE OfficeConnect 1920 24G PoE+ (370W) Switch | JG926A

Name: HPE OfficeConnect 1920 24G PoE+ (370W) Switch | JG926A
Brand: HPE
SKU: JG926A
Availability: InStock

HPE

| Switches

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Switch Spec

Quick Specs:

HPE OfficeConnect 1920 24G PoE+ (370W) Switch:
- 24 RJ-45 auto-negotiating 10/100/1000 PoE+ ports
- 4 SFP 1000 Mbps ports (min=0 \ max=4 SFP Transceivers)
- 1U - Height
- 17.32(w) x 10.24(d) x 1.73(h) in (44 x 26 x 4.4 cm)
- Weight 7.5 lb (3.4 kg)
PDU Cable NA/MX/TW/JP
- C15 PDU Jumper Cord (NA/MX/TW/JP) | JG925A#B2B
PDU Cable ROW
- C15 PDU Jumper Cord (ROW) | JG925A#B2C
External/Redundant Power Supplies : Each switch will only support 1 JG136A and 1 JG137A Power supply systems.
- HPE RPS1600 Redundant Power System | JG136A
  - Includes 1 x c13, 1600w and Power Supply port
  - This power supply only supported on switch JG926A and JG928A.
  - The HPE X290 1000 A JD5 2m RPS Cable JD187A
    This Cable only supports JG926A and JG928A when used with the RPS 1600 (JG136A)
- HPE RPS1600 1600W AC Power Supply | JG137A
  - Installs into JG136A only

Key features:

Customized operation using intuitive Web interface
Layer 3 static routing with 32 routes for network segmentation and expansion
Access control lists for granular security control
Spanning Tree Protocol : STP, RSTP, and MSTP
Limited Lifetime warranty
Note 2: Localization (Wall Power Cord) required on orders without #B2B or #B2C (PDU Power Cord). (See Localization Menu)
Note 1: The following Transceivers install into this switch:
- HPE X121 1G SFP LC SX Transceiver J4858C
- HPE X121 1G SFP LC LX Transceiver J4859C
- HPE X121 1G SFP RJ45 T Transceiver J8177C
- HPE X120 1G SFP LC SX Transceiver JD118B
- HPE X120 1G SFP LC LX Transceiver JD119B
- HPE X120 1G SFP RJ45 T Transceiver JD089B

The HPE OfficeConnect 1920 Switch Series consists of advanced smart-managed fixed-configuration Gigabit switches designed for small businesses in an easy-to-administer solution. By utilizing the latest design in silicon technology, this series is one of the most power efficient in the market.

The series has 9 switches: four non-PoE models and five PoE+ models. All models are equipped with additional Gigabit SFP ports for fiber connectivity. The 8-, 24- and 48-port PoE+ models are available with PoE or without PoE.

The series is part of the OfficeConnect portfolio of Hewlett Packard Enterprise small business networking products. These switches provide a great value, and includes features to satisfy even the most advanced small business networks. All models support rack mounting or desktop operation. Customizable features include basic Layer 2 features like VLANs and link aggregation, as well as advanced features such as Layer 3 static routing, IPv6, ACLs, and Spanning Tree Protocols. HPE OfficeConnect 1920 Switch Series includes a Limited Lifetime Warranty. This warranty provides advance hardware replacement with next business day shipment in most countries, limited 24x7 telephone support available from HPE for the first 90 days, and limited electronic and business hours telephone support is available from HPE for the entire warranty period.

Features and benefits Management

Simple Web management: allows for easy management of the switch—even by nontechnical users—through an intuitive Web GUI; supports HTTP and HTTP Secure (HTTPS)
Single IP management: enables management of up to 32 HPE OfficeConnect 1920 switches using a single Web interface; simplifies management of multiple devices
SNMPv1, v2c, and v3: facilitates management of the switch, as the device can be discovered and monitored from an SNMP management station
Management Security: restricts access to critical configuration commands; offers multiple privilege levels with password protection; ACLs provide Telnet and SNMP access; local and remote syslog capabilities allow logging of all access
Complete session logging: provides detailed information for problem identification and resolution
Port mirroring: enables traffic on a port to be simultaneously sent to a network analyzer for monitoring
Dual flash images: provides independent primary and secondary operating system files for backup while upgrading
Network Time Protocol (NTP): synchronizes timekeeping among distributed time servers and clients; keeps timekeeping consistent among all clock- dependent devices within the network so that the devices can provide diverse applications based on the consistent time
Limited CLI: enables users to quickly deploy and troubleshoot devices in the network
Default DHCP client mode: allows the switch to be directly connected to a network, enabling plug-and-play operation; in absence of a DHCP server on the network, the switch will fall back to a unique static address determined by the switch's MAC address
FTP, TFTP, and SFTP support: offers different mechanisms for configuration updates; FTP allows bidirectional transfers over a TCP/IP network; trivial FTP (TFTP) is a simpler method using User Datagram Protocol (UDP); Secure File Transfer Protocol (SFTP) runs over an SSH tunnel to provide additional security
Remote monitoring (RMON): uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group

Layer 3 services

Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
DHCP relay: simplifies management of DHCP addresses in networks with multiple subnets

Layer 3 routing

Static IPv4/IPv6 routing: provides basic routing (supporting up to 32 static routes and 8 virtual VLAN interfaces); allows manual routing configuration

Compatible With:

HPE 1920

(Click to View)

HPE OfficeConnect 1920 24G PoE+ (370W) Switch | JG926A
