Hpe Apollo 4510 Gen10 Server Chassis | 864668-B21

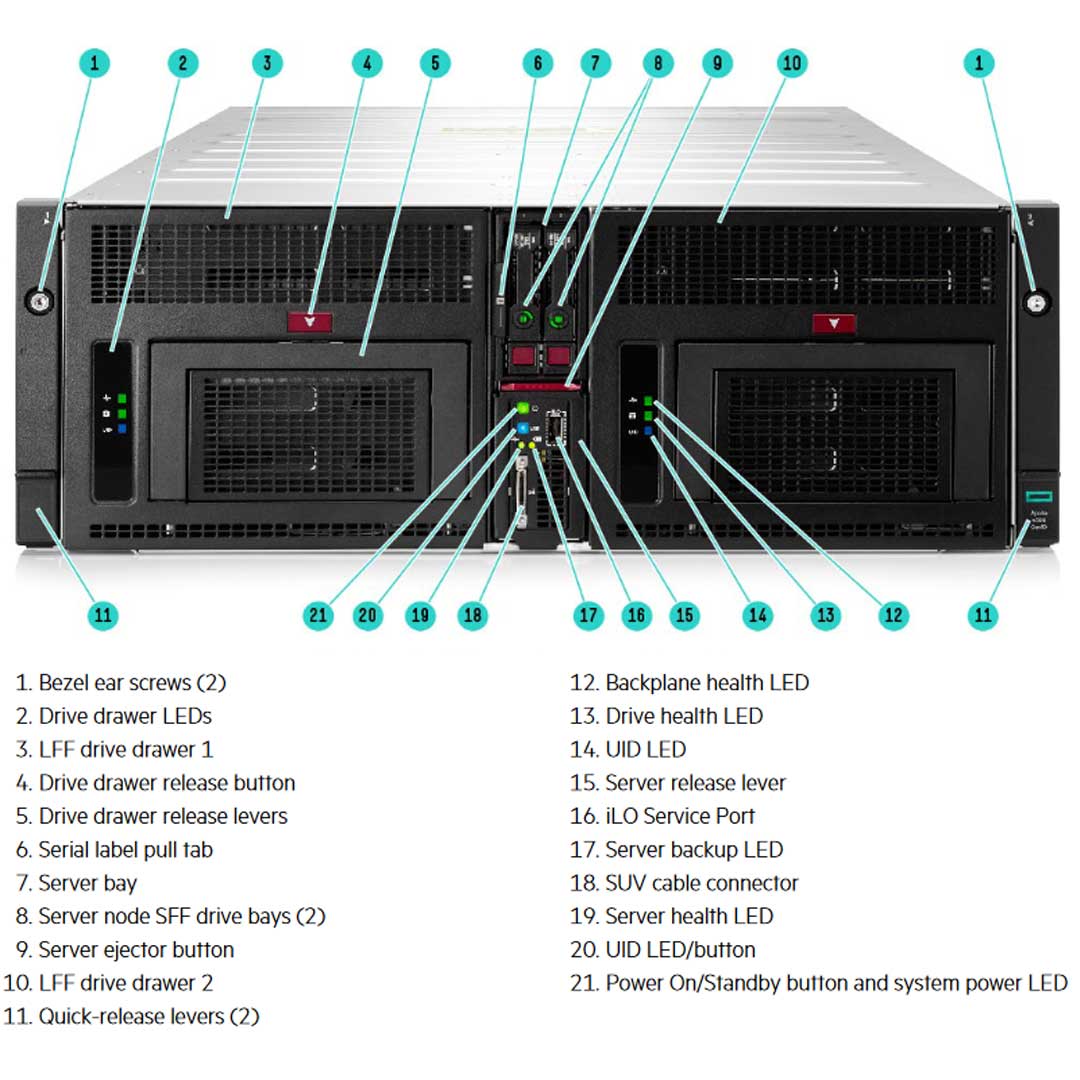

• Up to 60 hot-plug LFF drivers support in the front driver drawers with side loaded design
• 4U form factor fitting in HPE Standard 1075 mm racks

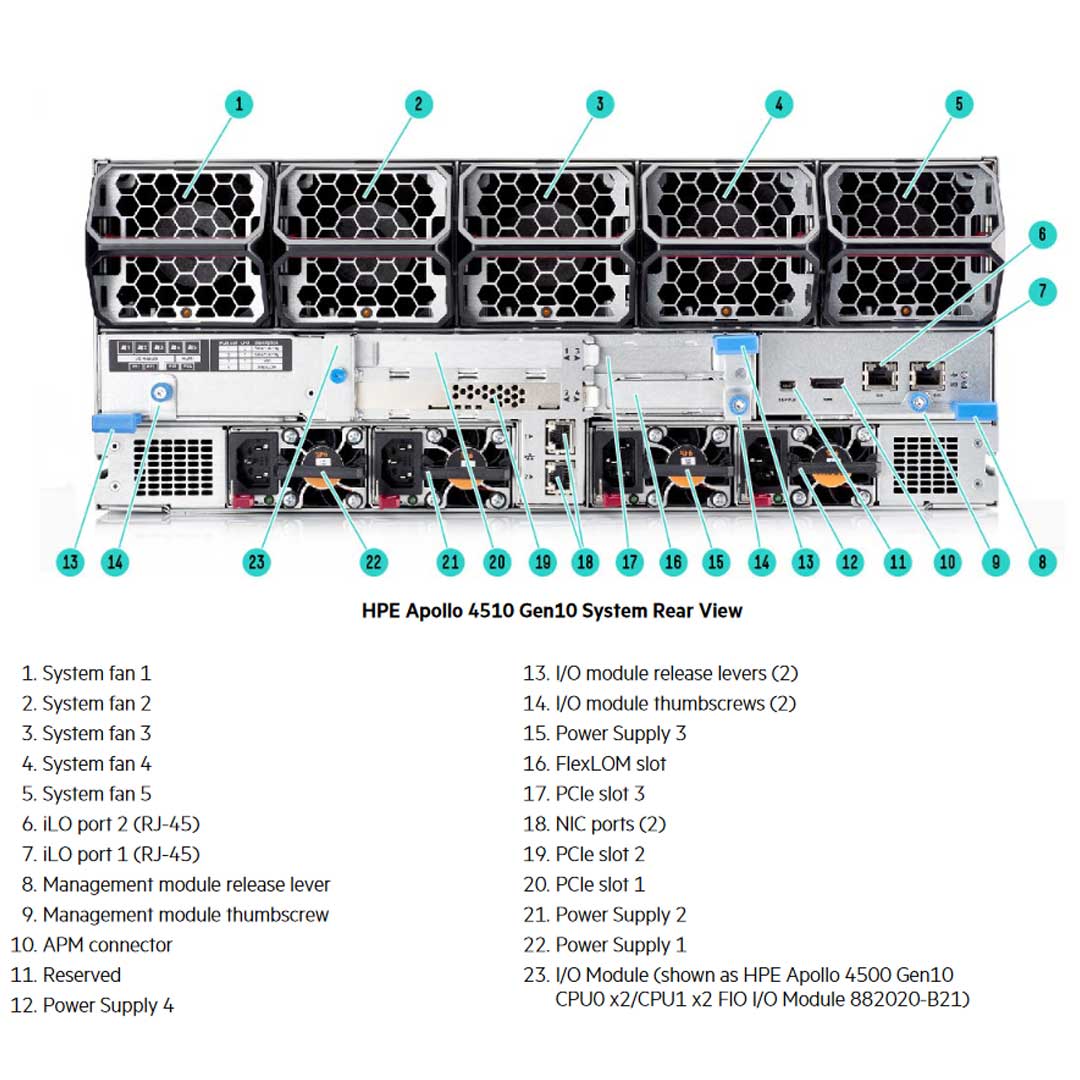

• Up to three X16 PCIe Gen3 slots.
• HPE Scalable persistent memory
• Front 2 hot-plug SFF in the HPE ProLiant XL450 Gen10 Server supports SAS/SATA/NVMe/SSD drivers with optional HPE Smart Array Gen10 controllers
• Additional boot/drive options: SATA M.2, dual uFF SSD (2 x M.2 cartridges)
• Intel Xeon processor scalable Family from 4 - 26 Cores, 85 - 150 W, 1.8 - 3.6 GHz
• HPE DDR4 SmartMemory up to 2666 MT/s
• HPE Flexible slot power supplies, 800 W and 1600 W, options of AC/ DC/ 277 V ac up to 96% efficiency

Purpose-built System for Big Data Solution Workloads

The HPE Apollo 4510 Gen10 System offers enterprise data centers dense storage and compute capabilities for Big Data Solutions, such as object storage or data analytics solutions.

Up to 60 hot-plug front-loaded Large Form Factor (LFF) disk drives load into two drawers, delivering up to 840 TB per system.

Supports Intel Xeon Scalable processors with up to 26 cores and memory speeds up to 2933 MT/s providing the improved computing power for massive Big Data applications.

Scale-out System for Enterprise Customers

The HPE Apollo 4510 Gen10 System can fit in the Hewlett Packard Enterprise standard 1075 mm rack with 2 front loading disk drive drawers and can support up to 60 LFF hot-plug drives.

Enterprise customers who are looking for larger data capacity with standard racks in their data centers can scale out the data center capacity without deploying 1200 mm or deeper racks.

Delivering one of the highest storage capacities in any 4U server with standard server depth.

Security Innovations

The HPE Apollo 4510 Gen10 System combined with our industry standard HPE ProLiant Gen10 Servers deliver firmware anchored directly into the silicon, with security protection built in across the server life-cycle starting with Silicon Root of Trust.

Millions of lines of firmware code run before server operating system boots and with Runtime Firmware Validation, enabled by HPE iLO Advanced Premium Security Edition, the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.

Secure Recovery allows server firmware to roll back to the last known good state or factory settings after detection of compromised code.

Additional security options are available with Trusted Platform Module (TPM) to prevents unauthorized access to server and securely stores artifacts used to authenticate the server platforms while the Intrusion Detection Kit logs and alerts when the server hood is removed.
