SKU: 835565-B21

HPE Dual 340GB SATA 6G Read Intensive M.2 PCIe Kit | 835565-B21

Name: HPE Dual 340GB SATA 6G Read Intensive M.2 PCIe Kit | 835565-B21
Brand: HPE
SKU: 835565-B21
Availability: InStock

HPE

| Adapter

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Adapter Specs

Type: Dual M.2 SATA SSD Kit
Capacity: 2 x 340GB (680GB Total)
Interface: SATA 6Gb/s
Form Factor: M.2 2280 (uSFF)
Performance: Read Intensive (RI-2), Value Endurance (VE)
Power Loss Protection: Yes
Riser: PCIe Gen3 x8 Dual M.2 Enablement Kit
835802-001 Dual M.2 drive module enablement kit - Includes PCIe3 x8 riser board for dual M.2 module and two SSD drives, Read Intensive-2 (RI), 6Gb/sec transfer rate - Supports DL/ML Gen9
781566-001 - P27213-001 340GB SATA M.2 RI SSD - Read intensive-2 (RI), M.2 type 2280 (80.0mm × 22.0mm x 3.5mm) form factor, 6Gb/sec transfer rate, value endurance (VE), supports power loss protection (PLP) - Support DL/ML Gen9

Part Number:

835565-B21

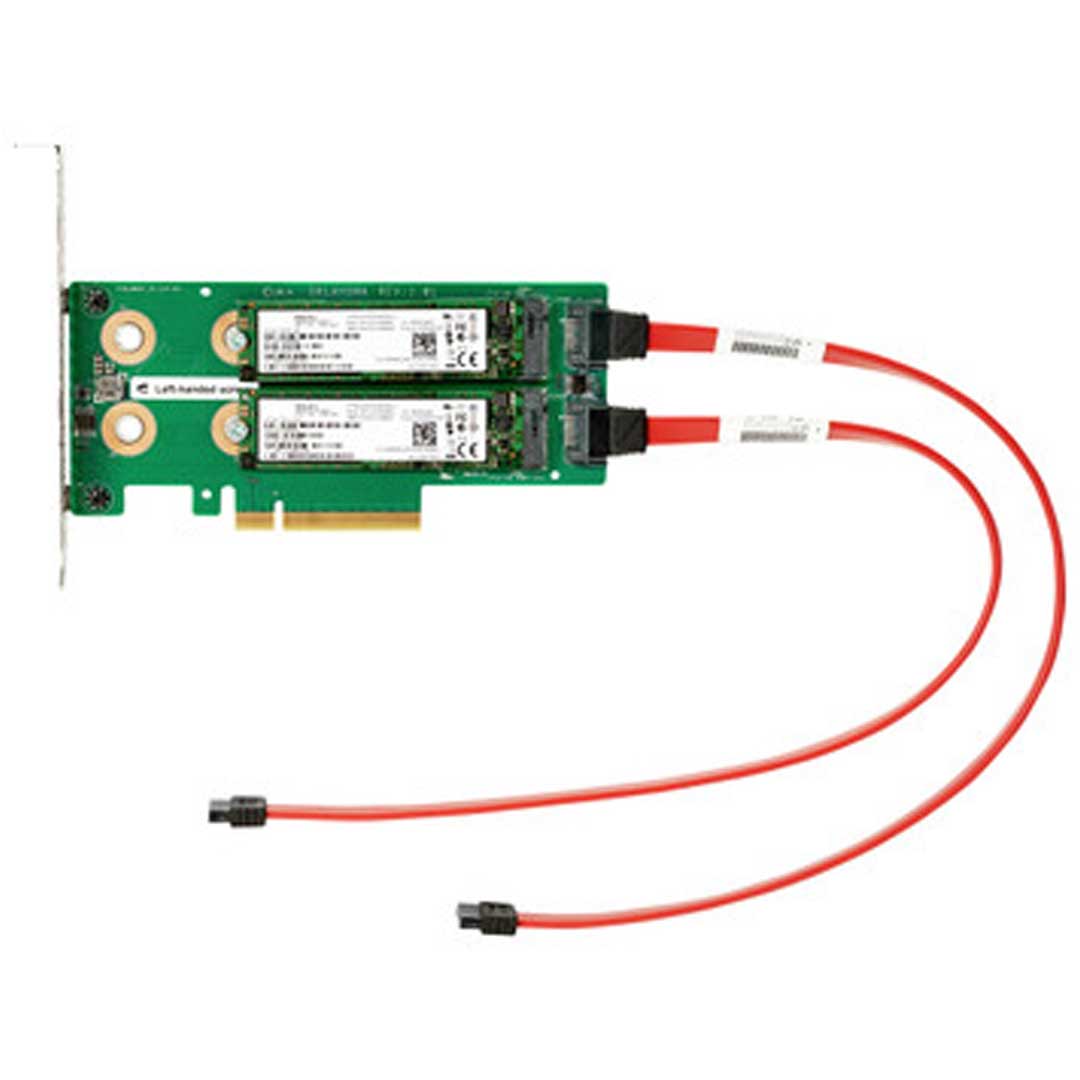

The HPE Dual 340GB SATA 6G Read Intensive M.2 PCIe Kit | 835565-B21 includes two 340GB M.2 2280 SATA SSDs and a PCIe Gen3 x8 riser card, providing a high-performance, low-footprint storage solution for HPE DL/ML Gen9 servers. The drives are designed with Read Intensive-2 (RI) technology, optimized for fast access to frequently read data with reliable value endurance (VE) and built-in power loss protection.

Ideal for boot or caching applications, this dual drive kit supports 6Gb/sec transfer rates and slots directly into supported Gen9 platforms via the included enablement riser. It’s a space-efficient alternative to traditional boot devices and offers enterprise-grade performance in a compact form factor.

Compatible With:

HPE DL160
HPE DL180

(Click to View)
