SKU: 754534-B21

Hpe Proliant Ml350 Gen9 8 Sff Rack Server Chassis | 754534-B21

HPE

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

What's New for ML350 Gen9
  • Processor: Gen9 supports Intel Xeon E5-2600 v3/v4 with up to 22 cores, compared to E5-2600 v2 with a maximum of 12 cores in Gen8.
  • Memory: Gen9 supports DDR4 memory (up to 768GB, expandable to 3TB) with 24 DIMM slots, whereas Gen8 supports DDR3 (up to 384GB) with fewer DIMM slots.
  • Storage: Gen9 adds support for NVMe drives and increased capacity with up to 48 SFF or 24 LFF drives, surpassing Gen8’s more limited storage options.
  • Power Efficiency: Gen9 introduces Flex Slot Power Supplies, offering higher efficiency and a smaller footprint compared to Gen8.
  • Management: Gen9 uses iLO 4 for enhanced remote management, security, and diagnostics, compared to iLO 3 on Gen8.
  • Expansion: Gen9 provides up to 9 PCIe 3.0 slots, supporting better scalability and network options compared to Gen8's PCIe 2.0 slots.

The ML350 Gen9 is the 2P premium server which delivers a class-leading combination of performance, availability, expandability, manageability, reliability and serviceability making it the choice for remote offices, growing businesses and data centers.

Other Versions:

Ideal for:

  • Cloud Servers
  • Corporate IT
  • Database

CTO Configuration Support

Need help with the configuration? Contact us today!
Chassis Options
CTO Server [Chassis] HPE ProLiant ML350 Gen9
Hot Plug 8SFF Configure-to-order Rack Server
 HPE ProLiant ML350 Gen9
Hot Plug 8SFF Configure-to-order Tower Server		 HPE ProLiant ML350 Gen9
Hot Plug 8LFF Configure-to-order Tower Server
SKU Number 754534-B21 754536-B21 754537-B21
Processor 2 (optional) x HPE Smart Socket Guide
DIMM Slots 24 DIMM slots for RDIMM, LRDIMM DDR4 Memory
Storage Controller HPE Dynamic Smart Array B140i
PCIe 9 Standard (8 FH/FL, 1 FH/HL)
Drive Cage - included 8SFF Hot Plug 8LFF Hot Plug
Network Controller HPE Embedded 1Gb Ethernet 4-port 331i Adapter
Fans 3 hot swap fans, non-redundant
USB 2 front, 2 internal, 4 rear
Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Product features

Feature
Description
Processor
(One of the following depending on model)
Model
CPU Frequency
Cores
L3 Cache
Power
QPI
DDR4 Hz
E5-2699v3
2.3 GHz
18
45MB
145 W
9.6 GT/s
2133
E5-2698v3
2.3 GHz
16
40MB
135 W
9.6 GT/s
2133
E5-2697v3
2.6 GHz
14
35MB
145 W
9.6 GT/s
2133
E5-2695v3
2.3 GHz
14
35MB
120 W
9.6 GT/s
2133
E5-2690v3
2.6 GHz
12
30MB
135 W
9.6 GT/s
2133
E5-2683v3
2.0 GHz
14
35MB
120 W
9.6 GT/s
2133
E5-2680v3
2.5 GHz
12
30MB
120 W
9.6 GT/s
2133
E5-2670v3
2.3 GHz
12
30MB
120 W
9.6 GT/s
2133
E5-2667v3
3.2 GHz
8
25MB
135 W
9.6 GT/s
2133
E5-2660v3
2.6 GHz
10
25MB
105 W
9.6 GT/s
2133
E5-2650v3
2.3 GHz
10
25MB
105 W
9.6 GT/s
2133
E5-2650Lv3
1.8 GHz
12
25MB
65 W
9.6 GT/s
2133
E5-2643v3
3.4 GHz
6
20MB
135 W
9.6 GT/s
2133
E5-2640v3
2.6 GHz
8
20MB
90 W
8.0 GT/s
1866
E5-2630v3
2.4 GHz
8
20MB
85 W
8.0 GT/s
1866
E5-2630Lv3
1.8 GHz
8
25MB
55 W
8.0 GT/s
1866
E5-2620v3
2.4 GHz
6
15MB
85 W
8.0 GT/s
1866
E5-2609v3
1.9 GHz
6
15MB
85 W
8.0 GT/s
1600
E5-2603v3
1.6 GHz
6
15MB
85 W
6.4 GT/s
1600
E5-2699v4
2.2 GHz
22
55MB
145 W
9.6 GT/s
2400
E5-2698v4
2.2 GHz
20
50MB
135 W
9.6 GT/s
2400
E5-2697v4
2.3 GHz
18
45MB
145 W
9.6 GT/s
2400
E5-2697Av4
2.6 GHz
16
40MB
145 W
9.6 GT/s
2400
E5-2695v4
2.1 GHz
18
45MB
120 W
9.6 GT/s
2400
E5-2690v4
2.6 GHz
14
35MB
135 W
9.6 GT/s
2400
E5-2683v4
2.1 GHz
16
40MB
120 W
9.6 GT/s
2400
E5-2680v4
2.4 GHz
14
35MB
120 W
9.6 GT/s
2400
E5-2667v4
3.2 GHz
8
25MB
135 W
9.6 GT/s
2400
E5-2660v4
2.0 GHz
14
35MB
105 W
9.6 GT/s
2400
E5-2650v4
2.2 GHz
12
30MB
105 W
9.6 GT/s
2400
E5-2650Lv4
1.7 GHz
14
35MB
65 W
9.6 GT/s
2400
E5-2643v4
3.4 GHz
6
20MB
135 W
9.6 GT/s
2133
E5-2640v4
2.4 GHz
10
25MB
90 W
8.0 GT/s
2400
E5-2637v4
3.5 GHz
4
15MB
135 W
9.6 GT/s
2400
E5-2630v4
2.2 GHz
10
25MB
85 W
8.0 GT/s
2133
E5-2630Lv4
1.8 GHz
10
25MB
55 W
8.0 GT/s
2133
E5-2623v4
2.6 GHz
4
10MB
85 W
8.0 GT/s
2133
E5-2620v4
2.1 GHz
8
20MB
85 W
8.0 GT/s
2133
E5-2609v4
1.7 GHz
8
20MB
85 W
6.4 GT/s
1866
E5-2603v4
1.7 GHz
6
15MB
85 W
6.4 GT/s
1866
Chipset

  • Intel C610 series chipset

  • Intel E5-2600v3 processor family

  • Intel E5-2600v4 processor family


On system management chipset 1
HPE iLO (Firmware HPE iLO4 2.0 or later)) 4GB NAND1
Memory 2
(One of the following depending on model)
Type: HPE SmartMemory DDR4 Registered (RDIMM) or Load Reduced (LRDIMM)
Support with E5-2600v3 processors
Dual In-Line Memory Module (DIMM) slots available
24 (12 DIMM Slots per processor, 4 channels per processor, 3 DIMMs per channel)
Maximum capacity (LRDIMM)
1.5TB (24 x 64GB)
Maximum capacity (RDIMM)
768GB (24 x 32GB)
Support with E5-2600v4 processors
DIMM Slots available
24 (12 DIMM Slots per processor, 4 channels per processor, 3 DIMMs per channel)
Maximum capacity (LRDIMM)
3TB (24 x 128GB)
Maximum capacity (RDIMM)
768GB (24 x 32GB)
Memory protection
Advanced ECC
Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.
Online spare
Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.
Network controller
HPE 1 GbE 4-port 331i Adapter

Specs 1

Expansion slots 3
Expansion slots
Technology
Bus width
Connector width
Bus number
Form factor
Notes
9
PCIe 3.0
x 4
x 8
-
Full length/Full height
For processor 2
8
PCIe 3.0
x 16
x 16
-
Full length/Full height
For processor 2
7
PCIe 3.0
x 4
x 8
-
Full length/Full height
For processor 2
6
PCIe 3.0
x 16
x 16
-
Full length/Full height
For processor 2
5
PCIe 2.0
x 4
x 8
-
Full length, half height slot
For processor 2
4
PCIe 3.0
x 4
x 8
0
Full length/Full height
For processor 1
3
PCIe 3.0
x 16
x 16
0
Full length/Full height
For processor 1
2
PCIe 3.0
x 4
x 8
0
Full length/Full height
For processor 1
1
PCIe 3.0
x 8
x 16
0
Full length/Full height
For processor 1
Storage controller
(One of the following depending on model)
Entry models
HPE Dynamic Smart Array B140i embedded SATA controller
Base models
HPE Flexible Smart Array P440ar/2GB
Performance models
HPE Flexible Smart Array P440ar/2GB
Internal storage devices
(One of the following depending on model)
Optical drive4
Optional SATA 9.5 mm DVD-ROM optical Drive
Optional SATA 9.5 mm DVD-RW optical Drive
Hard drive
None ship standard

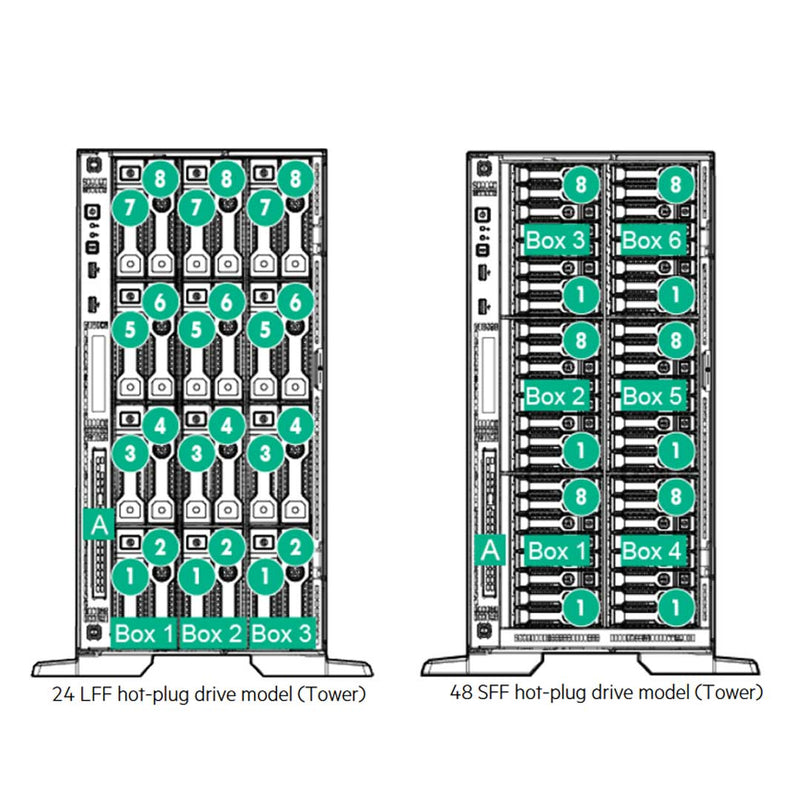

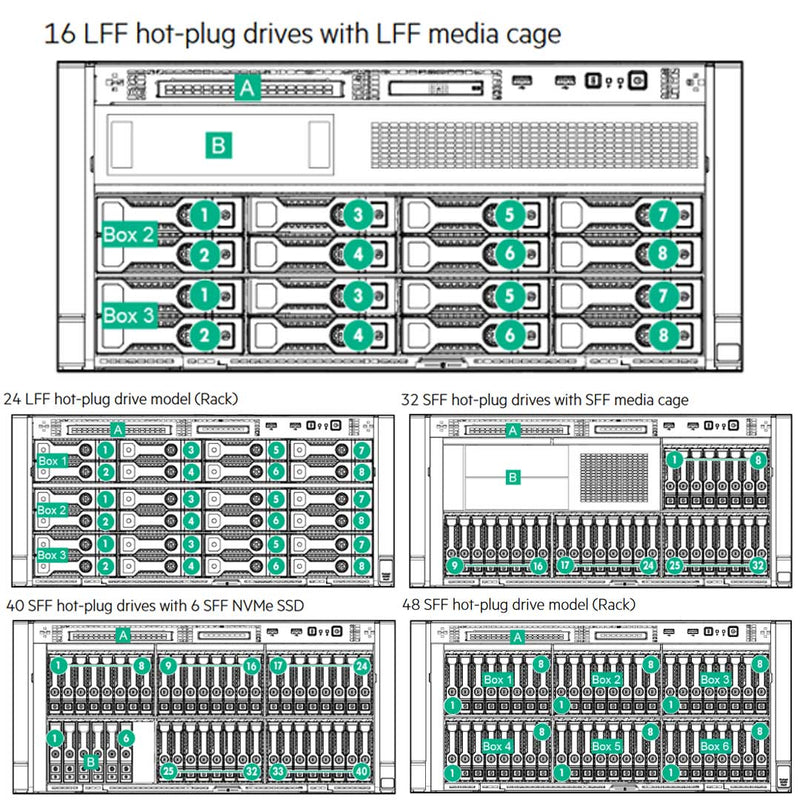

Hard drive bays5
(8) Hot-Plug Small Form Factor (SFF) SAS/SATA Hard Disk Drive (HDD) bays, upgradable to (48)
(8) Hot-Plug Large Form Factor (LFF) SAS/SATA HDD bays, upgradable to (24)
Maximum internal storage
(One of the following depending on model)

Cpacity
Configuration
Hot-Plug LFF SAS
288TB
24 x 12TB
Hot-Plug LFF SATA
288TB
24 x 12TB
Hot-Plug LFF SAS Solid State Drive (SSD)
38.4TB
24 x 1.6TB
Hot-Plug LFF SATA SSD
92.16TB
24 x 3.84TB
Hot-Plug SFF SAS
96TB
48 x 2TB
Hot-Plug SFF SATA
96TB
48 x 2TB
Hot-Plug SFF SAS SSD
184.32TB
48 x 3.84TB
Hot-Plug SFF SATA SSD
184.32TB
48 x 3.84TB
Hot-Plug SFF NVMe PCIe SSD
7.2TB
6 x 1.2TB
Power supply
(One of the following depending on model)

  • HPE 500 W Flexible slot platinum hot-plug power supply6

  • HPE 800 W Flexible slot platinum hot-plug power supply

  • HPE 1400 W Flexible slot platinum plus hot-plug power supply

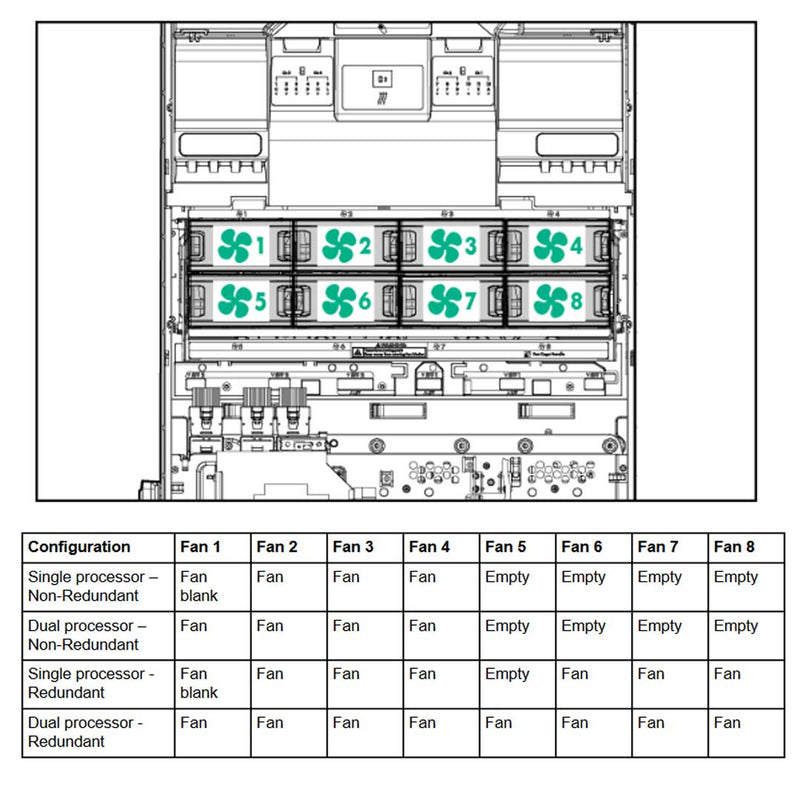

System fans
(One of the following depending on model)
Model
Non-Redundant
Redundant
1P Model7
3 Fans
6 Fans
2P Model8
4 Fans
8 Fans

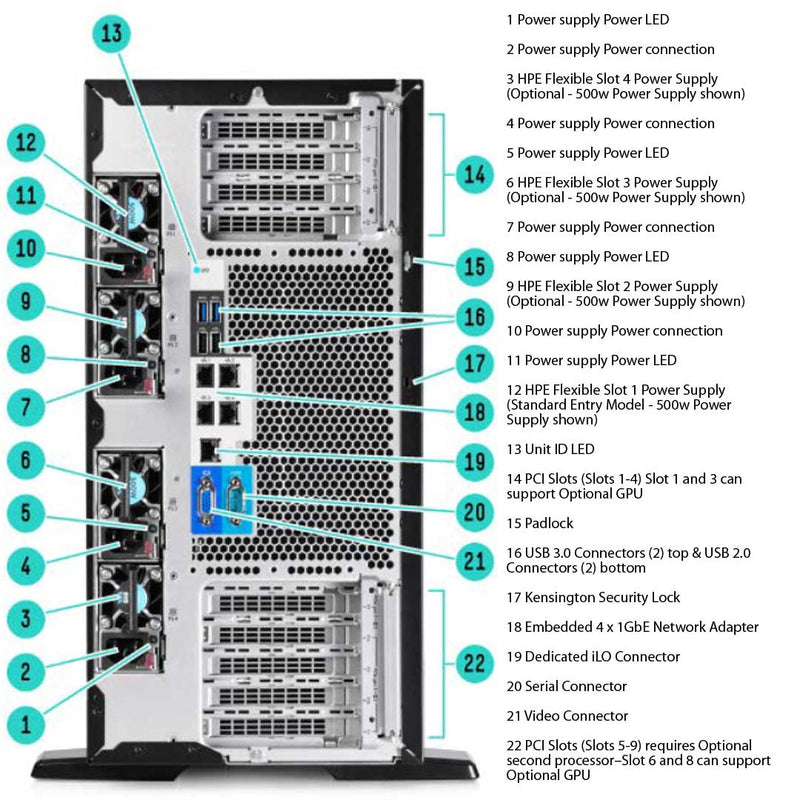

Interfaces
Serial
1
Video
1 (Rear)
Network RJ45 (Ethernet)
4
HPE iLO Remote management network port
1Gb Dedicated
SD Slot9
1 (Internal)
USB 2.0 Ports
5 (2 Front, 2 rear, 1 internal)
USB 3.0
3 (2 Rear, 1 internal)
Upgradeability

  • Upgradable for 2 processors (Up to 22 cores)10

  • Up to 24 DIMM slots available for higher Memory capacity

  • Up to 48 SFF or 24 LFF hard drive bays

  • Up to 6 SFF NVMe PCIe SSD drives11

  • 8 PCIe 3.0 and 1 PCIe 2.0 I/O slots for additional communications and storage expansion

  • 4 redundant hot-plug power supplies

  • Redundant Fan

  • Optional optical drive (Up to 1)12

  • Optional SFF or LFF media bay kit to support RDX or tape device(s)

  • Tower to rack conversion

  • Optional system insight display13

Industry standard compliance

  • ACPI 2.0b Compliant

  • PCIe 3.0 Compliant

  • PXE Support

  • WOL Support

  • Novell certified

  • IPMI 2.0, SMASH CLP, DCMI 1.0 compliant

  • Microsoft Logo certifications

  • USB 3.0 Support

  • SMBIOS 2.7.1

  • ASHRAE A3/A4

  • Energy star

Graphics

  • 16-bit Color: maximum resolution of 1600 x 1200

    Integrated Matrox G200 video standard

  • 32-bit Color: maximum resolution of 1280 x 1024

    • 16MB Flash

    • 256MB DDR3

Form factor
Tower or rack (5U)
HPE ServerUEFI/Legacy ROM
UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

  • Secure Boot

  • Operating System (OS) specific functionality

  • Support for > 2.2TB (Using GPT) boot drives

  • USB 3.0 Stack

  • Embedded UEFI Shell

  • Mass configuration deployment tool using RESTful API for iLO 4

  • PXE Boot support for IPv6 networks

  • Boot support for option cards that only support a UEFI option ROM

  • Network stack configurations

Embedded management

  • HPE Integrated Lights-Out (HPE iLO)

  • Unified Extensible Firmware Interface (UEFI)

  • RESTful API

  • Intelligent Provisioning

  • Embedded remote support

Server utilities

  • Smart update

  • HPE Systems Insight Manager (HPE SIM)

  • Scripting tool kit and Windows PowerShell

  • RESTful interface tool

  • HPE iLO Mobile application

  • HPE Insight online

Security

  • Power-On password

  • Setup password

  • Serial interface control

  • Power switch security

  • Administrator's password

  • Trusted Platform Module (TPM) 2.0

  • TPM 1.2

  • UEFI

  • Security front bezel

  • Chassis mechanical support of padlock and Kensington Security lock (Located at system rear)

NOTE:
  1. 1GB USB user space configurable via UEFI and accessible via iLO
  2. Mixing of 2133 and 2400 MHz memory is not supported

    • Bus number - Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number
    • Nine total expansion slots, three PCIe 3.0 x 16 (x 16 speed); One PCIe 3.0 x 16 (x 8 speed), Four PCIe 3.0 x 8 (x 4 Speed); One PCIe 2.0 x 8 (x 4 Speed)
  4. Optical is optional in entry, base and performance BTO models
  5. All Pre-configured Models come populated with some hard drive blanks installed. Should the user need additional hard drive blanks, they can order more using either P/N 666987-B21: HPE SFF HDD Blank Kit or P/N 666986-B21: HPE LFF HDD Blank Kit. These part numbers for single HDD blanks below are also provided should the user require replacement HDD blanks for their server.
  6. The 500 W Flex slot PSU was not qualified or supported with the X4 RPS enablement kit
  7. Fan redundancy is standard in performance model. ML350 Gen9 Redundant Fan option kit (725878-B21) consists of four system fans and two PCIe air baffles
  8. Refer to ML350 Gen9 User Guide for fan configuration rules
  9. The Micro-SD slot is not a hot-pluggable device. User should not attempt to plug a Micro-SD card into the Micro-SD slot while the server is powered
  10. Total 4, 6, 8, 10, 12, 14, 16, 18, 20 & 22 cores
  11. The ML350 Gen9 6SFF Express Bay kit MUST be installed and it takes up one SFF drive cage space.
  12. Support of 9.5 mm DVD-RW or DVD-ROM
  13. Rack model only

top

Specs 2

Software overview

Feature
Description
OS and virtualization software support for ProLiant servers

  • Microsoft Windows Server

  • Canonical Ubuntu

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • VMware

  • Citrix XenServer

  • ClearOS

NOTE:
  • ClearOS allows the user to build a fully functional server that is just right for the user at no upfront cost. It is available via CTO preload, Intelligent Provisioning or via download.
  • For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for server.

top

Physical specifications

Specification
Description

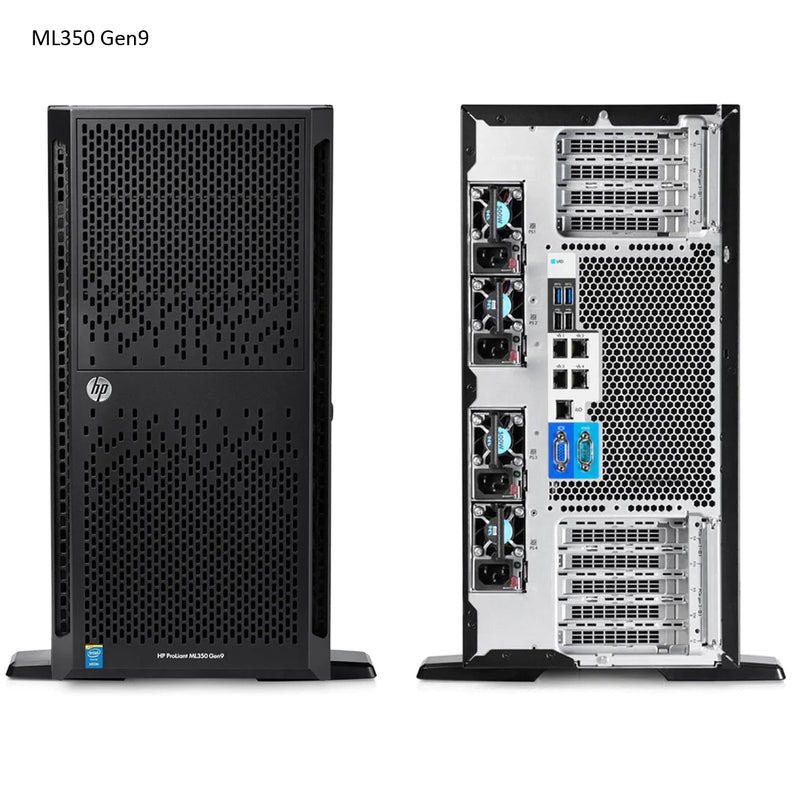

Tower dimensions
46.4 x 21.9 x 76.9 cm (18.27 x 8.62 x 30.28 in)

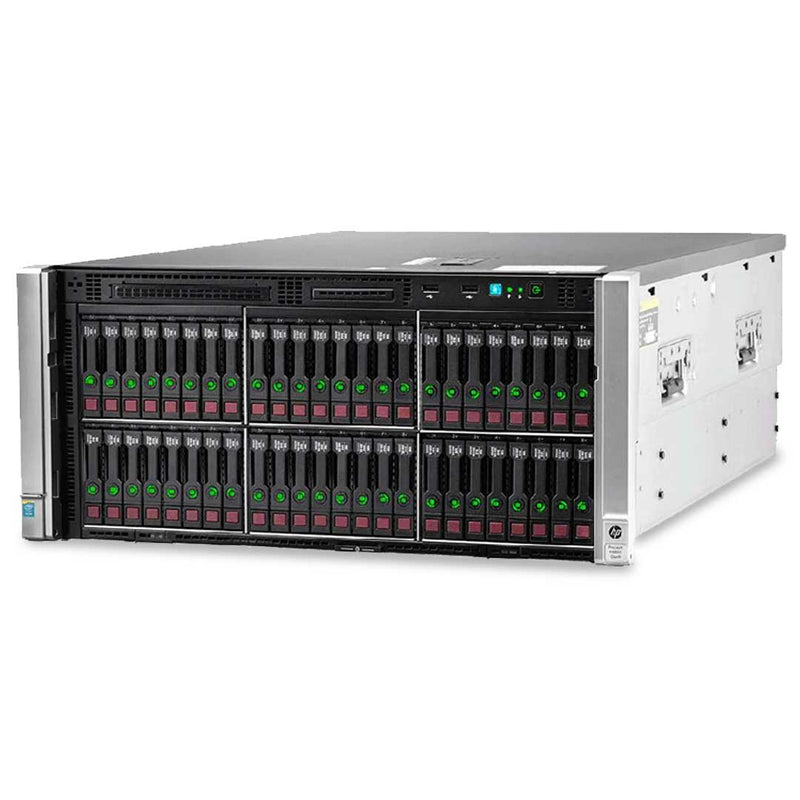

Rack dimensions
21.8 x 44.5 x 74.6 cm (8.58 x 17.51 x 29.37 in)
Tower weight
Minimum: 30 kg (66.14 lb)
Maximum: 55 kg (121.30 lb)
Rack weight
Minimum: 26 kg (57.3 lb)
Maximum: 51 kg (112.4 lb)

top

Electrical specifications

Specification
Description
Range line voltage

  • 100 to 120 V ac

  • 200 to 240 V ac

Maximum BTU rating

  • For 800 W Power Supply: 3207 BTU/hr (at 100 V ac), 3071 BTU/hr (at 200 V ac), 3112 BTU/hr (at 240 V ac) for China Only

  • For 500 W Power Supply: 1979 BTU/hr (at 100 V ac), 1911 BTU/hr (at 200 V ac), 1965 BTU/hr (at 240 V ac) for China Only

Rated Steady- State power

  • For 800 W Power Supply: 800 W (at 100 V ac), 800 W (at 240 V ac), 800W (at 240 V ac) input for China only

  • For 500 W Power Supply: 500 W (at 100 V ac), 500 W (at 240 V ac), 500W (at 240 V ac) input for China only

Maximum peak power

  • For 800 W Power Supply: 800 W (at 100 to 127 V ac), 800 W (at 200 to 240 1V ac), 800W (at 240 V ac) input for China only

  • For 500 W Power Supply: 500 W (at 100 to 127 V ac), 500 W (at 200 to 240 V ac), 500W (at 240 V ac) input for China only

top

Environmental specifications

Specification
Description
Operating temperature
10° to 35°C (50° to 95°F)
Non-operating temperature
-30° to 60°C (-22° to 140°F)
Operating relative humidity
8% to 90%
Non-operating relative humidity
5% to 95%, non-condensing
Operating altitude
3050 m (10,000 ft)
Non-operating altitude
9144 m (30,000 ft)

top

Safety certifications

Specification
Description
FCC Rating
Class A
Normative standards
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES- 003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000- 3-3; EN 60950-1; IEC 60950-1

top

You may also like
