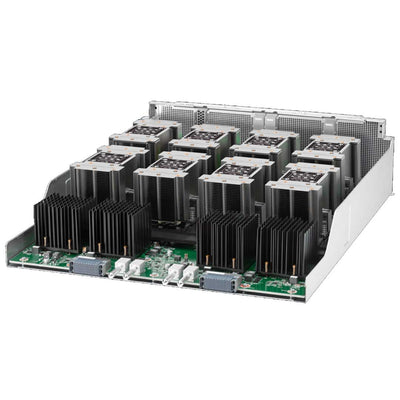

HPE Rear SXM2 Heatsink | P03740-001

If Performance Heatsink or DLC Module is selected, then Performance Fan must be selected and vice versa.

If “PCIe DLC Module” is selected, then either "Secondary LP Riser" must be selected or ”Secondary FH Riser” needs to be selected. PCIe Slot 2 is still available for external NS204i-u OS Boot device, or available for other HH PCIe adapters, when the “SecondaryLP Riser” is selected for the “PCIe DLC Module” installation.

If “PCIe DLC Module” is selected, then PCIe slot# 3 cannot be used. This must be considered for all PCIecard selection.

If customer selects “PCIe DLC Module” or “NS204i-u Cage DLC Module” which is a Direct Liquid Cooled solution (DLC) then below Warning Message to be displayed in the configurators/ CLIC: Warning message: "DLC Solution is supported with specific Racks only.

DLC Rack options
• Rack 42U 800mm x 1200mm Ent G2 (applicable for DL3XX Gen11 DLC)
• Rack 48U 800mm x 1200mm Ent G2 (applicable for DL3XX Gen11 DLC)

If customer selects "PCIe DLC Module" or "NS204i-u Cage DLC Module" which is a Direct Liquid Cooled solution (DLC) and server is ordered as Standalone (without any HPE Rack), then below Warning Message to be displayed in the configurators/ CLIC: Warning Message: “DL360 Gen11 DLC support requires liquid cooling infrastructure items as follows: HPE Rack, Rack Manifold, CDU, Primary Hose Kit and Secondary Hose Kit in order to function. If customer already has the infrastructure to support DLC on site, then server can be shipped as a standalone unit as an upgrade. Server will not function without the infrastructure for DLC.

HPE DL380 Gen11 Notes:
This kit is the Direct Liquid Cooling Kit that uses a PCIe slot on the Primary Riser.
If this option is selected the Primary Riser will have one less PCIe slot available for PCIe adapters. Please keep this in mind when considering total number of PCIe adapters required.
This kit contains 2 Cold Plate Modules and 1 Quick Disconnect Module.
