SKU: P08271-001

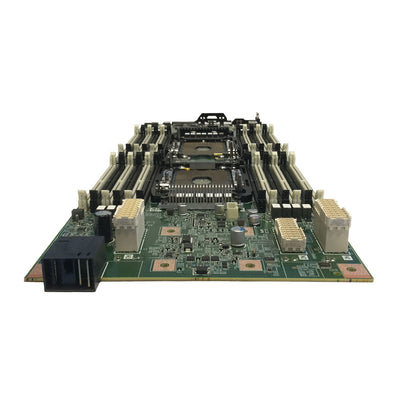

Hpe (G10) Synergy 480 Compute Module System Board | P08271-001

HPE

| Motherboards
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

  • Type: System Board for Synergy 480 Gen10 Compute Module
  • Processor Support: Dual-socket Intel Xeon Scalable Family (Gen1 & Gen2)
  • Memory Capacity: Up to 4.5 TB DDR4 with 2933 MT/s speed
  • Memory Features: Support for RDIMM, LRDIMM, and Intel Optane DC Persistent Memory
  • GPU Support: Optional GPU expansion for VDI and engineering workloads
  • I/O Expansion: Up to 3 mezzanine slots with redundant fabric options
  • Form Factor: Synergy composable infrastructure (blade) architecture

Part Number:

  • P08271-001

The HPE Synergy 480 Gen10 System Board (P08271-001) powers one of the most flexible and scalable compute modules in the Synergy family. Supporting two generations of Intel Xeon Scalable processors and up to 4.5 TB of DDR4 memory—including Intel Optane Persistent Memory—it enables high performance for a wide range of general-purpose and data-intensive workloads.

Designed for composable infrastructure, this system board integrates with HPE OneView for seamless provisioning and automation. It also includes robust I/O expansion, GPU capability, and industry-leading firmware protection with HPE Silicon Root of Trust. This makes it ideal for enterprises seeking agility, scalability, and secure compute within a modular, software-defined data center.

Compatible With:
  • HPE synergy 480

(Click to View)

Base Standard Capabilities

Product features

Feature
Description
Processors 1
Intel Xeon scalable processor family - 1st generation
Intel Xeon models
CPU Frequency
Cores
Power
DDR4
Memory per socket
Platinum processors
Platinum 8180M processor
2.5 GHz
28
205 W
2666 MT/s
1.5TB
Platinum 8180 processor
2.5 GHz
28
205 W
2666 MT/s
768GB
Platinum 8176 processor
2.1 GHz
28
165 W
2666 MT/s
768GB
Platinum 8170 processor
2.1 GHz
26
165 W
2666 MT/s
768GB
Platinum 8168 processor
2.7 GHz
24
205 W
2666 MT/s
768GB
Platinum 8164 processor
2.0 GHz
26
150 W
2666 MT/s
768GB
Platinum 8160M processor
2.1 GHz
24
150 W
2666 MT/s
1.5TB
Platinum 8160 processor
2.1 GHz
24
150 W
2666 MT/s
768GB
Platinum 8158 processor
3.0 GHz
12
150 W
2666 MT/s
768GB
Platinum 8156 processor
3.6 GHz
4
150 W
2666 MT/s
768GB
Platinum 8153 processor
2.0 GHz
16
125 W
2666 MT/s
768GB
Gold processors
Gold 6154 processor
3.0 GHz
18
200 W
2666 MT/s
768GB
Gold 6152 processor
2.1 GHz
22
140 W
2666 MT/s
768GB
Gold 6150 processor
2.7 GHz
18
165 W
2666 MT/s
768GB
Gold 6148 processor
2.4 GHz
20
150 W
2666 MT/s
768GB
Gold 6146 processor
3.2 GHz
12
165 W
2666 MT/s
768GB
Gold 6144 processor
3.5 GHz
8
150 W
2666 MT/s
768GB
Gold 6142M processor
2.6 GHz
16
150 W
2666 MT/s
1.5TB
Gold 6142 processor
2.6 GHz
16
150 W
2666 MT/s
768GB
Gold 6140 processor
2.3 GHz
18
140 W
2666 MT/s
768GB
Gold 6138 processor
2.0 GHz
20
125 W
2666 MT/s
768GB
Gold 6136 processor
3.0 GHz
12
150 W
2666 MT/s
768GB
Gold 6134 processor
3.2 GHz
8
130 W
2666 MT/s
768GB
Gold 6132 processor
2.6 GHz
14
140 W
2666 MT/s
768GB
Gold 6130 processor
2.1 GHz
16
125 W
2666 MT/s
768GB
Gold 6128 processor
3.4 GHz
6
115 W
2666 MT/s
768GB
Gold 6126 processor
2.6 GHz
12
125 W
2666 MT/s
768GB
Gold 5122 processor
3.6 GHz
4
105 W
2666 MT/s
768GB
Gold 5120 processor
2.2 GHz
14
105 W
2400 MT/s
768GB
Gold 5118 processor
2.3 GHz
12
105 W
2400 MT/s
768GB
Gold 5115 processor
2.4 GHz
10
85 W
2400 MT/s
768GB
Silver processors
Silver 4116 processor
2.1 GHz
12
85 W
2400 MT/s
768GB
Silver 4114 processor
2.2 GHz
10
85 W
2400 MT/s
768GB
Silver 4112 processor
2.6 GHz
4
85 W
2400 MT/s
768GB
Silver 4110 processor
2.1 GHz
8
85 W
2400 MT/s
768GB
Bronze processors
Bronze 3104 processor
1.7 GHz
6
85 W
2133 MT/s
768GB
Intel Xeon scalable processor family - 2nd generation
Intel Xeon models
CPU Frequency
Cores
Power
DDR4
Max memory per socket
Persistent memory support
Platinum processors
Platinum 8280L processor
2.7 GHz
28
205 W
2933 MT/s
4.5TB
Yes
Platinum 8280M processor
2.7 GHz
28
205 W
2933 MT/s
2TB
Yes
Platinum 8280 processor
2.7 GHz
28
205 W
2933 MT/s
1TB
Yes
Platinum 8276L processor
2.2 GHz
28
165 W
2933 MT/s
4.5TB
Yes
Platinum 8276M processor
2.2 GHz
28
165 W
2933 MT/s
2TB
Yes
Platinum 8276 processor
2.2 GHz
28
165 W
2933 MT/s
1TB
Yes
Platinum 8270 processor
2.6 GHz
26
205 W
2933 MT/s
1TB
Yes
Platinum 8268 processor
2.9 GHz
24
205 W
2933 MT/s
1TB
Yes
Platinum 8260Y processor
2.4 GHz
24
165 W
2933 MT/s
1TB
Yes
2.5 GHz
20
2.8 GHz
16
Platinum 8260L processor
2.4 GHz
24
165 W
2933 MT/s
4.5TB
Yes
Platinum 8260M processor
2.4 GHz
24
165 W
2933 MT/s
2TB
Yes
Platinum 8260 processor
2.4 GHz
24
165 W
2933 MT/s
1TB
Yes
Platinum 8256 processor
3.4 GHz
4
105 W
2933 MT/s
1TB
Yes
Platinum 8253 processor
2.2 GHz
16
125 W
2933 MT/s
1TB
Yes
Gold processors
Gold 6262V processor
1.9
24
135 W
2933
1TB
Yes
Gold 6254 processor
3.1 GHz
18
200 W
2933 MT/s
1TB
Yes
Gold 6252N processor
2.6 GHz
24
150 W
2933 MT/s
1TB
Yes
Gold 6252 processor
2.1 GHz
24
150 W
2933 MT/s
1TB
Yes
Gold 6248 processor
2.5 GHz
20
150 W
2933 MT/s
1TB
Yes
Gold 6246 processor
3.3 GHz
12
165 W
2933 MT/s
1TB
Yes
Gold 6244 processor
3.6 GHz
8
150 W
2933 MT/s
1TB
Yes
Gold 6242 processor
2.8 GHz
16
150 W
2933 MT/s
1TB
Yes
Gold 6240Y processor
2.6 GHz
18
150 W
2933 MT/s
1TB
Yes
2.8 GHz
14
3.1 GHz
8
Gold 6240L processor
2.6 GHz
18
150 W
2933 MT/s
4.5TB
Yes
Gold 6240M processor
2.6 GHz
18
150 W
2933 MT/s
2TB
Yes
Gold 6240 processor
2.6 GHz
18
150 W
2933 MT/s
1TB
Yes
Gold 6238L processor
2.1 GHz
22
140 W
2933 MT/s
4.5TB
Yes
Gold 6238M processor
2.1 GHz
22
140 W
2933 MT/s
2TB
Yes
Gold 6238 processor
2.1 GHz
22
140 W
2933 MT/s
1TB
Yes
Gold 6234 processor
3.3 GHz
8
130 W
2933 MT/s
1TB
Yes
Gold 6230N processor
2.3 GHz
20
125 W
2933 MT/s
1TB
Yes
Gold 6230 processor
2.1 GHz
20
125 W
2933 MT/s
1TB
Yes
Gold 6226 processor
2.8 GHz
12
125 W
2933 MT/s
1TB
Yes
Gold 6222V
1.8 GHz
20
115 W
2933 MT/s
1TB
Yes
Gold 5222 processor
3.8 GHz
4
105 W
2933 MT/s
1TB
Yes
Gold 5220S processor
2.6 GHz
18
125 W
2933 MT/s
1TB
Yes
Gold 5220 processor
2.2 GHz
18
125 W
2666 MT/s
1TB
Yes
Gold 5218B processor
2.3 GHz
16
125 W
2666 MT/s
1TB
Yes
Gold 5218N processor
2.3 GHz
16
105 W
2666 MT/s
1TB
Yes
Gold 5218 processor
2.3 GHz
16
125 W
2666 MT/s
1TB
Yes
Gold 5217 processor
3 GHz
8
125 W
2666 MT/s
1TB
Yes
Gold 5215L processor
2.6 GHz
10
85 W
2666 MT/s
1TB
Yes
Gold 5215M processor
2.6 GHz
10
85 W
2666 MT/s
1TB
Yes
Gold 5215 processor
2.6 GHz
10
85 W
2666 MT/s
1TB
Yes
Silver processors
Silver 4216 processor
2.1 GHz
16
85 W
2400 MT/s
1TB
No
Silver 4215 processor
2.5 GHz
8
85 W
2400 MT/s
1TB
Yes
Silver 4214Y processor
2.2 GHz
12
85 W
2400 MT/s
1TB
No
2.3 GHz
10
2.4 GHz
8
Silver 4214 processor
2.2 GHz
12
85 W
2400 MT/s
1TB
No
Silver 4210 processor
2.2 GHz
10
85 W
2400 MT/s
1TB
No
Silver 4208 processor
2.1 GHz
8
85 W
2400 MT/s
1TB
No
Bronze processors
Bronze 3204 processor
1.9 GHz
6
85 W
2133 MT/s
1TB
No

top

Specs 1

Chipset
Intel C621 series chipset2
Synergy management
HPE Composer powered by OneView
Modes of operation
New class of memory which can be configured as either large server memory or fast storage

  • Flexibility to deploy as dense memory or fast storage.

  • Single technology used as memory or storage reducing datacenter complexity.

On compute management chipset
HPE iLO 5 ASIC
Memory 3
One of the following depending on model
The following memory supports Intel Xeon scalable family processors 2nd generation (Models x2xx)

  • HPE 8GB (1 x 8GB) single rank x8 DDR4-2933 CAS-21-21-21 registered memory kit

  • HPE 16GB (1 x 16GB) single rank x4 DDR4-2933 CAS-21-21-21 registered memory kit

  • HPE 16GB (1 x 16GB) dual rank x8 DDR4-2933 CAS-21-21-21 registered memory kit

  • HPE 32GB (1 x 32GB) dual rank x4 DDR4-2933 CAS-21-21-21 registered memory kit

  • HPE 64GB (1 x 64GB) dual rank x4 DDR4-2933 CAS-21-21-21 RDIMM memory kit

  • HPE 64GB (1 x 64GB) quad rank x4 DDR4-2933 CAS-21-21-21 LRDIMM memory kit

  • HPE 128GB (1 x 128GB) octal rank x4 DDR4-2933 CAS-24-21-21 LRDIMM memory kit

The following memory supports Intel Xeon scalable family processors 1st generation (Models x1xx)

  • HPE 8GB (1 x 8GB) single rank x8 DDR4-2666 CAS-4-19-19-19 registered memory kit

  • HPE 16GB (1 x 16GB) single rank x4 DDR4-2666 CAS-19-19-19 registered memory kit

  • HPE 16GB (1 x 16GB) dual rank x8 DDR4-2666 CAS-19-19-19 registered memory kit

  • HPE 32GB (1 x 32GB) dual rank x4 DDR4-2666 CAS-19-19-19 registered memory kit

  • HPE 64GB (1 x 64GB) quad rank x4 DDR4-2666 CAS-19-19-19 LRDIMM memory kit

  • HPE 128GB (1 x 128GB) octal rank x4 DDR4-2666 CAS-22-19-19 LRDIMM memory kit

HPE Persistent memory featuring Intel optane DC persistent memory

  • HPE 128GB 2666 persistent memory kit featuring Intel optane DC persistent memory

  • HPE 256GB 2666 persistent memory kit featuring Intel optane DC persistent memory

  • HPE 512GB 2666 persistent memory kit featuring Intel optane DC persistent memory

Type
HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM)
DIMM Slots available
24 (12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel)
Maximum capacity (LRDIMM)
3TB (24 x 128GB LRDIMM)
Maximum capacity (RDIMM)
1.5TB (24 x 64GB RDIMM)
Memory protection
Advanced ECC
Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip
Online spare
Memory online spare mode detects a rank that is degrading and switches operation to the spare rank
Online mode
Memory online spare mode (Rank spare mode)
For details on the HPE Server memory options RAS feature, please check the link below:
Mezzanine connectors
Three (3) I/O expansion mezzanine connectors:

  • x16 PCIe 3.0 type D (Supports type C and type D mezzanine cards) (Mezzanine connector 1)4

  • x16 PCIe 3.0 type D (Supports type C and type D mezzanine cards (Mezzanine connector 2)5

  • x16 PCIe 3.0 type C (Supports type C mezzanine cards) (Mezzanine connector 3)6

Interfaces
Micro SDHC slot
One (1) internal micro Secure Digital High Capacity (Micro SDHC) card slot7
USB 3.0 Port

  • One (1) internal USB 3.0 connector for USB flash media drive keys9

  • One (1) external USB 3.0 connector for USB flash media drive keys

iLO port
One (1) external USB port for direct iLO access to compute
Network adapters

  • HPE Synergy 3820C 10/20Gb Converged Network Adapter (CNA)

  • HPE Synergy 2820C 10 GbE CNA

  • HPE Synergy 4820C 10/20/25Gb CNA

  • HPE Synergy 4610C 10/25Gb ethernet adapter

  • HPE Synergy 6810C 25/50Gb ethernet

  • HPE Synergy 6410C 25/50Gb ethernet

  • HPE Synergy 5330C 32G Fibre Channel (FC) Host Bus Adapters (HBA)

  • HPE Synergy 5830C 32G FC HBA

  • HPE Synergy 3530C 16G FC host bus network adapter

  • HPE Synergy 3830C 16G FC host bus network adapter

HPE Compute module ROM
HPE Synergy Compute ROM is used to configure the following:

  • Processor and chipset status registers

  • System memory, memory map, and memory initialization

  • System hardware configuration (Integrated PCI devices and optional PCIe cards)

  • End-User specific BIOS configuration using the Unified Extensible Firmware Interface (UEFI) system utilities

Storage controllers
One of the following depending on model:

  • Software RAID

  • Essential RAID controller

  • Performance RAID controller

  • Premium backplane CTO compute module

Maximum internal storage
Storage
Capacity
Configuration
Hot Plug SFF SAS SSD
30.6TB
2 x 15.3TB (With standard front SFF drive cage)
Hot Plug SFF SATA SSD
7.68TB
2 x 3.84TB (With standard front SFF drive cage)
Hot Plug SFF SATA/SAS HDD
4.0TB
2 x 2.0TB (With standard front SFF drive cage)
Hot Plug SFF NVMe SSD
15.6TB
2 x 7.8TB (With Premium front SFF drive cage)
Hot Plug uFF SATA SSD
1.3TB
2 x 340GB (With standard front SFF drive cage)
M.2 SATA SSD Option Drives
1.9TB
2 x 960GB ATA M.2 Drives (Internal with adaptor)
Frames
HPE Synergy 12000 frame, is the base for all Synergy products and supports:

  • Up to 12 Half-Height, 6 Full-Height single-wide, or 3 Full-Height Double-Wide compute modules (Mixing allowed)

  • Up to 5 Half-Height Double-Wide HPE Synergy D3940 Storage modules (Mixing with compute modules in any to any ratio allowed)

  • One HPE Synergy 12000 frame will support up to twelve (12) HPE Synergy 480 Gen9 compute modules

Industry standard compliance

  • Microsoft logo certifications

  • WOL enabled on some adaptors

  • PXE support enabled

  • USB 3.0 compliant

  • iLO USB 2.0 compliant

  • Trusted Platform Module (TPM) 2.0 support (ROM-Based Setup Utility (RBSU) support for TPM 1.2)

  • IEEE (Specific IEEE standards depending on Ethernet adapter card(s) installed)

  • Advanced Encryption Standard (AES)

  • Triple Data Encryption Standard (3DES)

  • SNMP v3

  • SSL 2.0

  • DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)

  • Active directory v1.0

  • PCIe 3.0 compliant

  • UEFI forum

  • Redfish API (iLO5)

Graphics (iLo)

  • Integrated matrix G200eH2 video standard with 16MB of video RAM

    • 1280 x 1024 (32 bp)

    • 1920 x 1200 (16 bp)

  • HPE iLO 5 on system management memory

    • 32MB flash

    • 512MB with ECC (224MB after ECC and video)

HPE Server UEFI/legacy ROM 8

  • UEFI is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with the server at boot time. HPE ProLiant Gen10 servers have a UEFI class 2 implementation and support both UEFI mode (Default) and Legacy BIOS mode.

  • UEFI Enables numerous new capabilities specific to HPE Synery Compute Modules such as

    • Secure boot and secure start enable for enhanced security

    • Operating System (OS) specific functionality

    • Support for > 2.2TB (Using GPT) boot drives

    • USB 3.0 stack

    • Embedded UEFI shell

    • Mass configuration deployment tool using iLO RESTful API that is redfish API conformant

    • PXE boot support for IPv6 networks

    • Workload profiles for simple performance optimization

  • UEFI Boot mode only:

    • TPM 2.0 Support

    • NVMe Boot support

    • Platform Trust Technology (PTT) can be enabled

    • iSCSI Software initiator support

    • HTTP/HTTPs boot support as a PXE alternative

    • Boot support for option cards that only support a UEFI option ROM

Embedded management

  • HPE Synergy Composer powered by HPE OneView

  • HPE Integrated Lights-Out (HPE iLO)

  • UEFI

  • Intelligent provisioning

  • iLO RESTful API

Security
Newest forms of security based on iLO 5 features

  • Secure start, with hardware root of trust

  • HPE Hardware designed logic in iLO chip validates iLO firmware burned in chip

  • iLO Then validates system/compute ROM firmware for digital signature

  • iLO Completes the chain of trust

  • ROM Validates option ROMs and OS Bootloader VIA UEFI secure boot

Standard security features

  • Power-ON password

  • Administrator's password

  • Keyboard password (QuickLock)

  • HPE iLO management On system management chipset with SSL encryption, secure shell version 2, AES and 3DES on browser, CLP and XML scripting interface, AES and RC4 encryption of video

  • External USB port enable/disable

  • Network server mode

  • Serial interface control

  • TPM 1.2 or 2.0 option

  • AES

  • Intel Advanced Encryption Standard-New Instructions (AES-NI)

Graphics accelerators
Mezzanine graphics adapter options for 480 compute modules 9

  • HPE Synergy NVIDIA Quadro M3000SE Mezzanine Card

High-Density multi MXM expansion module GPU options

  • HPE Synergy 480 Gen10 Multi MXM FIO expansion module

  • HPE SY 480 NVIDIA Tesla P6 Multi MXM option

Standard PCIe expansion module GPU options 10

  • HPE Synergy 480 Gen10 PCIe FIO expansion module

  • HPE NVIDIA Tesla P40 24GB module

  • HPE NVIDIA Quadro P6000 GPU module

  • NVIDIA Tesla M10 Quad GPU module

FC support
Up to two (2) optional FC mezzanine HBAs are supported on the HPE Synergy 480 Gen10

  • HPE Synergy 3530C 16G FC HBA

  • HPE Synergy 3830C 16G FC HBA

  • HPE Synergy 5330C 32G FC HBA

  • HPE Synergy 5830C 32G FC HBA

Compatible SAN
HPE Synergy 480 Gen10 compute modules are optimized for HPE MSA, EVA, 3PAR, XP, and Storevirtual VSA
HPE virtual connect
The HPE Virtual Connect SE 40Gb F8 module, master module, based on composable fabric is designed for composable infrastructure. Its disaggregated, Rack-Scale design uses a master/satellite architecture to consolidate data center network connections, reduce hardware and scales network bandwidth across multiple HPE Synergy frames.
One config simple (SCE)
SCE is a guided Self-Service tool to help sales and Non-Technical people provide end users with initial configurations in 3 to 5 minutes.
NOTE:

    • Platinum - 8100 series - Supports 2 socket (Synergy 480 Gen10) or up to 4 socket (Synergy 660 Gen10) compute modules, 2 socket supports 2UPI and 4 socket supports 3UPI - 10.4 GT/s, supports 6-Channel DDR4 - 2666 MT/s providing up to 768GB memory capacity (1.5TB On select processor skus). Intel turbo boost technology, Intel Hyper-Threading technology supported. Intel AVX-512 (2 x 512-Bit FMA), 48 lanes PCIe 3.0, advanced RAS.
    • Gold - 5100, 6100 series - Supports 2 socket (Synergy 480 Gen10) or up to 4 socket (Synergy 660 Gen10) compute modules, 2 socket supports 2UPI and 4 socket supports 3UPI - 10.4 GT/s, supports 6-Channel DDR4 - 2400 (51xx)/2666(61xx) MHz (SKU 5122=supports 2666) providing up to 768GB memory capacity (1.5TB On select skus). Intel turbo boost technology, Intel Hyper-Threading technology, Intel AVX-512 (1 x 512-Bit FMA) (SKU 5122 supports 2x 512-bit FMA), 48 lanes PCIe 3.0, advanced RAS supported.
    • Silver - 4100 series - Supports 2 socket (Synergy 480 Gen10) compute module, 2 socket supports 2UPI - 9.6 GT/s, 6- Channel DDR4 - 2400 MHz providing up to 768GB memory capacity. Intel turbo boost technology, Intel Hyper-Threading technology, Intel AVX-512 (1 x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.
    • Bronze - 3100 series - Supports 2 socket (Synergy 480 Gen10) compute module, 2 socket supports 2UPI - 9.6 GT/s, supports 6-Channel DDR4 - 2133 MHz providing up to 768GB memory capacity. Intel AVX-512 (1 x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.
    • Silver and bronze level processors are primarily designed for 2 socket compute modules and will have Synergy 480 Gen10 only in the processor names.
  2. For more information regarding Intel chipsets, please check the below link:

    Click here to access the page for Intel Server Chipsets  .


    • HPE memory from previous generation servers (DDR3) is not compatible with this compute module. HPE DDR4 SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen10.
    • LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a compute module.
  4. This mezzanine connector supports Dual-Port mezzanine cards: one port is routed to interconnect module bay 1 and the other to bay 4.

    • This mezzanine connector supports dual-port mezzanine cards: one port is routed to interconnect module bay 2 and the other to bay 5.
    • A second processor must be installed (In processor slot 2) to have access to mezzanine connector 2.
  6. This mezzanine connector supports Dual-Port mezzanine cards: one port is routed to interconnect module bay 3 and the other to bay 6.
  7. The above options are intended for integrated hypervisor virtualization environments.

    • The UEFI system utilities tool is analogous to the HPE RBSU of legacy BIOS. For more information please check the below link:

      Click here to access the page for Unified Extensible Firmware Interface (UEFI) .

    • For UEFI boot mode, boot environment and OS image installations should be configured properly to support UEFI.
    • UEFI FIO setting (758959-B22) can be selected to configure the system in legacy mode in the factory for the HPE Synergy Gen10 Server.
  9. All MXM graphics card options are sold in pairs of GPUs. If there are GPU slots available in the Module, it can be field upgraded with additional GPUs. Note mixing GPUs is not supported.
  10. GRID license for use with NVIDIA Tesla M6 must be purchased separately through an NVIDIA verified virtualization partner at "NVIDIA design and visualization".

    Click here to access the NVIDIA design and visualization .

top

Software overview

Feature
Description
Operating Systems (OS) and virtulization software support 1

  • Microsoft Windows Server

  • Microsoft Hyper-V Server

  • Red Hat Enterprise Linux

  • SUSE Linux Enterprise Server

  • VMware ESVi

  • VMware vSphere

  • Citrix Xenserver 7.0, 7.1 (Primary use for HPE GPU options/XENDesktop)

Client OS (With GPU options only)

  • Windows and Enterprise client OS

  • Red Hat Enterprise Linux desktop/workstation

  • SLES Desktop (64 bit - Includes XEN and KVM)

NOTE:
  1. OS Support may change. To get the most updated information, please go to the HPE OS support matrix:

    Click here to access the page for Server Operating Systems and Virtualization Software .

top

Physical specifications

specification
Description
Dimensions (H x W x D)
6.35 x 21.4 x 60.0 cm (2.5 x 8.43 x 23.62 in) With bezel
Weight (Approximate)

  • Maximum: 8.16 kg (18 lb)

    (All processors, 24 DIMMs, drives, mezzanine cards, and one flash cache battery installed)

  • Minimum: 6.57 kg (14.5 lb)

    (One processor and 1 DIMM installed)

top

Environmental specifications

specification
Description
System inlet temperature
Operating temperature:

  • 10° to 35°C (50° to 95°F)

  • The upper limit may be limited by the type and number of options installed

  • System performance may be reduced if operating with a fan fault

Non-Operating temperature:
-30° to 60°C (-22° to 140°F)
Extended ambient operating support:
Qualifications for extended ambient configurations are detailed at below link:
Relative humidity (Non-Condensing)
Operating relative humidity:
10% to 90% - 28°C (82.4°F)
Non-Operating relative humidity:
5% to 95% - 38.7°C (101.7°F)
Acoustic noise
For acoustic noise specifications, please check the link below for HPE Synergy 12000 frame quickspecs:

top

Electrical specifications

specification
Description
Power

top

You may also like
