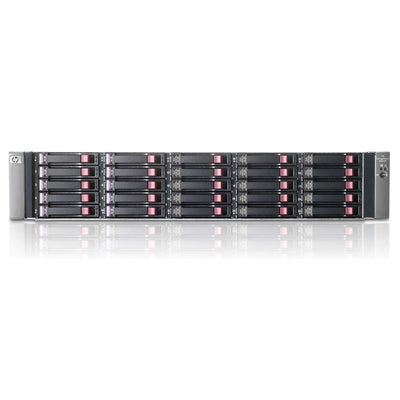

The HP StorageWorks 70 Modular Smart Array is an end-to-end flexible storage array, offering data availability, enhanced reliability, enhanced performance and tiered storage capability with SAS and SATA drives and investment protection.
This enclosure is designed to support the 2.5" Universal form factor hard drive in either SAS or SATA. Configuration and setup is easy with HP Array Configuration Utility (ACU). The 2U storage supports direct attach storage to HP ProLiant and HP Integrity Servers. Enclosures can be cascaded in a 1+1 configuration allowing a maximum of 50 drives in a 4U configuration behind each port on the Smart Array P800 controller for a total of 100 drives.
Manage your small and midrange business growing storage needs by deploying this low cost, flexible tiered storage system with up to 14.4 TB (100 drives across four enclosures) capacity supporting both SAS and SATA. The modular, scalable design of the MSA70 provides a flexible platform allowing you to buy what is needed today and purchase additional capacity as data storage needs grow, instead of making a large up-front investment. Additional drives and enclosures can be easily added as customer needs dictate without extra management charges as needs grow. For Small businesses, it is a stepping stone to simplify capacity expansion of ProLiant Server environments to external storage without having to make the full move to SAN or NAS. For fast growing Small or Medium businesses MSA70 can scale to multiple TBytes, by adding additional drive bays.
Affordability
MSA70 provides end-to-end SAS host modular flexible platform in a high capacity 2U disk drive external direct storage system
Flexibility
2U SFF SAS/SATA allows customer choice/Flexibility to mix and match SAS/SATA drives in the same storage. Extends the benefit of tiered storage to direct attach customers
Cascadeability
Up to 2 enclosures can be connected together to form a single controller port. Grow storage capacity easily
Storage Capacity
The MSA70 enclosure supports up to twenty five 2.5" SAS or SATA drives for a maximum capacity of 3.6 TB with 146GB SAS drives, or 1.5 TB with 60GB SATA drives.
Data Protection
MSA70 is designed for a high level of data protection. It includes redundant fans and power supplies (standard), and support for various RAID levels including RAID 6 with ADG (depending upon the Smart Array Controller used)
Storage Manageability
The MSA70 features familiar configuration and management tools such as Array Configuration Utility (ACU) and HP Systems Insight Manager (SIM). Online Management Features include: Online Capacity Expansion, Online RAID Level Migration, Online Stripe Size Migration, Online Spares
Choice of Computing Platform
The MSA70 is designed and qualified for HP ProLiant and HP Integrity servers
Advanced Data Guarding
(RAID 6 with ADG) Fault Tolerance - It allocates two sets of parity data across drives and allows simultaneous write operations. This level of fault tolerance can withstand two simultaneous drive failures without downtime or data loss.
Quick Specs
| Features | Description |
|---|---|
| What's new |
|
| Host interface | SAS 3 Gb/s |
| Maximum number of drives | Up to twenty five 2.5 in SAS or SATA hot pluggable drives |
| User Interface | Controller display with Status indicators (2) and push buttons (4) on front of controller |
| Maximum logical drive size | > 2TB |
| Logical drives | Up to 32 Logical drives when connected to P800 Smart Array controller |
| RAID support |
|
| I/O module | Connector Type
|
| Modular Smart Array 70 cabinet | 2U Rack Form Factor |
| Additional features | Supports HP DP SAS 3 G disk drives, (36GB, 72GB, 146 and 300GB capacities) Supports HP SATA 1.5 G and 3 G disk drives, (60GB 1.5 G , 120GB and 250GB capacities) 1+1 Cascade support (Behind a single SAS port) Supports boot from storage Redundant hot-plug power supplies and fans standard Addition of second I/O Module adds dual domain capability providing higher level of redundancy and reliability Attached to Smart Array P800, the Smart Array E500 or the HP Smart Array P600 controllers for HP ProLiant and Integrity Servers Dual Domain support with HP Smart Array P800 Controller for HP ProLiant and Integrity servers (Requires dual port SAS drives) (Single environment only) Multi Initiator support with the SC44Ge Host Bus Adapter (AH303A) (HP-UX and Open VMS on selected HP Integrity Servers) with dual port SAS drives only |
