Home / Hewlett Packard Enterprise / HPE ProLiant ML110 (G10) 4208 2.1GHz 8C 1P 16GB-R S100i 8SFF 800W RPS Server | P21440-001
SKU: P21440-001

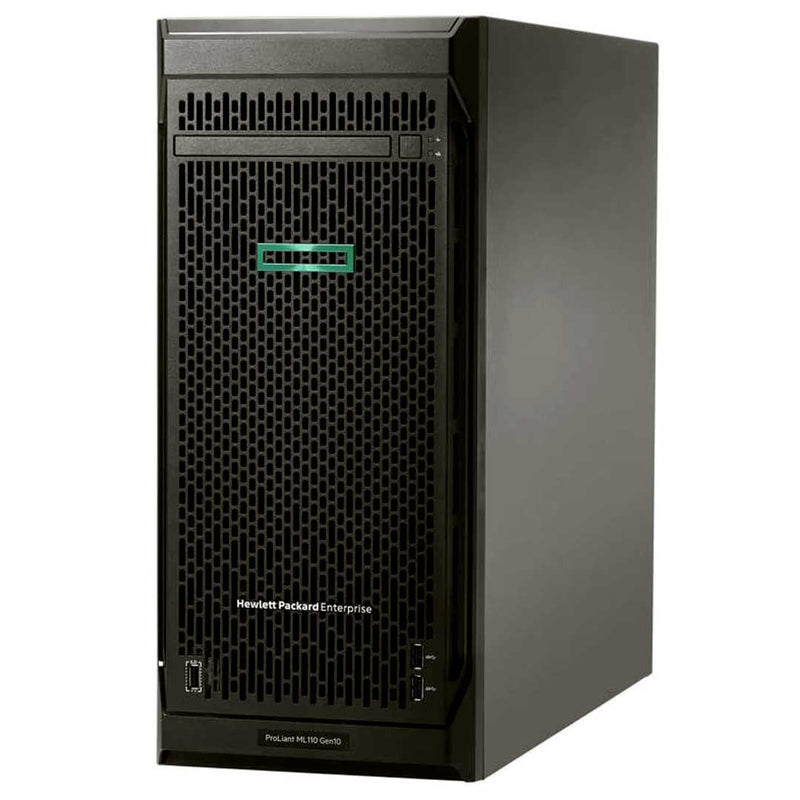

HPE ProLiant ML110 (G10) 4208 2.1GHz 8C 1P 16GB-R S100i 8SFF 800W RPS Server | P21440-001

HPE

| Server
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.


Click to view the Configure To Order (CTO) Model

Comes with:

  • Processors - 1 x 4208 (8-Core, 2.1 GHz, 85W)
  • Memory - 16 GB RDIMM DDR4 2933 MT/s (1x 16 GB)
  • Network Controller - Embedded 2-Port 1GbE HPE Ethernet 1Gb 2-port 332i Adapter
  • Storage Controller - Embedded SW RAID with 10 SATA ports
  • Hard Drive - None ship standard

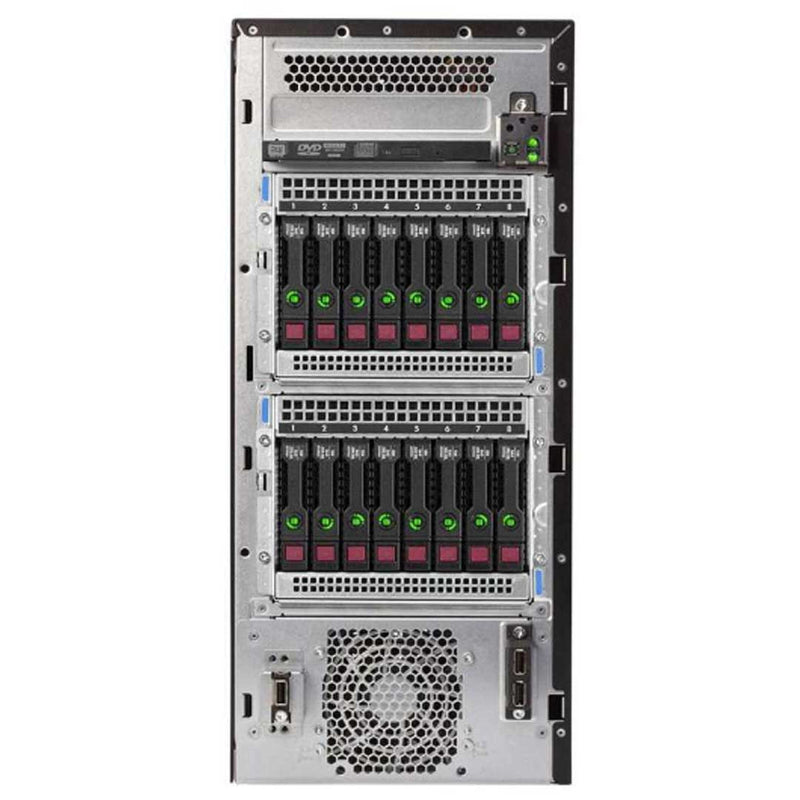

  • Internal Storage - 8 SFF HDD Bays (Hot Plug)
  • Optical Drive Bay - 1; (Optional: DVD-ROM, DVD-RW)
  • Optical Drive - None ship as standard
  • PCIe Slots - 5 PCIe 3.0 slots
  • Power Supply - (1) 800W RPS
  • Fans - 2 non-hot plug, non-redundant
  • Management - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced(optional), HPE iLO Advanced Premium Security Edition (optional)
  • Energy Start - 2.1 certified
  • Form Factor - Tower (4.5U)

The refurbished HPE ProLiant ML110 Gen10 server is an enhanced single processor tower with performance, expansion, and security at an affordable price. It supports the Intel Xeon Scalable processor, HPE DDR4 SmartMemory with a maximum capacity of 192 GB, five PCIe slots, eight large form factor (LFF) or 16 small form factor (SFF) disk drives. It can easily be converted to a rack using 4.5U of rack space.

The HPE ProLiant ML110 Gen10 server also offers optional redundant fan and redundant power supply to satisfy automatic fail-over needs, making this the ideal server for small- to mid-sized businesses, and remote and branch offices.

What’s New for ML110 Gen10

  • Enhanced iLO 5 security features such as Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor.
  • Supports the second generation Intel Xeon Scalable processor family with up to 16 cores and up to 110W.
  • NVIDIA Quadro P2000 GPU Module (Optional)
  • HPE 12TB SAS/ SATA 7.2K LFF HDD
  • Redundant fan kit (Optional)
  • Support up to 8 LFF NHP SATA HDDs
  • Supports M.2 drives.
  • HPE DDR4 SmartMemory up to 2933 MT/s

Know your Server - CTO Configuration Support

Need help with the configuration? Contact us today!

Starting off!
After you choose the Chassis with the correct Drive Cage you need to select the processor. When you select the processor the System board with automatically be selected. This is because the 878926-001 supports first-generation Intel Xeon Scalable Processors while the P11532-001 system board supports second-generation Intel Xeon Scalable Processors.

HPE ML110 Gen10 Tower Server can have (4) LFF Non-Hot-Plug (NHP) SATA Drives, 4 LFF Hot-Plug SATA/SAS HDD Drives, or 8 SFF Hot-Plug SATA/SAS SSD Drives. The NHP Chassis is limited to the embedded storage controller S100i while the Hot-Plug Chassis can support more options. HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled. For enabling please select HPE FIO Enable Smart Array SW RAID (784308-B21). Both Hot-Plug Chassis can support a second drive cage of the same Drive Form Factor. Mixing of Form Factors is not supported in the ML110 Gen10 HPE Tower Server.

The embedded S100i controller supports up to 10 SATA ports as the 2 additional ports are leveraged to support the M.2 option. When installing the HPE 12G SAS expander card option kit (P11359-B21) in PCI-e Slot 5 for the ability to have 16 SFF SAS/SATA Drive. You’ll also need to install a Performance Smart Array and cable the backplane correctly with mini-SAS cables. That’s not all, since you need a performance smart array, you’ll need the HPE Smart Storage Battery (P01367-B21) and the holder (786710-B21) which are sold separately.

The Gen10 ML110 HPE Tower server supports the NS240i-p Boot Device (P12965-B21 - P14379-001) which holds 2x480GB SSD NVMe drives. There is also another M.2 option on this server with the installation of the HPE Universal SATA 6G AIC HHHL M.2 SSD Enablement Kit (878783-B21). The M.2 SSD enablement board is supported in the PCIe3 expansion slots 1, 3, and 4.

Are you going to install GPU Accelerators at all?
The server PCI-e 3.0 slot 1 only supports half-length GPUs, and PCI-e 3.0 slot 4 supports both half-length and full-length GPUs. This server does not support the installation of different GPU models in the same system. GPUs that have a power requirement higher than 75W also require higher wattage of power supplies. In this case, the lower wattage of ATX 350W non-hot-plug power supply does not support these GPUs and you’ll need to upgrade to the 550W or higher. Max support of 2 GPUs unless the RTX4000, only 1 is supported in slot 4 with the GPU holder.

  • NVIDIA Quadro P2000 GPU 75W Module - Q0V77A
  • AMD Radeon Pro WX2100 GPU 35W Module - Q1P47C
  • NVIDIA Quadro P1000 GPU 47W Module - R3K70C
  • NVIDIA Quadro P2200 GPU 75W Module - R2U55C
  • NVIDIA Quadro RTX4000 GPU 125W Module - R1F95C
    • Needs HPE ML110 Gen10 GPU FHFL Holder Kit (P11529-B21)

Lets Talk Cooling!
The HPE ML110 Gen10 Redundant Fan with 4 Fans Kit (869489-B21) contains the redundant system and PCI fans. Mixed default fan + redundant fan configuration in the same server is not supported. The redundant fan kit is needed when the following configuration is met. When a second HDD cage is installed and the SAS HDDs are running at 15K RPM or, when a SAS SSD is installed. Whenever these conditions are met and there is a need for a redundant fan kit, the HPE ML110 Gen10 Redundant Power Supply Enablement Kit (867875-B21) is also needed to support the fans.

Storage Controllers?
The base / Entry storage controller module is the HPE Smart Array S100i SR Gen10 SW RAID Controller. The S100i supports 10 ports as 2 additional ports are leveraged to support the M.2 option. The embedded controller has RAID 0, 1, 5, and 10 on SATA drive. NHP SATA is limited to the S100i controller. When upgrading to a performance Smart Array, you will need the HPE smart storage battery (P01367-B21) and the holder (786710-B21 ) which are sold separately.

Add this SAS Expander option kit to upgrade your ML110 Gen10 SFF system configured with either P408i-p or E208i-p will support 16 SFF drives. This option is not supported with the LFF Chassis and in this server, the expander card is supported in the PCIe3 expansion slot 5. If you install the SAS expander and then install SAS SSD’s into your chassis, the power supply unit will need to be upgraded to the 800W Redundant Power supply (865414-B21 - 865438-B21). This RPSU needs the HPE ML110 Gen10 Redundant Power Supply Enablement Kit (867875-B21) along with the redundant Fan Kit (869489-B21) to support the 16 SAS SFF Drives.

That’s not all, this ML110 Gen10 HPE Tower Server supports (2) NVMe M.2 PCI-e 3.0x8 Drives on the NS204i-p PCI-e 3.0x8 Boot Device (P12965-B21) or the HPE Universal SATA 6G AIC HHHL M.2 SSD Enablement Kit (878783-B21). This Boot device is only supported in UEFI mode and both kits come with M.2 Drives. The recommended PCI-e slots are 1, 3, and 4

Lets talk power!
 HPE Entry-Level 350W ATX Power Supply Kit provides lower-cost options for customers to balance their need for enterprise-class efficiency and reliability while maintaining the lowest possible hardware costs. The HPE 550W ATX Power Supply is the standard, non-redundant AC power supply option for most HPE ProLiant Gen10 Essential servers. When installing an HPE Flexible Slot (Flex Slot) Power Supply you will also need this HPE ML110 Gen10 Redundant Power Supply Enablement Kit (867875-B21). If only one of the two Redundant PSU are installed, you must fill the other slot with the PSU Blank (775423-001).

If the second HDD cage is installed with SAS HDD running at 15K RPM or if a SAS SSD is installed. Then the system will need both redundant fans and 800W RPS to accommodate the load coming from the server.

Lights Out! iLO
iLO 5 is a remote server management processor embedded on the system boards of HPE ProLiant servers and Synergy compute modules. iLO enables the monitoring and controlling of servers from remote locations.
iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards.
HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available.

Looking to Customize?

Not seeing the exact specs you need?
Start your build today with Express Computer Systems!

Start Customizing Today!

Base Standard Capabilities

Product features

Feature
Description
Processors1
Intel first generation Xenon scalable processors
Intel Xeon Models
CPU Frequency
Cores
L3 Cache
Power
UPI
DDR4
Memory Per Socket
Gold processors
Gold 5122 Processor
3.6 GHz
4
16.50MB
105 W
2 @ 10.4 GT/s
2666 MT/s
192GB
Gold 5120 Processor
2.2 GHz
14
19.25MB
105 W
2 @ 10.4 GT/s
2400 MT/s
192GB
Silver processors
Silver 4112 Processor
2.6 GHz
4
8.25MB
85 W
2 @ 9.6 GT/s
2400 MT/s
192GB
Silver 4110 Processor
2.1 GHz
8
11.00MB
85 W
2 @ 9.6 GT/s
2400 MT/s
192GB
Silver 4108 Processor
1.8 GHz
8
11.00MB
85 W
2 @ 9.6 GT/s
2400 MT/s
192GB
Bronze processors
Bronze 3106 Processor
1.7 GHz
8
11.00MB
85 W
2 @ 9.6 GT/s
2133 MT/s
192GB
Bronze 3104 Processor
1.7 GHz
6
11.00MB
85 W
2 @ 9.6 GT/s
2133 MT/s
192GB
Intel second generation Xenon scalable processors
Intel Xeon Models
CPU Frequency
Cores
L3 Cache
Power
UPI
DDR4
Memory Per Socket
Gold processors
Gold 5122 processor
3.8 GHz
4
16.50MB
105 W
2 @ 10.4 GT/s
2933 MT/s
192GB
Gold 5218N Processor
2.3 GHz
16
22.00MB
110 W
2 @ 10.4 GT/s
2666 MT/s
192GB
Gold 5215 Processor
2.5 GHz
10
13.750MB
85 W
2 @ 10.4 GT/s
2666 MT/s
192GB
Silver processors
Silver 4216 Processor
2.1 GHz
16
22.00MB
100 W
2 @ 9.6 GT/s
2400 MT/s
192GB
Silver 4215 Processo
2.5 GHz
8
11.00MB
85 W
22 @ 9.6 GT/s
2400 MT/s
192GB
Silver 4214 Processor
2.2 GHz
12
16.50MB
85 W
2 @ 9.6 GT/s
2400 MT/s
192GB
Silver 4210 Processor
2.2 GHz
10
13.75MB
85 W
2 @ 9.6 GT/s
2400 MT/s
192GB
Silver 4208 Processor
2.1 GHz
8
11.00MB
85 W
2 @ 9.6 GT/s
2400 MT/s
192GB
Bronze processors
Bronze 3204 Processor
1.9 GHz
6
8.25MB
85 W
2 @ 9.6 GT/s
2133 MT/s
192GB
Bronze 3206R Processor
1.9 GHz
8
8.25MB
85 W
2 @ 9.6 GT/s
2133 MT/s
192GB
Chipset2
Intel C621 chipset
Form factor
Tower (4.5U)
System fans

  • 1 Default system fan module (92 x 32 mm)

  • 1 Default PCIe fan module (92 X 32 mm)

On system management chipset3
HPE iLO 5 ASIC
Memory4
Type

  • HPE SmartMemory and standard memory

  • DDR4 Registered (RDIMM)

Dual In-Line Memory Module (DIMM) Slots available
6
6 DIMM slots per processor, 6 channels per processor, 1 DIMM per channel
Maximum capacity (RDIMM)
192GB
6 x 32GB RDIMM - 2666 MT/s
Memory protection
For more information on HPE Server memory options RAS feature, please check the below link:
Click here to access the page for How memory RAS technologies can enhance the uptime of HPE ProLiant servers .
Expansion slots5
Slots #
Technology
Bus Width
Connector Width
Slot Form Factor
Notes
5
PCIe 3.0
X4
X8
Full-Height, Half-Length slot
PCH
4
PCIe 3.0
X16
X16
Full-Height, Full-Length slot
Proc 1
3
PCIe 3.0
X8
X8
Full-Height, Half-Length slot
Proc 1
2
PCIe 3.0
X4
X8
Full-Height, Half-Length slot
Proc 1
1
PCIe 3.0
X16
X16
Full-Height, 3/4 length (Up to 9.5 in) Slot
Proc 1
Storage controllers
The Gen10 Controller naming framework has been updated to simplify identification as depicted in the below link:
Essential RAID Controller
Performance RAID Controller
HPE Smart Array E208i-p SR Gen10 Controller
HPE Smart Array P408i-p SR Gen10 Controller
HPE Smart Array E208e-p SR Gen10 Controller
HPE Smart Array P408e-p SR Gen10 Controller
Click here to access the Datasheet for HPE Smart Array Gen10 Controllers .
Software RAID6
HPE Smart Array S100i SR Gen10 SW RAID
Internal storage devices
Optical drive7

  • Optional SATA 9.5 mm DVD-ROM optical drive

  • Optional SATA 9.5 mm DVD RW optical drive

One of the following depending on model10
Hard drives
None ship standard

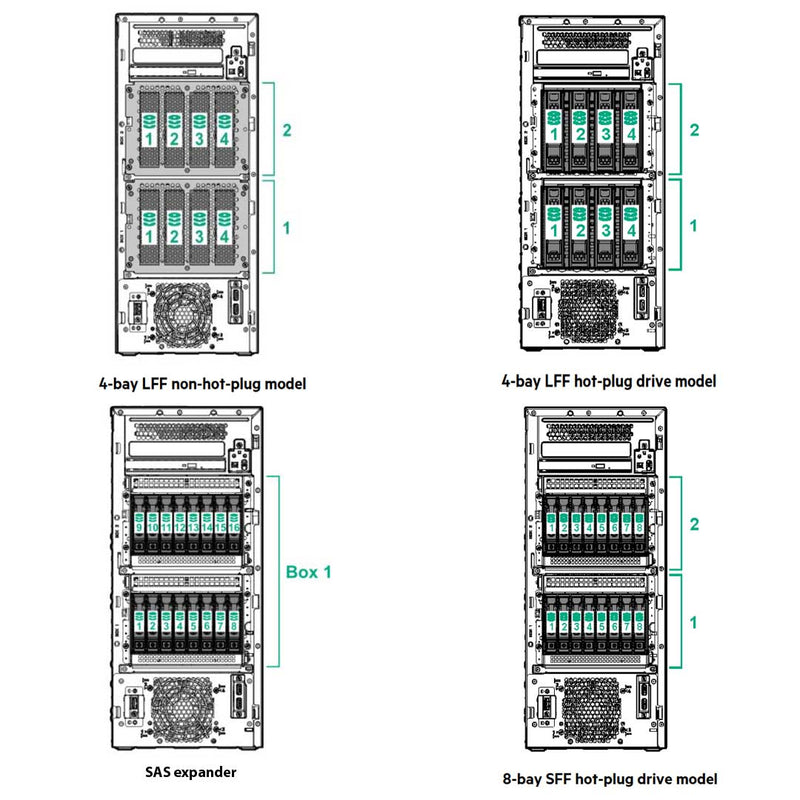

Hard drive bays

  • Up to 8 Non-Hot plug SATA 3.5 in drives

  • 4 Hot plug LFF SAS/SATA HDD bays; upgradable to 8

  • 8 Hot plug SFF SAS/SATA HDD bays; upgradable to 16

Maximum internal storage8
 Internal Storage
Capacity
Configuration
Hot plug LFF SAS
96TB
8 x 12TB
Hot plug LFF SATA
96TB
8 x 12TB
Hot plug SFF SAS
38.4TB
16 x 2.4TB
Hot plug SFF SATA
32TB
16 x 2TB
Non hot plug LFF SATA
32TB
8 x 4TB
Hot plug LFF SATA SSD
30.72TB
8 x 3.84TB
Hot plug SFF SAS SSD
61.44TB
16 x 3.84TB
Hot plug SFF SATA SSD
61.44TB
16 x 3.84TB
Power supply9

  • HPE ML110 Gen10 350 W ATX power supply kit

  • HPE ML110 Gen10 550 W ATX power supply kit

  • HPE 800 W flex slot platinum hot plug low halogen power supply kit

  • HPE 500 W flex slot platinum hot plug low halogen power supply kit

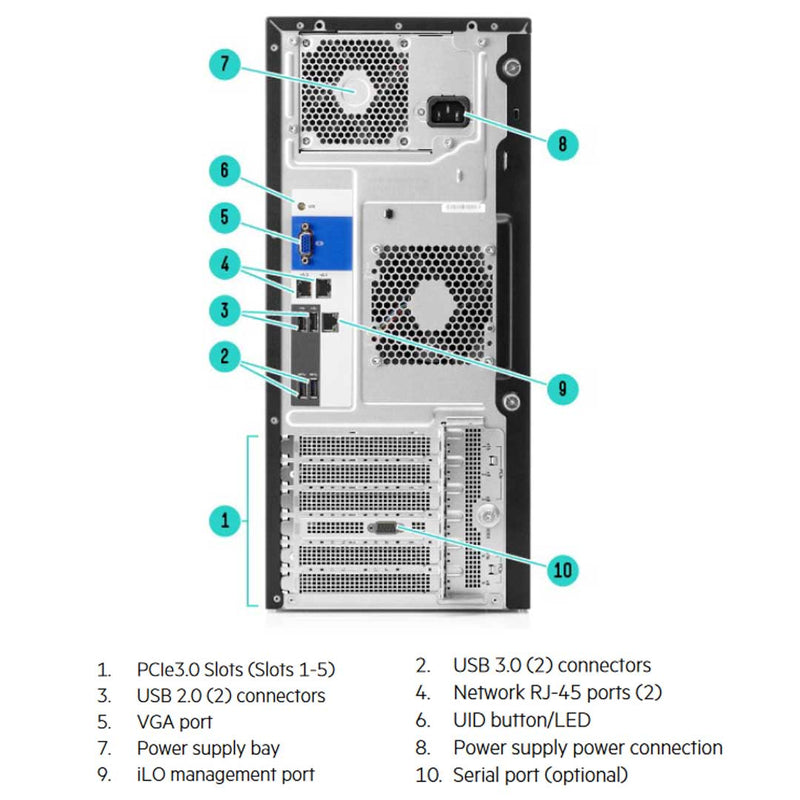

Interfaces10
VGA Port
1 Standard (At system rear)
Network RJ-45 (Ethernet)
2 Standard (At system rear)
Serial
1 Optional (At system rear)
iLO Management port
1 Standard (At system rear)
iLO Service port
1 Standard (At system front)
MicroSD slot
1 Standard (At system internal)
USB 3.0
5 (2 Front, 2 rear, 1 internal)
USB 2.0
3 (2 Rear, 1 internal)
Industry standard compliance11

  • ACPI 6.1 Compliant

  • PCIe 3.0 Compliant

  • WOL Support

  • Microsoft logo certifications

  • Novell certified

  • PXE Support

  • VGA port

  • USB 3.0 Compliant

  • USB 2.0 Compliant

  • Energy star 2.1

  • SMBIOS 3.1

  • Unified Extensible Firmware Interface Forum (UEFI) 2.6

  • ASHRAE A3

Graphics

  • Integrated video standard

    • Video modes up to 1920 x 1200 @60 Hz (32 bpp)

    • 16MB video memory

  • HPE iLO 5 On system management memory

    • 32MB Flash

    • 4Gb DDR 3 with ECC protection

HPE Server UEFI/legacy ROM12

  • UEFI Enables numerous new capabilities specific to HPE ProLiant servers such as:

    • Secure boot and secure start enable for enhanced security

    • Operating System (OS) specific functionality

    • Support for > 2.2TB (Using GPT) boot drives

    • USB 3.0 stack

    • Embedded UEFI shell

    • Mass configuration deployment tool using iLO RESTful API that is Redfish API conformant

    • PXE boot support for IPv6 networks

    • Workload profiles for simple performance optimization

UEFI Boot mode only:

  • Trusted Platform Module (TPM) 2.0 support

  • iSCSI software initiator support

  • HTTP/HTTPs boot support as a PXE alternative

  • Boot support for option cards that only support a UEFI option ROM

Embedded management

  • HPE Integrated Lights-Out (HPE iLO)

  • UEFI

  • Intelligent provisioning

  • iLO RESTful API

Server utilities

  • Active Health System (AHS)

  • AHS Viewer

  • Smart update

  • iLO amplifier pack

  • HPE iLO mobile application

  • RESTful interface tool

  • Scripting tools

  • HPE OneView standard

  • HPE Systems Insight Manager (HPE SIM)

Security

  • UEFI Secure boot and secure start support

  • Immutable silicon root of trust

  • FIPS 140-2 validation (iLO 5 certification in progress)

  • Common criteria certification (iLO 5 certification in progress)

  • Configurable for PCI DSS compliance

  • Ability to rollback firmware

  • Secure erase of NAND/User data

  • TPM 1.2 Option

  • TPM 2.0 Option

Server management

  • HPE iLO Advanced

  • HPE iLO advanced premium security edition

  • HPE OneView Advanced

  • One Config Simple (SCE)

  • HPE InfoSight for Servers

NOTE:

    • For more information on Intel xeon processors, please check the below link


    • Gold - 5100 series - Supports 6-channel DDR4 - 2400 MHz (SKU 5122 = supports 2666) providing up to 192GB memory capacity. Intel turbo boost technology, Intel Hyper-Threading technology, Intel AVX-512 (1 x 512-bit FMA) (SKU 5122 supports 2 x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS supported
    • Silver - 4100 series - 6-channel DDR4 - 2400 MHz providing up to 192GB memory capacity. Intel turbo boost technology, Intel Hyper-Threading technology, Intel AVX-512 (1 x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.
    • Bronze - 3100 series - Supports 6-channel DDR4 - 2133 MHz providing up to 192GB memory capacity. Intel AVX- 512 (1 x 512-Bit FMA), 48 lanes PCIe 3.0, standard RAS supported
  2. For more information regarding Intel chipsets, please check the below link:


  3. For more information on iLO, please check the below link for the quickspecs:

    Click here to access the quickspecs page for HPE Integrated Lights-Out (iLO) .


    • LRDIMM is not qualified by this server. This server does not support mixing LRDIMMs and RDIMMs. Attempting to mix any combination of these DIMMs can cause the server to halt during BIOS installation. All memory installed in the server must be of the same type.
    • The maximum memory speed is a function of the memory type, memory configuration, and processor model.

    • Bus width indicates the number of physical electrical lanes running to the connector.
    • Although the speed of slot is designed for 32 Gb/s, the actual running speed will be lower than it was designed. Hence slot 2 and slot 5 will be least recommended for usage.

    • HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional Controller will be needed, and for CTO orders please also select the legacy mode settings part, 758959-B22.
    • HPE Smart Array S100i SR Gen10 SW RAID is OFF by default and must be enabled.
    • The S100i supports 10 ports as 2 additional ports are leveraged to support the M.2 option.
  7. Optical is optional in BTO models.

    • Mixing drive cage types is not allowed.
    • All Pre-Configured models come populated with hard drive blanks installed. The 4LFF configurations includes 3 blanks and 8SFF includes 7 blanks. Additional hard drive blanks can be ordered using either P/N 807878-B21 for the HPE LFF HDD blank kit or P/N 666987-B21 for the HPE SFF HDD blank kit. These part numbers for single HDD blanks below are also provided should require replacement HDD blanks for the server.
    • NHP SATA is limited to S100i controller.

    • ATX power supply will not support redundant fan option.
    • Flex slot platinum power supplies support power efficiency of up to 94% and include a standard C-14 power inlet connector.
    • The 800 W flex slot platinum hot plug low halogen power supply kit requires the RPS enablement kit.
    • The RPS enablement kit will support two power supplies.
  10. The MicroSD slot is not Hot-Pluggable, please power down the server before installation or removal.


    • The UEFI system utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information on UEFI, please check the below link:

      Click here to view the information on Unified Extensible Firmware Interface (UEFI) .

    • For UEFI boot mode, boot environment and OS image installations should be configured properly to support UEFI.
    • UEFI FIO setting (758959-B22) can be selected to configure the system in legacy mode in the factory for HPE ProLiant Gen10 Server.

top

Specs 1

Physical specifications

Specifications
Description
Dimensions (H x W x D)
44 x 19.5 x 48.05 cm (17.32 x 7.68 x 18.92 in)
Weight (Approximate)
Minimum: 13.5 kg (29.82 lb)
Maximum: 25.0 kg (55.0 lb)

top

Electrical specifications

Specifications
Description
Input requirements (Per power supply)
Rated line voltage
100 to 120 V ac
Rated input frequency

  • For 350 W and 550 W power supply: 8 A (At 100~240 V ac)

  • 50 to 60 Hz

Rated input power

  • For 550 W power supply: < 639 W (At 100 V ac), < 605 W (At 200 V ac)

  • For 350 W power supply: < 427 W (At 100 V ac), < 427 W (At 200 V ac)

BTU rating

  • For 550 W power supply: 2204 BTU/hr (At 100 V ac), 2113 BTU/hr (At 200 V ac)

  • For 350 W power supply: 1452 BTU/hr (At 100 V ac), 1544 BTU/hr (At 200 V ac)

Power supply output (Per power supply)
Rated Steady-State power
For 550 W power supply: 550 W (At 100 V ac), 550 W (At 200 V ac)
Maximum peak power
For 350 W power supply: 350 W (At 100 V ac), 350 W (At 200 V ac)

top

Environmental specifications

Specifications
Description
System inlet temperature
Standard operating temperature

  • 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight

  • Maximum rate of change is 20°C/hr (36°F/hr)

  • The upper limit and rate of change may be limited by the type and number of options installed

  • System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F)

Extended ambient operating support
5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3048 m (10,000 ft)
Non-Operating temperature

  • -30° to 60°C (-22° to 140°F)

  • Maximum rate of change is 20°C/hr (36°F/hr)

Relative humidity (Rh)
Operating
8% to 90% - Rh, 28°C maximum wet bulb temperature, Non-Condensing
Non-operating
5% to 95% - Rh, 38.7°C (101.7°F) maximum wet bulb temperature, Non-Condensing
Altitude
Operating

  • 3050 m (10,000 ft)

  • Maximum allowable altitude change rate is 457 m/min (1500 ft/min)

Non-operating

  • 9144 m (30,000 ft)

  • Maximum allowable altitude change rate is 457 m/min (1500 ft/min)

Acoustic noise
Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels. HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.
Idle
LWAd

  • 4.0 Bels Entry

  • 4.0 Bels Perf

LpAm

  • 24.8 dBA Entry

  • 24.1 dBA Perf

Operating
LWAd

  • 4.0 Bels Entry

  • 4.0 Bels Perf

LpAm

  • 25.1 dBA Entry

  • 24.1 dBA Perf

top

Spec Sheet 4

Technical specifications HPE ProLiant ML110 Gen10 server
Processor family Intel® Xeon® Scalable 5000 series, Intel® Xeon® Scalable 4000 series, Intel® Xeon® Scalable 3000 series
Processor core available 16 or 14 or 12 or 10 or 6 or 8 or 4, depending on model SKU
Processor cache 19.25 MB L3 - 8.25 MB L3, depending on model SKU
Processor speed 3.8 GHz, maximum depending on processor SKU
Expansion slots 5 PCIe 3.0, for detailed descriptions reference the QuickSpecs
Maximum memory 192 GB DDR4
Memory slots 6 DIMM slots, maximum
Memory type HPE DDR4 SmartMemory
Optical drive type Optional DVD-ROM or DVD-RW
System fan features Standard 2 fans, none-hot-plug. Optional 4 additional fans, redundancy. Reference QuickSpecs for config. detail.
Network controller HPE Ethernet 1Gb 2-port 332i Adapter
Storage controller HPE Smart Array S100i SR Gen10 SW RAID
Product Dimensions (metric) 44 x 19.5 x 48.05 cm
Weight 13.5 kg minimum 25.0 kg maximum
Infrastructure management Included: HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) Optional: HPE iLO Advanced, HPE iLO Advanced Premium Security Edition
Drive supported 8 LFF SAS/SATA/SSD or 16 SFF SAS/SATA/SSD depending on model

You may also like
