Quick Specs
The HPE ProLiant DL380 Gen11 server is a scalable 2U 2P solution that delivers exceptional compute performance expandability, and scalability for diverse workloads and environments at 1P economics. Powered by 4th Gen Intel® Xeon® Scalable Processors with up to 60 cores, increased memory bandwidth, and high-speed PCIe Gen5 I/O, the HPE ProLiant DL380 Gen11 server is a perfect dual-socket, 2U/2P, scalable solution.
The silicon root of trust anchors the server firmware to an HPE-exclusive ASIC, creating a fingerprint for the Intel® Xeon® Scalable Processor that must be matched exactly before the server will boot.
What's new
· Powered by the 4th Generation Intel® Xeon® Scalable Processors with next-generation technology that support up to 60 cores at 350W and 16 DIMMs for DDR5 memory at speeds up to 4800 MHz.
· Support for up to 8 TB total DDR5 memory with 16 DIMM channels per processor delivers increased performance, lower power requirements, and High Bandwidth Memory (HBM) support.
· Support for PCIe Gen5, resulting in improved bandwidth, advanced data transfer rates, and higher network speeds from the PCIe Gen5 serial expansion bus.
· Includes the new HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
· Supports hot-pluggable, high-availability RAID M.2 boot options.
· Supports up to 8 single wide (SW) or 3 double wide (DW) GPUs to accelerate graphic intense workloads.
Not seeing the exact specs you need?
Start your build today with Express Computer Systems!
Start Customizing Today!
Base Standard Capabilities
| Technical specifications | HPE ProLiant DL380 Gen11 |
|---|---|
| Processor type ® | Intel |
| Processor family | 4th Generation Intel® Xeon® Scalable Processors |
| Processor number | 1 or 2 |
| Processor core available | 16 to 60 core, depending on processor |
| Processor cache | 22.5 MB to 112.5 MB L3, depending on processor |
| Processor speed | 3.1 GHz maximum, depending on processor |
| Power supply | type 800W, 1000W, or 1600W Dual hot-plug redundant 1+1 HPE Flexible Slot Power Supplies, depending on model |
| Expansion slots | Up to 8 PCIe Gen5, and 2 OCP 3.0, for detailed descriptions reference the QuickSpecs |
| Maximum memory | 8 TB with 256 GB DDR5 |
| Memory slots | 32 |
| Memory type | HPE DDR5 Smart Memory |
| Memory protection features | RAS – Advanced ECC, online spare, mirroring, combined channel (lockstep) functionality, and HPE Fast Fault Tolerant Memory (ADDDC) Intel Optane Persistent Memory |
| Optical drive type | Optional DVD-ROM Optional via Universal Media Bay External support only |
| System fan features | Hot-plug redundant fans, Standard Fan Kit or High Performance Fan Kit, depending on model |
| Network controller | 1 Gb, 10 Gb, 10/25 Gb, 100 Gb, or 200 Gb, in PCIe adapter or OCP 3.0 form factor, for detailed descriptions reference the QuickSpecs |
| Storage controller | HPE SR932i-p and/or HPE MR216i-o and/or HPE MR416i-o and/or HPE MR216i-p and/or HPE MR416i-p and/or HPE MR408i-o, for detailed descriptions reference the QuickSpecs |
| DIMM capacity | 16 GB to 256 GB |
| Infrastructure management | HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE GreenLake COM |
| Drive supported | 8 or 12 LFF SAS/SATA/SSD 8, 16, or 24 SFF SAS/SATA/SSD, depending on configuration. 6 SFF rear drive optional or or 2 SFF rear-drive optional, 20 SFF NVMe optional, NVMe support via Express Bay will limit maximum drive capacity, depending on model. |
Spec Sheet 4
| Pre-Configured Models | DL380 Gen11 2U Rack Server |
|---|---|
| SKU Number | P60638-B21 P60638-291 P60638-421 |

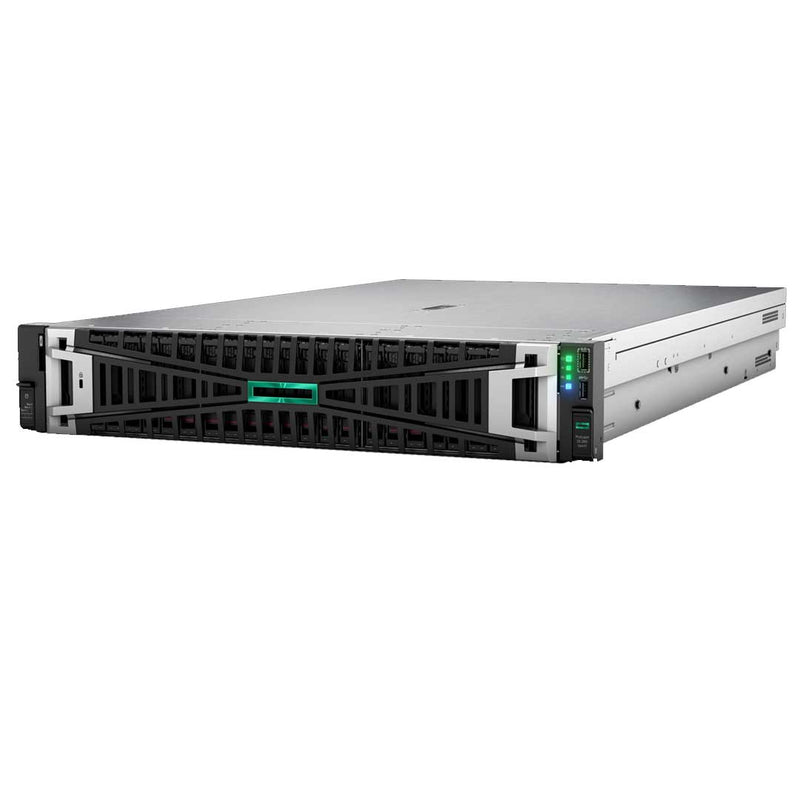

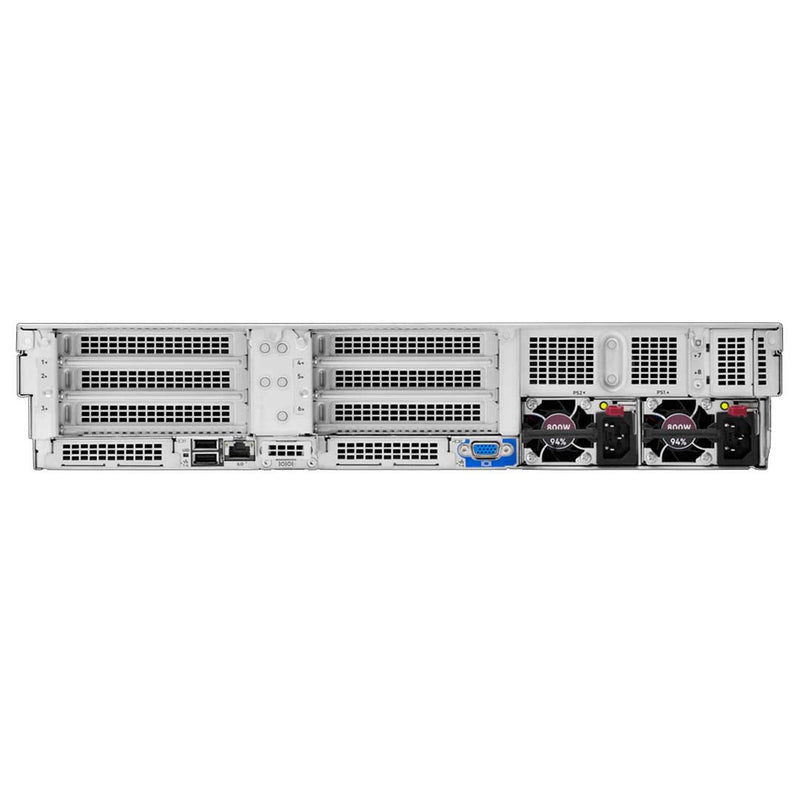

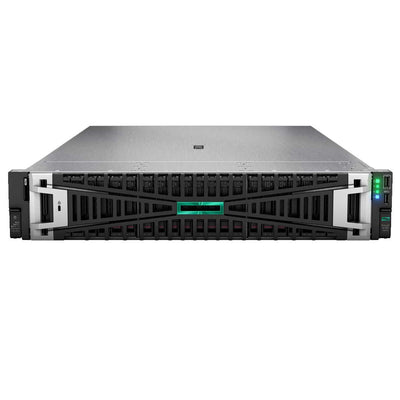

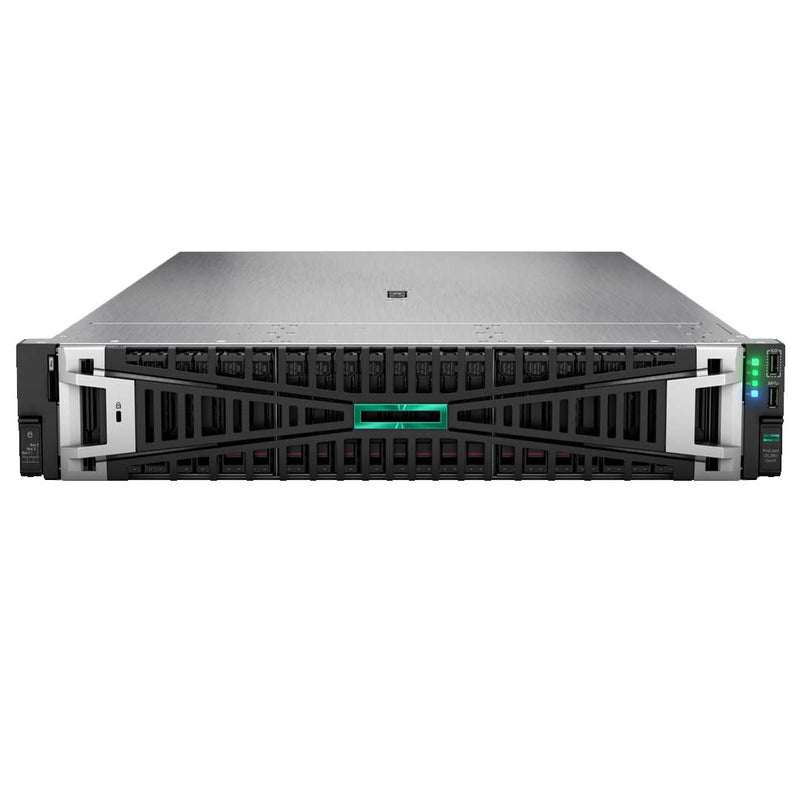

| Model Name | HPE ProLiant DL380 Gen11 5418Y 2.0GHz 24- core 1P 64GB-R MR408i-o NC 8SFF 800W PS Server |
| Chassis | 8SFF NC CTO Server (P52534-B21) |
| Processor | 5418Y (24 core, 2.0GHz, 185W) |
| Number of Processors | One with standard heatsink |
| Memory | 64 GB RDIMM 2R 4800 MT/s (2x 32 GB) |
| Network Controller | Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE |
| Storage Controller | HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller and Smart Storage Battery |
| Hard Drive | None Included |
| Internal Storage | 8 SFF CTO Server (upgradeable to 24 SFF front + 2SFF rear) |
| PCIe Slots | 3-slots (x8, x16, x8) as standard; upgradeable to 8-slots in a 2 processor configuration |
| Power Supply | 1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
| Fans | 4 - Standard |
| Management | HPE iLO 6 |
| Rail Kit | SFF Easy Install Rail Kit; cable management arm |
| Energy Star | Energy Star 3.0 |
| Form Factor | 2U Rack |
