Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Comes with:
- Processors - 1 x Intel® Xeon® E5-2603v4
- Memory - 8GB (1x8GB Registered DIMMs, 2400 MHz)
- Network Controller - HPE Embedded Dual Port 361i Adapter Network Interface
- Storage Controller - HPE Dynamic Smart Array B140i
- Hard Drive - None ship standard

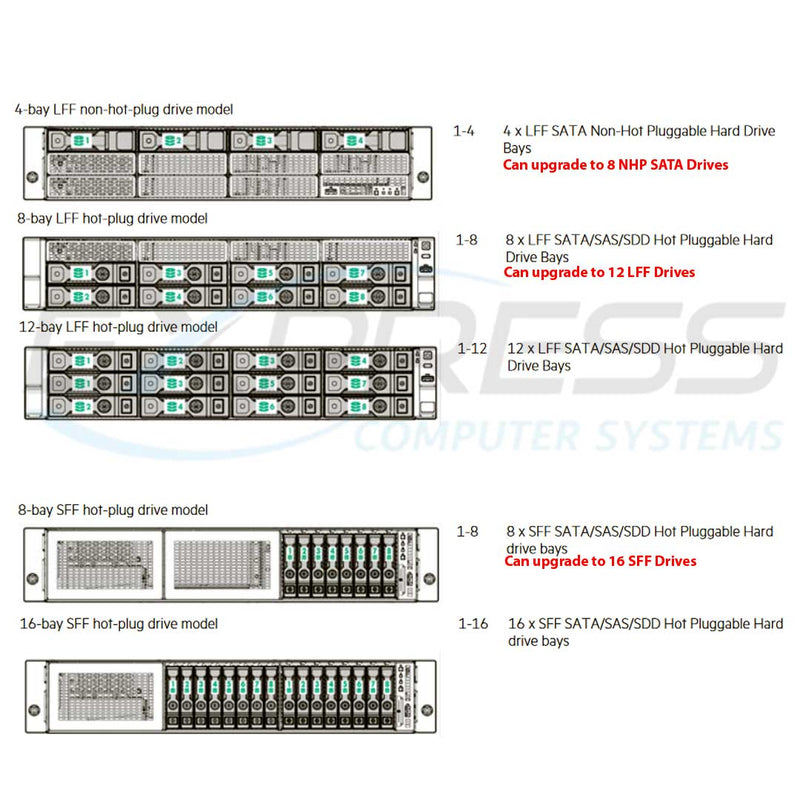

- Internal Storage - 4 LFF HDD Bays (Non Hot Plug)
- Optical Drive Bay - Not Available
- Optical Drive - None
- PCIe Slots - 3 Standard (1-FL/FH, 2-FH/HL)
- Power Supply - (1) HPE 550W FIO Power Supply
- Fans - 2 hot swap fans, non-redundant
- Management - iLO Management (standard), Intelligent Provisioning (standard), iLO Essentials (optional), iLO Scale-out (optional only for DL), iLO Advanced (optional)
- Energy Start - N/A
- Form Factor - Rack (2U), HPE Easy Install Rails
Looking to Customize?
Not seeing the exact specs you need?
Start your build today with Express Computer Systems!
Start Customizing Today!
Spec Sheet 4
| Technical specifications | HP ProLiant DL180 Gen9 Server |
|---|---|
| Compute | Up to 2 Intel® Xeon® E5-2600 v3 Series, 4/6/8/10/12 Cores, PCIe 3.0, up to 6 available slot(s) |
| Memory | HP SmartMemory (16) DDR4, up to 2133 MHz (512 GB max) |
| Storage | Standard HP Dynamic Smart Array B140i, optional HP Smart Array Controllers, and HP Smart HBAs via PCIe stand-up cards |
| Battery | HP DL/ML/SL 96 W Smart Storage Battery to support the standup controllers |
| HP SmartDrives | 16 SFF/12 LFF max, HDD/SSD |
| Networking | Embedded 2x 1GbE, optional FlexibleLOM slot on riser |
| VGA/serial/USB ports/SD | 1 VGA, 1 Serial, 6 USB 3.0, 1 microSD |
| GPU Support | Single-Wide and Active |
| On Premise management | HP OneView and HP iLO Advanced |
| On Cloud management | HP Insight Online with enhanced mobile application |
| On System management | HP iLO, HP SUM, Intelligent Provisioning and scripting tools; plus the new UEFI and HP RESTful Interface Tool |
| Power and cooling | Up to 94 percent efficient (Platinum), 550 W multi-output, 900 W RPS1 Hot swap fans with optional redundancy |
| Industry compliance | ASHRAE A3 and A4, ENERGY STAR® |
| Form factor/Chassis depth | ASHRAE A3 |
| Form factor/chassis depth | Rack (2U), 23.9" (SFF), 23.9" (LFF) |
| Serviceability — Easy install rails | Standard |
