SKU: 813197-B21

HPE ProLiant BL460C (G9) E5-2680V4 2P 256GB-R Server | 813197-B21

HPE

| Server
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Comes with:

  • Processors - (2) Intel® Xeon® E5-2680 v4 (2.4GHz/14-core/35MB/9.6GT-s QPI/120W, DDR4-2400)
  • Cache Memory - 35MB (1x35MB) Level 3 cache
  • Memory - 256GB (8x 32GB) 2400MT/s (DDR4-2400) Registered DIMMs at 1.2V)
  • Network Controller - HPE FlexFabric 20Gb 2-port 650FLB FlexibleLOM
  • Storage Controller - HPE Smart Array P244br Controller with RAID 0,1
  • Hard Drive - None ship standard
    Supports up to two (2) HPE hot-plug SFF SAS/SATA/SDD drives
    NOTE: NVMe SSDs not available on this model.
  • Internal Storage - SAS: 2.0TB; SATA: 2.0TB; SAS SSD: 3.84TB; SATA SSD: 3.84TB
  • Optical Drive Bay - None
  • Optical Drive - None
  • Expansion Slots - 2 standard -
    Slot 1 supports Type A mezzanine Cards.
    Slot 2 supports Type A and Type B mezzanine cards.
  • Fans - 3 non hot plug, non-redundant
  • Management - HPE iLO Management (standard)
    Optional: HPE OneView or HPE Insight Control
  • Energy Start - N/A
  • Form Factor -

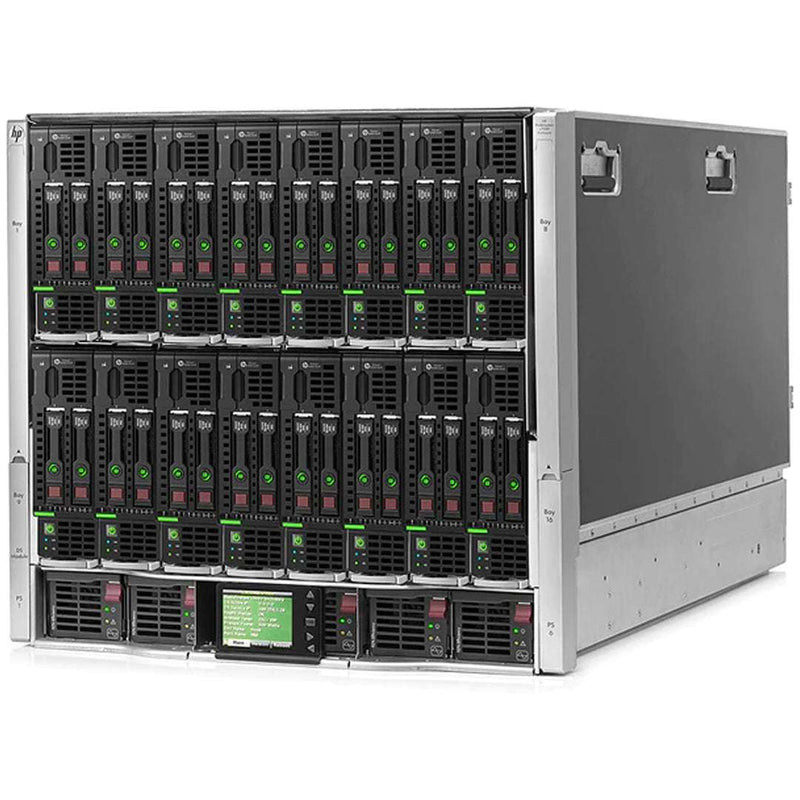

    Up to eight (8) half-height blades supported in the HPE BladeSystem c3000 Enclosure
    Up to sixteen (16) half-height blades supported in HPE BladeSystem c7000
    Enclosure
Looking to Customize?

Not seeing the exact specs you need?
Start your build today with Express Computer Systems!

Start Customizing Today!

Base Standard Capabilities

Product features

Feature
Description
Processor (One of the following depending on Model)
E5-2600 v4 series Processors

  • HPE BL460c Gen9 Intel Xeon E5-2690v4 (2.6 GHz/14-core/35MB/135 W)

  • HPE BL460c Gen9 Intel Xeon E5-2683v4 (2.1 GHz/16-core/40MB/120 W)

  • HPE BL460c Gen9 Intel Xeon E5-2680v4 (2.4 GHz/14-core/35MB/120 W)

  • HPE BL460c Gen9 Intel Xeon E5-2660v4 (2.0 GHz/14-core/35MB/105 W)

  • HPE BL460c Gen9 Intel Xeon E5-2650v4 (2.2 GHz/12-core/30MB/105 W)

  • HPE BL460c Gen9 Intel Xeon E5-2650Lv4 (1.7 GHz/14-core/35MB/65 W)

  • HPE BL460c Gen9 Intel Xeon E5-2640v4 (2.4 GHz/10-core/25MB/90 W

  • HPE BL460c Gen9 Intel Xeon E5-2630v4 (2.2 GHz/10-core/20MB/85 W)

  • HPE BL460c Gen9 Intel Xeon E5-2630Lv4 (1.8 GHz/10-core/25MB/55 W)

  • HPE BL460c Gen9 Intel Xeon E5-2623v4 (2.6 GHz/4-core/10MB/85 W)

  • HPE BL460c Gen9 Intel Xeon E5-2620v4 (2.1 GHz/8-core/20MB/85 W)

  • HPE BL460c Gen9 Intel Xeon E5-2609v4 (1.7 GHz/8-core/20MB/85 W)

  • HPE BL460c Gen9 Intel Xeon E5-2603v4 (1.7 GHz/6-core/15MB/85 W)

  • HPE BL460c Gen9 Intel Xeon E5-2699v4 (2.2 GHz/22-core/55MB/145 W)

  • HPE BL460c Gen9 Intel Xeon E5-2698v4 (2.2 GHz/20-core/50MB/135 W)

  • HPE BL460c Gen9 Intel Xeon E5-2697v4 (2.3 GHz/18-core/45MB/145 W)

  • HPE BL460c Gen9 Intel Xeon E5-2697Av4 (2.6 GHz/16-core/40MB/145 W)

  • HPE BL460c Gen9 Intel Xeon E5-2695v4 (2.1 GHz/18-core/45MB/120 W)

  • HPE BL460c Gen9 Intel Xeon E5-2667v4 (3.2 GHz/8-core/25MB/135 W)

  • HPE BL460c Gen9 Intel Xeon E5-2643v4 (3.4 GHz/6-core/20MB/135 W)

  • HPE BL460c Gen9 Intel Xeon E5-2637v4 (3.5 GHz/4-core/15MB/135 W)

E5-2600 v3 series Processors

  • HPE BL460c Gen9 Intel Xeon E5-2690v3 (2.6 GHz/12-core/30MB/135 W)

  • HPE BL460c Gen9 Intel Xeon E5-2680v3 (2.5 GHz/12-core/30MB/120 W)

  • HPE BL460c Gen9 Intel Xeon E5-2670v3 (2.3 GHz/12-core/30MB/120 W)

  • HPE BL460c Gen9 Intel Xeon E5-2660v3 (2.6 GHz/10-core/25MB/105 W)

  • HPE BL460c Gen9 Intel Xeon E5-2650v3 (2.3 GHz/10-core/25MB/105 W)

  • HPE BL460c Gen9 Intel Xeon E5-2640v3 (2.6 GHz/8-core/20MB/90 W)

  • HPE BL460c Gen9 Intel Xeon E5-2683v3 (2 GHz/14-core/35MB/120 W)

  • HPE BL460c Gen9 Intel Xeon E5-2630v3 (2.4 GHz/8-core/20MB/85 W)

  • HPE BL460c Gen9 Intel Xeon E5-2620v3 (2.4 GHz/6-core/15MB/85 W)

  • HPE BL460c Gen9 Intel Xeon E5-2623v3 (3 GHz/4-core/10MB/105 W)

  • HPE BL460c Gen9 Intel Xeon E5-2609v3 (1.9 GHz/6-core/15MB/85 W)

  • HPE BL460c Gen9 Intel Xeon E5-2603v3 (1.6 GHz/6-core/15MB/85 W)

  • HPE BL460c Gen9 Intel Xeon E5-2650Lv3 (1.8 GHz/12-core/30MB/65 W)

  • HPE BL460c Gen9 Intel Xeon E5-2698v3 (2.3 GHz/16-core/40MB/135 W)

  • HPE BL460c Gen9 Intel Xeon E5-2630Lv3 (1.8 GHz/8-core/20MB/55 W)

  • HPE BL460c Gen9 Intel Xeon E5-2695v3 (2.3 GHz/14-core/35MB/120 W)

  • HPE BL460c Gen9 Intel Xeon E5-2637v3 (3.5 GHz/4-core/15MB/135 W)

  • HPE BL460c Gen9 Intel Xeon E5-2697v3 (2.6 GHz/14-core/35MB/145 W)

  • HPE BL460c Gen9 Intel Xeon E5-2667v3 (3.2 GHz/8-core/20MB/135 W)

  • HPE BL460c Gen9 Intel Xeon E5-2643v3 (3.4 GHz/6-core/20MB/135 W)

  • HPE BL460c Gen9 Intel Xeon E5-2699v3 (2.3 GHz/18-core/45MB/145 W)

Cache memory

  • 55MB (1 x 55MB) L3 cache (For Twenty two-core processors)

  • 50MB (1 x 50MB) L3 cache (For Twenty-core processors)

  • 45MB (1 x 45MB) L3 cache (For Eighteen-core processors)

  • 40MB (1 x 40MB) L3 cache (For Sixteen-core processors)

  • 35MB (1 x 35MB) L3 cache (For Fourteen-core processors)

  • 30MB (1 x 30MB) L3 cache (For Twelve-core processors)

  • 25MB (1 x 25MB) L3 cache (For Ten or Eight-core processors)

  • 20MB (1 x 20MB) L3 cache (For Six, Eight, or Ten-core processors)

  • 15MB (1 x 15MB) L3 cache (For Quad or Six-core processors)

  • 10MB (1 x 10MB) L3 cache (For Quad-core processors)

Memory protection

  • Advanced ECC

  • Memory mirroring

  • Memory online spare mode (Rank spare mode)

Chipset

  • Intel C610 series chipset

  • Intel E5-2600v3 processor family

Upgradeability
Upgradeable to two (2) processors
On system management chipset
HPE iLO (Firmware: HPE iLO4 2.0)
Memory
Type
HPE SmartMemory DDR4 Load Reduced (LRDIMM), or Registered (RDIMM)
Standard (Pre-configured models)

  • 256GB (8 x 32GB) DDR4 2400MT/s LDIMMs at 1.2 V

  • 128GB (4 x 32GB) DDR4 2400MT/s LDIMMs at 1.2 V

  • 64GB (4 x 16GB) DDR4 2400MT/s RDIMMs at 1.2 V

  • 32GB (2 x 16GB) DDR4 2400MT/s RDIMMs at 1.2 V

  • 16GB (2 x 8GB) DDR4 2400MT/s RDIMMs at 1.2 V

  • 128GB (4 x 32GB) DDR4 2133MT/s RDIMMs at 1.2 V

  • 64GB (4 x 16GB) DDR4 2133MT/s RDIMMs at 1.2 V

  • 32GB (2 x 16GB) DDR4 2133MT/s RDIMMs at 1.2 V

  • 32GB (2 x 16GB) DDR4 2133MT/s RDIMMs at 1.2 V

  • 16GB (2 x 8GB) DDR4 2133MT/s RDIMMs at 1.2 V

  • 16GB (2 x 8GB) DDR4 2133MT/s RDIMMs at 1.2 V

Maximum (LRDIMM)
2TB (16 x 128GB) up to 2400 MT/s at 1.2 V
Maximum (RDIMM)
512GB (16 x 32GB) up to 22400 MT/s at 1.2 V
Network controller
One (1) 20Gb 2-port FlexFabric FLB, 10Gb 2-port HPE FlexFabric FLB, or 10Gb 2-port Ethernet FLB

  • HPE FlexFabric 10Gb 2-port 536FLB FlexibleLOM

  • HPE FlexFabric 20Gb 2-port 650FLB FlexibleLOM

Standard iLO Network controller

  • One (1) 10/100 Mb/s port for the HPE iLO 4 to onboard administrator link. The Onboard administrator(With 10/100/1000 Mb/s) to BladeSystem link is 1Gb/s

Expansion slots
Two (2) I/O expansion mezzanine slots:

  • x16 PCIe 3.0 Type A (Supports type A mezzanine cards) (Expansion slot 1)

  • x16 PCIe 3.0 Type B (Supports type A and type B mezzanine cards (Expansion slot 2)

Storage controller
All BTO Models
One (1) HPE Smart Array P244br Controller with 1GB Flash-Backed Write Cache (FBWC) supporting RAID 0 and RAID 1, or HPE H244br Smart HBA
Maximum internal storage
Hot Plug SFF SAS
4.0TB
2 x 2.0TB
Hot Plug SFF SATA
4.0TB
2 x 2.0TB
Hot Plug SFF SAS SSD
7.68TB
2 x 3.84TB
Hot Plug SFF SATA SSD
7.68TB
2 x 3.84TB
Hot Plug SFF NVMe SSD
4.0TB
2 x 2.0TB
Interfaces
Micro SDHC slot
One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot
USB 3.0 port
One (1) internal USB 3.0 connector for USB flash media drive keys
Industry standard compliance

  • ACPI 2.0

  • Microsoft Logo certifications

  • USB 3.0 Support

  • IPMI 2.0

  • Secure Digital 2.0

  • TPM 1.2 Support

  • Advanced Encryption Standard (AES)

  • IEEE (specific IEEE standards depending on Ethernet adapter card(s) installed)

  • Triple Data Encryption Standard (3DES)

  • SNMP

  • SSL 2.0

  • PCIe 3.0

  • Active Directory v1.0

  • DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)

  • ASHRAE A3

  • FIPS 140-2 Level-1 certification

  • Energy star

Form factor

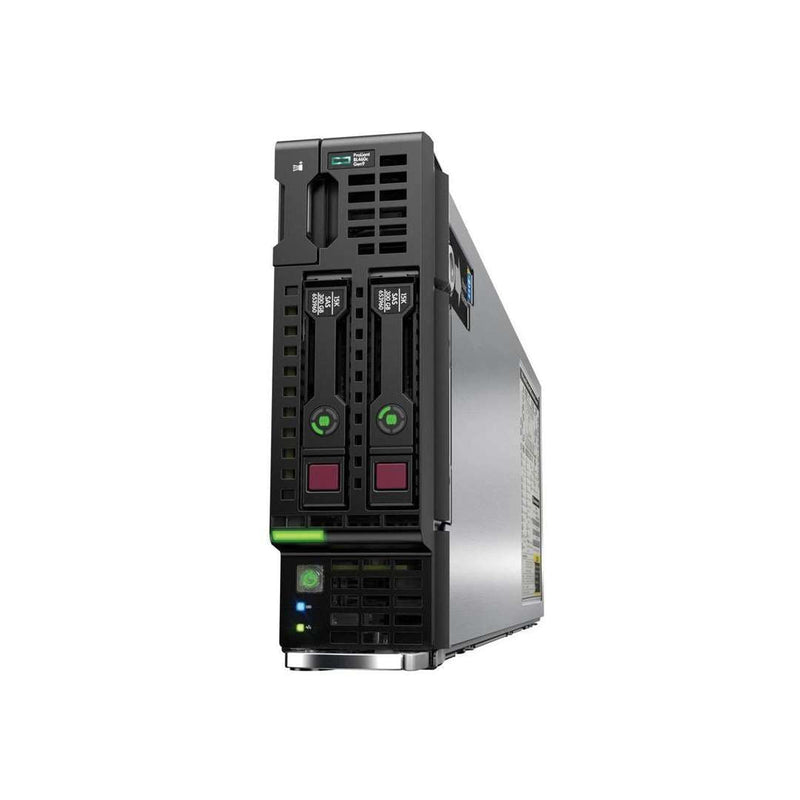

HPE ProLiant BL460c Gen9 is a half-height server blade that plugs into the HPE BladeSystem c3000 and c7000 enclosures
Graphics
Integrated Matrox G200eh video controller

  • 1600 x 1200 (32 b/p)

  • 1920 x 1200 (16 b/p)

HPE iLO Management On System Management Memory

  • 16MB Flash Video Memory

  • 256MB DDR 3 with ECC (112MB after ECC and video)

Security

  • Power-on password

  • Administrator's password

  • Keyboard password (QuickLock)

  • HPE iLO management on system management chipset with:

    • SSL encryption

    • Secure shell version 2

    • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser, CLP and XML scripting interface

    • AES and RC4 encryption of video

  • External USB port enable/disable

  • Network server mode

  • Serial interface control

  • Trusted Platform Module (TPM) 2.0 option

  • Advanced Encryption Standard (AES)

  • Intel Advanced Encryption Standard-New Instructions (AES-NI)

  • FIPS 140-2 Level-1 certification

Server UEFI/Legacy ROM
Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration while interacting with users server at boot time

  • Secure boot

  • Operating system specific functionality

  • Support for > 2.2 TB (Using GPT) boot drives

  • USB 3.0 stack

  • Embedded UEFI shell

  • Mass configuration deployment tool using HPE RESTful API

  • PXE boot support for IPv6 networks

  • Boot support for option cards that only support a UEFI option ROM

Embedded management

  • HPE IntegratedLights Out

  • UEFI

  • HPE RESTful API

  • Intelligent provisioning

Server utilities

  • HPE Smart update

  • HPE Systems Insight Manager (HPE SIM)

  • Scripting tool kit and Windows PowerShell

  • HPE RESTful

  • Interface tool

  • HPE iLO mobile application

  • HPE Insight online

Memory

  • Advanced ECC uses Single Device Data Correction (SDDC) to detect and correct single and all multibit error that occurs within a single DRAM chip. Both x4 and x8 SDDC are supported (x8 requires lock step mode)

  • Memory online spare mode (Also known as rank spare mode) detects a rank that is degrading and switches operation to the spare rank

  • Memory demand and patrol scrubbing to prevent accumulation of correctable errors and reducing the likelihood of unplanned downtime

  • Failed DIMM isolation improves the service time thus improving the overall system availability

  • Address parity protection available on RDIMMs and LRDIMMs detects address bit errors to improve service time and overall system availability

Mezzanine options and I/O

  • Support for one (1) FlexibleLOM, providing two (2) (i.e. redundant) Ethernet ports

  • Multiple mezzanine I/O expansion slots that support a wide variety of mezzanine cards each supporting multiple data paths routed to redundant interconnect modules

  • Network adapter teaming (Bonding) provides network fault tolerance, transmit load balancing, and switch-assisted load balancing

Storage

  • Two (2) Small form factor hot-plug SAS/SATA HDD or SSD or NVMe SSD drive bays

  • Choice of the HPE Smart Array P244br controller with 1GB FBWC, HPE Smart HBA H244br, or theHP B140i (chipset SATA). RAID 0 and 1 support for all three storage controller offerings

  • Optional dual-port fibre channel mezzanine card(s) for redundant SAN connections

Processor/Chipset

  • Processor internal sensors and thermal control protection against over-temperature conditions

  • Cache parity/ECC protects cache data from accidental data corruption

  • Machine Check Architecture (MCA) detects and captures hardware errors such as system bus,memory ECC, parity, and cache, and improves service time

  • Intel QPI protocol protection allows detection of data errors using a checksum of 8-bits

  • Core Disable for FRB (Fault resilient boot) allows a system to power-on despite a failing core-pair. Ituses BIST (Built-in self-test) results to detect a failure and disables the target core-pair upon subsequent boot

Server blade enclosure infrastructure

  • Pooled power for true N+N power redundancy through up to six (6) hot-plug, high-efficiency,common slot enclosure-based power supplies (Configuration dependent)

  • Up to ten (10) enclosure-based hot-plug HPE Active cool fans that scale to meet future demands,optimize airflow, reduce power draw, and improve acoustic performance

  • Dual grid power providing redundant rack enclosure power feeds to the server blade enclosure

  • HPE Dynamic power saver mode monitors the total enclosure power consumption in real time andautomatically adjusts with change in demand for improved efficiency and reliability

  • Up to eight interconnect modules per server blade enclosure providing four simultaneous redundantfabrics for FlexFabric, Virtual Connect Ethernet, Fibre Channel, InfiniBand, Pass through Ethernet, etc

  • Enclosure crosslinks between adjacent enclosures to provide interconnect module-to-module connections or as virtual connect module stacking links

  • Optional enclosure redundant onboard administrator system management module

Fibre channel support
Up to two (2) optional Fibre Channel mezzanine HBAs are supported on the HPE ProLiant BL460c Gen9
Virtual connect

  • HPE Virtual connect is an interconnect option for c-Class BladeSystem that simplifies server connectivity to data and storage networks, and reduces costs

  • Unique HPE Flex-10 technology makes maximum use of network bandwidths, provide dynamic tuning and enable extreme flexibility to meet individual server and infrastructure requirements by allocating up to 4 network connections per server port

  • Virtual connect FlexFabric modules extend those capabilities to allocate one function per port to storage connections (FCoE)

Server management

  • HPE Insight control

  • HPE OneView

  • HPE Matrix operating environment

  • HPE Insight cluster management utility

High performance clusters

  • HPE Cluster platforms

  • HPE HPC Interconnects

Storage software

  • Data protection and recovery software

  • Data archive and migration software

  • Storage Resource Management software (SRM)

  • Data replication software

  • Storage device management software

  • HPE StoreVirtual VSA

top

Software overview

Feature
Description
Operating systems and virtualization software support for ProLiant servers

  • Microsoft Windows Server

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • Canonical Ubuntu

  • Oracle Solaris

  • VMware

top

Physical specifications

Specification
Description
Dimensions (H x W x D):
18.07 x 5.54 x 51.76 cm (7.11 x 2.18 x 20.37 in)
Weight (approximate):

  • Maximum: all processors, 16 DIMMs, hard drives, mezzanine cards, and two flash cache batteries installed): 6.33 kg (14.00 lb)

  • Minimum: one processor and 2 DIMMs installed: 4.75 kg (10.50 lb)

top

Environmental specifications

Specification
Description
Operating temperature
10° to 35°C (50° to 95°F)
Non-operating temperature
-30° to 60°C (-22° to 140°F)
Operating relative humidity
10% to 90% non-condensing
Non-operating relative humidity
5% to 95% non-condensing
Operating altitude
3050 m (10,000 ft)
Non-operating altitude
9144 m (30,000 ft)

top

Technical specifications

Specification
Description
HP Smart Array P244br Controller
Disk drive interface

You may also like
