HPE ProLiant Apollo pc40 GPU Rack Servers CTO
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs

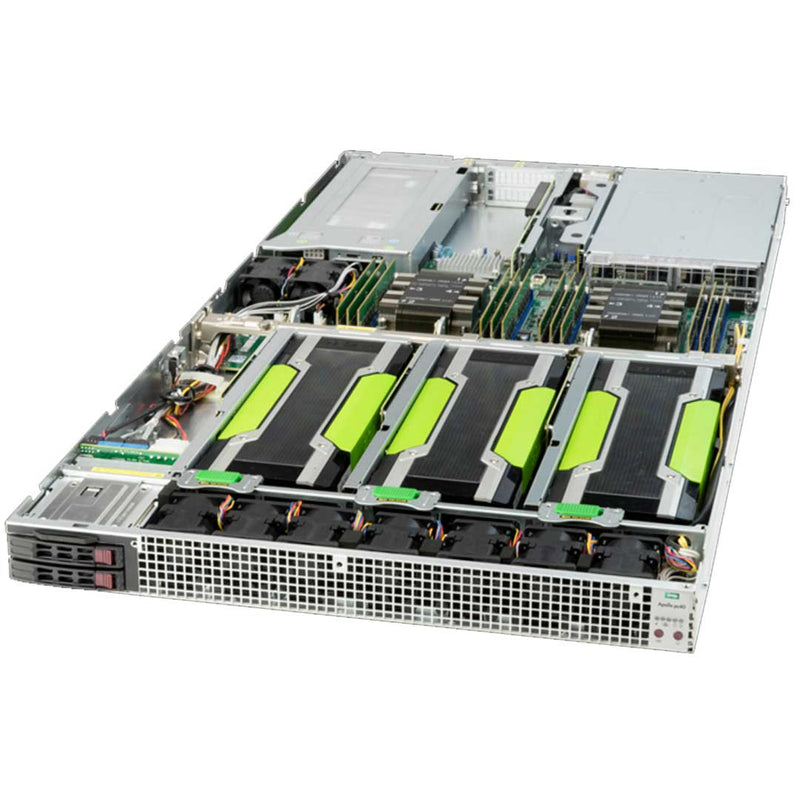

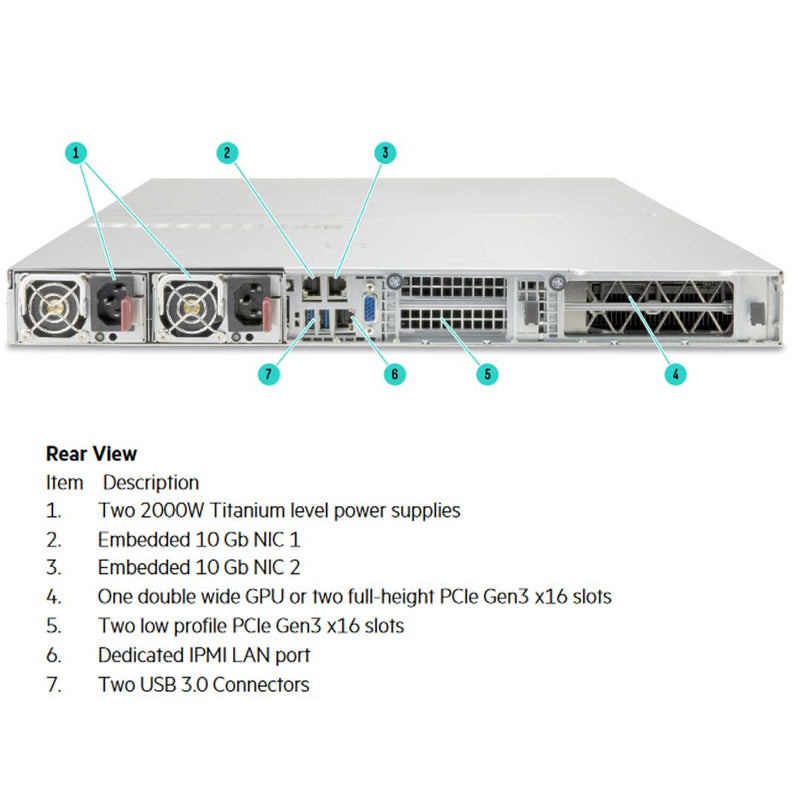

This 1U GPU-intense rack server has 2 Sockets and 12 DIMMs total along with 4 GPU slots and 2 hot-swap SSD drives. In the rear, it has 2 PSUs and the option to install 2 Low Profile PCIe cards. Next to the two low-profile PCI slots is the 4th DW GPU slot. IF this 4th GPU is not installed in the Rear it frees up 2 Full-Height PCIe slots. The 3 other GPUs have internal slots right behind the front bezel and 7 fans for optimal airflow.
12 DIMM Slots Available
(LRDIMM) Max: 1.5TB
(RDIMM)
Maximum Internal Storage
| Capacity | Quantity |
|---|---|
| HPE 1TB SATA 7.2K SFF RW 512n DS HDD | 2x 1 TB |
| HPE 2TB SATA 7.2K SFF RW 512e DS HDD | 2x 2 TB |
| HPE 240GB SATA MU SFF RW DS SSD | 2x 240 GB |
| HPE 480GB SATA MU SFF RW DS SSD | 2x 480 GB |
| HPE 960GB SATA MU SFF RW DS SSD | 2x 960 GB |
| HPE 1.92TB SATA MU SFF RW DS SSD | 2x 1.92 TB |
| HPE 3.84TB SATA RI SFF ST DS SSD | 2x 3.8 TB |
There are no risers with this system. But it does come with 2 PCIe Low-Profile slots. If the 4th GPU is not installed in the server, that slot provides 2 Full-Height PCIe Slots.
GPU Modes.

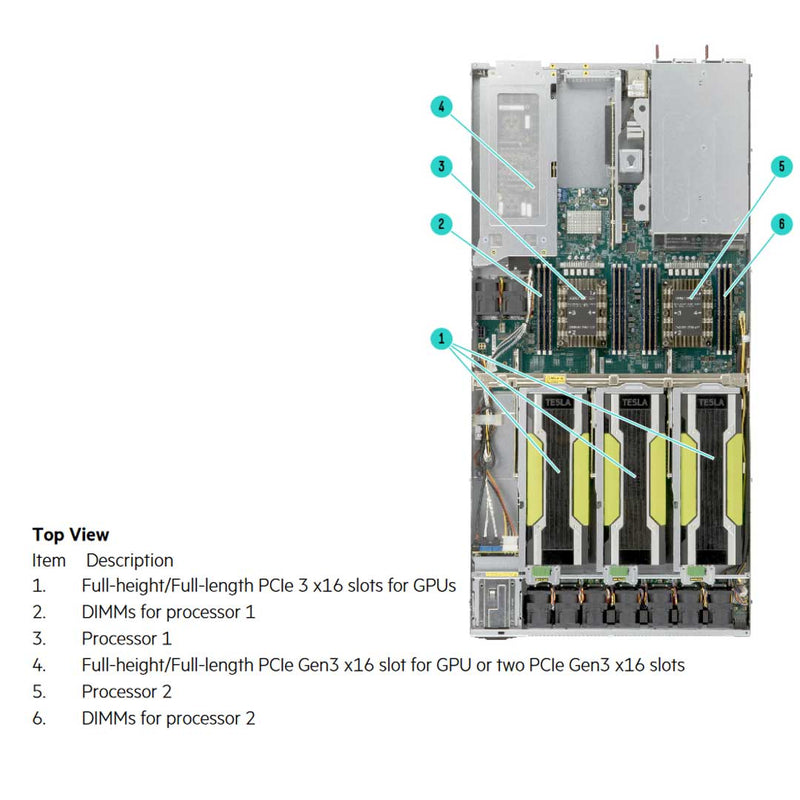

Consider selecting 16GB memory DIMMs for Apollo pc40 with 4 NVIDIA GPUs. NVidia design guidelines state a requirement for at least 64GB main memory per CPU to ensure optimal application performance. The GPU slots are as follows, 3 Internal slots right behind the 7 Fans and Bezel. While the 4th GPU sits in one double-wide GPU or if the GPU is not installed it becomes two full-height PCIe Gen3 x16 slots.
Networking Abilities
The system comes with 2x 10Gb NIC RJ-45 ports. You do have the option to install other network cards in the 2 low-profile slots in the rear. Choose between 1 or 2 ports and 10Gb speeds of 100Gb with InfiniBand Adapters.
HPE Apollo pc40 Cooling
In front of the 3 Internal GPUs sits 7 1U fans providing all the air flow you'll need with 4 GPUs installed.
HPE Apollo pc40 PSU
The Apollo uses Two 2000W Titanium level power supplies to support the 4 GPUs with 12 DIMMs.
HPE Apollo pc40 Server Management
Configure and boot your servers securely with industry-standard Unified Extensible Firmware Interface (UEFI).
HPE Insight Cluster Management Utility
HPE Insight Cluster Management Utility (CMU) is a Hewlett Packard Enterprise- licensed and Hewlett Packard Enterprise-supported suite of tools that are used for lifecycle management of hyperscale clusters of Linux systems. CMU includes software for the centralized provisioning, management, and monitoring of nodes. CMU makes the administration of clusters user-friendly, efficient, and effective.
Intelligent Provisioning
Hassle-free server and OS provisioning for 1 or few servers with Intelligent Provisioning.
