HPE Dl385 Gen10 Plus Primary/Secondary 2Sff Nvme/Sas Sc Riser Kit | P14505-B21
Thanks for the request. We'll get back to you with in 24 hours.
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Drive Cage Specs
DL385 Gen10 Plus Notes: 35 degree C is the max ambient can be supported and no A3 or A4 support when putting the Shiner Expander in Slot 3 and Slot 6 under the 2SFF drive cage
"To have the optimal drive performance, it is recommended to put NVMe drives towards the middle or front of the server. If customer want to put NVMe drives in rear, it is recommended to have maximum NVMe drives not to exceed one per 2SFF drive cage kit.”

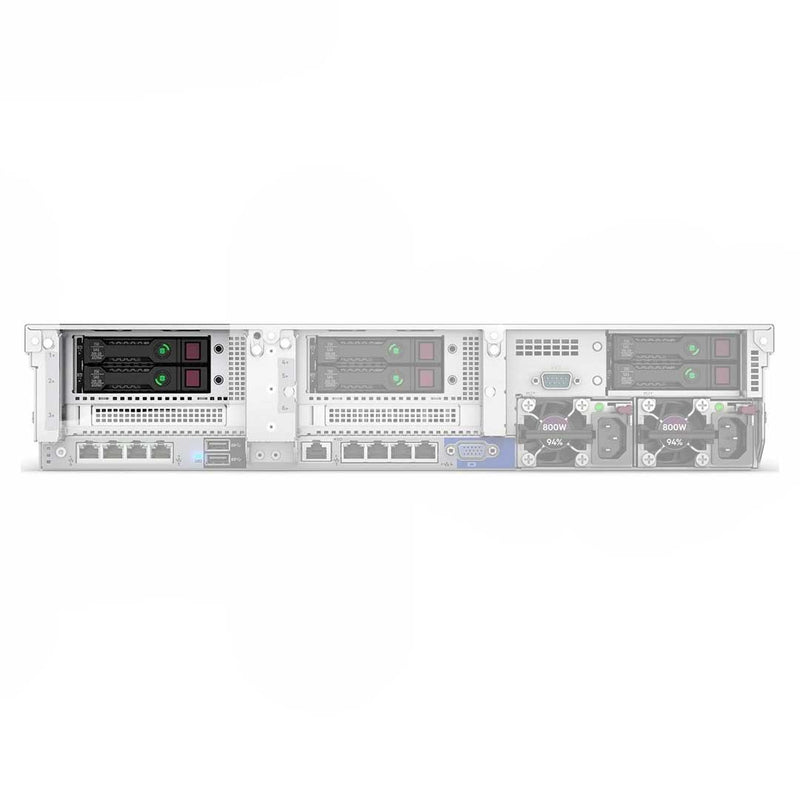

Supports 2 SFF rear in Riser1 or 2 location – max 2 supported SFF model.
Supports 2 SFF rear in Riser1 or 2 location in LFF model.
When a SAS/SATA controller is supporting this drive cage kit, HPE DL38X G10+ 2SFF SAS/SATA SC Cbl Kit (P42047-B21) must be selected.
