HPE ProLiant DL360 (G9) 6 NVMe + 4 SAS/SATA Express Bay Enablement Kit | 817676-B21
Thanks for the request. We'll get back to you with in 24 hours.
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs

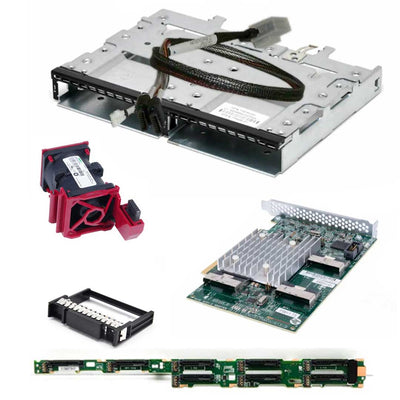

HP DL360 Gen9 8SFF 4PCIe+4SAS Bkpln Kit - Includes express bay SFF hard drive cage assembly, express bay bridge board, eight small form-factor (SFF) hard drive backplane board kit (backplane board and cables), and high-efficiency fan assembly module
NOTE:This option kit provides support for up to 6 NVMe drives (drives 5-10).
NOTE: The PCIe card in this enablement kit can only be populated in slot1 of primary riser.
823791-001 - Express bay SFF hard drive cage assembly (replaces the universal media bay cage assembly) - Includes the two-bay drive cage assembly, backplane board, mini-SAS cable, and backplane power cable
824019-001 - Express bay bridge board - Non-Volatile Memory express (NVMe) interface PCIe controller board with three internal 68-pin connectors for controlling up to six NVMe drives - Requires one PCIe (Gen 3) x16 slot
823791-001 - Express bay SFF hard drive cage assembly (replaces the universal media bay cage assembly) - Includes the two-bay drive cage assembly, backplane board, mini-SAS cable, and backplane power cable
775416-001 - High-efficiency fan assembly module - Mounts in the fan cage between the front hard drive bays and the system I/O board
823792-001 - Eight small form-factor (SFF) hard drive backplane board kit - For four NVMe (PCIe) drives plus four SAS drives - Includes backplane board, dual x8 PCIe slim line cable assembly, and mini-SAS cable assembly
- HPE DL360
(Click to View)
