-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
BATTERY INCLUDED
PN:
726897-B21 - 761880-001

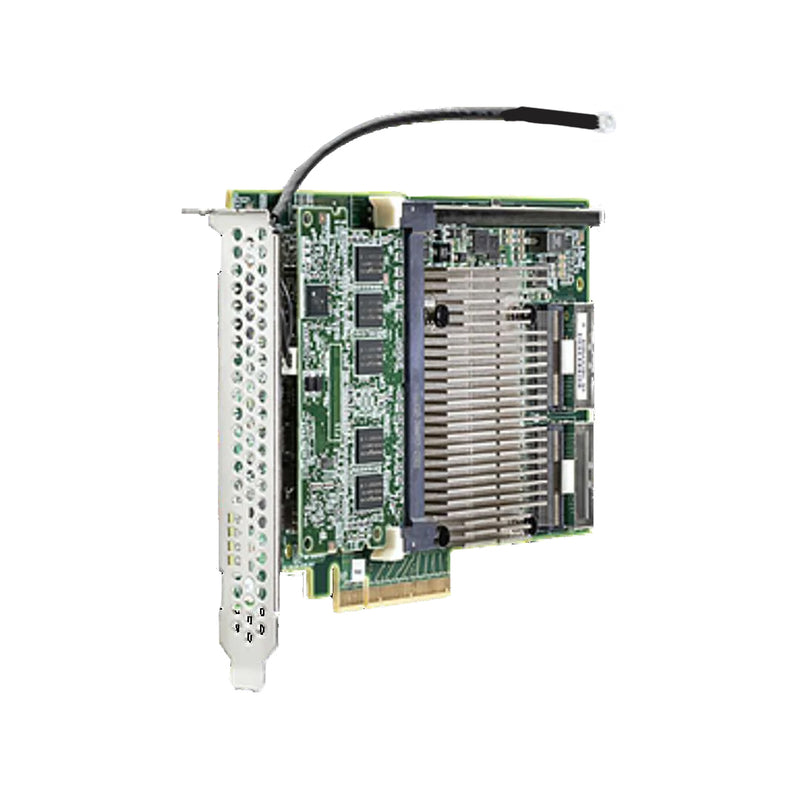

Smart Array P840 PCIe3 x8 SAS controller - Two internal x8 mini-SAS double-wide ports and 4GB of flashed back write cache (FBWC) memory - For up to 12 Gb/sec transfer rate SAS and 6 Gb/sec SATA
878643-001 - For DL/ML/SL Generation 9 series of servers - One battery pack provides flash back write cache (FBWC) for all the drive controllers in the server - Connects to the system I/O board, 145mm (5.7-inch) long cable
ML150 Gen9 NOTE:
If installed in the ML150 Gen9 Tower Server. You'll need the following.
HPE ML150 Gen9Mini SAS P440/P840 Cable Kit must be selected P/N: 784606-B21 for P840 controller (2 cable kits are required for P840x1).
HPE ML150 Gen9 PCI BAFFLE Kit (779861-B21) is required when ordering a controller card.
ML350 Gen9 NOTE: This server has a spot for the battery under the fans, no need for a holder. It also uses this card when supplying the system with more than 24 SAS drives since it has 2 ports and the SAS card can only support 8 or 24 SAS drives (Depending on what sas controller you install).
- HPE ML350
