-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
- (1) Intel Xeon E-2100/2200, 8th/9th Core i3 or Pentium G
- (4) 2666 MT/s HPE DDR4 UDIMM | Max 64GB
- (4) PCIe expansion slots
- HPE 361i 1Gb 2-Port network adapter
- HPE InfoSight

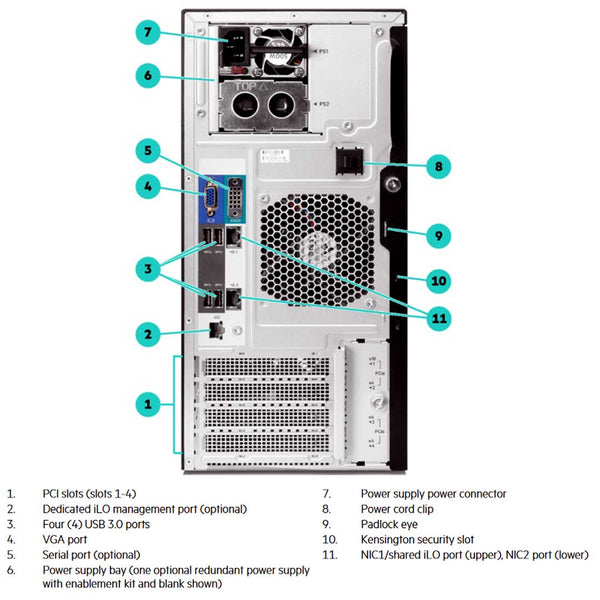

- Dedicated HPE iLO port
HPE has provided three different CTO models to choose from. Each comes with 4 PCIe 3.0 Slots, the stand Embedded S100i SW RAID with 4 SATA ports (can have support for 6 SATA drives with 2pcs drive enablement kits (812248-B21)), and an embedded HPE Ethernet 1Gb 2-Port 361i Adapter optional 1/10Gb standup card . Only the Hot-Plug Chassis can have the choice of a Smart Array along with or instead of the S100i. If you’re not sure what chassis would work best, contact us today.
(Click to View)
- Cloud Servers
- Corporate IT
- Database
Need help with the configuration? Contact us today!
| CTO Server | HPE ProLiant ML30 Gen10 | ||
|---|---|---|---|

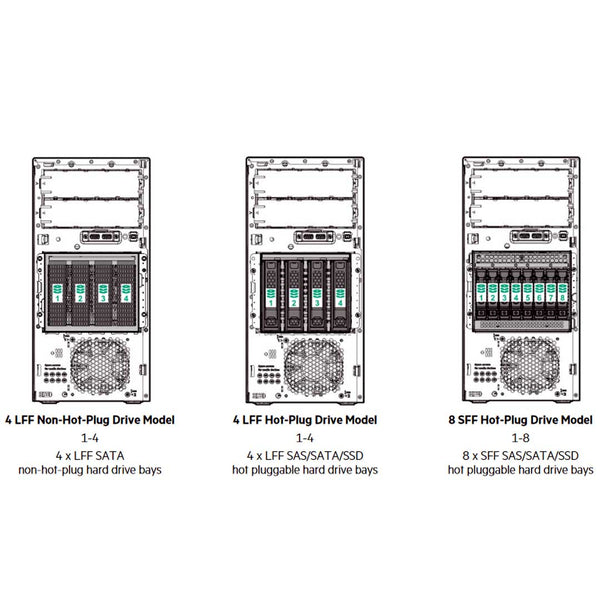

| 4 LFF Non Hot Plug CTO Server | 4 LFF Hot Plug CTO Server | 8 SFF Hot Plug CTO Server | |
| SKU Number | P06760-B21 | P06761-B21 | P06762-B21 |
| Processor Socket | 1 | ||
| Processor | Not included as standard | ||
| DIMM Slots | 4 DIMM slots for UDIMM DDR4 Memory | ||
| Storage Controller | Embedded S100i SW RAID with 4 SATA ports | Embedded S100i SW RAID with 4 SATA ports, choice of HPE Smart Array controller | |
| PCIe | 4 PCIe 3.0 slots | ||
| Drive Cage | 4 LFF Non Hot Plug | 4 LFF Hot Plug | 8 SFF Hot Plug |
| M.2 Slot | 1 M.2 PCIe 3.0 x2 slot | ||
| Network Controller | Embedded HPE Ethernet 1Gb 2-Port 361i Adapter, optional 1/10Gb standup card | ||
| Fans | 1 non hot plug, non-redundant system fan | ||
| Management | HPE ILO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), HPE ILO Advanced, HPE ILO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses) | ||
| USB | 2 front, 4 rear, 1 internal | ||
*** Each server has a spot for 1xM.2 NVMe SSD for boot this also supports the dedicated iLO port
4 Non Hot-Plug LFF (P06760-B21)Software RAID
Smart Array E208e-p
Smart Array P408e-p
Max CapacityLFF 24TB = 4x 4TB + 2x 4TB
+2LFF optional | Non hot-plug only
4 Hot-Plug LFF (P06761-B21)Software RAID
Smart Array E208i-p
Smart Array E208e-p
Smart Array P408i-p
Smart Array P408e-p
Max CapacityLFF 72TB = 4x 18TB
LFF 7.68TB = 4x 1.92TB
8 Hot-Plug SFF (P06762-B21)Software RAID
Smart Array E208i-p
Smart Array E208e-p
Smart Array P408i-p
Smart Array P408e-p
Max CapacitySFF 19.2TB = 8x 2.4TB
SFF 16TB = 8x 2TB
SFF 3.2TB = 8x 400GB
SFF 61.44TB = 8x 7.68TB
Performance RAID Controllers require the HPE Smart Storage Battery (P01366-B21) which is sold separately.
