Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
Intel Xeon E5-2600 v2 Series Processors
1866 MHz DDR3 Memory
New FlexibleLOM Adapters including the HP FlexFabric 10Gb 2-port 533FLR-T Adapter
New Smart Array P430 & P431 Controllers
96% Efficient Titanium Power Supply
3TB ioDrive2 IO Accelerator

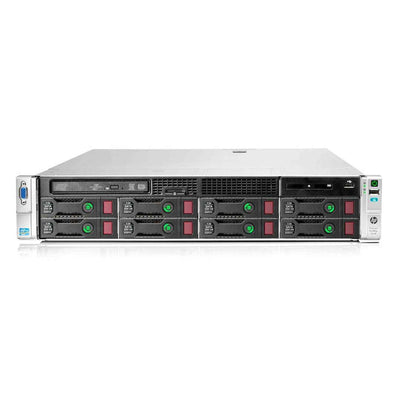

HP ProLiant DL380p Gen8 Server THE no-compromise data center standard for 2U two-socket rack servers. The HP ProLiant DL380p Gen8 Server offers increased performance via higher core processors, an increased memory footprint, a variety of internal storage capacities, FlexibleLOM network solutions, and a powerful embedded HP Smart Array technology (P420i). Besides improving expandability and flexibility, HP designers also enhanced erviceability with improved PCIe riser solutions, HP Smart technology, and easier-to-service cabling creating the perfect solution for dynamic compute requirements of growing small businesses as well as demanding data centers.
Ideal for:
- Cloud Servers
- Corporate IT
- Database
- Virtualization
Intel Xeon processor E5-2600 v2 product family offers increased performance, improved security and efficiency; ideal for demanding workloads.
HPE SmartMemory, with speeds up to 1866MHz, prevents data loss and downtime with enhanced error handling while improving workload performance and power efficiency.
GPU compute support to maximize performance HPE SmartCache, a controller-based caching solution, caches hot data onto lower latency SSDs providing up to 4x better workload performance.
Energy Efficiency by Design
HPE Common Slot Power Supplies provide a new level of efficiency with 80 PLUS Titanium certification (96%) and new infrastructure power efficiencies with 277VAC and 380VDC input voltages.
First in industry to include 3D array of temperature sensors to help precisely control server fans to direct cooling and reduce unnecessary fan power, saving on cooling costs.
ENERGY STAR qualified server configurations illustrate HP’s continued commitment to helping customers conserve energy and save money.
Base Standard Capabilities
Product features
Feature | Description | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Processor (One of the following depending on Model) | E5-2600 v2 series Processors
E5-2600 series Processors
| ||||||||||||||||||||||||
Cache memory (One of the following depending on Model) |
| ||||||||||||||||||||||||
Chipset |
| ||||||||||||||||||||||||
Upgradeability |
| ||||||||||||||||||||||||
On System Management Processor | HP iLO (Firmware: HP iLO 4) | ||||||||||||||||||||||||
Memory protection |
| ||||||||||||||||||||||||
Memory (One of the following depending on Model) |
| ||||||||||||||||||||||||
Network controller (One of the following depending on Model) | HP ProLiant Gen8 servers offer a new networking technology - FlexNET Technology. The HP ProLiant DL380p Gen8 server offers the customer the choice of 1 Gigabit and/or 10 Gigabit networking solutions.
| ||||||||||||||||||||||||
Storage controller |
| ||||||||||||||||||||||||
Industry standard compliance |
| ||||||||||||||||||||||||
Graphics | Integrated Matrox G200 video standard
| ||||||||||||||||||||||||
Form factor | 2U Rack form factor | ||||||||||||||||||||||||
System fans |
| ||||||||||||||||||||||||
Interfaces |
| ||||||||||||||||||||||||
Maximum internal storage |
|
Software overview
Feature | Description |
|---|---|
Operating systems and virtualization software support for ProLiant servers 1 |
|
NOTE: 1: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for the server, visit Server Operating Systems and Virtualization Software website. Click here to access Server Operating Systems and Virtualization Software website . | |
Physical specifications
Specification | Description |
|---|---|
Dimensions (H x W x D)(with bezel) |
|
Weight (approximate) |
|
Electrical specifications
Specification | Description |
|---|---|
Rated line voltage |
|
Rated input current |
|
Rated input frequency | 50 to 60 Hz |
Rated input power |
|
BTU Rating maximum |
|
Power Supply Output (per power supply) | |
Rated Steady-State power |
|
Maximum peak power |
|
Environmental specifications
Specification | Description |
|---|---|
Operating temperature | 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 30°C (86°F). |
Non-operating temperature | -30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr). |
Shipping temperature | -30° to 50°C (-22° to 122°F) |
Storage temperature | -30° to 60°C (-22° to 140°F) |
Maximum wet bulb temperature | 28°C (82.4°F) |
Operating relative humidity | 10% to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing. |
Non-operating relative humidity | 5% to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing. |
Operating altitude | 3048 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min). |
Non- |
