Cable Specs
- Type: Dual Mini-SAS Cable Assembly
- Use Case: Connects Drive Cage 2 and 3 to the Smart Array controller
- Cable Type: Internal Mini-SAS to Mini-SAS (SFF-8643 connectors)
- Configuration: Dual-path cable for redundancy and bandwidth
- Compatibility: HPE ProLiant DL380 Gen9 with 2.5" SFF Drive Cages 2 and 3
- Length: Pre-cut for precise fit within DL380 G9 chassis
- Installation: Internal chassis routing between drive cages and RAID controller
- Connector Ends: SFF-8643 to SFF-8643 (Mini-SAS HD)
- Routing: From Smart Array controller to mid/front drive backplanes
- Manufacturer: HP / HPE
Part Number:
- 776402-001

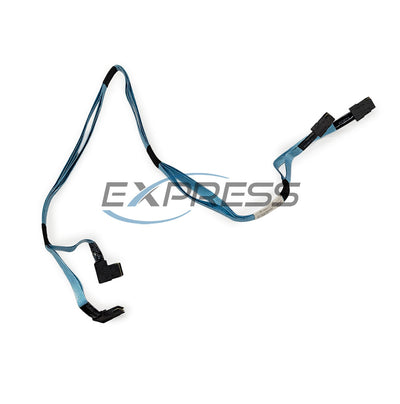

The HP 776402-001 Dual SAS Cable is engineered for connecting Drive Cage 2 and Drive Cage 3 in the HPE ProLiant DL380 Gen9 server to a Smart Array RAID controller. Featuring two Mini-SAS HD (SFF-8643) connectors, this internal cable enables high-speed, redundant data paths between the controller and storage backplanes for optimized performance and failover protection.
It is precisely sized to fit the internal routing of the DL380 Gen9 chassis, ensuring minimal signal loss, proper airflow, and secure locking connections. Ideal for expanding the server's storage capacity with additional SFF drives, this dual SAS cable is a key part of enabling midplane and front backplane connectivity in advanced RAID configurations.
