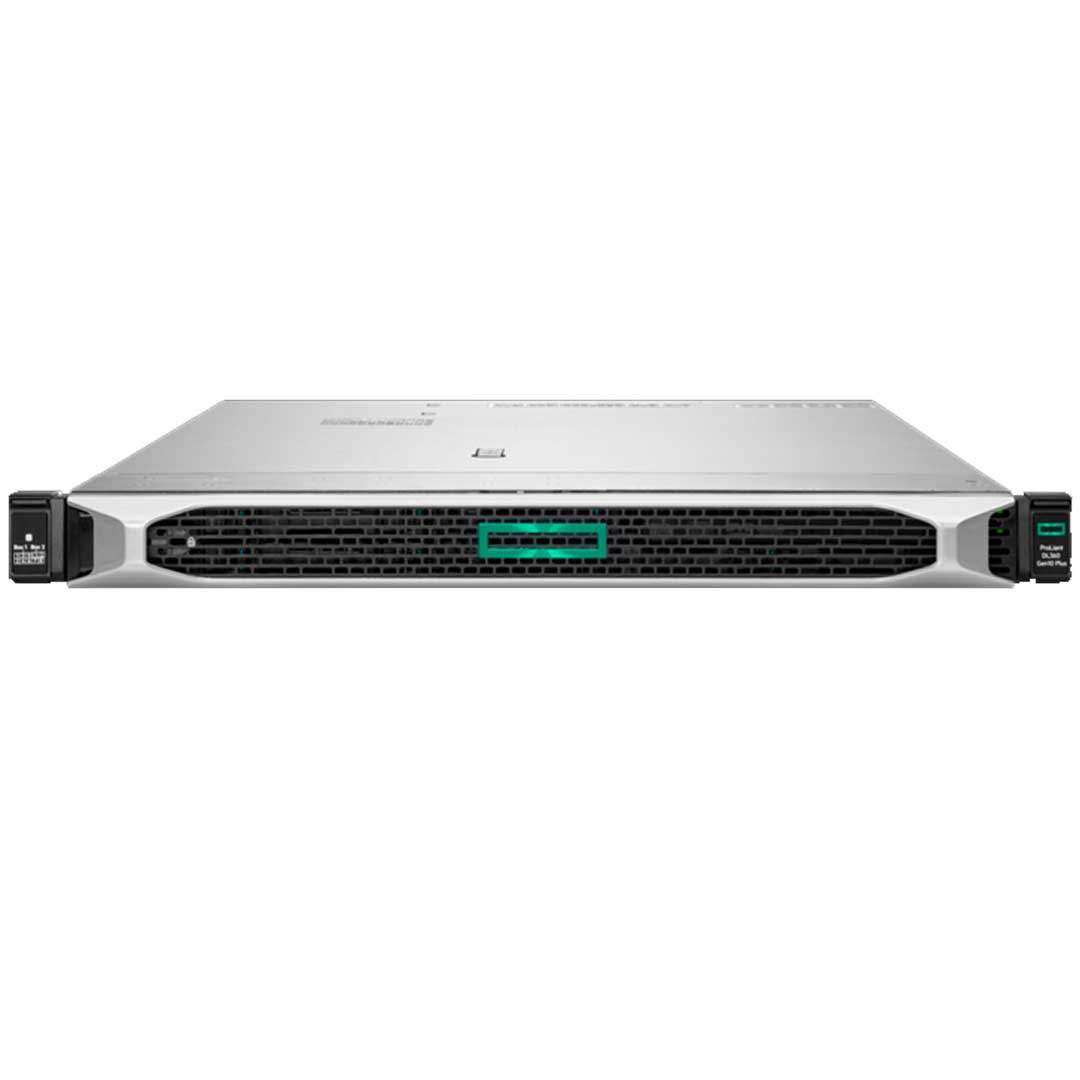

HPE ProLiant DL360 Rack Server (G10+) CTO
Configure for Pricing
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
What’s New for DL360 Gen10
- 3rd Generation Intel® Xeon® Scalable Processor Family
- 8 to 40 core, depending on processor
- 12 - 60 MB L3, depending on processor
- 16 DIMM slots per socket = 32 Total
- Optional: Intel® Optane™ Persistent Memory for HPE
- Maximum 3 PCIe Gen4, for detail descriptions please see QuickSpecs
Ideal for:
- Cloud Servers
- Corporate IT
- Database
- Retail Servers
The HPE ProLiant DL360 Gen10 Plus server supports the 3rd Generation Intel® Xeon® Scalable Processors with up to 40 cores, plus 3200 MT/s HPE DDR4 SmartMemory up to 4.0 TB per socket. Introducing PCIe Gen4 and Intel® Software Guard Extensions (SGX) support on the dual-socket segment, the HPE ProLiant DL360 Gen10 Plus server complements Gen10 reach by delivering premium compute, memory, I/O, and security capabilities for customers focused on performance at any cost.
Built for Some of the Most Demanding Workloads
The HPE ProLiant DL360 Gen10 Plus server is powered by 3rd Generation Intel® Xeon® processors and built with foundational intelligence to transform IT with insights that enhance workload performance, placement, and efficiency, delivering better outcomes faster.
HPE ProLiant servers provide real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to adjust to better serve changing business needs.
HPE DL360 Gen10 Base Knowledge
The DL360 Gen10 Plus HPE Rack Server is a 1U 2P system with 3 PCIe 4.0 slots on two Riser Cages. The DL360 Gen10 Supports 32 DDR4 DIMMs up to 3200 MHz, the mixing of 2 different processor models is not supported. The DL360 Gen10 Plus includes 5 fans on a Single Socket configuration and 7 Fans on a Dual socket configuration.
Rules and Limitations
- TDP is 150W +, requires the HP Heatsink (P26479-B21)
- TDP is 205W +, requires the HP Fan Kit (P26477-B21)
- TDP is under 140W, or 230W +, requires the DIMM blank (P07818-B21)
- TDP is 140W to 225W, the DIMM kit is not required
Each processor supports up to 2 x8 PCIe 4.0 connectors per socket for NVMe connectivity. On 2P configuration, these provide support for up to 8 direct attach NVMe drives. Options are available to connect 2 additional bays via the Primary NVMe riser or the Smart Array to NVMe Adapter Kit (P38585-B21). The additional drive are placed in bays 9 and 10. The NVMe Adapter Kit (P38585-B21) can’t be used with the OCP x16 or the NVMe riser and is not supported on the 4LFF chassis.
Chassis Options - Network Choice (NC) Models
Network Choice models do not include embedded LOM. To enable networking capability please select a validated alternative NIC, OCP, or PCIe.

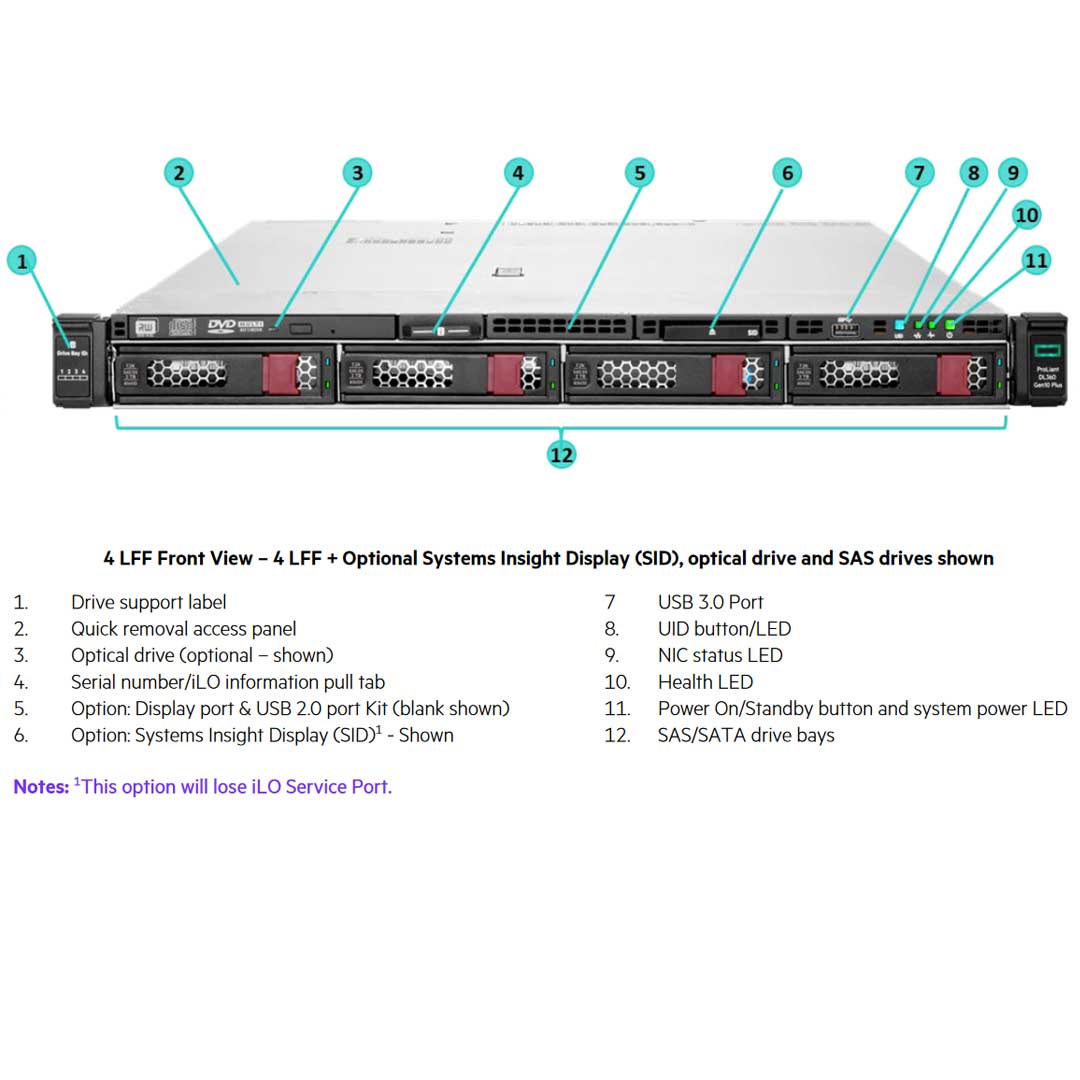

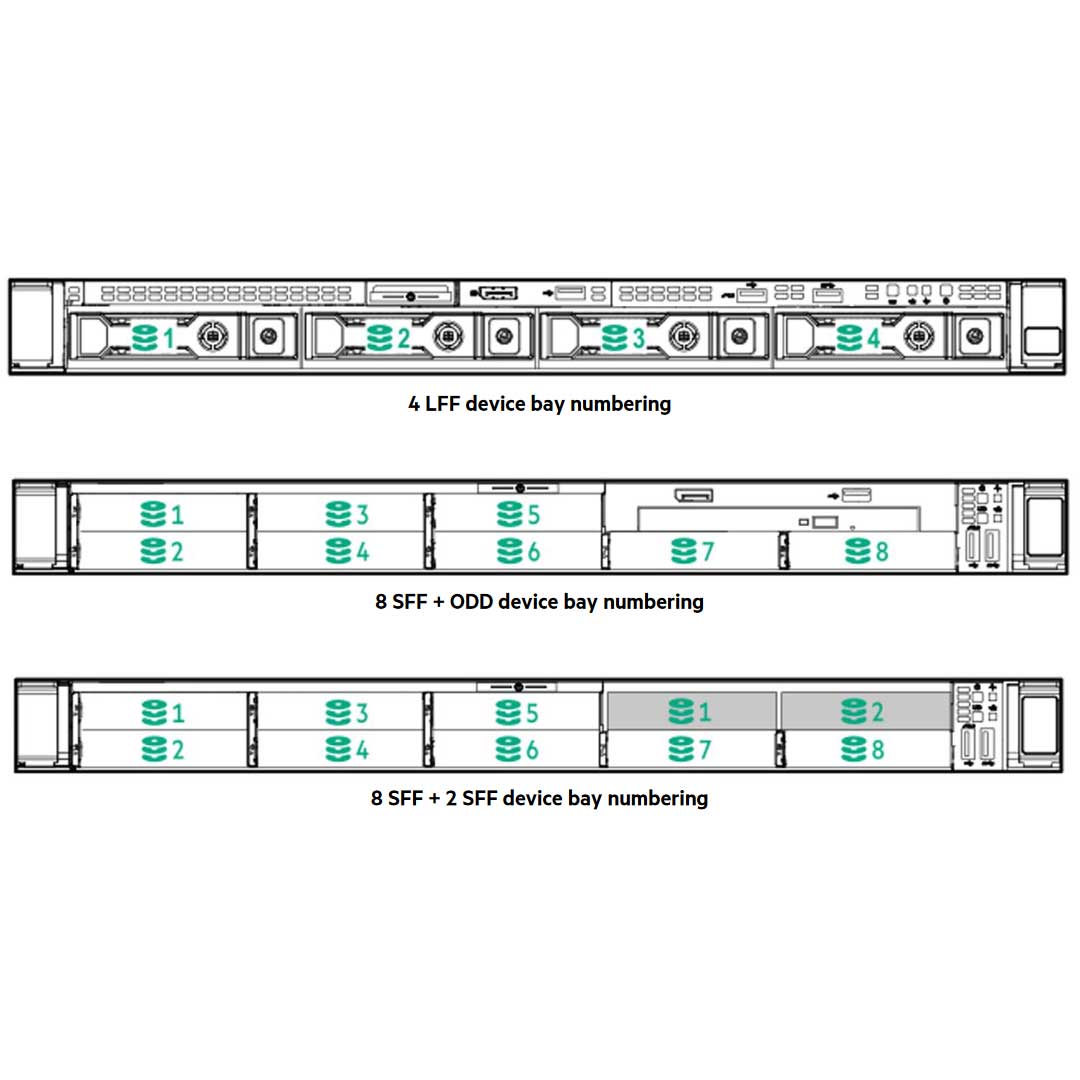

The DL360 Gen10 4LFF NC Chassis (P28947-B21) has very limited options and comes with the 4LFF backplane.
4 LFF Chassis / Add Ons- HPE DL360 Gen10 Plus 4LFF NC Chassis Server (P28947-B21)
- LFF Display Port/USB Kit P26455-B21
- 4x 18TB SAS HDD - 72.0 TB
- 4x 18TB SATA HDD - 72.0 TB
- 4x 1.60TB SAS SSD - 6.40 TB
- 4x 7.68TB SATA SSD - 72 TB
HPE DL360 Gen10 Plus Boot Option
Both Chassis support this Boot Option
- NVMe M.2 SSD 960 GB 2 x 480 GB
(NS204i-p boot device or NS204i-r Riser)

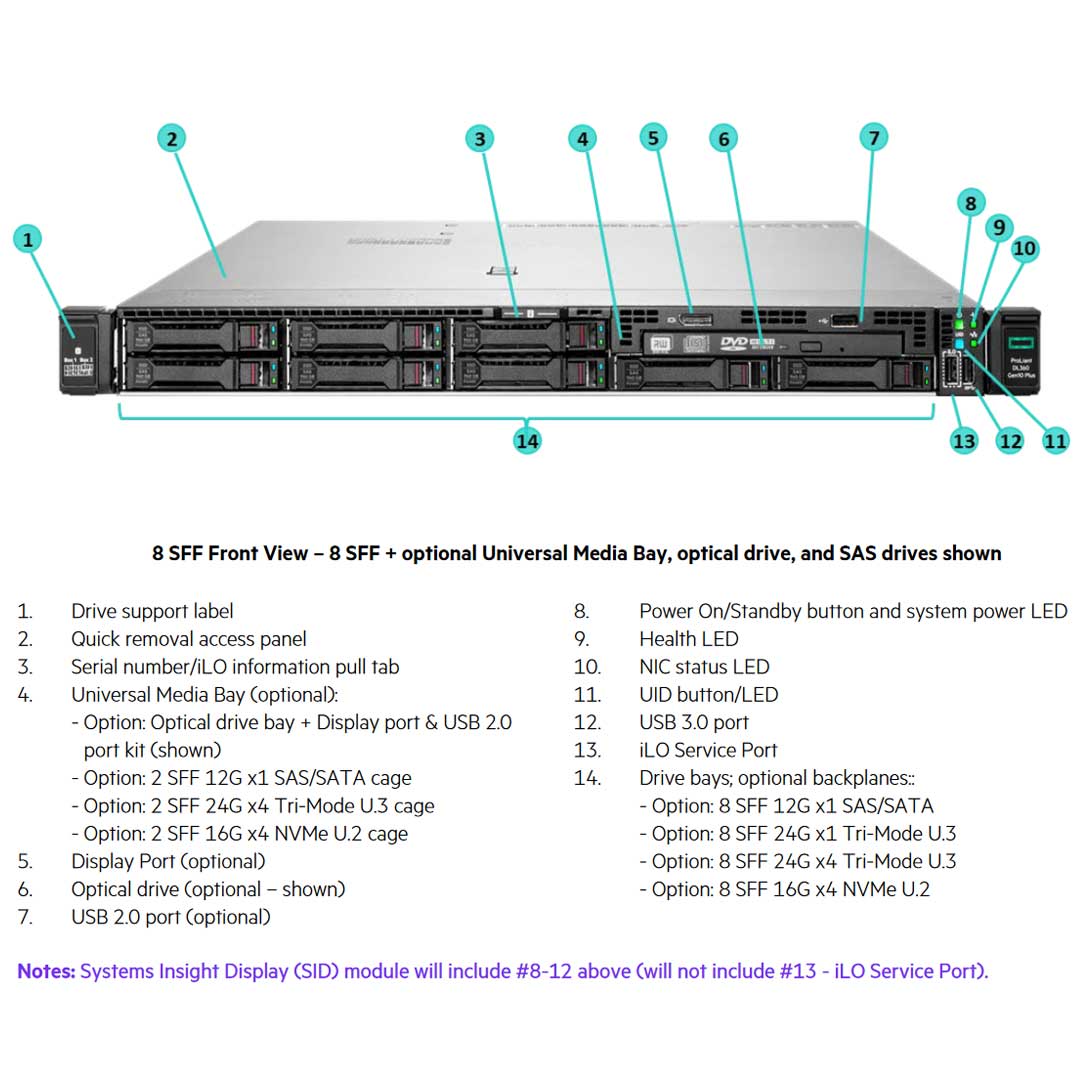

The 8SFF NC Chassis option on the HPE DL360 Gen 10 Plus Rack Server has a plethora of options. Do not mix U.2 and U.3 NVMe drives or backplanes together.
8 SFF Chassis / Add Ons- HPE DL360 Gen10 Plus 8 SFF NC Chassis Server (P28948-B21)
- 8SFF Display Port/USB/Optical Drive Blank Kit P40003-B21
- 8SFF SAS/SATA 12G BC Backplane Kit P26427-B21
- 8SFF x4 NVMe 16G U.2 BC Backplane Kit P26433-B21
- 8SFF x1 Tri-Mode 24G U.3 BC Backplane Kit P26431-B21
- 8SFF x4 Tri-Mode 24G U.3 BC Backplane Kit P26429-B21
- 2SFF SAS/SATA 12G BC Drive Cage Kit P26435-B21
- 2SFF x4 NVMe 16G U.2 BC Drive Cage Kit P26439-B21
- 2SFF x4 Tri-Mode 24G U.3 BC Drive Cage Kit P26437-B21
- (8+2)x 2.4TB SAS HDD - 24.0 TB
- (8+2)x 15.3TB SAS SSD - 153.0TB
- (8+2)x 2.0TB SATA HDD - 20TB
- (8+2)x 7.68TB SATA SSD - 76.8TB
- (8+2)x 15.36TB NVMe SSD - 6TB
Each processor provides 2x8 NVMe connectors which means each Socket supports up to 4 drives and a total of 8 on a 2P configuration.
Both sockets must be populated for all NVMe connectors to be usable.
Memory
All processors support up to 6TB of memory per socket. In the HPE DL360 Gen10 Plus mixing RDIMM and LRDIMM memory is not supported. Mixing of 3DS and non-3DS DIMMs is also not allowed. Intel Persistent Memory 200 series is only supported on Gold and Platinum Processors.
HPE DL360 Gen10 Plus Maximum Memory
- 32 DIMM Slots Available, 16 DIMM per processor
- (LRDIMM) 8.0TB 32x256GB @ 3200 MT/s
- (RDIMM) 2.0TB 32x64GB @ 3200 MT/s
- (Intel Persistent Memory) 8.0TB 16x512GB
16 HPE Persistent Memory Kits are supported by:
- Platinum 8300
- Gold 6300
- Silver 4310
- HPE 800W FlexSlot 48VDC LH PSU (865434-B21) Not Supported.
Storage Controllers
The DL360 Gen10 Plus has three Software RAIDs that can be enabled. All three are off by default and will only use UEFI Mode. Legacy mode is supported when there is an additional controller installed and the legacy mode setting is selected (758959-B22). Below we will highlight the difference between the three.
Note: Intel VROC NVMe, for legacy support an additional Tri-Mode controller will be needed.
Software RAID
HPE Smart Storage SR100i SR SW RAID
All models feature an embedded storage controller, capable of operating on AHCI or SR100i modes, with embedded software supporting RAID for either up to 14 SATA drives or 2 NVMe SSDs. In addition, all models feature 2 x8 PCIe 4.0 connectors per socket for NVMe SSDs, which must be used on SR100i mode. NVMe SSDs are qualified on SFF models only.
Intel Virtual RAID on CPU (VROC) NVMe
All models feature 2 x8 PCIe 4.0 connectors per socket for NVMe connectivity. On 2P configurations, these provide support for up to 8 direct attach NVMe bays with support for 2 additional bays. Only supported on SFF models the Intel VROC is an enterprise, hybrid Software RAID solution specifically designed for NVMe SSDs connected directly to the CPU. Intel VROC is a software-based solution utilizing Intel CPU to RAID or HBA direct connected drives and supports both Intel® SFF SSDs and HPE SFF SSDs. RAID Support- 0/1/5/10 for NVMe SSDs only, no PCIe card support.
Intel Virtual RAID on CPU (VROC) SATA
All models feature an embedded storage controller, with embedded software SATA RAID support for up to 14 bays. Intel VROC is an enterprise, hybrid Software RAID solution specifically designed for SSDs and is utilizing Intel CPU to RAID or HBA direct connected drives. Intel VROC supports both Intel® SFF SSDs and HPE SFF SSDs with RAID Support for 0/1/5/10.
Controller Types
MegaRAID
These controllers are based on Broadcom's MegaRAID technology. They offer high performance with up to 13,700 MB/s bandwidth, 3 million random read IOPS, and 240,000 RAID5 random write IOPS. Support for PCIe Gen 4.0 enables these adapters to deliver twice the bandwidth and 75% more IOPS compared to previous generations. Managment is through the HPE MR Storage Administrator (MRSA) for GUI-based management and StorCLI for command-line interface management.
Key Features:- Tri-Mode support for NVMe, SAS, and SATA devices.
- Hardware-based Root of Trust for firmware authentication.
- Support for Self-Encrypting Drives (SEDs) to ensure data-at-rest protection.
- Mixed Mode operation, allowing RAID and HBA (Host Bus Adapter) functionalities simultaneously.
SmartRAID
These controllers are based on Microchip's SmartRAID technology. They support 12 Gb/s SAS and PCIe 4.0, providing increased performance while supporting advanced RAID levels with up to 8 GB flash-backed write cache (FBWC). Management is through the HPE Smart Storage Administrator (SSA) for GUI-based management and SSACLI for command-line interface management.
Key Features:- Tri-Mode support for NVMe, SAS, and SATA devices.
- Support for HPE SmartRAID SR Secure Encryption for data-at-rest using Controller-Based Encryption (CBE) for SAS, SATA, and NVMe devices.
- Mixed Mode operation, allowing RAID and HBA functionalities simultaneously.
- Advanced RAID levels with up to 8 GB FBWC.
HPE Smart Array Controllers
hese are traditional RAID controllers that manage SAS and SATA drives, providing data protection and performance optimization through various RAID levels. They are widely used in HPE servers for reliable storage management.
HPE Flexible Smart Array Controllers
A subset of Smart Array Controllers, these are designed to be modular and do not occupy a PCIe slot in your server. They are compatible with a variety of storage media, including SAS and SATA hard drives, SSDs, and NVMe drives. This flexibility allows for efficient use of server resources and adaptability to different storage requirements.
HPE Tri-Mode Array Controllers
These advanced controllers support SAS, SATA, and NVMe drives simultaneously, offering greater flexibility and performance. They are ideal for environments that require a mix of different storage types, enabling seamless integration and management.
HPE Flexible Tri-Mode Array Controllers
Combining the modular design of Flexible Smart Array Controllers with the versatility of Tri-Mode support, these controllers manage SAS, SATA, and NVMe drives without occupying a PCIe slot. This design maximizes server expansion capabilities and provides a comprehensive storage solution.
HPE DL360 Gen10 M.2 Drives
Below are the 3 ways to install M.2 Drives on the DL360 Gen10 Plus Rack Server by HPE.
NVMe Boot Devices are only supported in UEFI mode.
HPE DL36X Gen10 Plus x16/x8 M.2 NS204i-r Riser (P26463-B21)
HPE NS204i-p NVMe PCIe3 OS Boot Device (P12965-B21)
HPE Universal SATA AIC HHHL M.2 SSD Kit (878783-B21)For any major release beyond VMware ESXi 7.x, VMware will require M.2 or another local persistent device as the standalone boot option.
HPE DL360 Gen10 PCI Risers

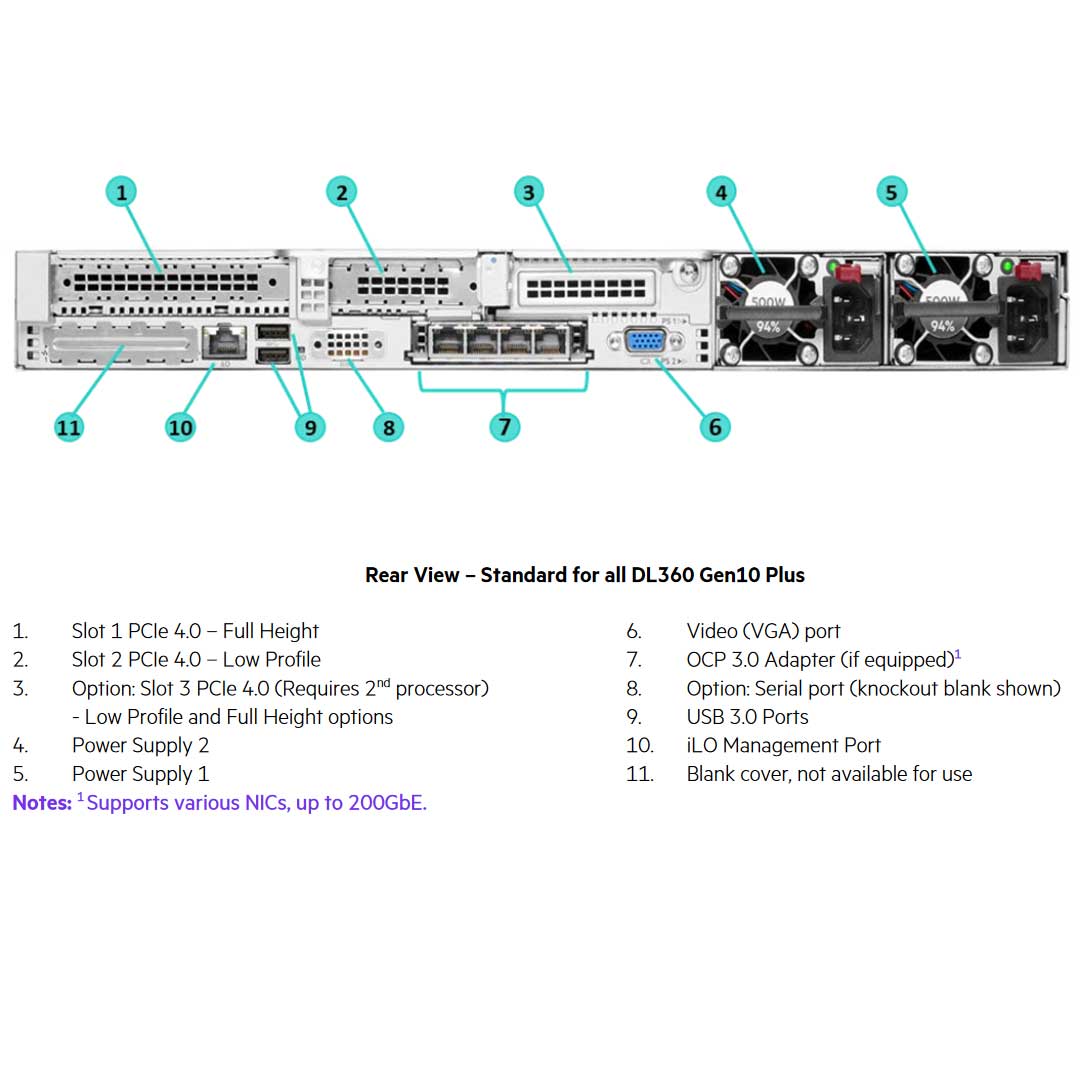

The DL360 Gen10 Plus Rack Server has 2 riser cages and 3 PCIe slots. The first riser cage is a butterfly riser composed of Slots 1 and 2. The secondary slot can only be installed on a 2P configuration and rules apply to the Full Height Secondary Riser when installed.
When the Secondary Riser Full Height Kit is installed, the primary PCIe Slot #2 cannot be used. Only 2 full height slots are supported. Also, when a second full-height card is installed on slots 2 or 3, then an LH storage controller (low-profile heatsink) should be ordered to allow it to fit in the server.
Riser Card Options:
- Primary Riser Kit GPU | P31228-001
- Primary Riser Kit M.2 NS204i-r | P26463-B21
- Primary Riser Kit 2 NVMe | P26465-B21
- Secondary Riser LP Kit | P26471-B21
- Secondary Riser FH GPU Kit | P26467-B21
| Riser Information | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Description | Riser Position | Slot Bus Width (Gen4 Lanes) | GPU Support | NVMe Direct Connect | M.2 Connections | ||||
| Primary | Secondary | #1 | #2 | #2 | Connectors | Max SSDs | ||||
| P31228-001 | HPE DL360 Gen10 Plus x16/x16 Primary GPU Riser |
Default | N/A | x16 | x16 | N/A | Y | N/A | N/A | N/A |
| P26463-B21 | HPE DL36X G10 Plus x16/x8 2x M.2 NS204i-r Primary Riser |
Optional | N/A | x16 | x8 | N/A | Y (only slot 1, GPU Max 75W) | N/A | N/A | 2 |
| P26465-B21 | HPE DL36X G10 Plus 8 SFF x16/x8 2NVMe Primary Riser |
Optional | N/A | x16 | x8 | N/A | Y (only slot 1) | 1 | 2 | N/A |
| P26471-B21 | HPE DL360 Gen10 Plus x16 LP Secondary Riser Kit |
N/A | Optional | N/A | N/A | x16 | Y (GPU Max 75W) | N/A | N/A | N/A |
| P26467-B21 | HPE DL36x Gen10 Plus x16 FH GPU Secondary Riser Kit |
N/A | Optional | N/A | N/A | x16 | Y | N/A | N/A | N/A |
HPE DL360 Gen10 GPU / Workload Accelerator
All x16 PCIe Slots support GPU’s, The default primary Riser (P31228-001) and the secondary GPU riser (P26467-B21) have power slots on the riser.
If the secondary GPU riser is installed and you have a Flexible Storage Controller installed. You must make sure the Flexible Storage Controller is an LH Controller. Otherwise, the card will be touching the controller and they won’t fit.
OCP 3.0 - Network Choice (NC) Server
A Network Choice (NC) Server means the server does not have an embedded Network card. So, you have the choice of either an OCP 3.0 or a Stand-in PCI Card.
For the HPE ProLiant DL360 Gen10 Plus Rack Server, support for the OCP 3.0 card is limited. While the OCP 3.0 card provides an additional x8 PCIe 4.0 lanes to the OCP slot, it achieves this by utilizing unused connections from the AROC (Accelerated RAID-on-Chip) connectors, specifically in configurations without Flexible Storage controllers.
However, the OCP 3.0 card cannot be used with either the Smart Array-NVMe Adapter Kit (P38585-B21) or any Flexible Storage Controllers. These devices and the OCP 3.0 card share the same Type-A slot on the system board, which means only one can be installed at a time. The OCP 3.0 card uses this slot to supply the necessary x8 PCIe lanes to the OCP port, thereby making it incompatible with the Smart Array-NVMe Adapter Kit and Flexible Storage Controllers that would otherwise occupy this slot.

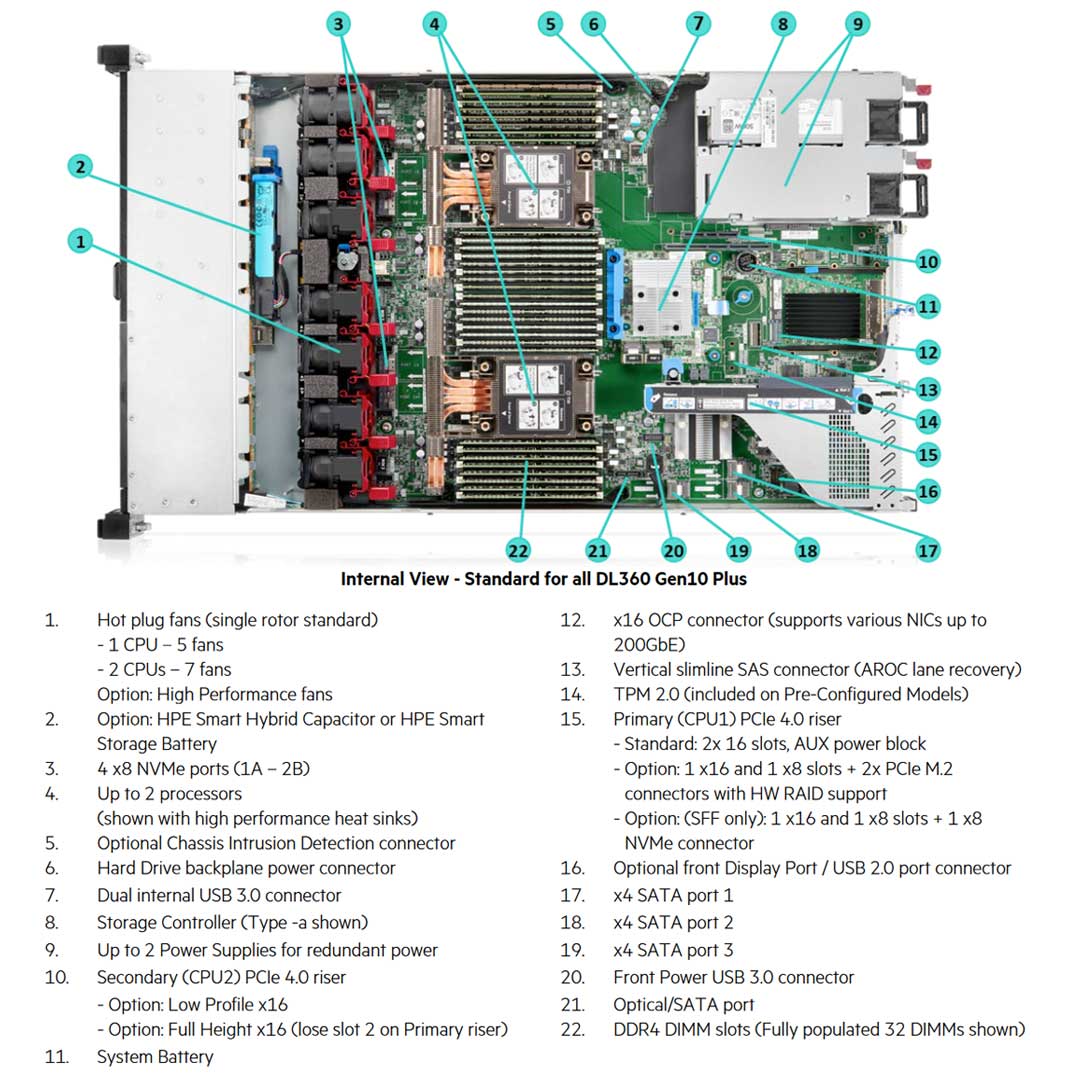

HPE DL360 Gen10 Cooling
The CTO server includes 5 standard fans. Dual processor configurations require 7 fans, either standard or high performance (dependent on processor model).
DIMM blanks kit (P07818-B21) is recommended with processor TDPs ranging from 150W to 225W and is required by processors that are 140W and below as well as 230W and above. This DIMM Blank kit acts as enhanced cooling not only for the processors but also for the Intel Optane 512GB persistent memory 200 Series for HPE (P23538-B21) as well.
The options below all require the High-Performance Fan Kit (P26477-B21) which comes with 7 fans.
- Processors with TDP equal to or greater than 205W
- Intel Optane 512GB persistent memory 200 Series for HPE (P23538-B21)
- Primary Riser x16/x8 2x M.2 NS204i-r (P26463-B21)
- Primary Riser x16/x8 2x NVMe (P26465-B21)
- 100GbE or greater NICs/HBAs
- Accelerators
- 24G SAS drives
- NVMe SSDs
| Cooling Options Summary | ||||
|---|---|---|---|---|
| CPU TDP (Watts) | 85W - 140W | 150W - 195W | 205W - 225W | 230W - 270W |
| Heatsink | Standard (P37863-B21) |
High Performance (P26479-B21) |
High Performance (P26479-B21) |
High Performance (P26479-B21) |
| Fans | Standard (5 included on base server, P37861-B21 for 2P configs) |
Standard (5 included on base server, P37861-B21 for 2P configs) |
High Performance (P26477-B21) |
High Performance (P26477-B21) |
| DIMM Blanks | Required (P07818-B21) |
Recommended (P07818-B21) |
Recommended (P07818-B21) |
Required (P07818-B21) |
HPE DL360 Gen10 Flex Slot your power!
Mixing of 2 different power supplies is NOT supported.
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Plus Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.
HPE DL360 Gen10 Lights Out! iLO
HPE Integrated Lights-Out (HPE iLO)
Monitor your servers for ongoing management, service alerting, reporting, and remote management with HPE iLO.
UEFI
Configure and boot your servers securely with industry-standard Unified Extensible Firmware Interface (UEFI).
Intelligent Provisioning
Hassle-free server and OS provisioning for 1 or few servers with Intelligent Provisioning.
RESTful API
iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards..
More Info
“U” processors (i.e. 6314U, 6312U) only supported in single socket configurations.
Mixing of 3DS and non-3DS DIMMs not allowed.
Load Reduced 3DS Smart Memory P06039-B21 and 512GB persistent memory P23538-B21 Requires High Performance Fan Kit (P26477-B21) and DIMM blanks kit (P07818-B21).
The x1 Tri-Mode 24G U.3 BC Backplane Kit (P26431-B21) does not support Direct Attached NVMe drives.
NVMe Adapter Kit, OCP x16 Enablement kit, and Flexible Storage controllers all use the same system port. Only one of these can be installed at any one time.
