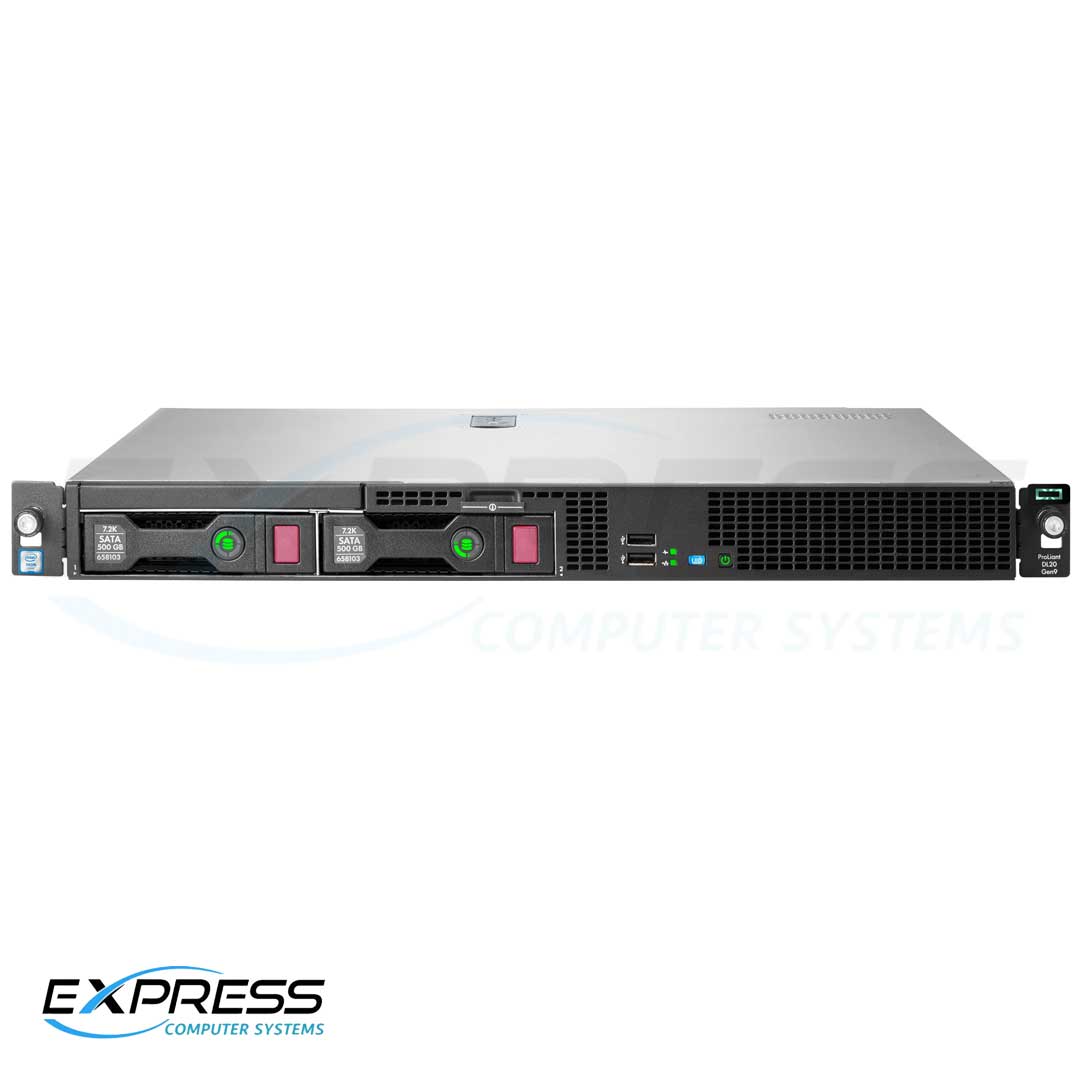

Hpe Proliant Dl20 Gen9 Rack Server 2Lff Chassis | 819785-B21

SKU: 819785-B21

Hpe Proliant Dl20 Gen9 Rack Server 2Lff Chassis | 819785-B21

Name: Hpe Proliant Dl20 Gen9 Rack Server 2Lff Chassis | 819785-B21
Brand: HPE
SKU: 819785-B21
Availability: InStock

HPE

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

What's New for the 1U DL20 Gen9

(1) Intel Xeon E3-1200v6 or v5
(4) 2400MT/s DDR4
Max Memory 64GB
(2) PCIe Gen3.0 slots
Supports up to (4 SFF) Drives
HPE Dynamic Smart Array B140i (RAID: 0, 1, 10, 5 SATA)
Optional FlexibleLOM slot on riser
HPE iLO4 2.3

Other Versions:

Ideal for:

Cloud Servers
Corporate IT

The dense and compact HPE ProLiant DL20 Gen9 Server powered by Intel Pentium, Core i3 and E3-1200 v5/v6 processors provides a unique blend of enterprise-class capabilities at a great value-making it an ideal rack server platform for growing businesses and service providers. It offers outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point.

The refurbished DL20 Gen9 Server offers a range of HPE Qualified Options to fit most needs like affordable drives for light workloads, solid state drives for the demanding requirements, from a single non-hot plug power supply to an efficient HPE Hot Plug Redundant Power supply, from multiple storage controllers to the HPE FlexibleLOM networking cards-helping customers find the right configuration for their workloads.

CTO Configuration Support

Need help with the configuration? Contact us today!

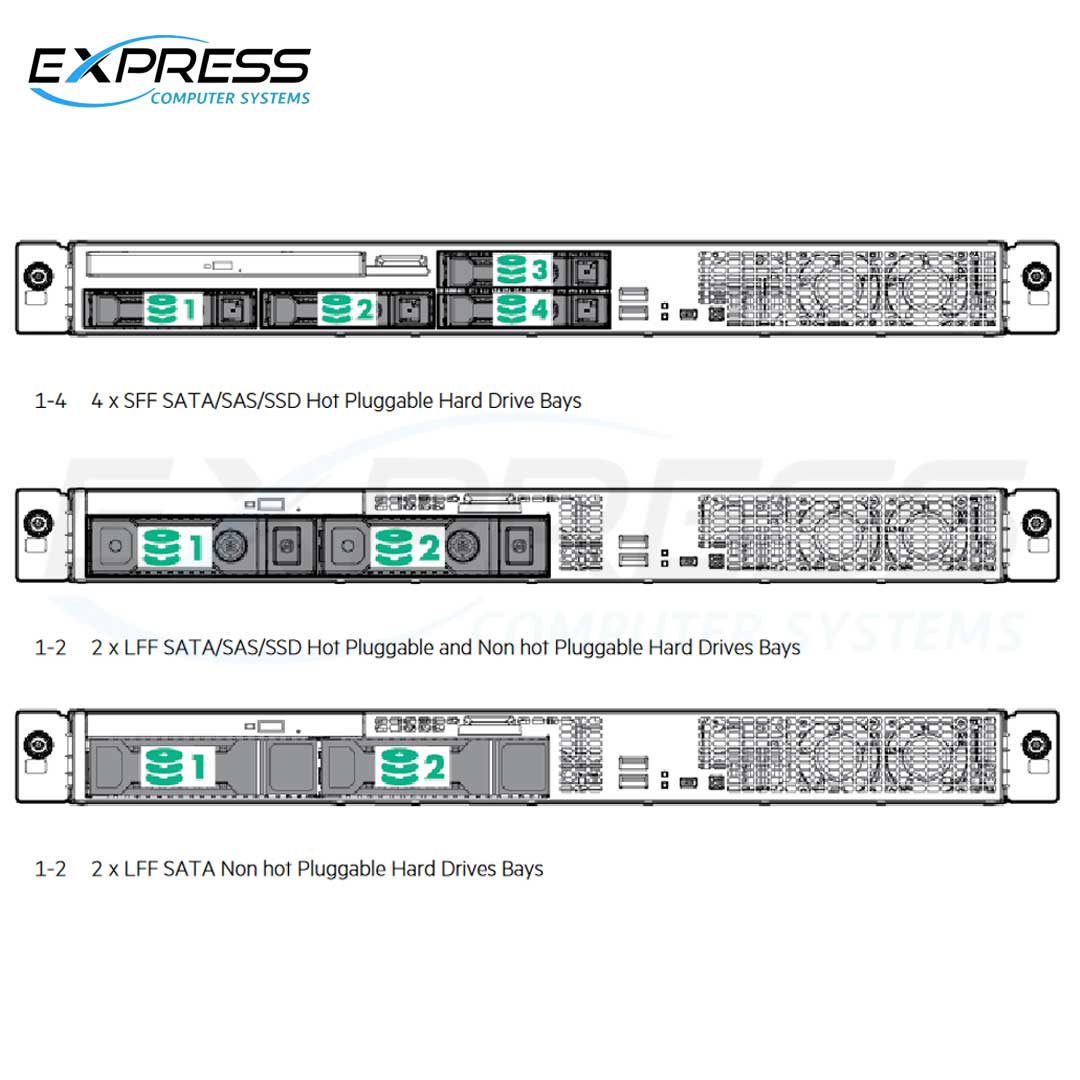

HPE DL60 Chassis Options | (4 SFF) Drives

The HPE DL20 Rack Server is not very large in its 1U configuration. That’s why it can only hold up to (2) LFF drives and up to (4) SFF drives. The DL20 Rack server has three configuration to choose from. Below are the options.

DL20 Gen9 Cabled 2 LFF | 819785-B21

DL20 Gen9 Hot Plug 2 LFF | 819785-B21

DL20 Gen9 4 SFF | 819785-B21

CTO Server [Chassis]	HPE ProLiant DL20 Gen9 Non-hot Plug 2LFF Configure-to-order Server	HPE ProLiant DL20 Gen9 2LFF Configure-to-order Server	HPE ProLiant DL20 Gen9 4SFF Configure-to-order Server
SKU Number	819784-B21	819785-B21	819786-B21
Processor	1	1	1
DIMM Slots	4 DIMM slots for UDIMM DDR4 Memory
Storage Controller	HPE Dynamic Smart Array B140i
PCIe	2 PCIe 3.0 Slots
Drive Cage - included	2LFF Non Hot Plug	2LFF Hot Plug	4SFF Hot Plug
Network Controller	HPE embedded 1Gb 2-port 332i network Adapter
Fans	3 non hot plug, non-redundant
USB	2 front, 1 internal, 2 rear
Ears	HPE Thumbscrew Ears

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Product features

Feature

Description

Processor (One of the following depending on model)

Model	CPU frequency	Cores	L3 Cache	Power	DDR4 Hz
G4400	3.3 GHz	2	3MB	54 W	2133
G4500	3.5 GHz	2	3MB	51 W	2133
i3-6100	3.7 GHz	2	3MB	51 W	2133
E3-1220v5	3.0 GHz	4	8MB	80 W	2133
E3-1225v5	3.3 GHz	4	8MB	80 W	2133
E3-1230v5	3.4 GHz	4	8MB	80 W	2133
E3-1240v5	3.5 GHz	4	8MB	80 W	2133
E3-1270v5	3.6 GHz	4	8MB	80 W	2133
E3-1280v5	3.7 GHz	4	8MB	80 W	2133
G4560	3.5 GHz	2	3MB	54 W	2400
i3-7300	4.0 GHz	2	3MB	51 W	2400
E3-1220v6	3.0 GHz	4	8MB	72 W	2400
E3-1225v6	3.3 GHz	4	8MB	73 W	2400
E3-1230v6	3.5 GHz	4	8MB	72 W	2400
E3-1240v6	3.7 GHz	4	8MB	72 W	2400
E3-1270v6	3.8 GHz	4	8MB	72 W	2400
E3-1280v6	3.9 GHz	4	8MB	72 W	2400

Chipset (One of the following depending on model)

Intel C232 chipset

On system management chipset

HPE iLO (Firmware HPE iLO4 2.3) 4GB NAND

Memory protection

ECC

Memory

Type	DDR4 Unbuffered (UDIMM)
DIMM Slots available	4 (4 DIMM slots per processor; 2 channels per processor, 2 DIMMs per channel)
Maximum capacity (UDIMM)	64GB (4 x 16GB UDIMM 2133 MHz)

Network controller

HPE Ethernet 1Gb 2-port 332i Network Adapter or BCM5720

The HPE ProLiant DL20 Gen9 server offers the user a dual-port NIC standard with the option toupgrade with a variety of networking options

Storage controller (One of the following depending on model)

Entry models	HPE Dynamic Smart Array B140i controller
Base models	HPE Dynamic Smart Array B140i controller
Performance models	HPE H240 FIO Smart Host Bus Adapter (HBA)

Expansion slots

Dual side low profileriser

Expansion slots	Technology	Bus width	Connector width	Form factor
1	PCIe 3.0	X8	X8	Half length/half height
2	PCIe 3.0	X8	X8	Half length/full height

FlexibleLOM riser
Expansion slots	Technology	Bus width	Connector width	Form factor
1	Flexible LOM	X8	X8	Half length/half height
2	PCIe 3.0	X8	X8	Half length/full height

GPU riser
Expansion slots	Technology	Bus width	Connector width	Form factor
1	Flexible LOM	-	-	-
2	PCIe 3.0	x16	x16	Half length/full height

Internal storage devices

Optical drives	Ships standard in performance models Optional: DVD-ROM, DVD-RW
Hard drives	None ship standard
Hard drive bays	4 SFF Drive bays total with optical bay 2 LFF Drive bays total with optical bay

Power supply

HPE 290 W FIO power supply
HPE 900 W ac 240 V dc redundant power supply

Upgradeability

FlexibleLOM connector for 1 Gigabit or 10 Gigabit networking options
Up to 4 DIMM slots available for higher memory capacity
Up to 4SFF drive bays or 2LFF drive bays
HPE Smart Array or Smart HBA controller
Redundant power supply

NOTE: RPS is only compatible with DL20 SFF Chassis. Customer can upgrade from DL20 Gen9 on SFF chassis with 290W PSU to 900W redundant power supply

Maximum internal storage (One of the following depending on model)

Drives	Capacity	Configuration
Hot Plug SFF SAS	8TB	4 x 2TB
Hot Plug SFF SATA	8TB	4 x 2TB
Hot Plug LFF SAS	16TB	2 x 8TB
Hot Plug LFF SATA	16TB	2 x 8TB
Hot Plug SFF SAS SSD	15.36TB	4 x 3.84TB
Hot Plug SFF SATA SSD	15.36TB	4 x 3.84TB
Hot Plug LFF SATA SSD	15.36TB	4 x 3.84TB
Non Hot Plug LFF SATA	8TB	2 x 4TB

System fans

1P Model: 3 Fans (Non-redundant)

NOTE: DL20 Server has 3 fans, 2 front fan assemblies and 1 center fan assembly which ship standard, non-redundant

Interfaces

Video	1 Rear video connector
USB	5 USB Ports (Standard) Front: 2 x USB 2.0 Rear: 2 x USB 3.0 Internal: 1 x USB 3.0
Micro SD slot¹	1 Micro SD
LOM Network ports²	2 x 1 GbE ports

NOTE:

The SD slot is not a hot-pluggable device. User should not attempt to plug an SD card into the SD slot while the server is powered.
Users can upgrade to next generation network (10 GbE) by installing a FlexibleLOM riser.

Industry standard compliance

Unified Extensible Firmware Interface Forum (UEFI)
PCIe 3.0
PXE Support
WOL Support
Microsoft logo certifications
USB 3.0 Support
ASHRAE A3

Graphics

Integrated Matrox G200 video standard

On board graphics: Integrated Matrox G200 video standard

1280 x 1024 (32 bp)
1920 x 1200 (16 bp)

HP iLO 4 On system management memory

16MB Flash
256MB DDR 3 with ECC (112MB after ECC and video)

HPE NVIDIA Quadro K2200 and M2000 GPU module

NOTE: Install GPU riser option to support GPU card. A GPU enablement kit 811271-B21 is mandatory to support GPU.

ServerUEFI/Legacy ROM

UEFI is an industry standard that provides better manageabilityand more secured configuration than the legacy ROM while interacting with users server at boot time

Secure boot
Operating system specific functionality
Support for > 2.2TB (Using GPT) Boot drives
USB 3.0 stack
Embedded UEFI shell
Mass configuration deployment tool using RESTful API for iLO 4
PXE boot support for IPv6 networks
Boot support for option cards that only support a UEFI option ROM
Network stack configurations

Security

Power-on password
Serial interface control
Administrator's password
TPM 1.2
APCI 2.0b
TPM 2.0

Form factor

1U Rack form factor (4SFF and 2LFF)
4SFF and 2LFF version
4.32 cm (1.70 in) Height x 38.22 cm (15.05 in) Depth x 43.46 cm (17.11 in) Length

NOTE: Depth of the chassis is measured from rear to ear at 15.05 inch. Depth from rear to bezel is 15.5 inch

Embedded management

HPE Integrated Lights-Out (HPE iLO)
- iLO Essentials
- iLO Scale-Out
- iLO Advanced
Unified Extensible Firmware Interface (UEFI)
RESTful API
Intelligent provisioning
Embedded remote support

Server utilities

Smart update
HPE Systems Insight Manager (HPE SIM)
Scripting tool kit and windows PowerShell
RESTful interface tool
HPE iLO mobile application
HPE Insight online

Security

Power-on password
Serial interface control
Administrator's password
UEFI
TPM 1.2
TPM 2.0
APCI 2.0b

Server management

HPE Insight control

HPE Insight control, lets user deploy, migrate, monitor, remote control, and optimize usersIT infrastructure through a single, simple management console

top

Software overview

Feature	Description
Operating systems and virtualization software support	Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware ClearOS
NOTE: VMware availability is dependent on general availability from the vendor. DL20 supports VMware 5.5U3 and 6.0 U1. ClearOS allows the user to build a fully functional server that is just right for the user at no upfront cost. It is available via CTO preload, Intelligent Provisioning or via download.

top

Physical specifications

Specifications	Description
Dimensions (H x W x D):	4 SFF 4.32 x 43.46 x 38.22 cm (1.70 x 17.11 x 15.05 in) 2 LFF 4.32 x 43.46 x 38.22 cm (1.70 x 17.11 x 15.05 in)
Weight (Approximate):	Non-Hot Plug 2 LFF fully loaded (All hard drives, power supplies, and processors installed): 7.88 kg (17.37 Ib) Hot plug 2LFF fully loaded (One hard drive, power supply, and processor installed): 7.9 kg (17.41 lb) 4 SFF Fully loaded: 8.7 kg (19.18 lb)

top

Electrical specifications

Specifications	Description
290 W Non-Hot plug power supply
Range input voltage	100 to 240 V ac
Rated input current	5.5 A Max (At 100 V ac)
Rated input frequency	50 to 60 Hz
Rated input power	550 W (At 100 V ac)
Maximum BTU rating	1130 BTU/hr (At 115 V ac) 1126 BTU/hr (At 230 V ac)
Power supply output	Rated steady-state power: 290 W Max Maximum peak power: 366 W Within 10 seconds
900 W Redundant power supply
Rated input voltage	100 to 127 V ac 200 to 240 V ac
Rated input frequency	50 to 60 Hz
Rated input current	6.3 A at 100 V ac 4.9 A at 200 V ac
Maximum rated input power	619 W at 100 V ac 976 W at 200 V ac
Maximum BTU rating (Non redundant)	2112 at 100 V ac 3329 at 200 V ac
Power supply output	Rated steady-state power: 550 W at 100 to 127 V ac input 900 W at 200 to 240 V ac input Maximum peak power: 550 W at 100 to 127 V ac input 900 W at 200 to 240 V ac input

top

Environmental specifications

Specifications

Description

Operating temperature

10° to 35°C (50° to 95°F)

Non-operating temperature

-30° to 65°C (-22° to 149°F)

Operating relative humidity

8% to 90% Non-Condensing

Non-Operating relative humidity

5% to 95% Non-Condensing

Operating altitude

3050 m (10,000 ft)

Non-Operating altitude

9144 m (30,000 ft)

Acoustic noise

LWAd	LpAm
Idle
Entry 3.7 B Base 3.8 B Performance 3.4B	Entry 20.0 dBA Base 20.0 dBA Performance 18.0 dBA
Operating
Entry 3.7 B Base 4.7 B Performance 5.6 B	Entry 20.0 dBA Base 30.0 dBA Performance 34.0 dBA
NOTE: Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

top

Safety certifications

Specifications	Description
FCC Rating	Class A
Normative standards	CISPR 22 EN55022 EN55024 FCC CFR 47, Pt 15 ICES-003 CNS13438 GB9254 K22;K24 EN 61000-3-2 EN 61000-3-3 EN 60950-1 IEC 60950-1

top

Spec Sheet 4

Technical specifications	HPE ProLiant DL20 Gen9 SErvEr
Compute	Choose from one Intel Xeon E3-1200 v5 or v6 Series, Up to 2 PCIe 3.0 slots
Memory	4 x DDr4, up to 2133 MHz (64 GB max)
Storage	HPE Dynamic Smart Array B140i, HPE Smart Array Controller P440 with FBWC, and HPE Smart HBA H240
HPE SmartDrives	2LFF Non hot-Plug & Hot Plug (SAS/SATA); 4SFF Hot Plug (SAS/SATA)
Networking	2 x 1GbE embedded Ethernet Adapter and FlexibleLOM
vGA/serial/USB ports/SD	2 rear USB 3.0, 2 front USB 2.0, and 1 internal USB 3.0
GPU support	One single-width, half-length GPU (optional)
On-premise management	HPE iLO 4 (Advanced/Scale-out/Essentials Optional)
On-cloud management	HPE Insight Online with enhanced mobile application
On-system management	HPE iLO 4, HPE Intelligent Provisioning, HPE System Update Manager (SUM), HPE RESTful Interface Tool
Power and cooling	Standard 290 W power supply; 900 W AC 240vDC redundant power supply (optional for SFF chassis only)
Industry compliance	ASHRAE A3, ENErGY STAr (only on RPS configuration models)*
Form factor/chassis depth	Rack (1U) 15.05" (ear to rear)
System rOM	UEFI and Legacy BIOS
System fan features	Depending on model SKU. Standard 2 fans, none-hot-plug. Optional 4 additional fans, hot-plug and N+1 redundancy Reference QuickSpecs for config. detail.
Network controller	HPE Ethernet 1Gb 4-port 369i Adapter
Storage controller	1 HPE Smart Array S100i and/or 1 HPE Smart Array P408i-a SR Gen10 and/or 1 HPE Smart Array E208i-a Gen10, depending on model. For detail reference QuickSpecs.
Product Dimensions (metric)	18.2 x 25.51 x 6.85 in
Weight	46.30 lb
Infrastructure management	HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard), HPE iLO Advanced, and OneView Advanced (optional)
Drive supported	24 SFF SAS/SATA HDD/SSD, or 16 SFF SAS/SATA HDD/SSD and 8 SFF NVMe SSD. 12 LFF SAS/SATA HDD/SSD or 12 LFF NHP SATA HDD, depending on model. Upgrade option kits are available.
