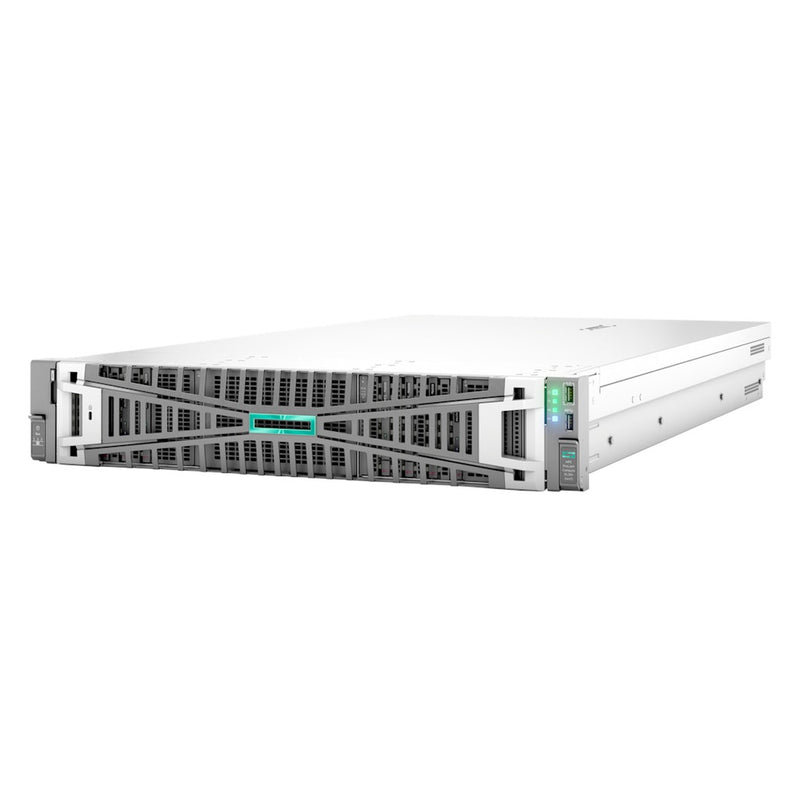

- 2U air-cooled HPE ProLiant Compute DL384 Gen12 – first HPE ProLiant rack server with the NVIDIA GH200 Grace Hopper™ Superchip
- Single GH200 or dual superchips with NVIDIA GH200 NVL2 (NVLink between the two GH200)
- Per superchip: NVIDIA Grace CPU with 72 Arm Neoverse V2 cores + NVIDIA Hopper GPU
- Up to 480 GB LPDDR5X + 144 GB HBM3e per superchip – up to 1248 GB coherent memory with dual superchips
- NVLink-C2C CPU-to-GPU bandwidth: 900 GB/s (1800 GB/s with GH200 NVL2)
- Up to 8 EDSFF E3.S NVMe Gen5 drives + up to 2 M.2 NVMe boot drives
- Up to 4 PCIe Gen5 x16 FHHL slots, or 2 FHHL + 2 OCP 3.0 (factory configuration)
- NVIDIA InfiniBand, Ethernet and BlueField DPU adapters
- Up to 4 HPE 1800W–2200W Flex Slot Titanium hot-plug power supplies
- 6 hot-plug redundant fans
- HPE iLO 6 with HPE Silicon Root of Trust
(Click to View)
The HPE ProLiant Compute DL384 Gen12 is a 2U NVIDIA GH200 platform optimized for AI inferencing of large language models that need large memory capacity, and for non-AI workloads such as large-scale simulation, EDA and weather forecasting. Every build starts with the CTO server plus one superchip kit (single GH200 or dual GH200 NVL2); the superchip kits include the enablement items for any supported configuration. The system is sold only as a completely factory-assembled server.
DL384 Gen12 CTO ServerP71411-B21
1P GH200 144GB EnableP71406-B21
2P GH200 NVL2 EnableP71407-B21
Factory configuration setting (choose one, set at the factory – not field-upgradeable):
- Single GH200: 2 PCIe + 2 EDSFF P72451-B21 (recommended) · 1 PCIe + 1 OCP + 2 EDSFF P72454-B21 · 1 PCIe + 4 EDSFF P72457-B21
- Dual GH200 NVL2: 4 PCIe + 4 EDSFF P72460-B21 (recommended) · 2 PCIe + 2 OCP + 4 EDSFF P72463-B21 · 2 PCIe + 8 EDSFF P72466-B21
CPU, GPU and memory are integrated on each superchip – there are no separately orderable processors or memory. The GH200 NVL2 option links two GH200 with NVLink for twice the memory and performance. Superchip table: QuickSpecs Standard Features.
- 72 Arm Neoverse V2 cores · 3.1 GHz base / 3.0 GHz all-core SIMD
- L2 1 MB per core · L3 114 MB
- 480 GB LPDDR5X · 512 GB/s
- 144 GB HBM3e · up to 4.9 TB/s
- NVLink-C2C CPU-to-GPU 900 GB/s
- FP64 34 TFLOPS · FP8 Tensor Core 3958 TFLOPS (with sparsity)
- 144 Arm Neoverse V2 cores
- L3 228 MB
- 960 GB LPDDR5X · 1024 GB/s
- 288 GB HBM3e · up to 9.8 TB/s
- NVLink-C2C CPU-to-GPU 1800 GB/s
- FP64 68 TFLOPS · FP8 Tensor Core 7916 TFLOPS (with sparsity)
The DL384 Gen12 is air cooled and populated with six dual-rotor, hot-plug redundant fans. Configurations that populate all available PCIe slots require a PCIe fan kit in slot 1, except dual superchip systems with 4x PCIe slots. Source: QuickSpecs Standard Features, User Guide Fan mode behavior / Network adapter guidelines.
Up to two M.2 NVMe SSDs install on the dual-slot M.2 pass-through module (2280 and 22110). M.2 is PCIe Gen3 and not in hardware RAID, so HPE recommends M.2 for boot drives rather than local cache. Boot can also be set in iLO to the EDSFF NVMe drives or network PXE. Source: QuickSpecs Internal Storage Devices.
480GB M.2 NVMeP80318-B21
960GB M.2 NVMeP80321-B21
960GB M.2 NVMe SEDP80327-B21
1.92TB M.2 NVMeP80324-B21
Up to 8 EDSFF E3.S NVMe Gen5 drives with dual GH200 NVL2. Each superchip supports 2 EDSFF drives standard, or 4 per superchip with the 4xEDSFF / 8xEDSFF factory settings (PCIe reduced to one slot per superchip). No drives ship standard; drive blanks are populated at the factory. Source: QuickSpecs Overview / Internal Storage Devices.
- No hardware RAID: hardware RAID controllers are not supported this generation for either the M.2 or EDSFF NVMe drives, and hot-pluggable drives are not supported.
- Single superchip: all drives are configured to the boot superchip.
- Dual superchip – Unbalanced P72469-B21: drives fill the first GH200 (up to 4) before the second.
- Dual superchip – Balanced P72472-B21: an even number of drives split equally across both GH200.
- Drives may be upgraded in the field; the factory maximum drive / PCIe / OCP layout is not field-upgradeable.
Rear OCP 3.0 slots 21/22 are available with the 1 PCIe / 1 OCP (single GH200) or 2 PCIe / 2 OCP (dual GH200) factory settings. HPE supports one north-south BlueField B3220 DPU (P66386-H21) and up to four east-west B3140H (P66387-H21) per server; other NIC and fabric adapters are supported up to four per server. 200/400Gb cards have supported ambient-temperature limits per configuration – see QuickSpecs. DAC or fiber transceivers and cables are purchased separately; for RJ-45 select SFP-to-RJ-45 adaptor 453154-B21.
10/25Gb 2p SFP28P42044-B21
100Gb 2p QSFP56P25960-B21
10/25Gb 2p OCP3P42041-B21
NDR200 200Gb 1pP45642-H23
NDR 400Gb 1pP45641-H24
XDR 1p OSFP CX8P79114-H21
XDR400 2p CX8P79115-H21
XDR Aux CardP81264-H21
DPU B3220 200GbP66386-H21
DPU B3140H 400GbP66387-H21
SFP to RJ-45453154-B21
- All riser slots are x16 PCIe5 Full Height Half Length, rated up to 75 W each.
- Primary riser: slots 1 and 2 · Secondary riser: slots 4 and 5 · slots 3 and 6 are not enabled.
- Single superchip systems have one or two available PCIe slots; dual superchip systems have two to four.
- Populate slots in order: Slot 4 > Slot 5 > Slot 1 > Slot 2.
- Riser/slot layout is set by the factory configuration setting (see Base Configuration).
HPE Flex Slot Titanium hot-plug power supplies, up to 96% efficiency with a standard C-14 inlet. Choose one C13 power cord per power supply. Source: QuickSpecs Step 2.
1800W–2200W TitaniumP44712-B21
Single GH200: two power supplies are sufficient; three provide 2+1 and four provide 2+2 redundancy.
Dual GH200 NVL2: four power supplies are required (3+1 redundancy).
- HPE Silicon Root of Trust
- UEFI Secure Boot and Secure Start
- TPM 2.0 embedded on the system board
- Dedicated 1Gb iLO management port
- iLO Service Port on the front for direct local access
- iLO RESTful API (Redfish conformant)
- RESTful Interface Tool and Scripting Tools
- HPE Active Health System
- Integrated Management Log (IML)
- Chassis intrusion detection switch connector
- HPE iLO 6 ASIC; iLO Standard with Intelligent Provisioning (embedded)
- Optional HPE iLO Advanced
- Most commonly used iLO features are enabled on this Arm server – see the iLO 6 User Guide for exceptions
- UEFI boot mode only (no Legacy mode) · rail kit ships standard
Current Configuration
(List below serves as quick links to each section)
Chassis
Superchip
Boot Options
Networking
Drives EDSFF
Power Supply Units | PSU
ECS Warranty
The request has been sent.
Thank you.
Price as Configured:
$0
Base Standard Capabilities
| Technical specifications | HPE ProLiant Compute DL384 Gen12 |
|---|---|
| Processor type | NVIDIA GH200 Grace Hopper™ Superchip |
| Processor family | NVIDIA Grace CPU and Hopper GPU |
| Processor number | 1 superchip, or 2 superchips with NVIDIA GH200 NVL2 |
| Processor core available | 72 Arm Neoverse V2 cores per superchip (144 cores with GH200 NVL2) |
| Processor speed | 3.1 GHz base / 3.0 GHz all-core SIMD (GH200) |
| Processor cache | 64 KB i-cache + 64 KB d-cache L1, 1 MB L2 per core, 114 MB L3 (228 MB with GH200 NVL2) |
| Memory type | LPDDR5X with ECC (CPU) and HBM3e (GPU), integrated on the superchip |
| Maximum memory | Up to 624 GB per superchip (480 GB LPDDR5X + 144 GB HBM3e); up to 1248 GB coherent memory with dual superchips |
| Memory slots | None - memory is integrated on the GH200 superchip |
| Memory protection features | Error-correction code (ECC) on LPDDR5X |
| Accelerators | One NVIDIA Hopper GPU per superchip with up to 144 GB HBM3e (up to 4.9 TB/s); NVLink-C2C 900 GB/s CPU-to-GPU (1800 GB/s with GH200 NVL2) |
| System fan features | 6 hot plug redundant fans |
| Expansion slots | Up to four PCIe Gen5 x16 Full Height Half Length (FHHL) slots, or up to two PCIe FHHL and two OCP 3.0, set by factory configuration |
| Form factor | 2U rack, air cooled |
| Network controller | Optional - NVIDIA Ethernet (PCIe and OCP 3.0), InfiniBand NDR/XDR and BlueField DPU adapters. See QuickSpecs for network card choices. |
| Storage controller | HW RAID controllers are not supported this generation for either the M.2 or EDSFF NVMe drives |
| Drive supported | Up to 8 EDSFF E3.S NVMe Gen5 drives (dual superchip) plus up to 2 M.2 NVMe boot drives |
| Power supply type | Up to 4 HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kits. Single GH200: 2+0, 2+1 or 2+2. Dual GH200 NVL2: 4 power supplies required (3+1). |
| Infrastructure management | HPE iLO Standard with Intelligent Provisioning (embedded) on HPE iLO 6; optional HPE iLO Advanced |
