Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Adapter Specs
- Technology: Mellanox ConnectX-3 Pro
- Port Type: Dual Port
- Data Transfer Speed: 10Gb/40Gb
- PCIe: 3.0x8 Mezzanine Card
-
Protocol:
- Ethernet
- Dual port FDR InfiniBand in HPE BLc7000 Platinum Enclosures
- Dual-port QDR InfiniBand
- Dual-port 40 Gb Ethernet
- Dual-port 10 Gb Ethernet

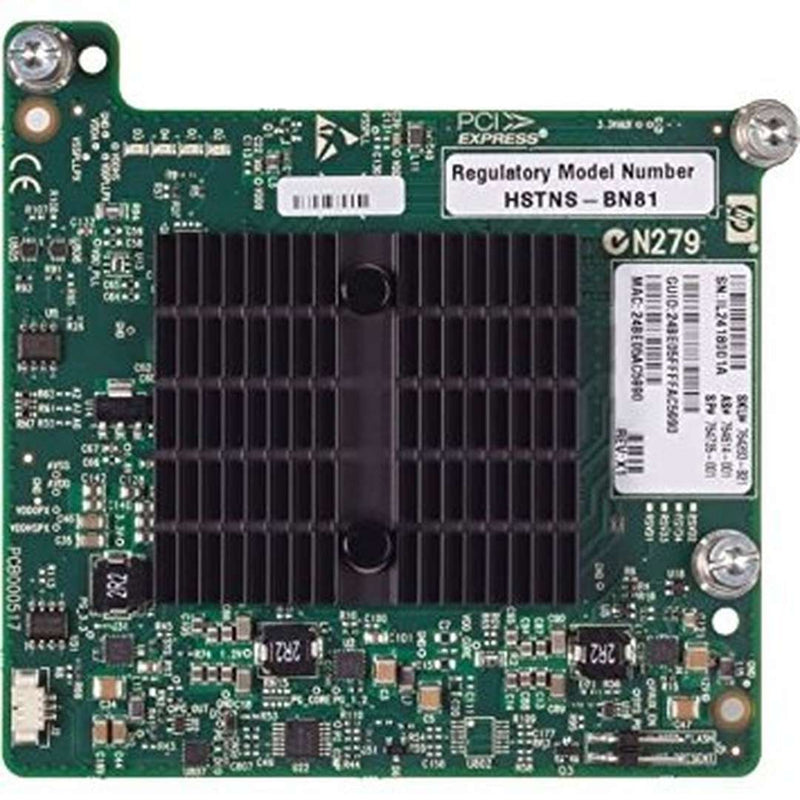

The 544+M Mezzanine adapters for HPE BladeSystem c-Class are based on the Mellanox ConnectX-3 Pro technology. The 544+M Mezzanine adapters utilize the PCI Express 3.0 x8 interface. The 544+M Mezzanine adapters are dual function adapters that are capable of support dual InfiniBand ports or dual Ethernet ports when connected to supported Ethernet switches in c7000 enclosure (a mix mode of one InfiniBand port and one Ethernet port is not supported on 544+M Mezzanine adapters).
InfiniBand FDR provides a data rate of 56 Gbps (gigabits per second), which is twice the speed of its predecessor, QDR (Quad Data Rate) InfiniBand. The higher data rate enables faster data transfers between HPC nodes and can improve the overall performance of HPC applications. The 544+M Mezzanine adapter are supported on HPE BladeSystem c-Class Gen 9 blade servers.
Performance Bandwidth:
- All ports on FDR HCA cards and switch are capable of supporting 56Gbps signaling rate, with a peak data rate of 52 Gbps in each direction.
- All ports on QDR HCA card and switch are capable of supporting 40Gbps signaling rate, with a peak data rate of 32 Gbps in each direction.
- The 544+M: Mellanox ConnectX-3 Pro
- HPE BL460c
- HPE BL660c
- HPE ws460c
