Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Comes with:
- Processors - 1 x 7313 (16-Core, 3.0 GHz, 155W)
- Memory - 32 GB RDIMM SR 3200 MT/s (1x 32 GB)
- Network Controller - INT I350 1GbE 4p BASE-T OCP3 Adptr plus choice of standup card
- Storage Controller - P408i-a
Notes: 8-Port modular Smart Array. - Hard Drive - None ship as standard
- Internal Storage - 8 SFF Chassis (upgradeable to 8SFF + 2 SFF front)
- Optical Drive Bay - Optional None ship as standard
- PCIe Slots - 2-slots (x16, x16) as standard
- Power Supply - 1x 800W HPE FlexSlot Power Supply
- Fans - 5 – Standard
- Management - Default: HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download) Optional (require licenses): HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced
- Energy Start - 3.0 certified
- Form Factor - 1U Rack, SFF Easy Install rails without CMA
Looking to Customize?
Not seeing the exact specs you need?
Start your build today with Express Computer Systems!
Start Customizing Today!
Base Standard Capabilities

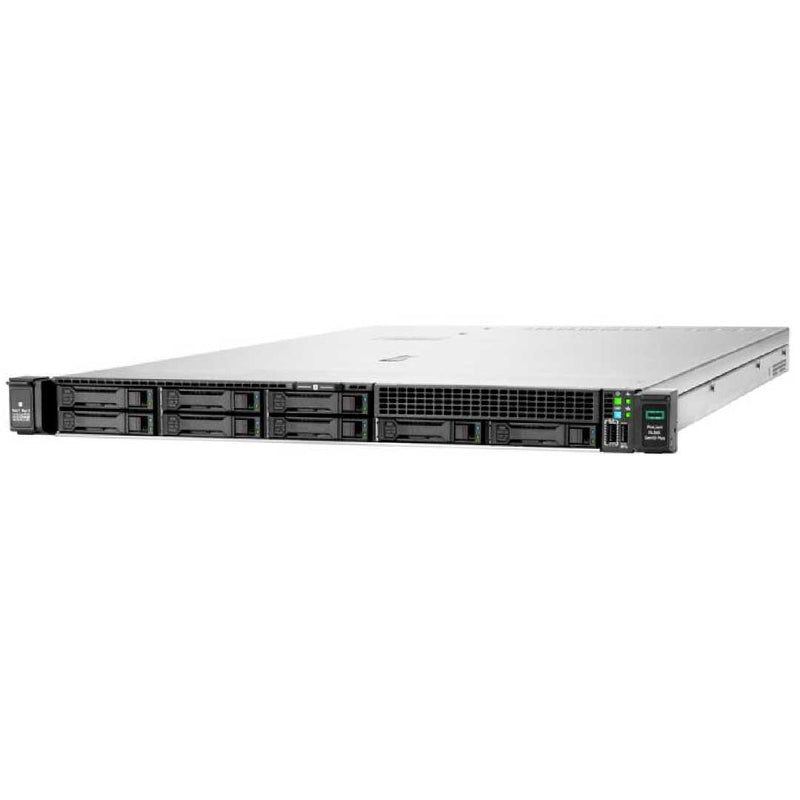

| Technical specifications | HPE ProLiant DL365 Gen10 Plus server |
|---|---|
| Processor name | 3rd Generation AMD EPYC™ Processors |
| Processor family | 3rd Generation AMD EPYC™ Processors |
| Processor core available | Up to 64, depending on processor |
| Processor cache | 128 MB, 256 MB or 768 MB L3 cache, depending on processor model |
| Power supply type | 2 Flexible Slot power supplies maximum depending on customer configuration |
| Expansion slots | 3, for detail descriptions refer to the QuickSpecs |
| Maximum memory | 8.0 TB with 256 GB DDR4 |
| Memory slots | 32 |
| Memory type | HPE DDR4 SmartMemory |
| Memory protection features | ECC |
| Network controller | Optional OCP and/or optional PCIe Network adapters, depending on model |
| Storage controller | HPE Smart Array SAS/SATA Controllers or Tri-Mode Controllers, refer to QuickSpecs for more details |
| Product Dimensions (imperial) | 1.69 x 17.11 x 29.21 in |
| Weight | 29.51 lb |
| Infrastructure management | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) HPE iLO Advanced (require license) |
| Drive supported | 8 SFF SAS/SATA/NVMe with optional 1x 2 SFF SAS/SATA or 1x 2 SFF NVMe |
